DORMER A52011.5

Product Code: A52011.5

$203.94$185.40 Ex. GST

Product Code: A52011.5 SKU A52011.5 Categories , ,
DORMER A52011.5

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

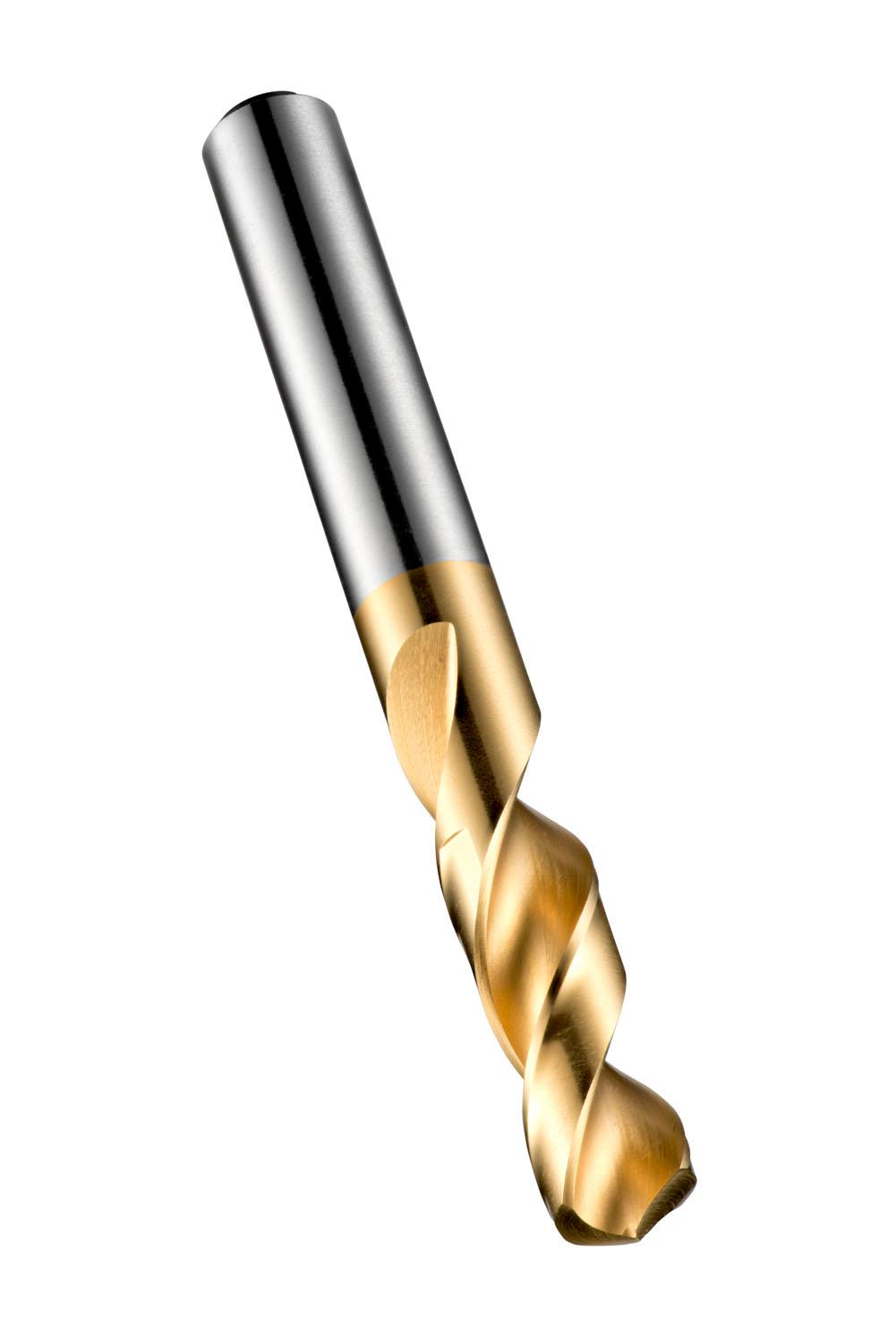

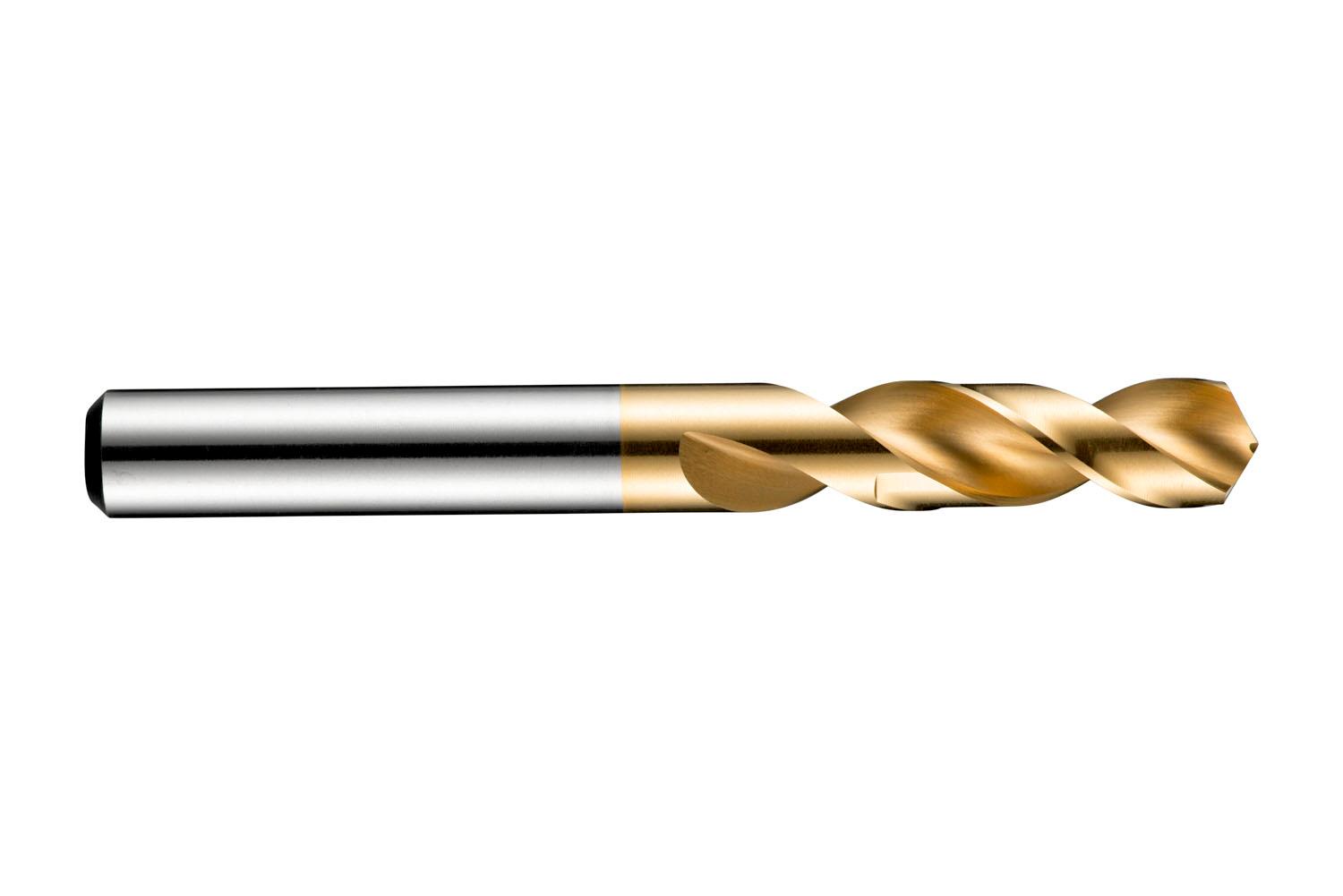

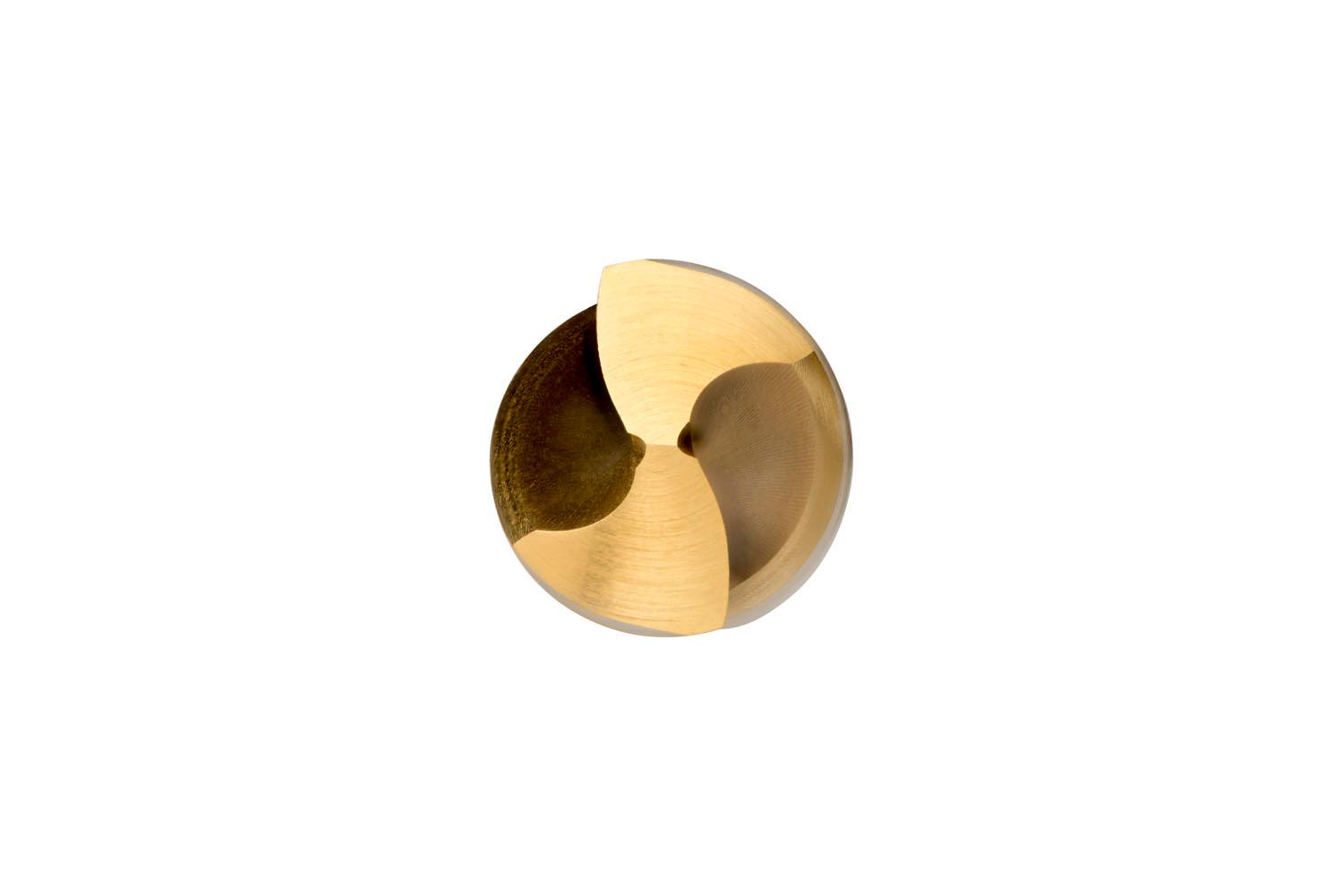

Stub length ADX drill with straight shank, diameter 11.5mm with an overall length of 95mm and flute length of 47mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.1980 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760038741
Product number (SAP): 86010477
Ordering code ANSI: A52011.5
Product Line: ADX
Gross weight – grams: 68

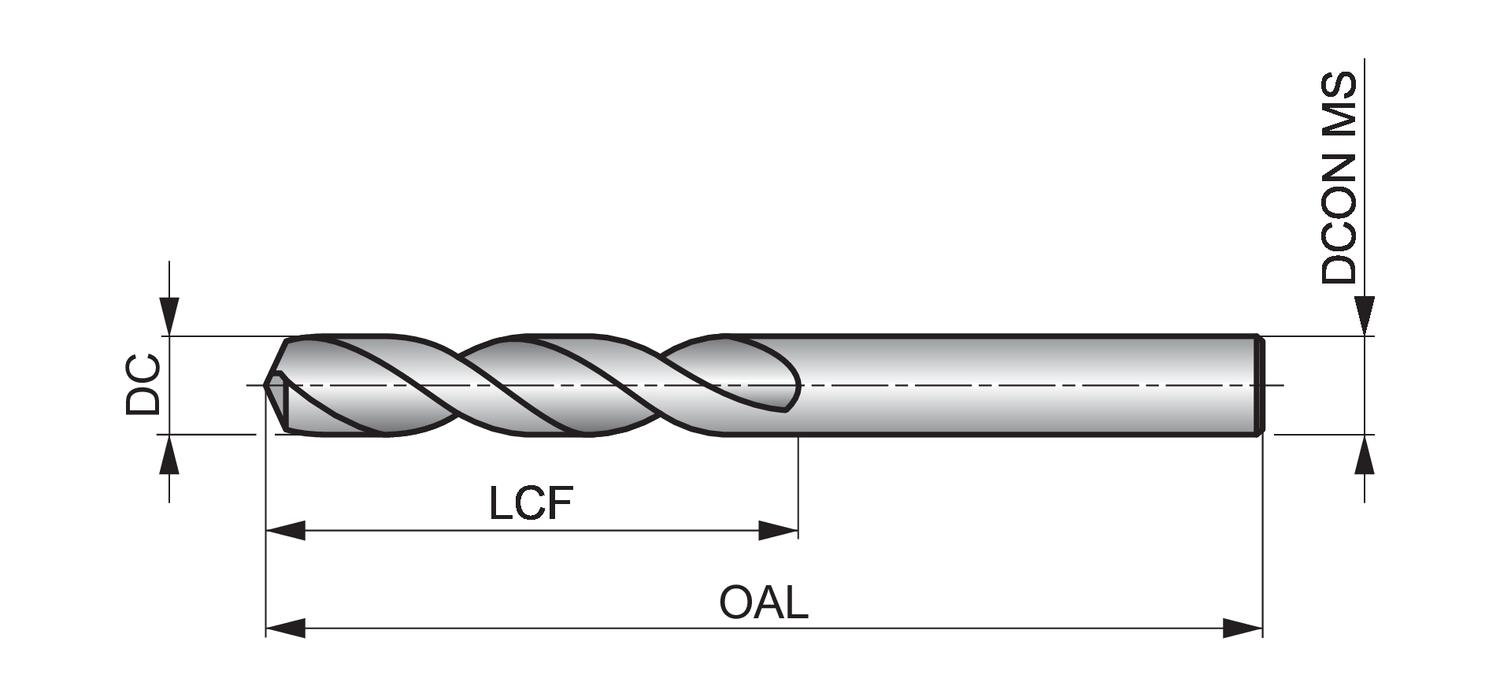

Cutting diameter – millimeter (DC): 11.5 mm
Cutting diameter – inch (DC): 0.4528 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 95 mm
Connection diameter – millimeter (DCON MS): 11.5 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: A52011.5

Brand

DORMER
