DORMER A52012.8

Product Code: A52012.8

$312.71$284.28 Ex. GST

Product Code: A52012.8 SKU A52012.8 Categories , ,
DORMER A52012.8

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

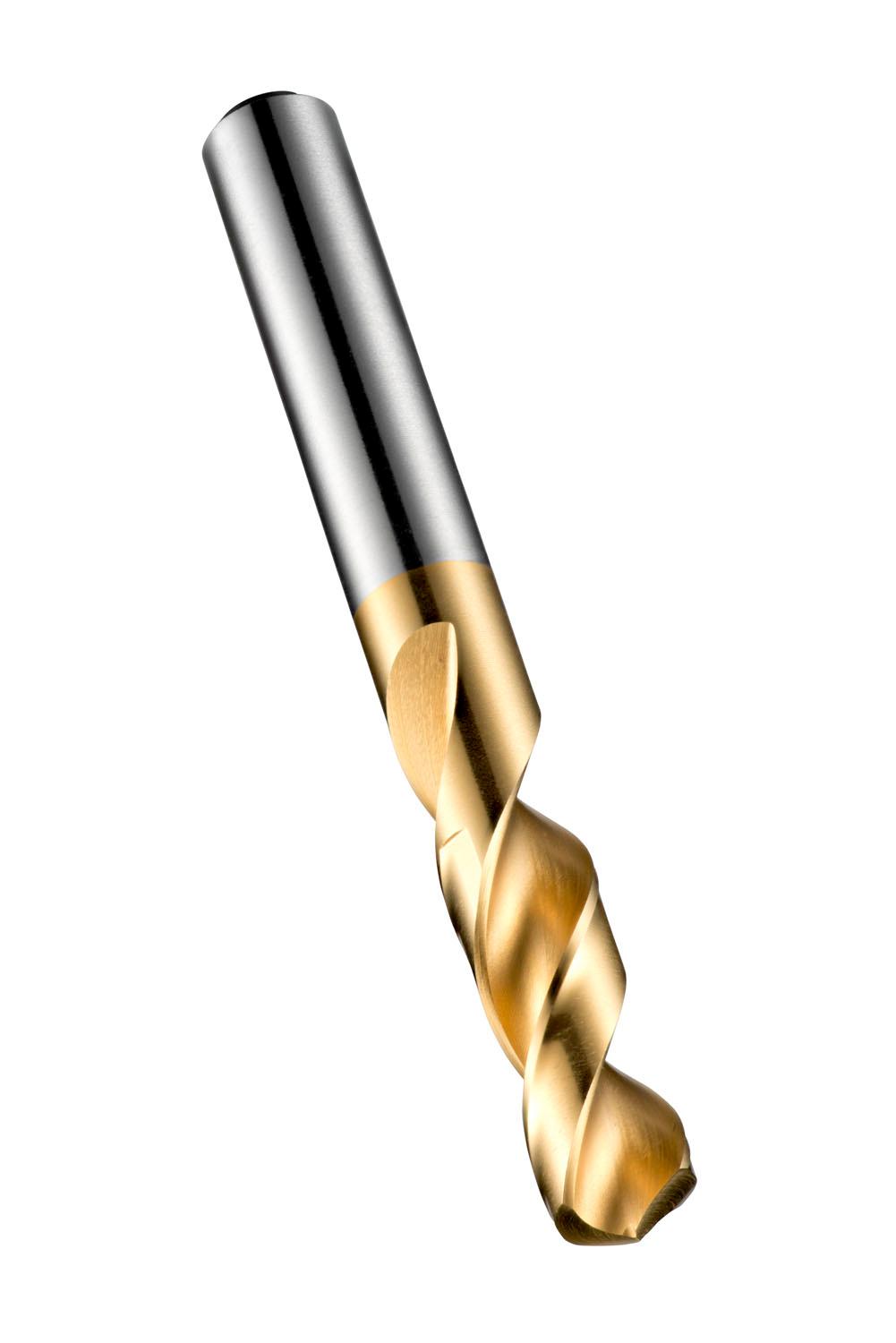

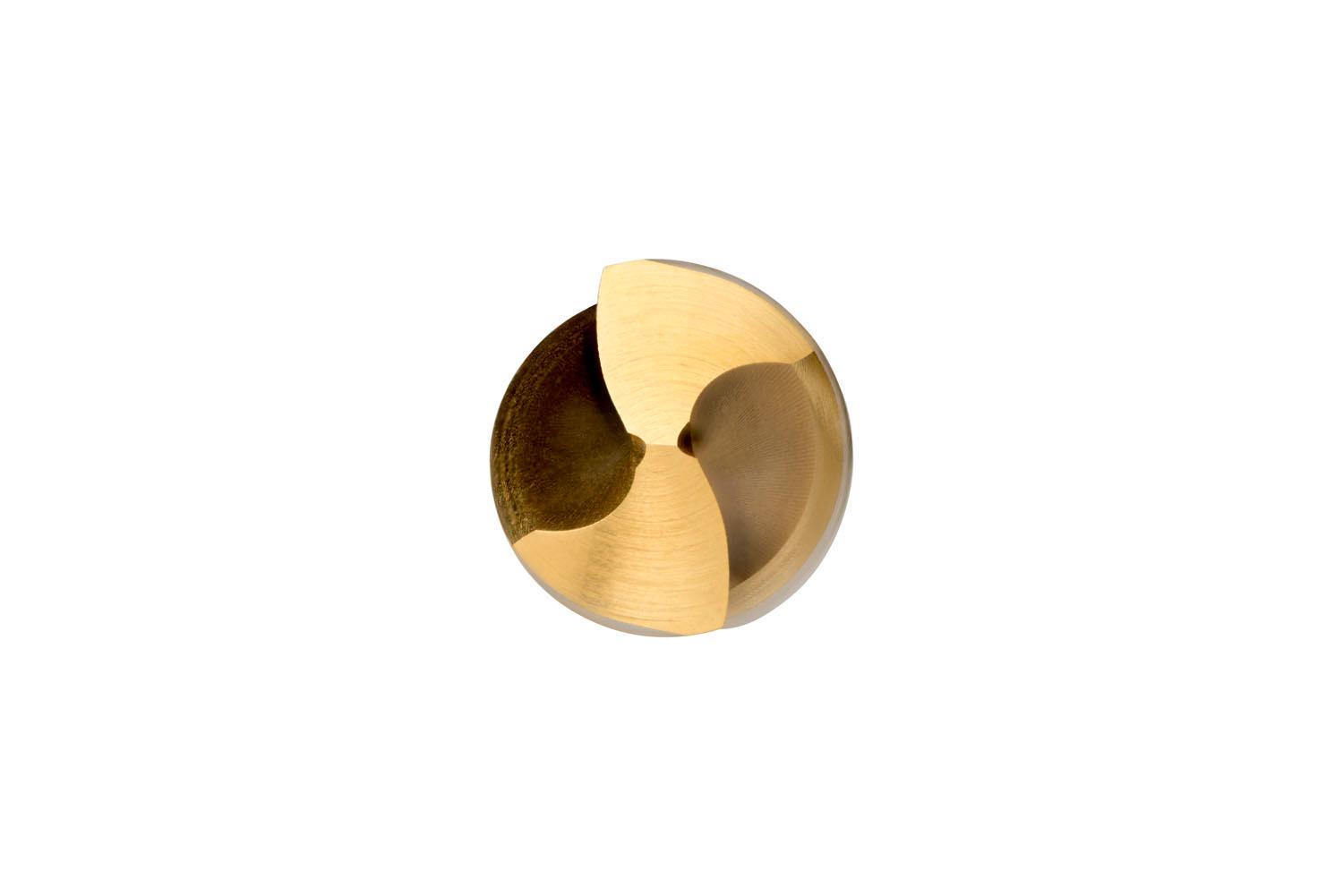

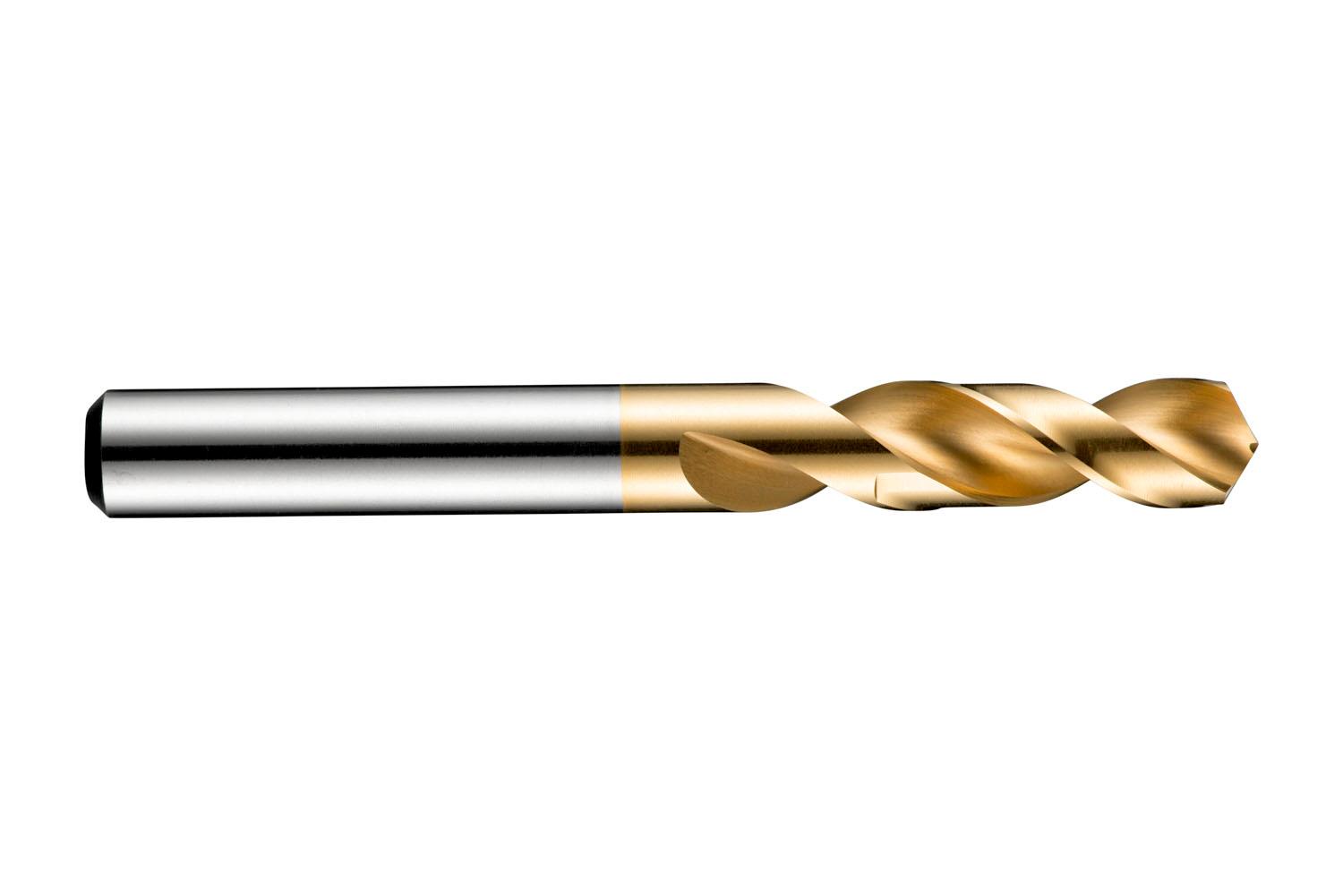

Stub length ADX drill with straight shank, diameter 12.8mm with an overall length of 102mm and flute length of 51mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.3036 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760038871
Product number (SAP): 86010492
Ordering code ANSI: A52012.8
Product Line: ADX
Gross weight – grams: 86

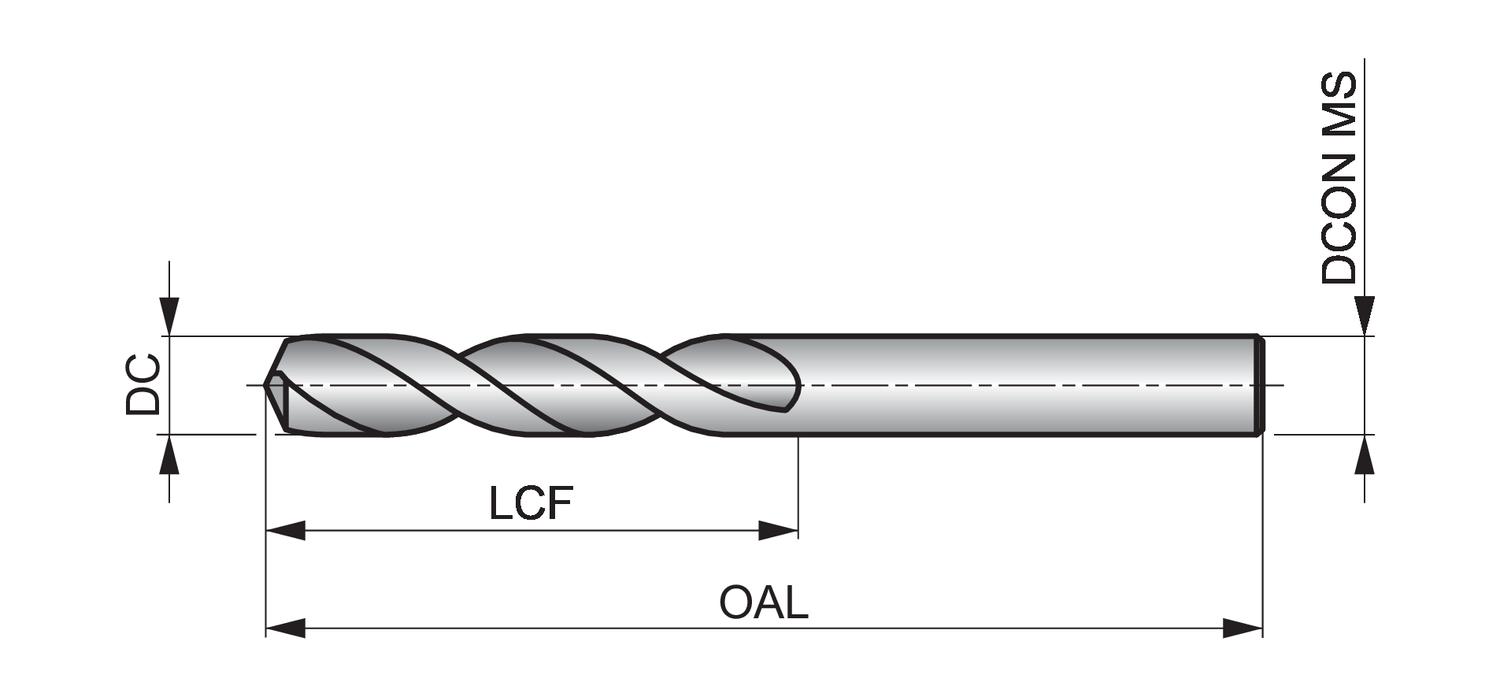

Cutting diameter – millimeter (DC): 12.8 mm
Cutting diameter – inch (DC): 0.5039 inch
Length chip flute – millimeter (LCF): 51 mm
Overall length – millimeter (OAL): 102 mm
Connection diameter – millimeter (DCON MS): 12.8 mm
Length chip flute – inch (LCF): 2.0079 inch
ISO: A52012.8

Brand

DORMER
