DORMER A52017/64

Product Code: A52017/64

$75.91$69.01 Ex. GST

Product Code: A52017/64 SKU A52017/64 Categories , ,
DORMER A52017/64

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

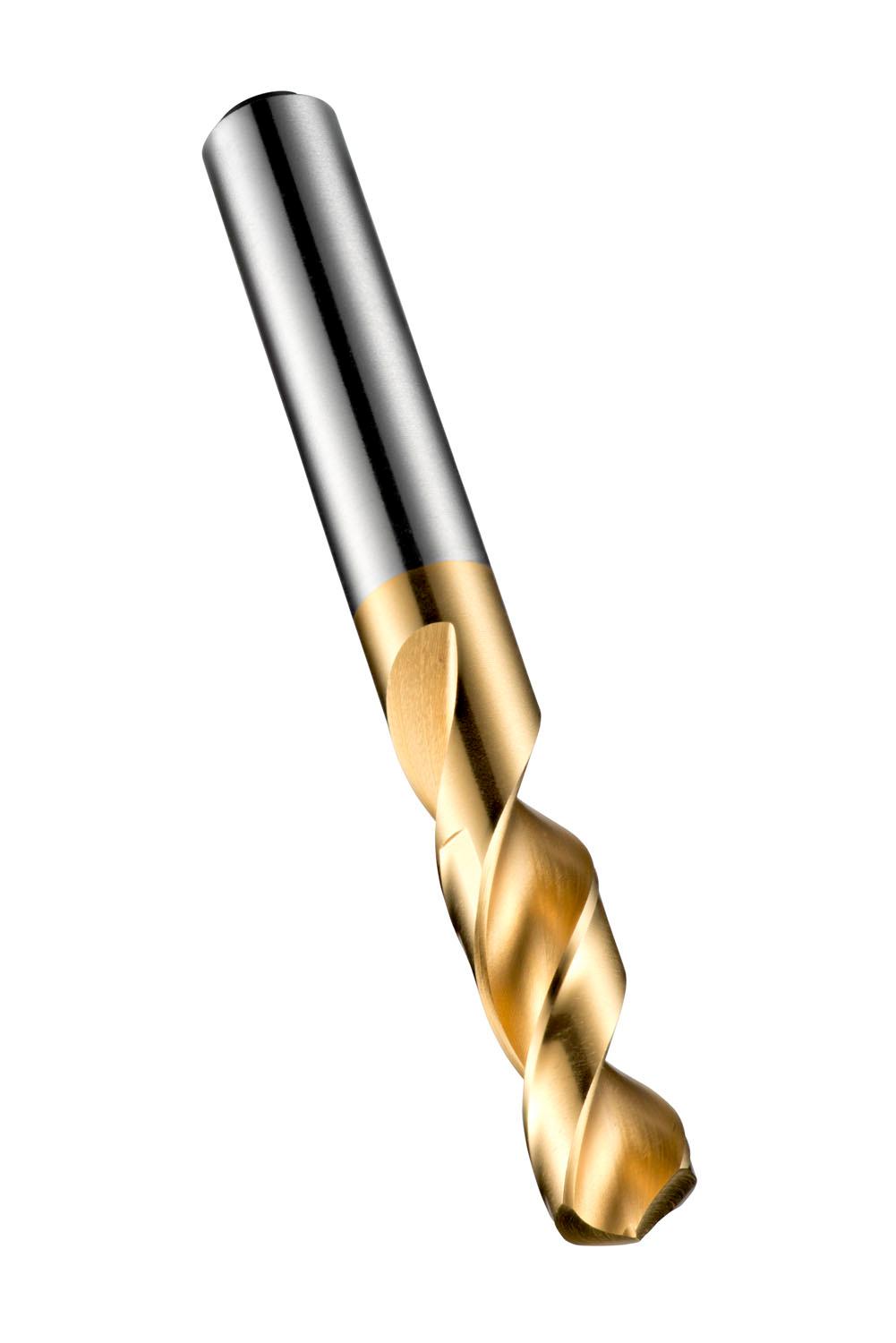

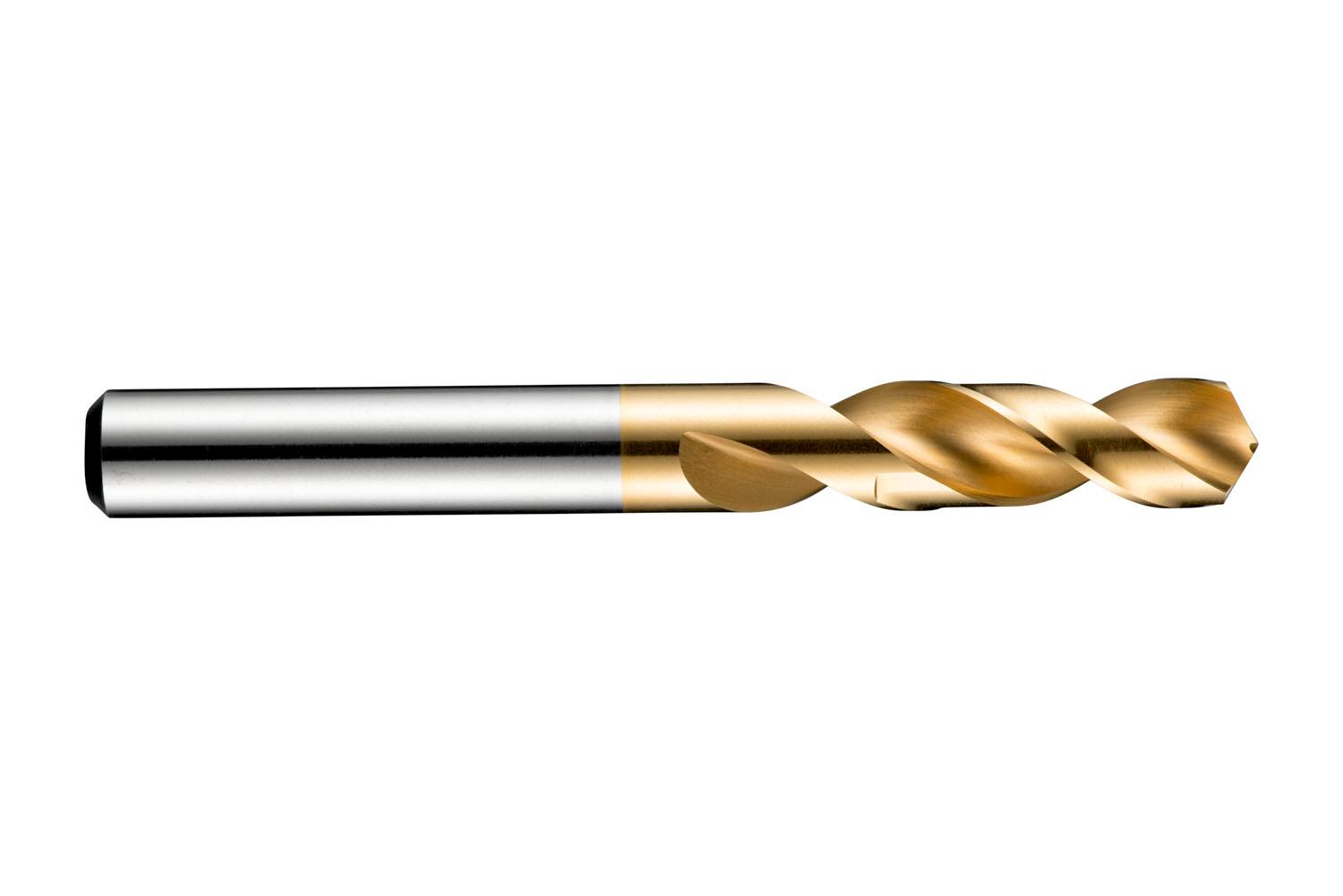

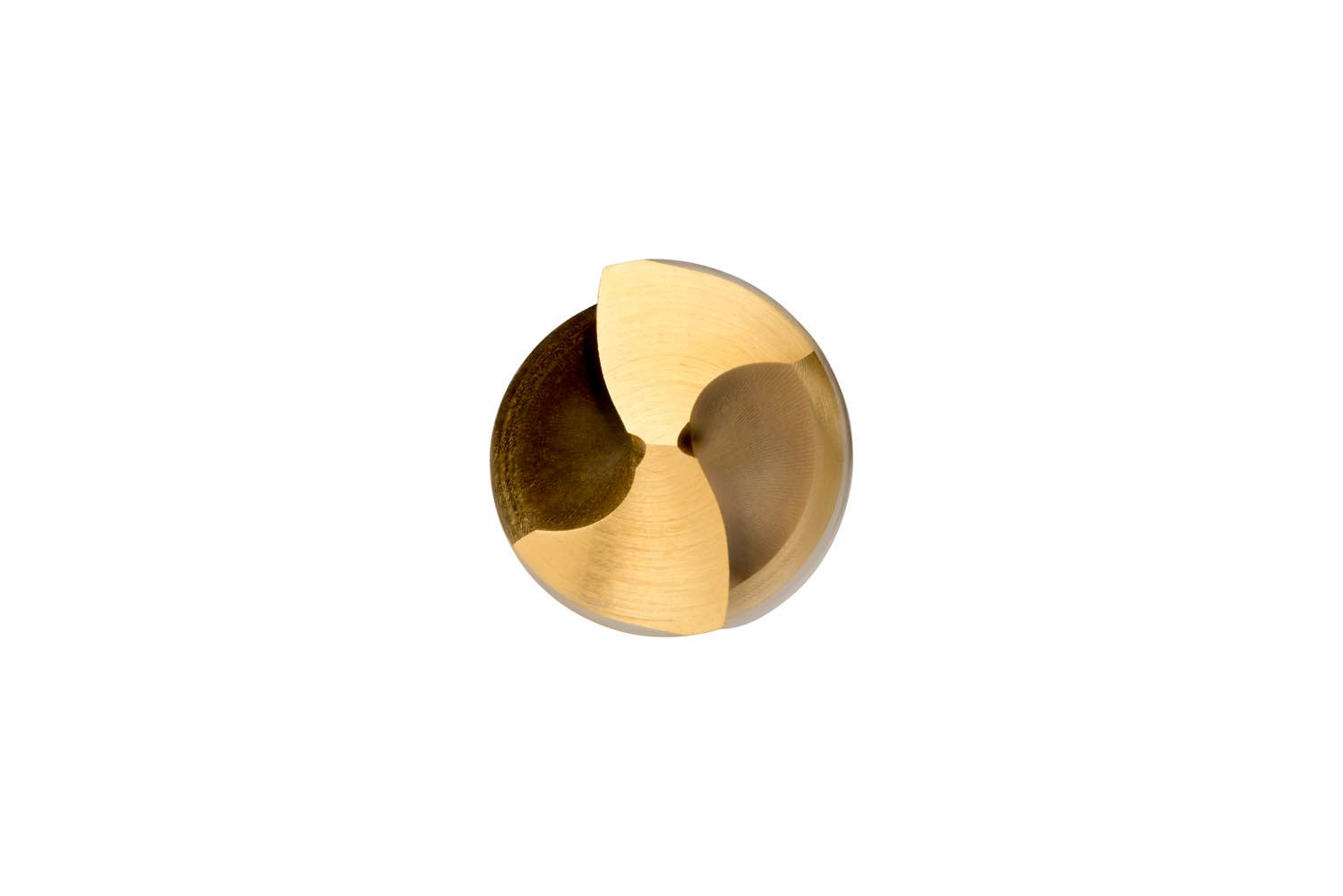

Stub length ADX drill with straight shank, diameter 0.2656″ (17/64) with an overall length of 74mm and flute length of 34mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0737 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760171356
Product number (SAP): 86010499
Ordering code ANSI: A52017/64
Product Line: ADX
Gross weight – grams: 19.2

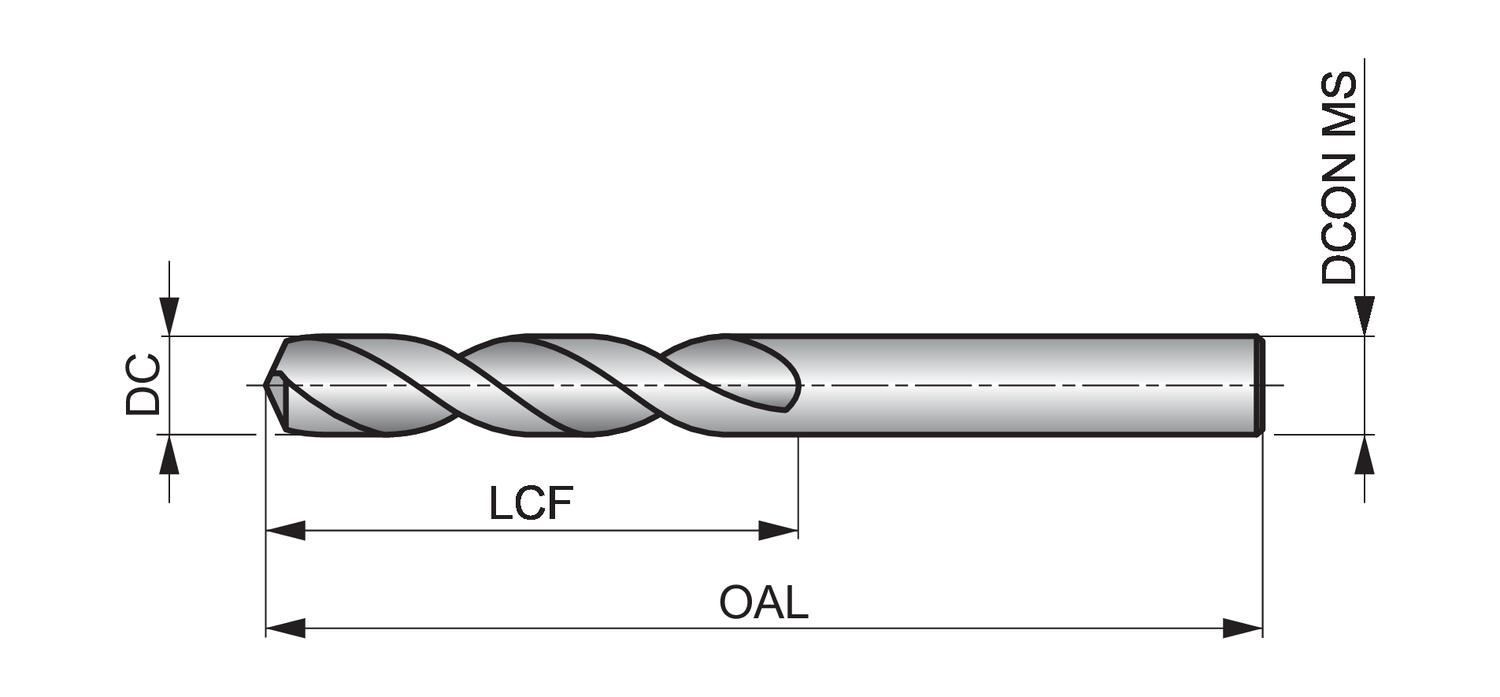

Cutting diameter – fractional inch (DC): 17/64
Cutting diameter – millimeter (DC): 6.75 mm
Cutting diameter – inch (DC): 0.2656 inch
Length chip flute – millimeter (LCF): 34 mm
Overall length – millimeter (OAL): 74 mm
Connection diameter – millimeter (DCON MS): 6.75 mm
Length chip flute – inch (LCF): 1.3386 inch
ISO: A52017/64

Brand

DORMER
