DORMER A5203.0

Product Code: A5203.0

$22.21$20.19 Ex. GST

Product Code: A5203.0 SKU A5203.0 Categories , ,
DORMER A5203.0

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

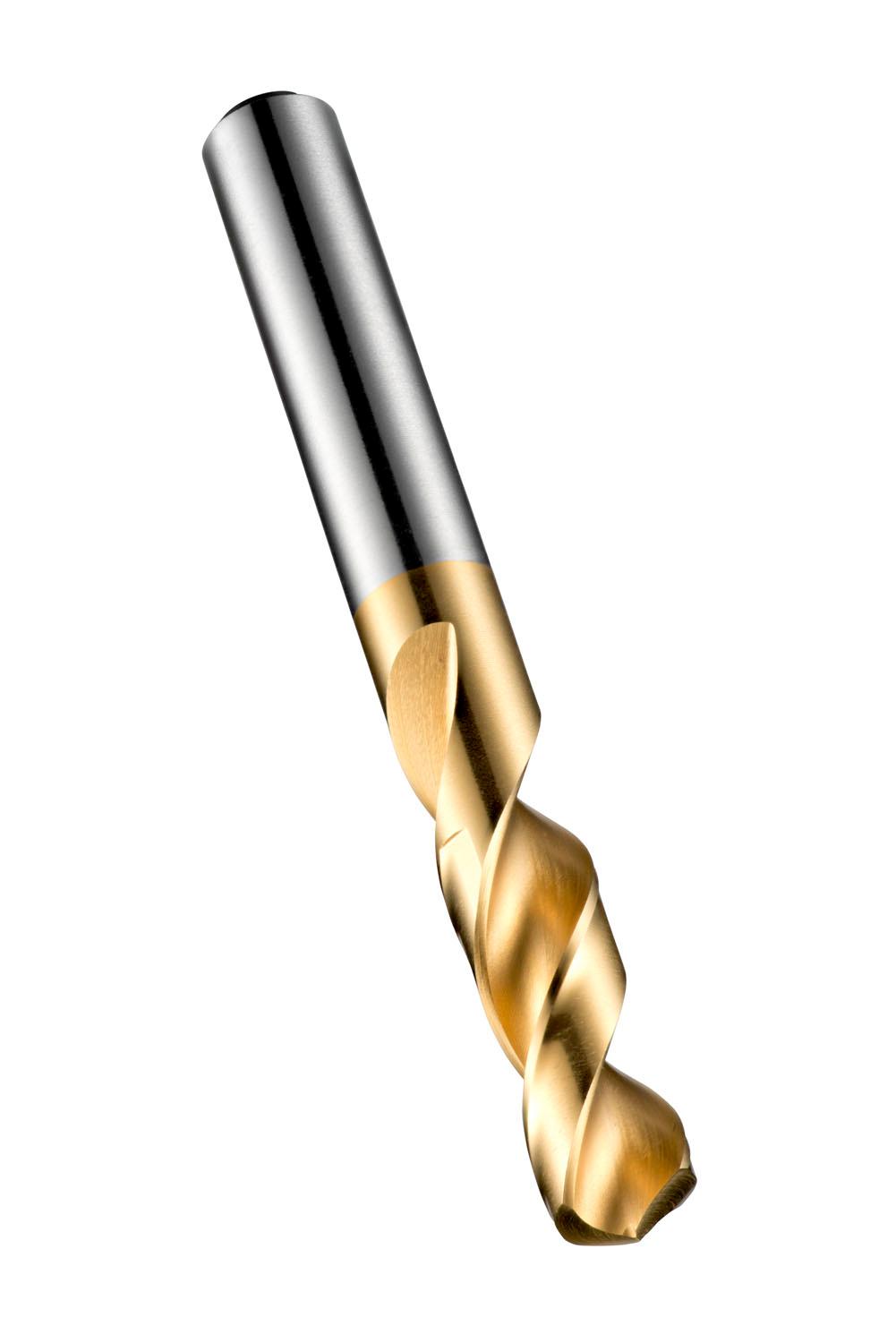

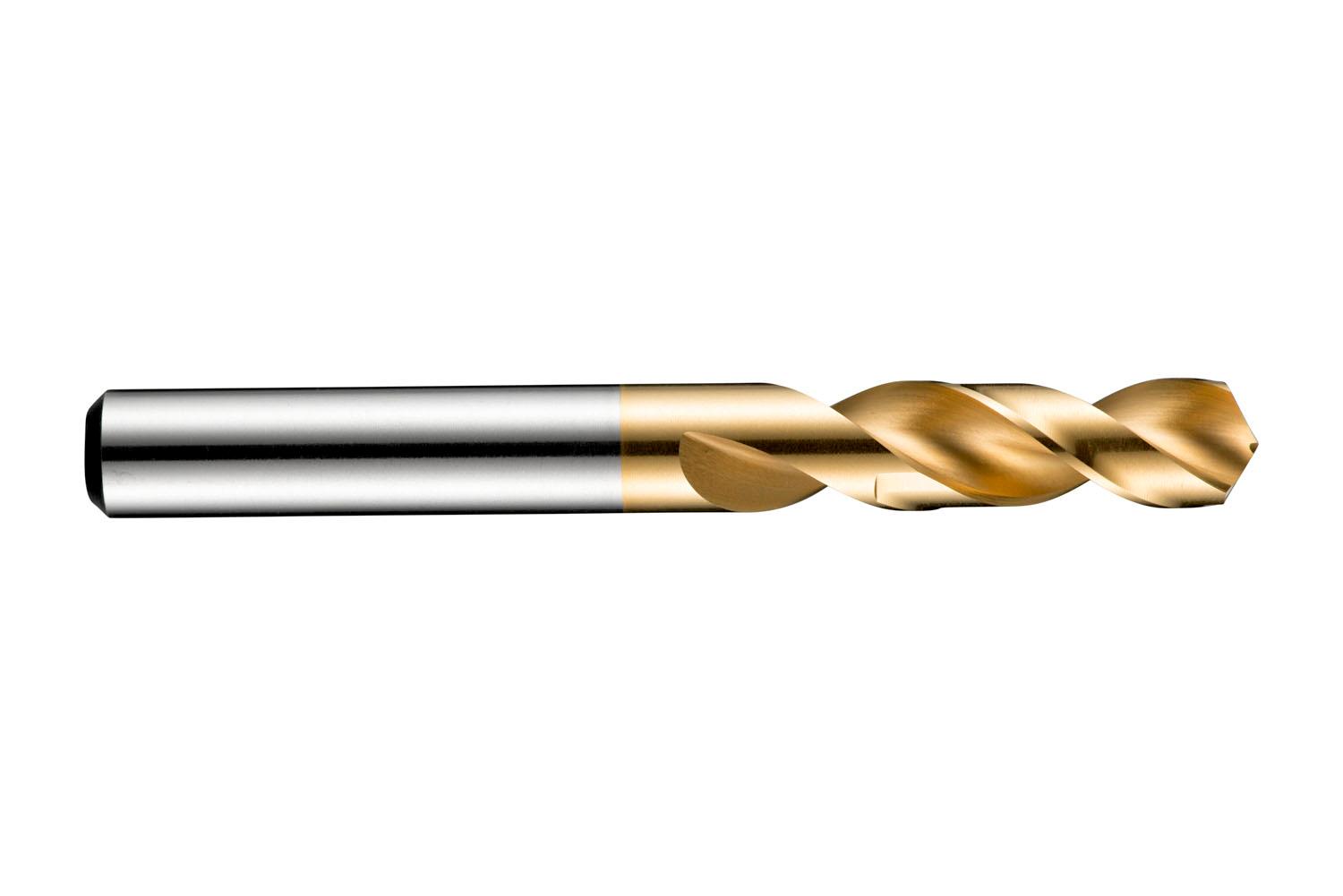

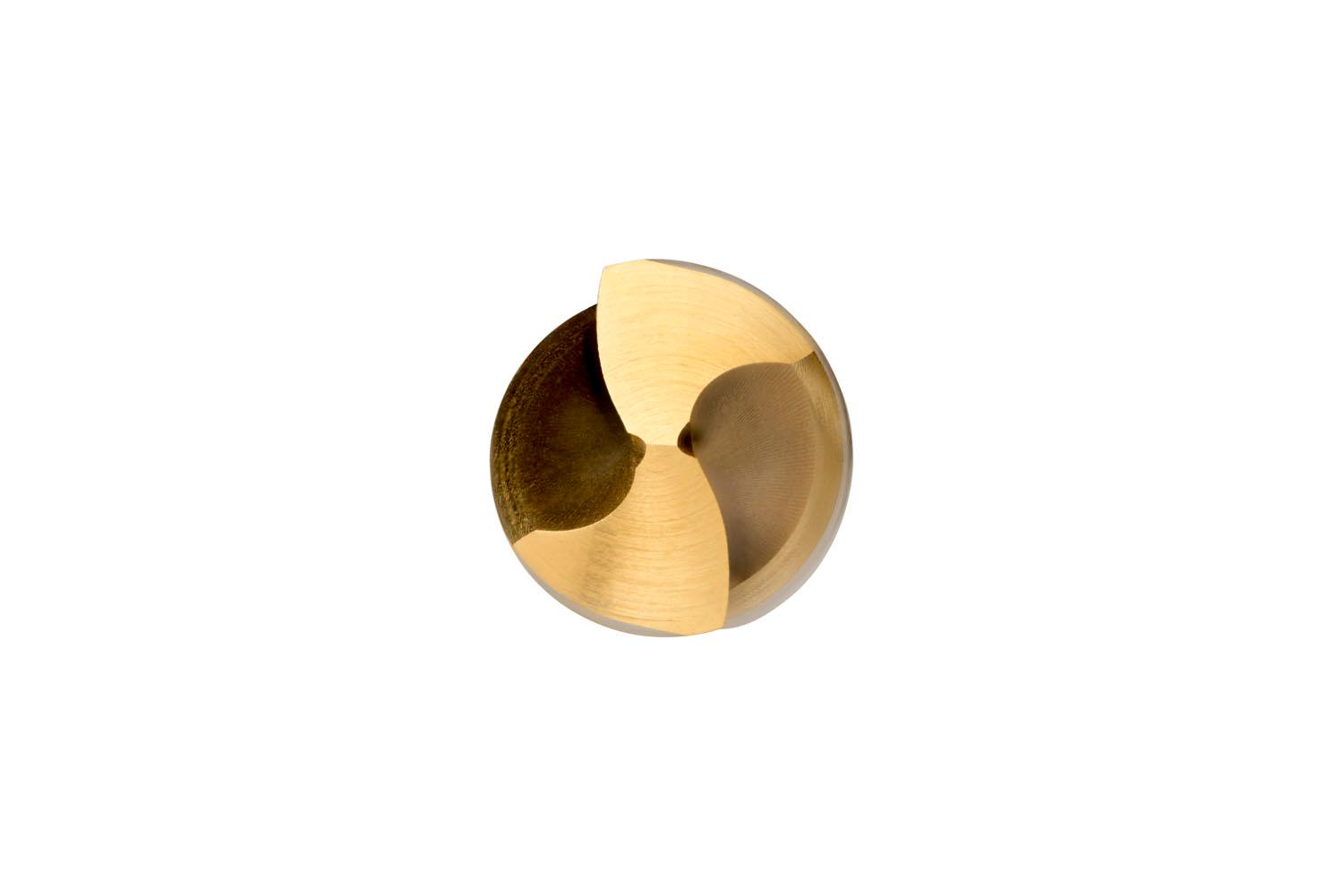

Stub length ADX drill with straight shank, diameter 3mm with an overall length of 46mm and flute length of 16mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0216 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760038901
Product number (SAP): 86010506
Ordering code ANSI: A5203.0
Product Line: ADX
Gross weight – grams: 4.8

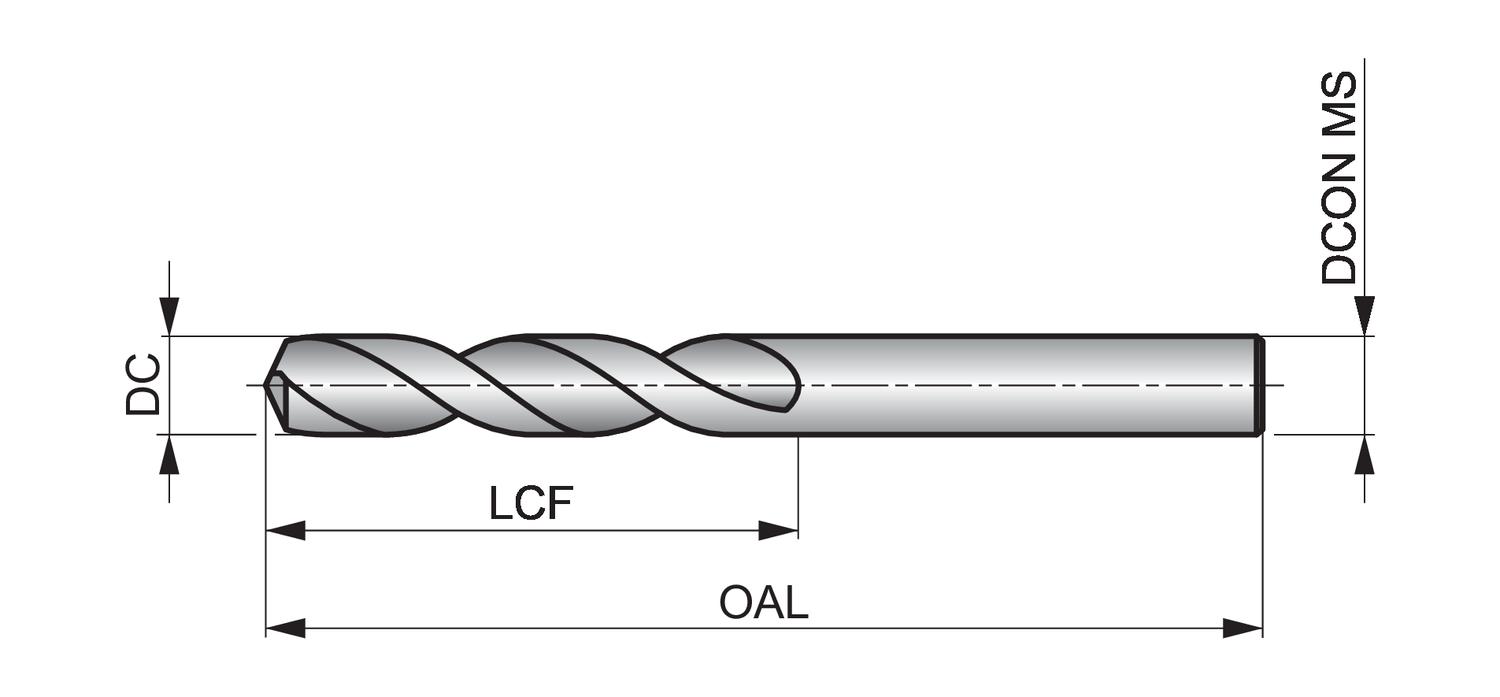

Cutting diameter – millimeter (DC): 3 mm
Cutting diameter – inch (DC): 0.1181 inch
Length chip flute – millimeter (LCF): 16 mm
Overall length – millimeter (OAL): 46 mm
Connection diameter – millimeter (DCON MS): 3 mm
Length chip flute – inch (LCF): 0.6299 inch
ISO: A5203.0

Brand

DORMER
