DORMER A5203.1

Product Code: A5203.1

$31.61$28.74 Ex. GST

Product Code: A5203.1 SKU A5203.1 Categories , ,
DORMER A5203.1

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

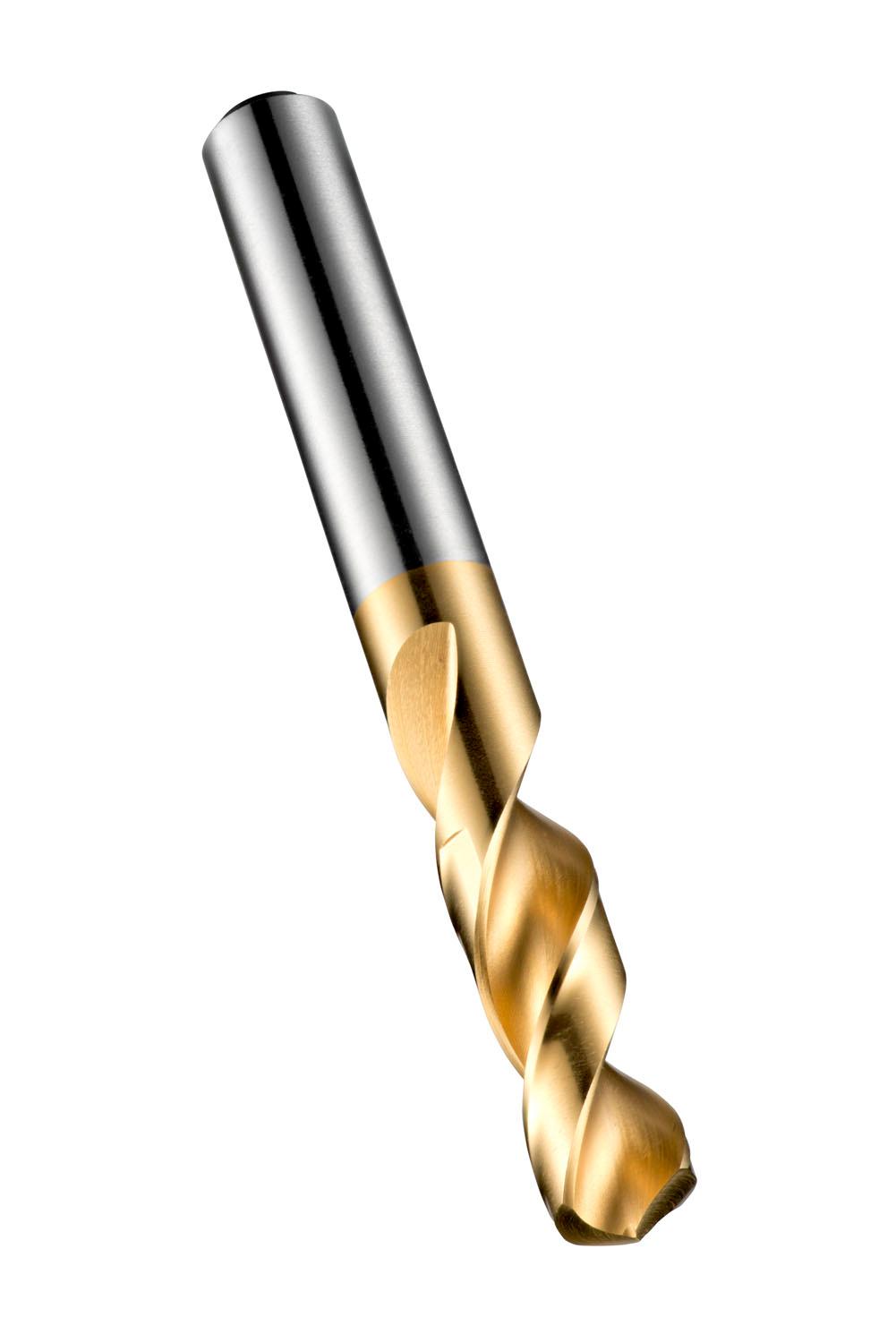

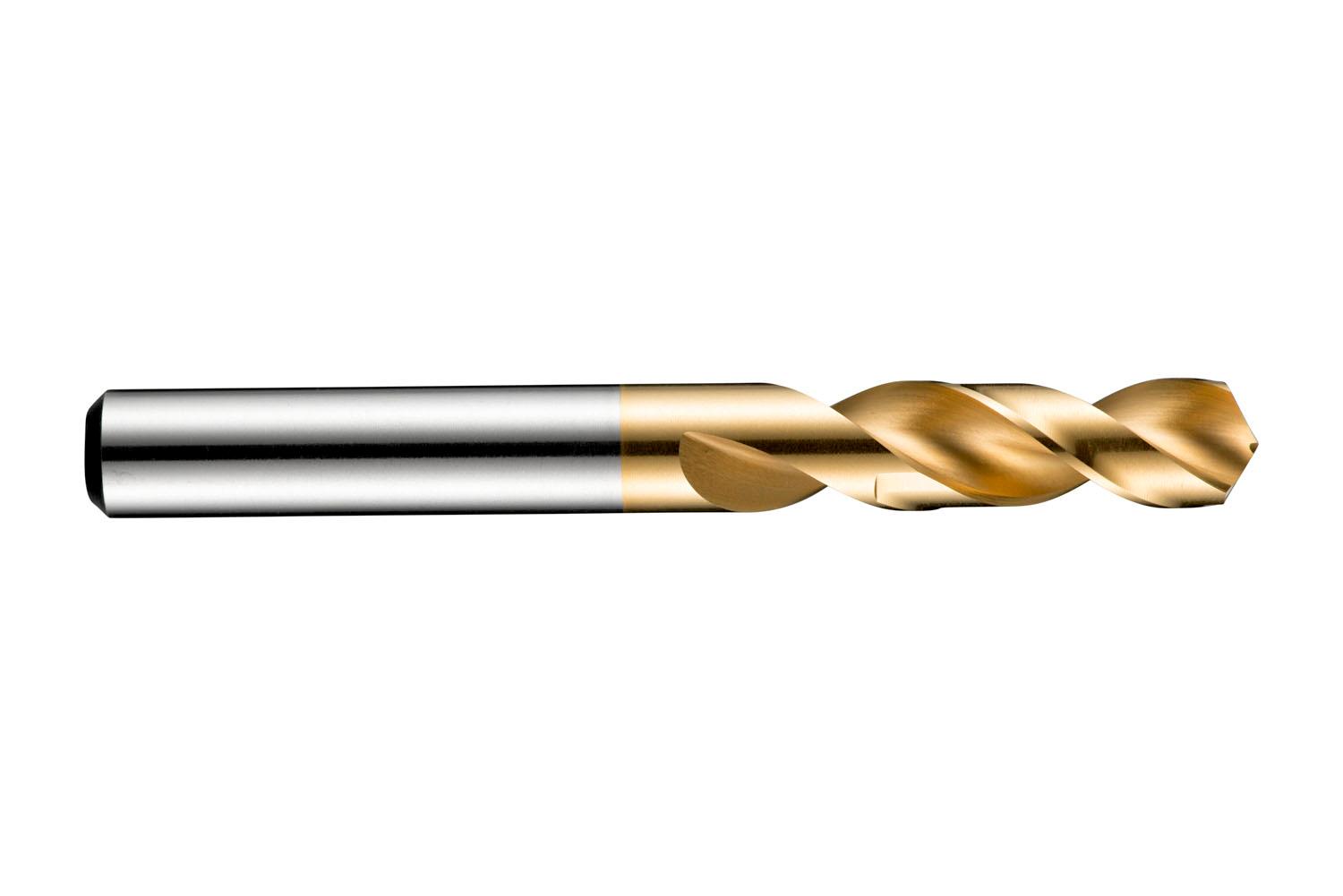

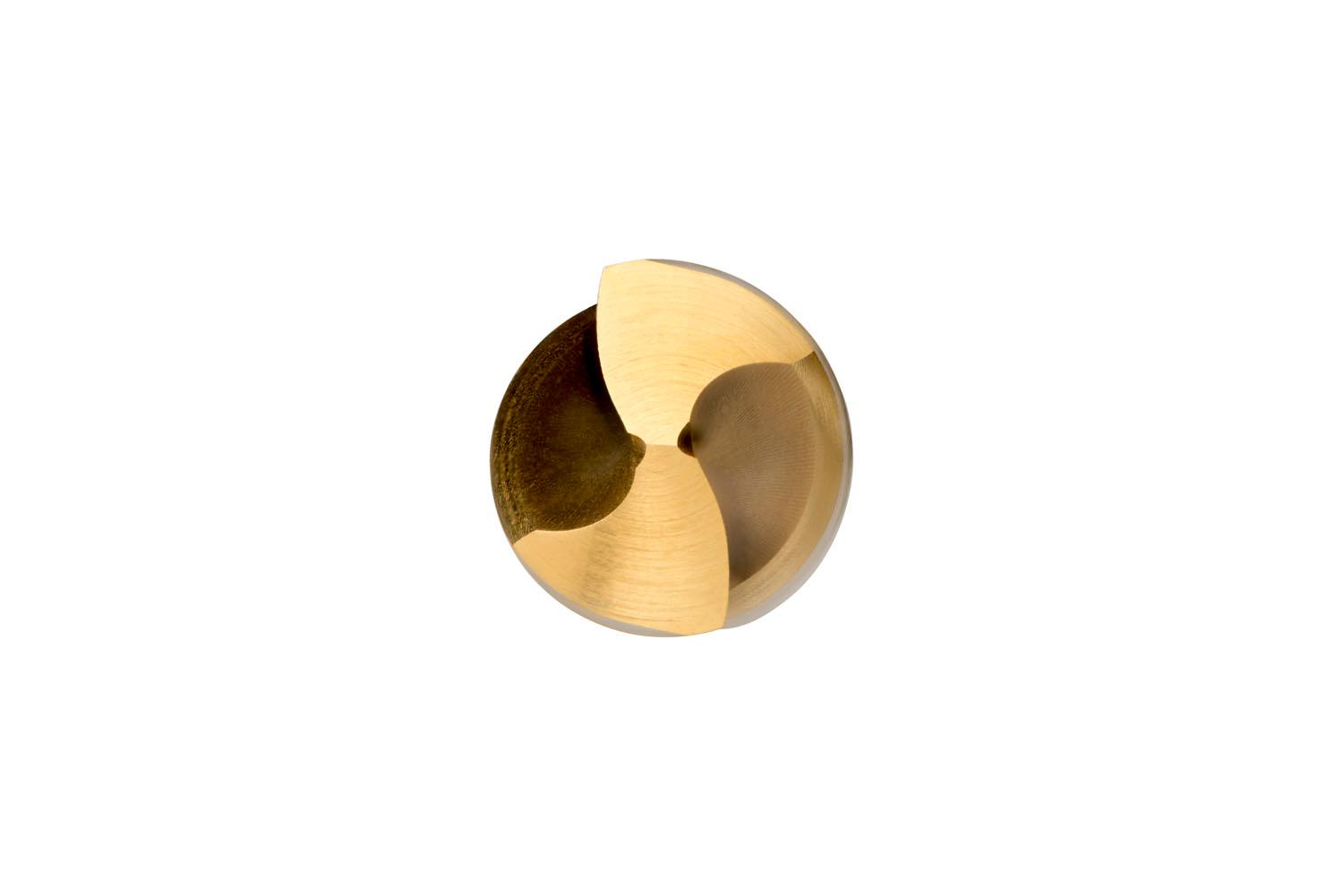

Stub length ADX drill with straight shank, diameter 3.1mm with an overall length of 49mm and flute length of 18mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0307 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760038918
Product number (SAP): 86010507
Ordering code ANSI: A5203.1
Product Line: ADX
Gross weight – grams: 2.457

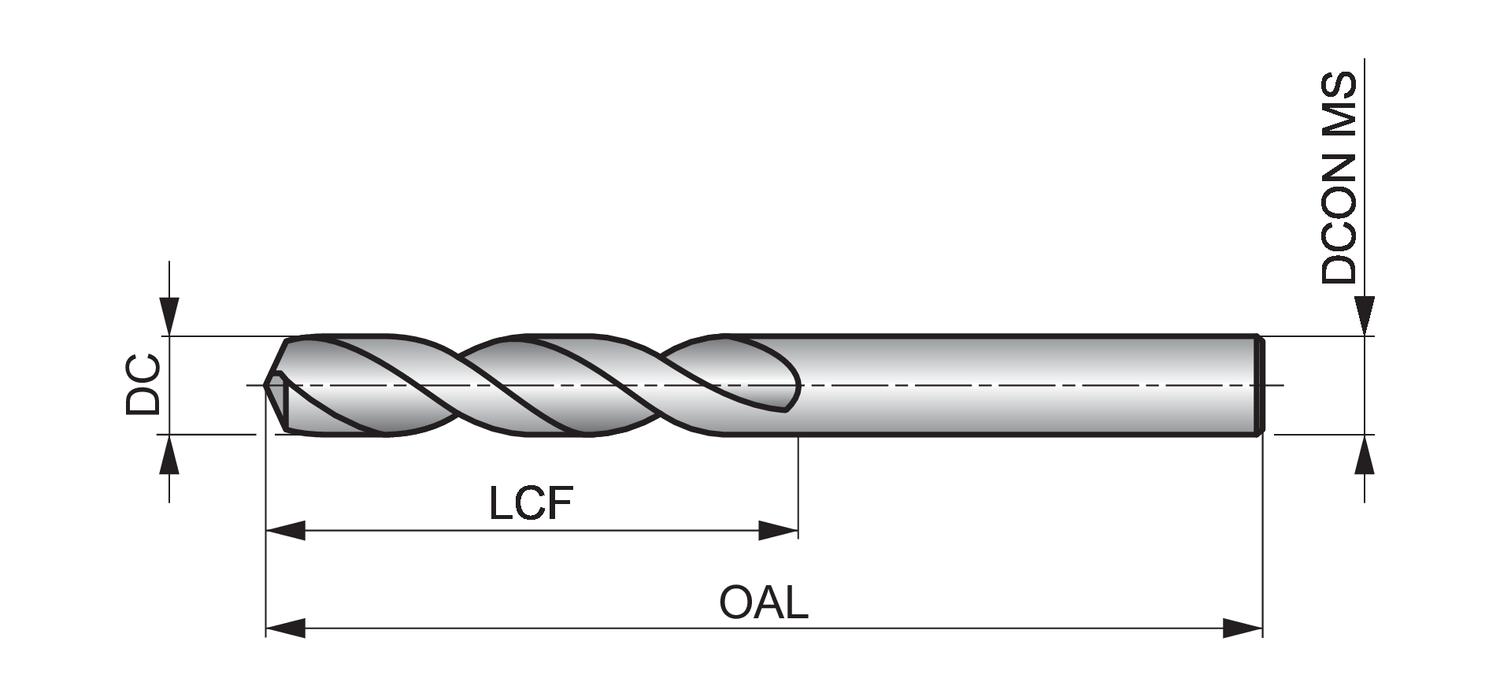

Cutting diameter – millimeter (DC): 3.1 mm
Cutting diameter – inch (DC): 0.122 inch
Length chip flute – millimeter (LCF): 18 mm
Overall length – millimeter (OAL): 49 mm
Connection diameter – millimeter (DCON MS): 3.1 mm
Length chip flute – inch (LCF): 0.7087 inch
ISO: A5203.1

Brand

DORMER
