DORMER A5207/32

Product Code: A5207/32

$45.89$41.72 Ex. GST

Product Code: A5207/32 SKU A5207/32 Categories , ,
DORMER A5207/32

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

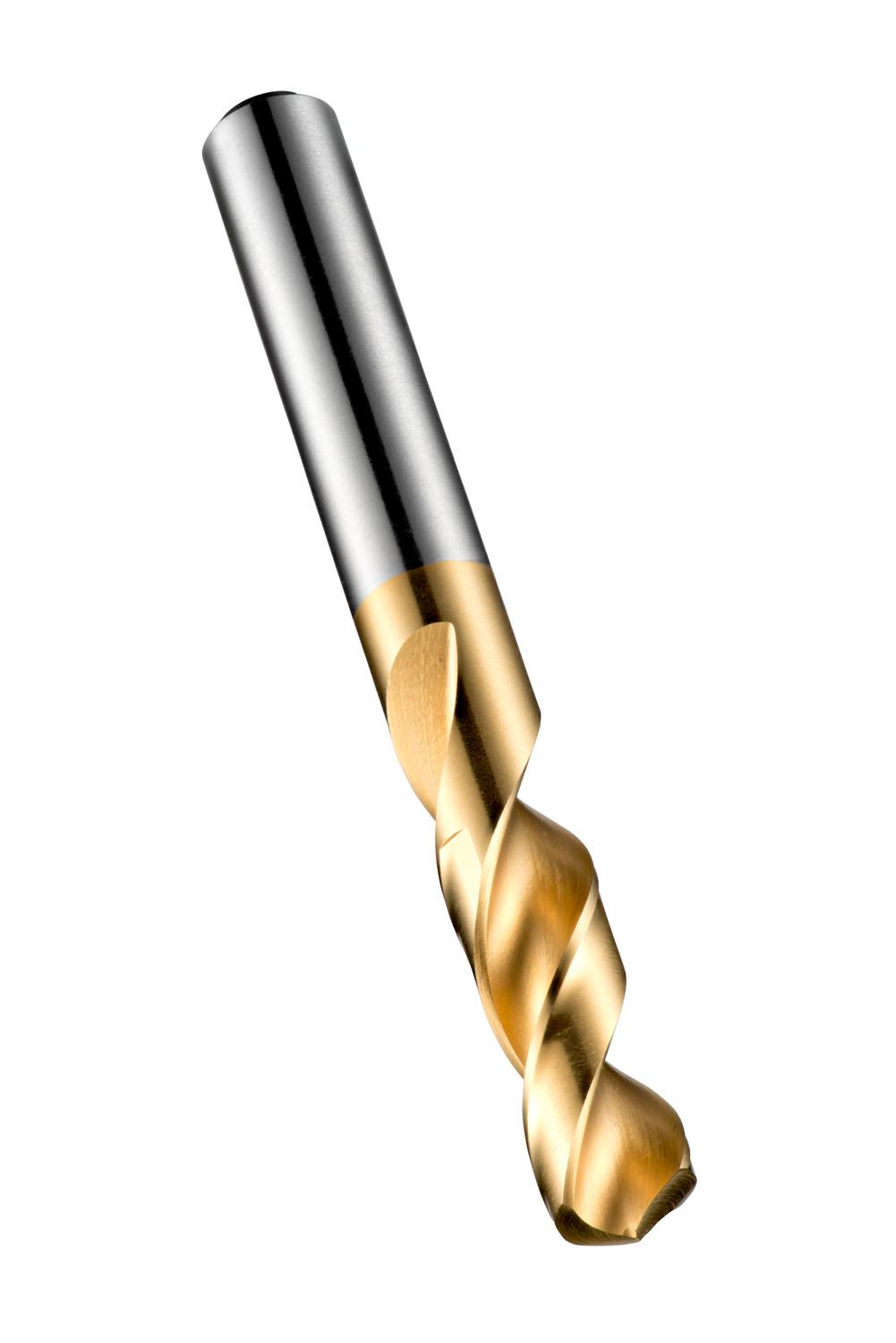

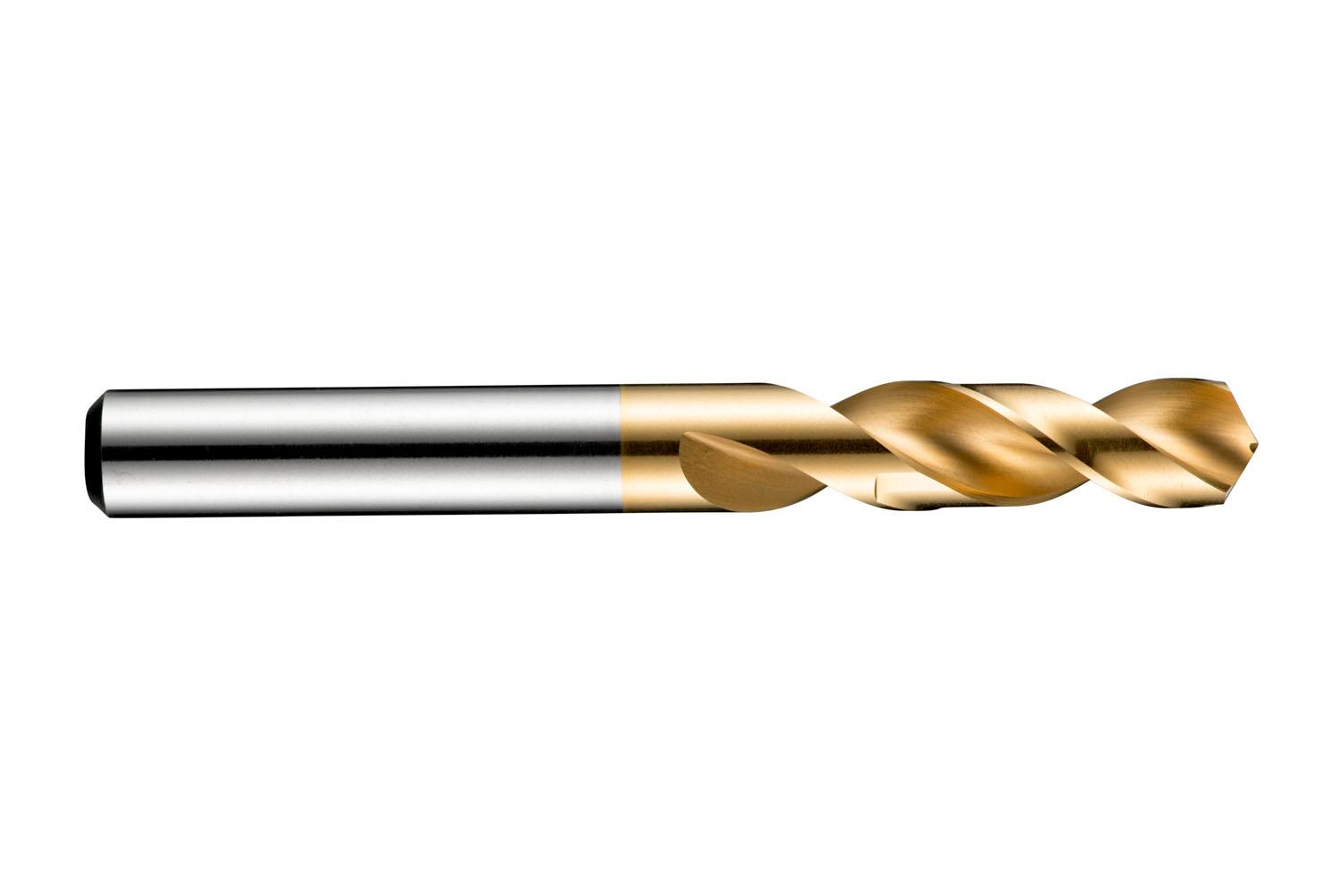

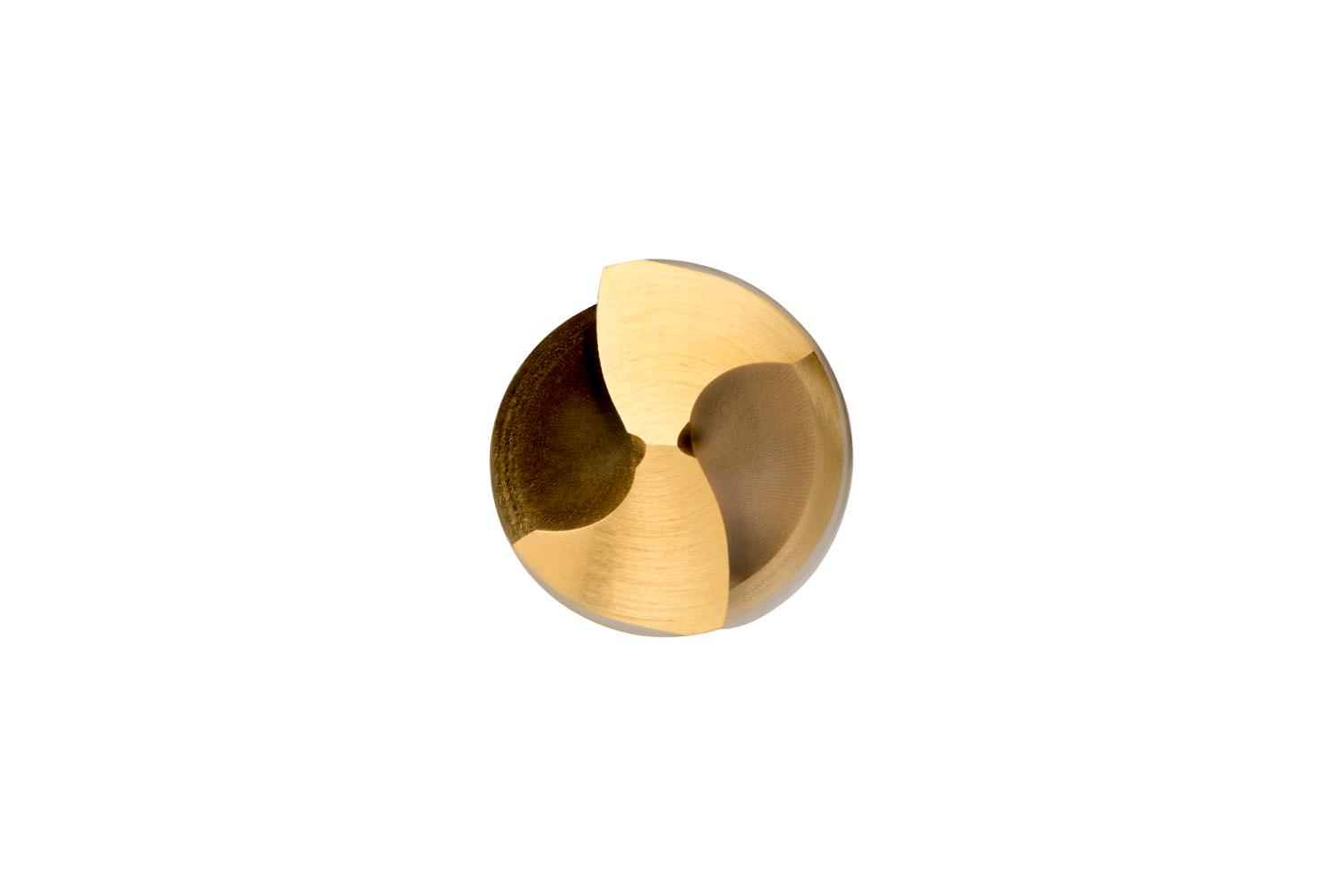

Stub length ADX drill with straight shank, diameter 0.2188″ (7/32) with an overall length of 66mm and flute length of 28mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0446 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760171325
Product number (SAP): 86010562
Ordering code ANSI: A5207/32
Product Line: ADX
Gross weight – grams: 12.9

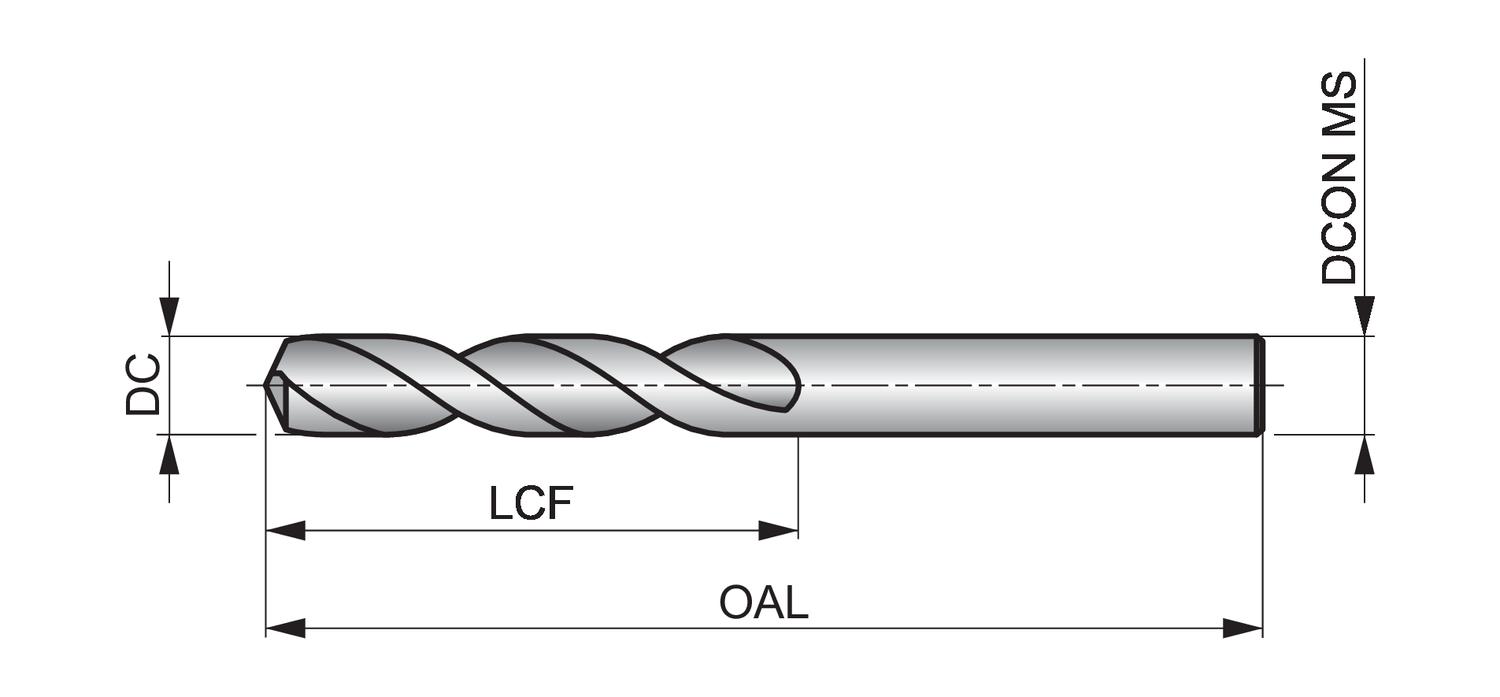

Cutting diameter – fractional inch (DC): 7/32
Cutting diameter – millimeter (DC): 5.56 mm
Cutting diameter – inch (DC): 0.2188 inch
Length chip flute – millimeter (LCF): 28 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 5.56 mm
Length chip flute – inch (LCF): 1.1024 inch
ISO: A5207/32

Brand

DORMER
