DORMER A5209.6

Product Code: A5209.6

$168.82$153.47 Ex. GST

Product Code: A5209.6 SKU A5209.6 Categories , ,
DORMER A5209.6

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

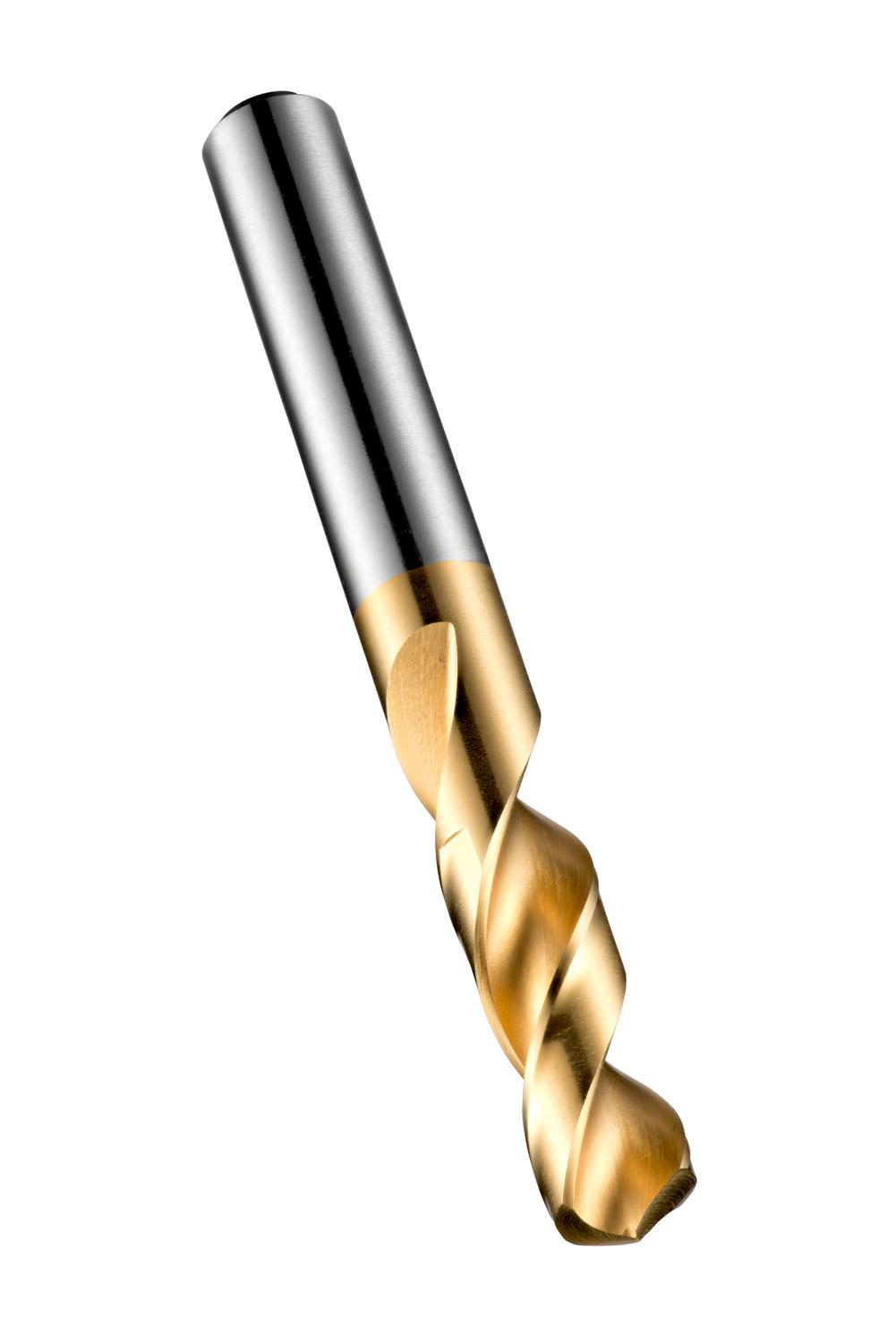

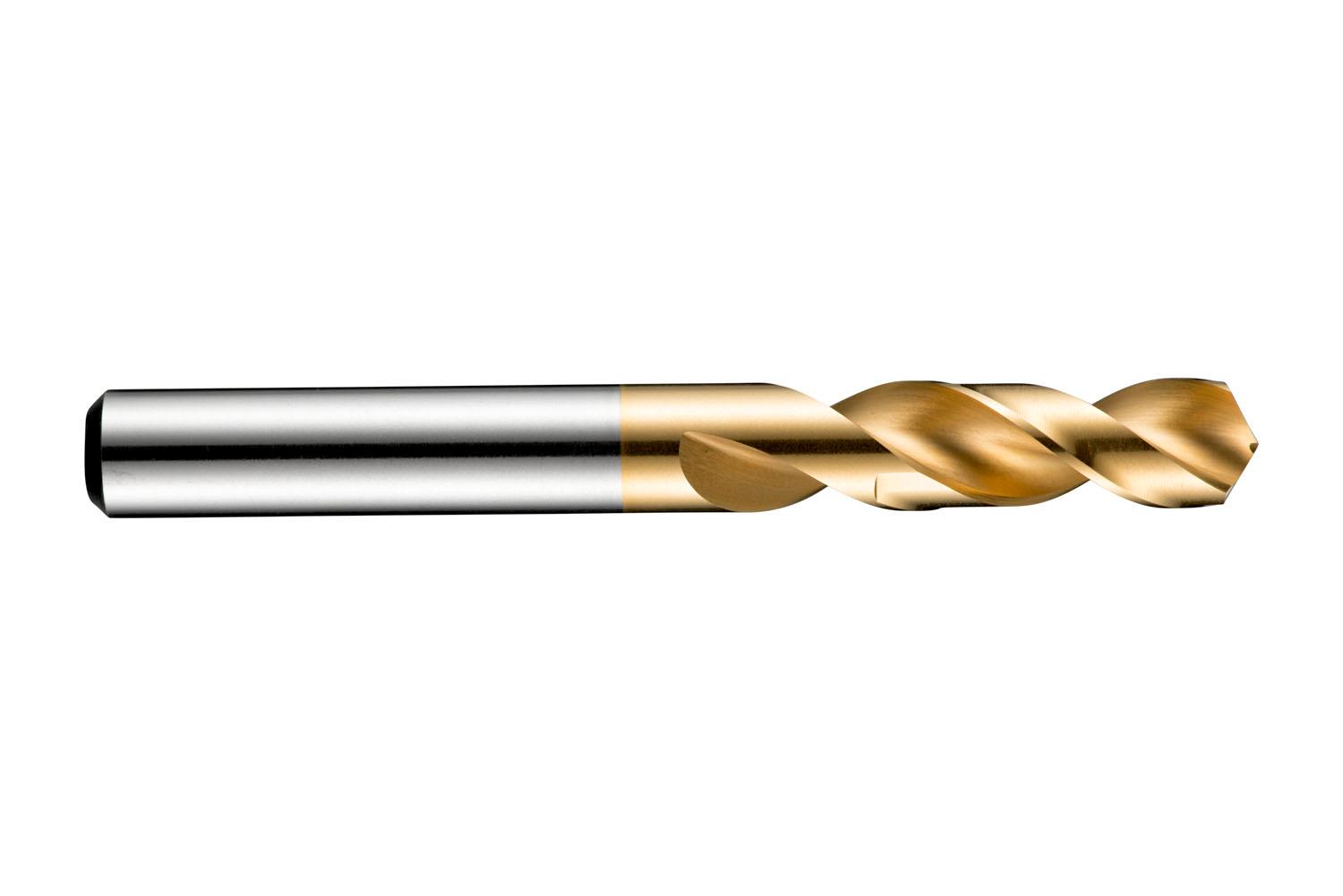

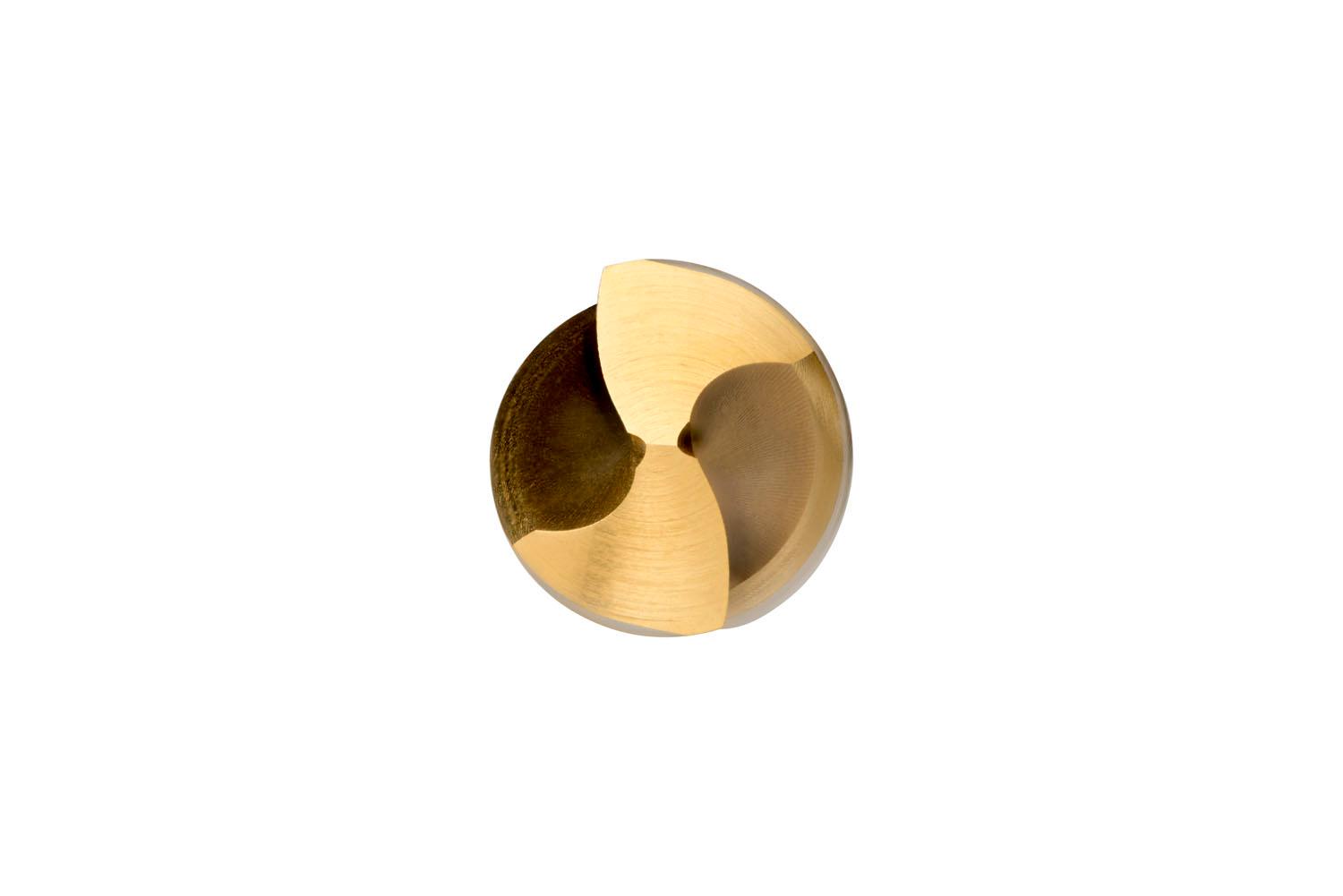

Stub length ADX drill with straight shank, diameter 9.6mm with an overall length of 89mm and flute length of 43mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.1639 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760039564
Product number (SAP): 86010579
Ordering code ANSI: A5209.6
Product Line: ADX
Gross weight – grams: 41

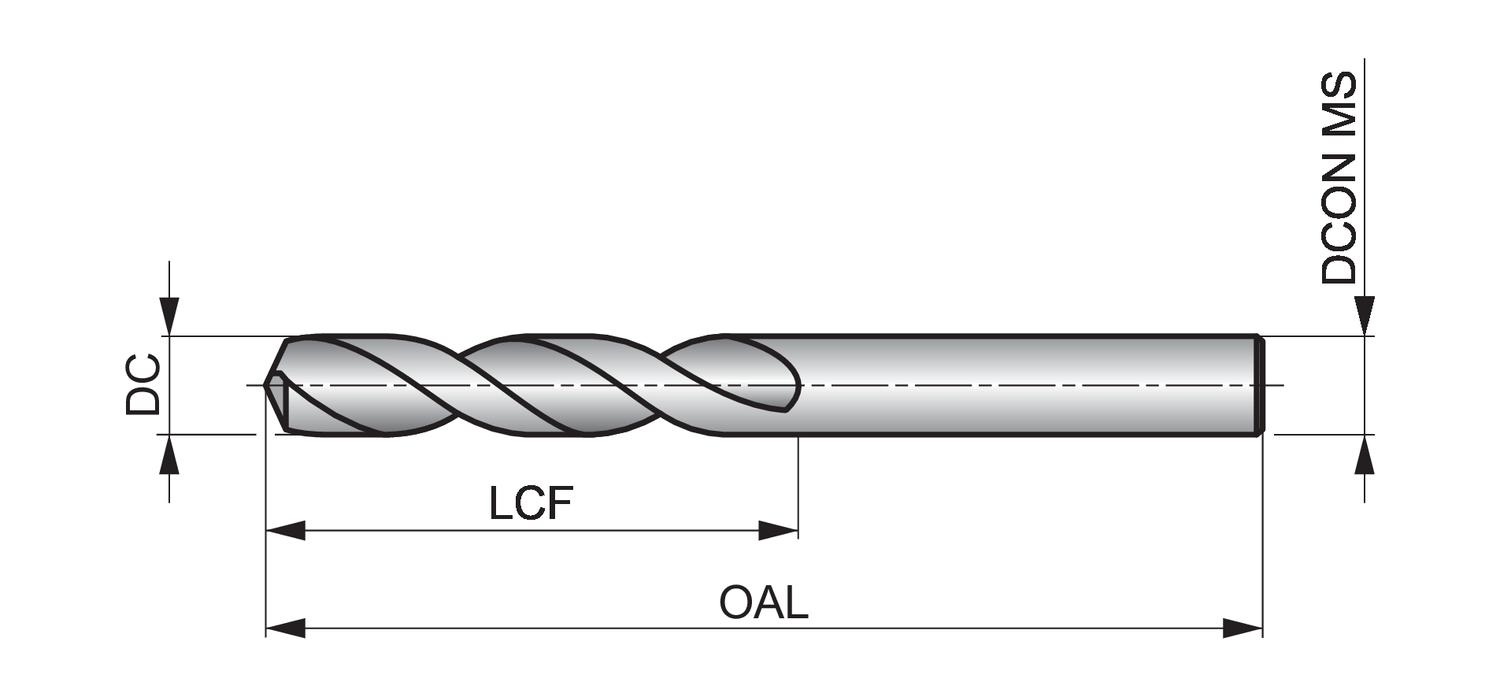

Cutting diameter – millimeter (DC): 9.6 mm
Cutting diameter – inch (DC): 0.378 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 89 mm
Connection diameter – millimeter (DCON MS): 9.6 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: A5209.6

Brand

DORMER
