DORMER A55311.3

Product Code: A55311.3

$462.26$420.24 Ex. GST

Product Code: A55311.3 SKU A55311.3 Categories , ,
DORMER A55311.3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

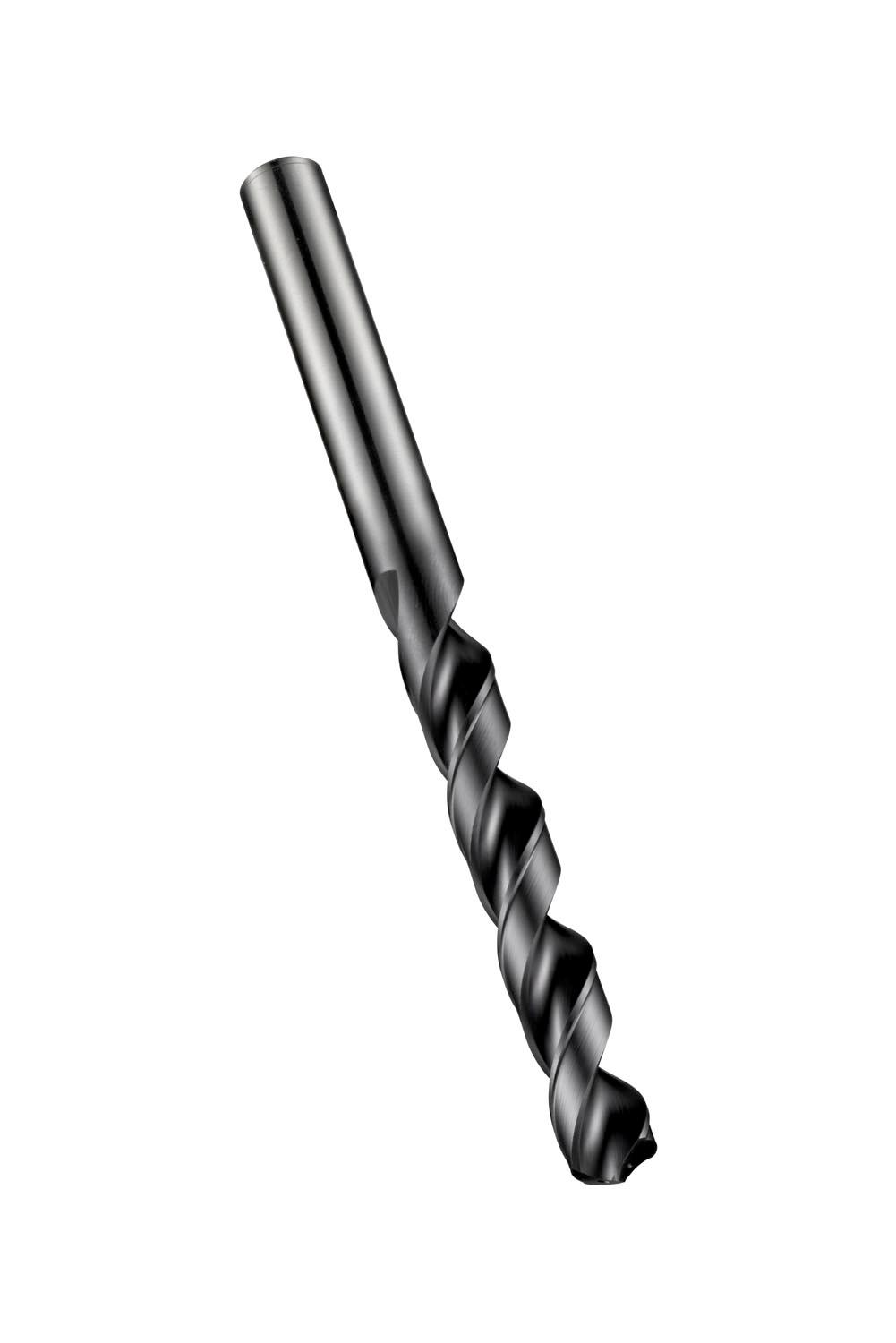

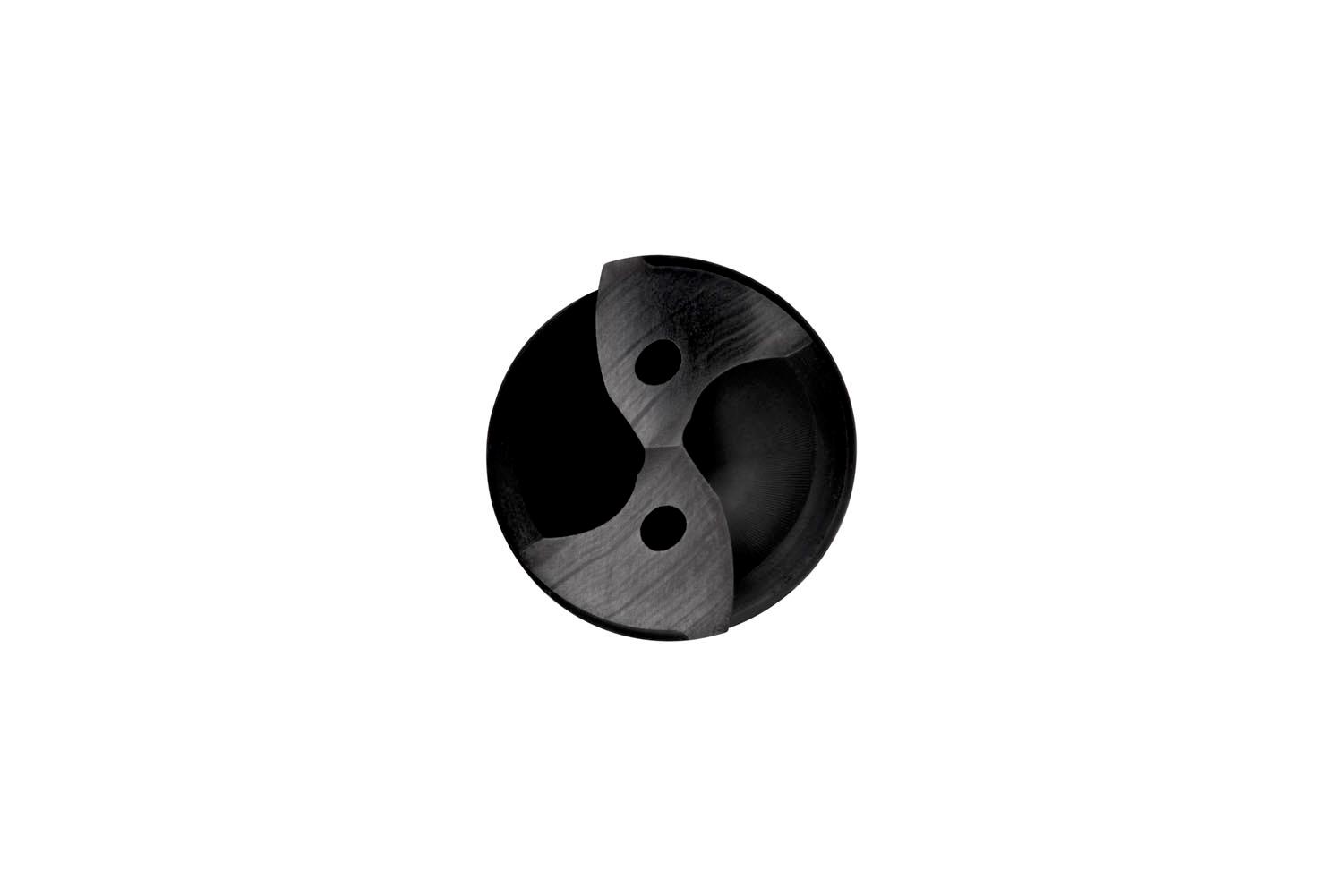

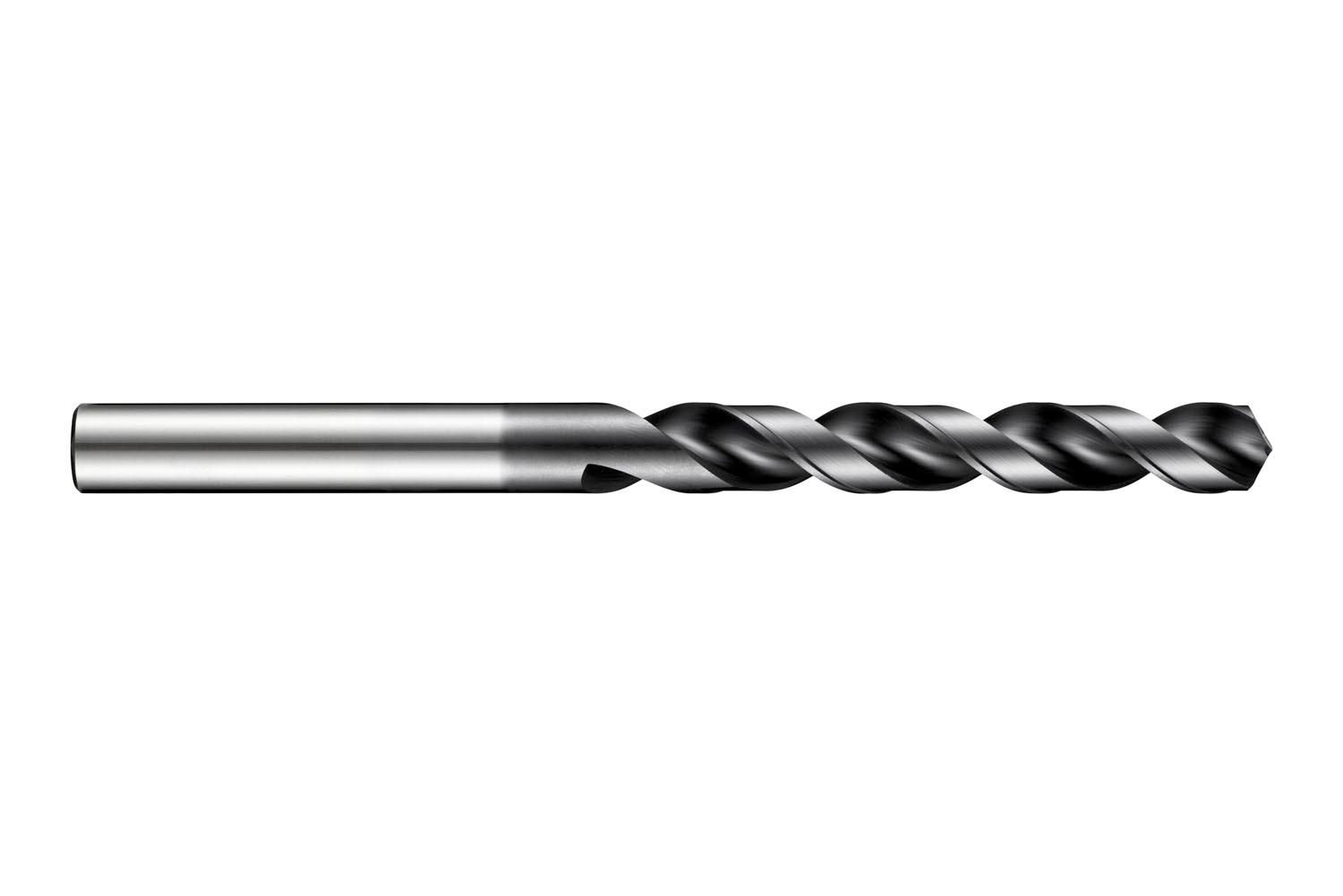

High-performance drill with DIN 6535HA NC parallel shank, diameter 11.3mm with an overall length of 150mm and flute length of 94mm according to DORMER standard with 130° volute point, cobalt based HSS-E with TiAlN-top coating through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.4488 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760390856
Product number (SAP): 86010641
Ordering code ANSI: A55311.3
Product Line: ADX
Gross weight – grams: 91

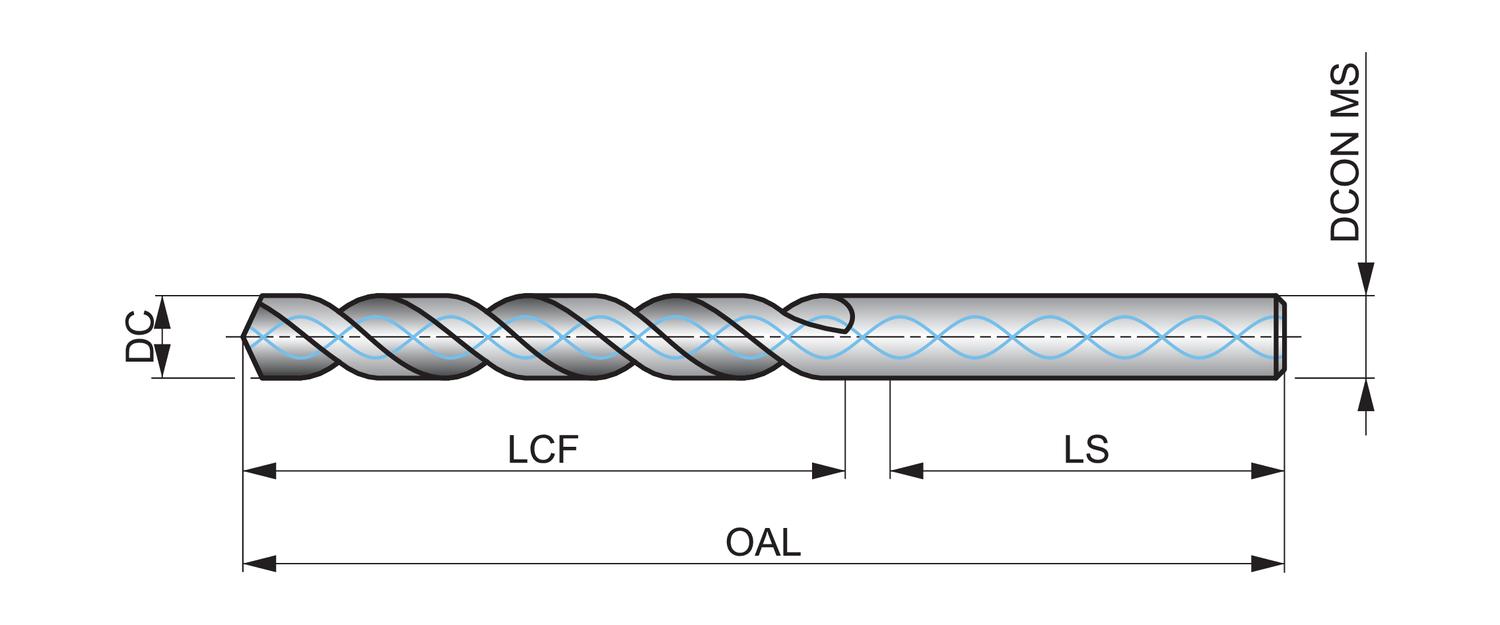

Cutting diameter – millimeter (DC): 11.3 mm
Cutting diameter – inch (DC): 0.4449 inch
Length chip flute – millimeter (LCF): 94 mm
Overall length – millimeter (OAL): 150 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 3.7008 inch
ISO: A55311.3

Brand

DORMER
