DORMER A55312.5

Product Code: A55312.5

$578.96$526.33 Ex. GST

Product Code: A55312.5 SKU A55312.5 Categories , ,
DORMER A55312.5

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

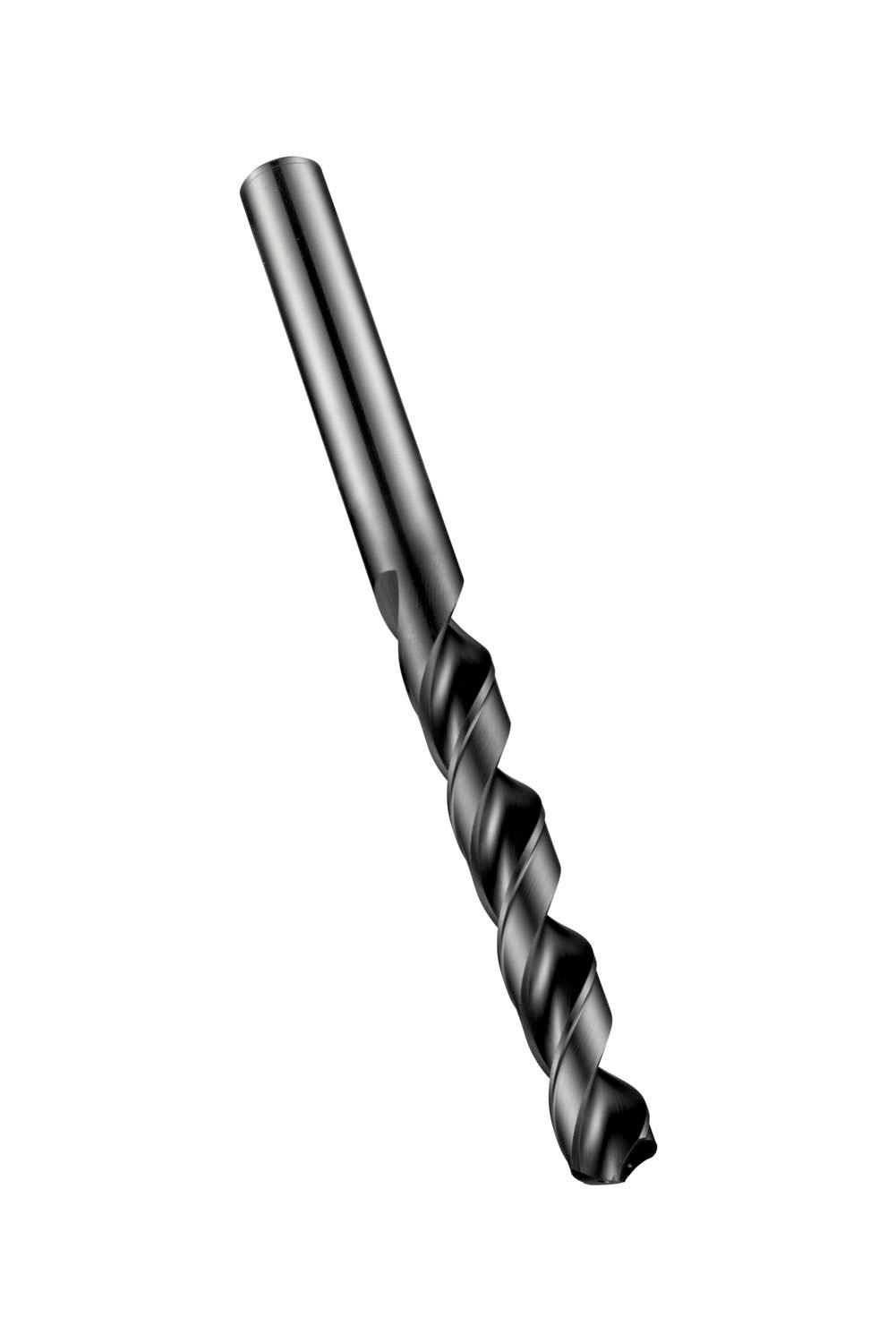

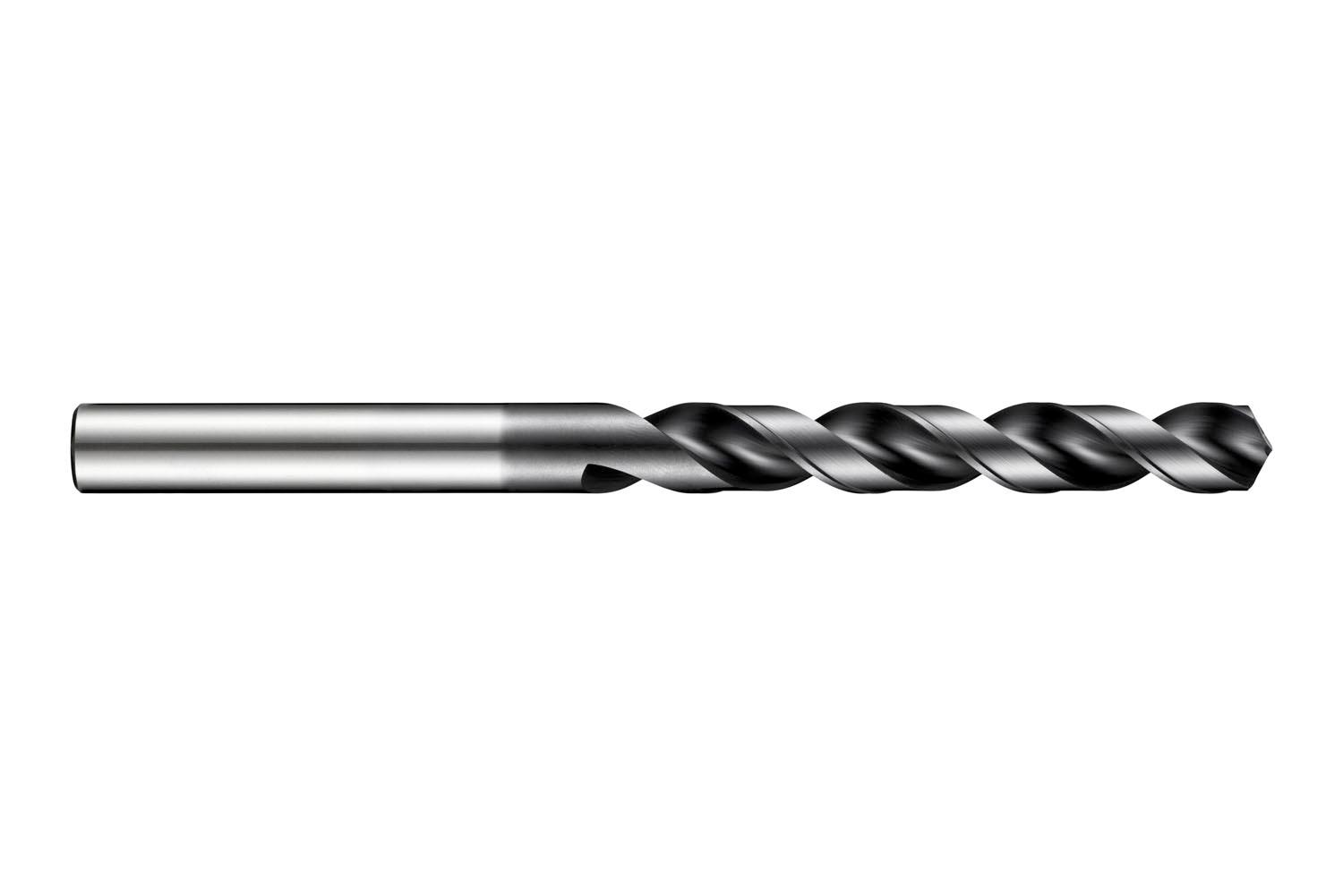

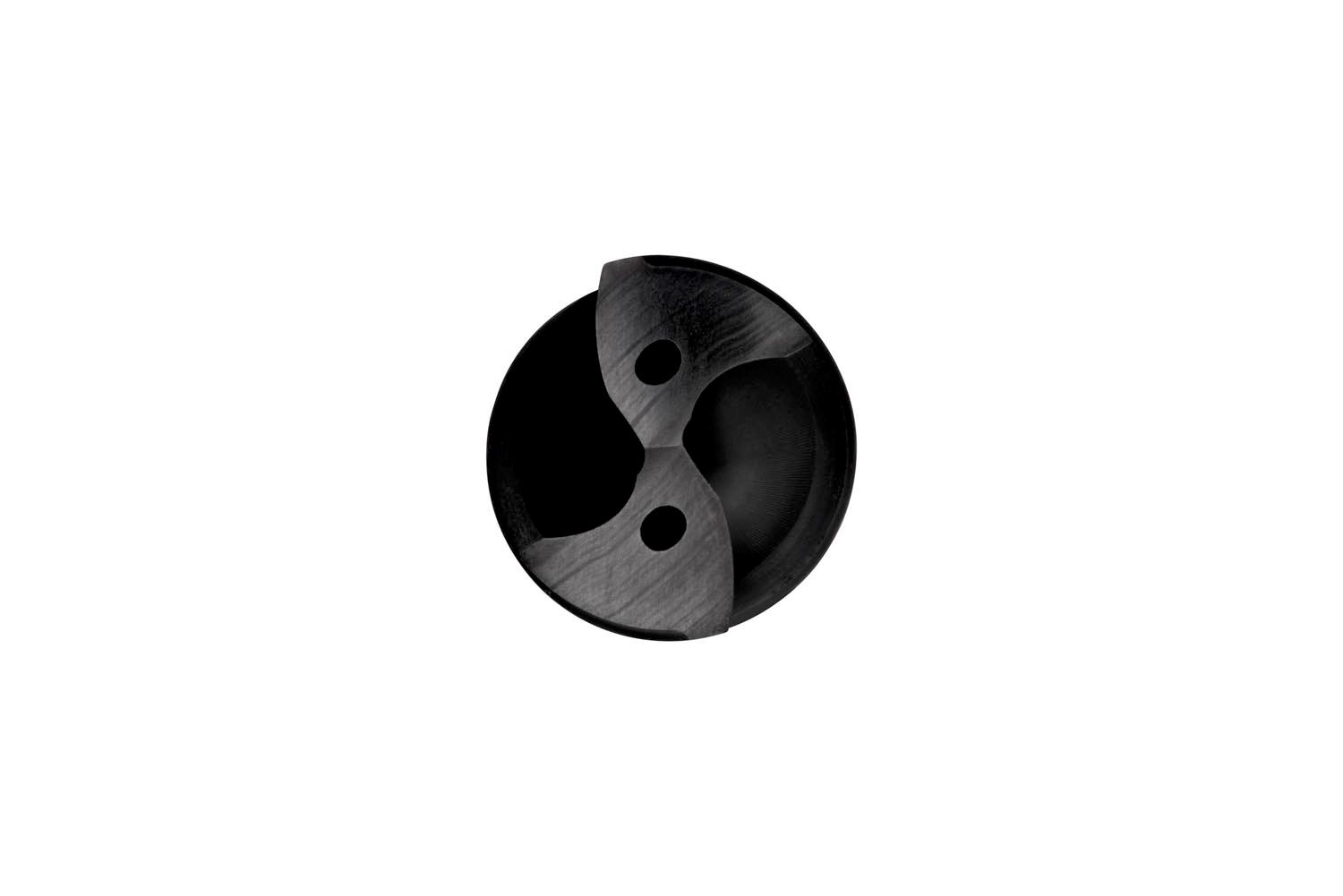

High-performance drill with DIN 6535HA NC parallel shank, diameter 12.5mm with an overall length of 160mm and flute length of 101mm according to DORMER standard with 130° volute point, cobalt based HSS-E with TiAlN-top coating through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.5621 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760390887
Product number (SAP): 86010644
Ordering code ANSI: A55312.5
Product Line: ADX
Gross weight – grams: 117.9

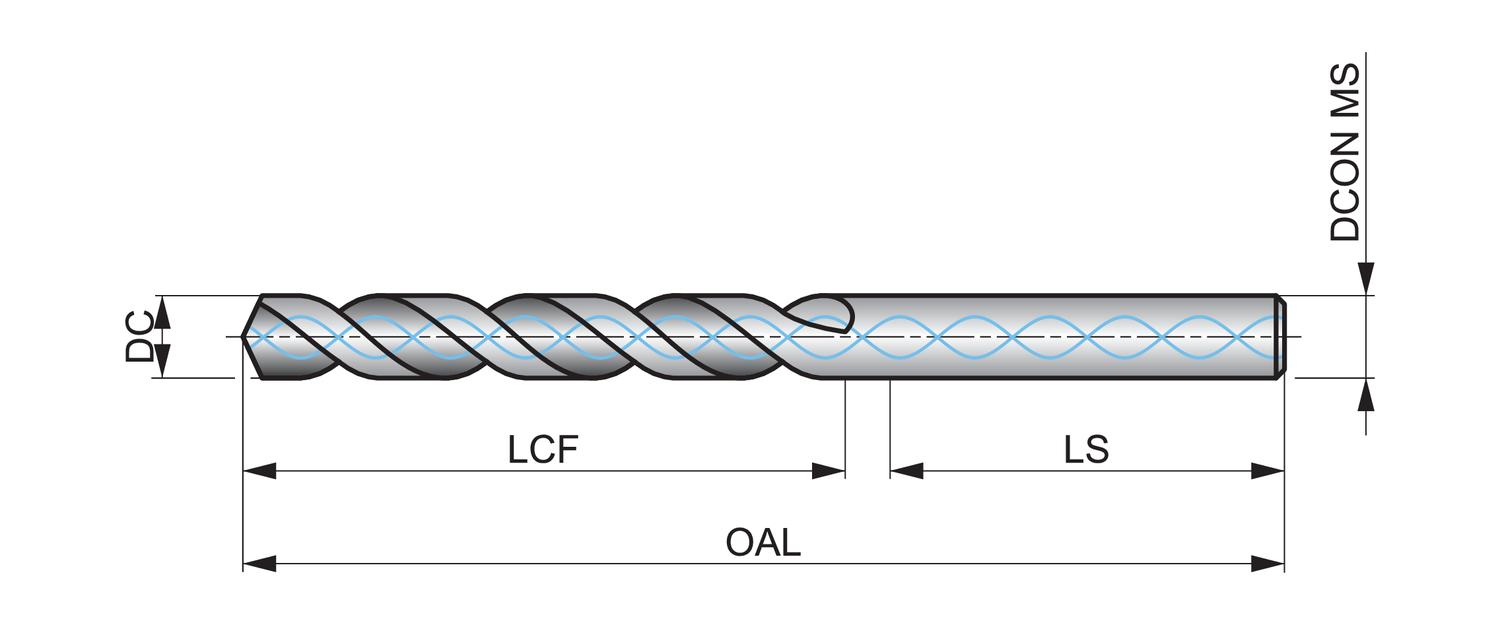

Cutting diameter – millimeter (DC): 12.5 mm
Cutting diameter – inch (DC): 0.4921 inch
Length chip flute – millimeter (LCF): 101 mm
Overall length – millimeter (OAL): 160 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 14 mm
Length chip flute – inch (LCF): 3.9764 inch
ISO: A55312.5

Brand

DORMER
