DORMER A5535.0

Product Code: A5535.0

$336.50$305.91 Ex. GST

Product Code: A5535.0 SKU A5535.0 Categories , ,
DORMER A5535.0

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

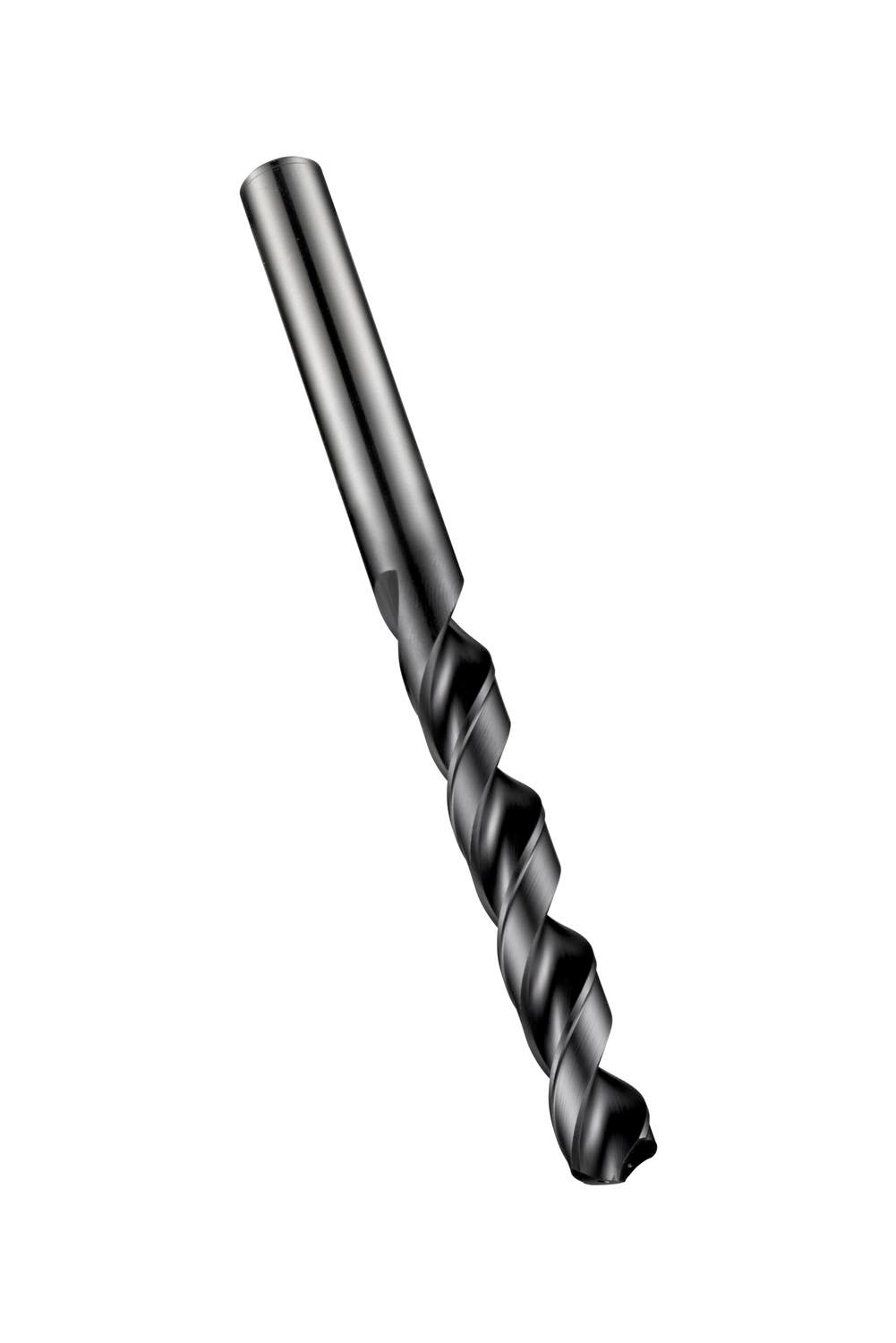

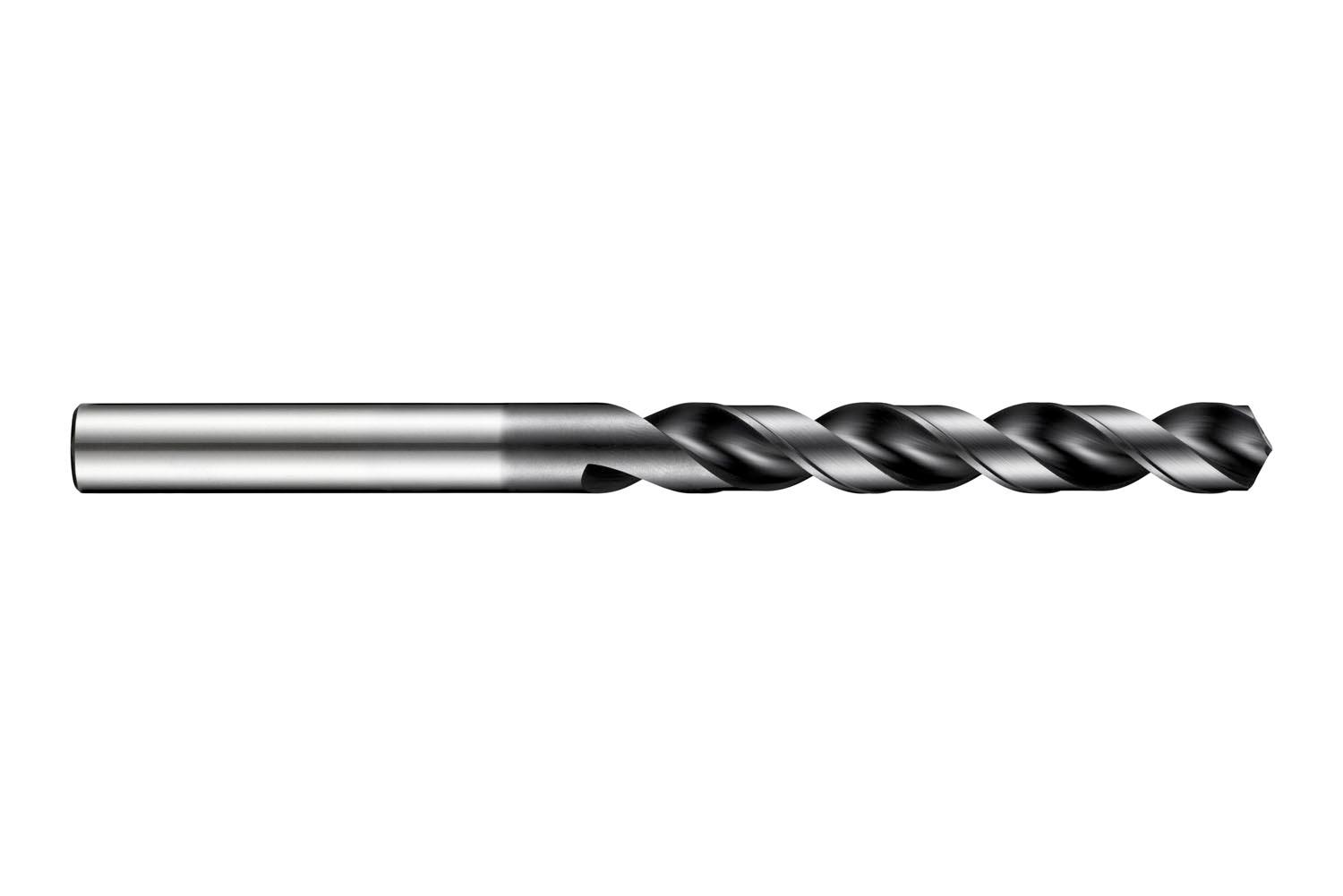

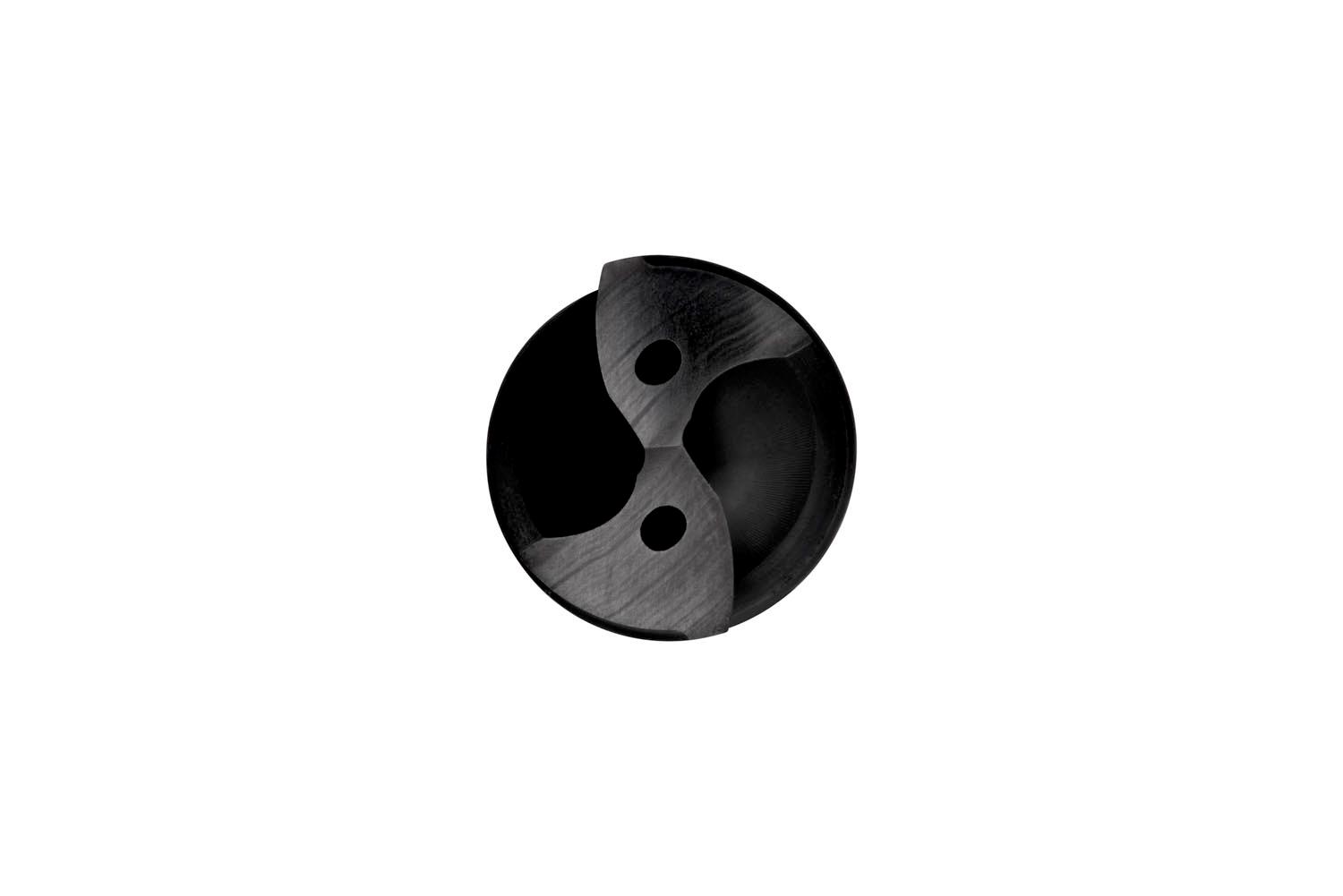

High-performance drill with DIN 6535HA NC parallel shank, diameter 5mm with an overall length of 79mm and flute length of 36mm according to DORMER standard with 130° volute point, cobalt based HSS-E with TiAlN-top coating through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.3267 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760391204
Product number (SAP): 86010662
Ordering code ANSI: A5535.0
Product Line: ADX
Gross weight – grams: 14.6

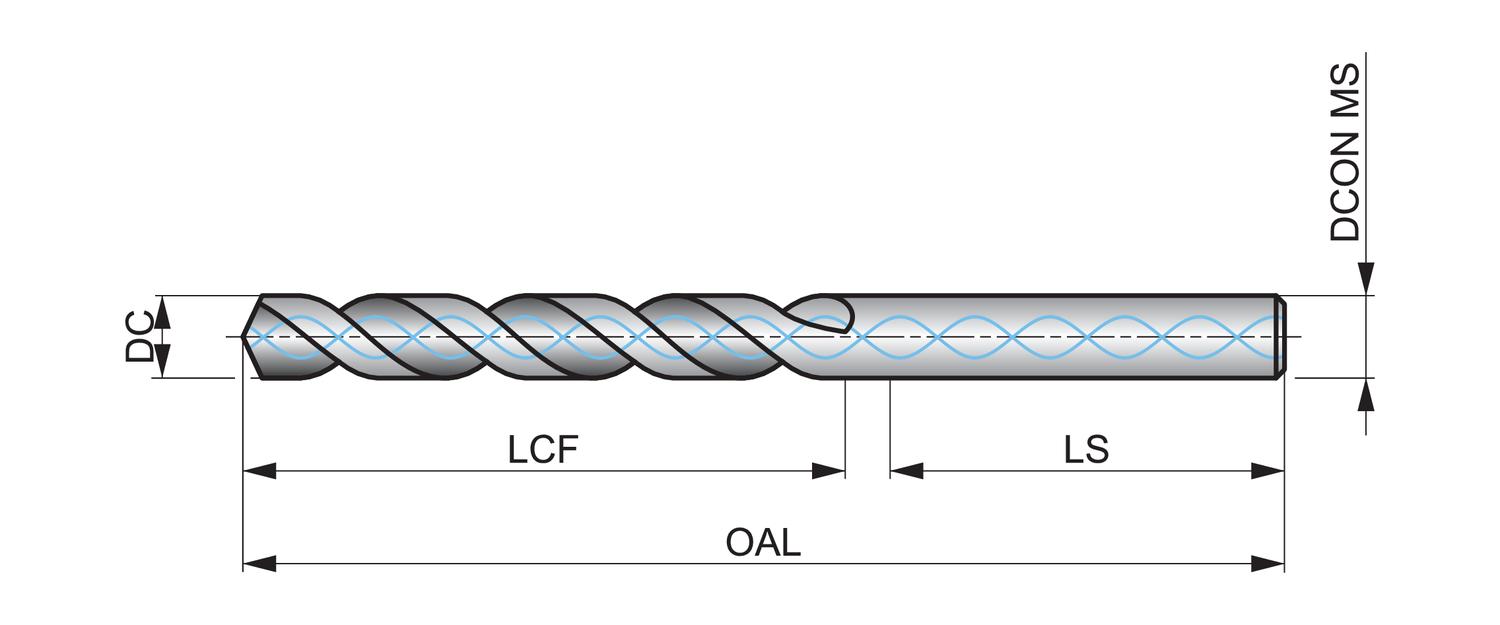

Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.1969 inch
Length chip flute – millimeter (LCF): 36 mm
Overall length – millimeter (OAL): 79 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.4173 inch
ISO: A5535.0

Brand

DORMER
