DORMER A5538.5

Product Code: A5538.5

$415.81$378.01 Ex. GST

Product Code: A5538.5 SKU A5538.5 Categories , ,
DORMER A5538.5

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

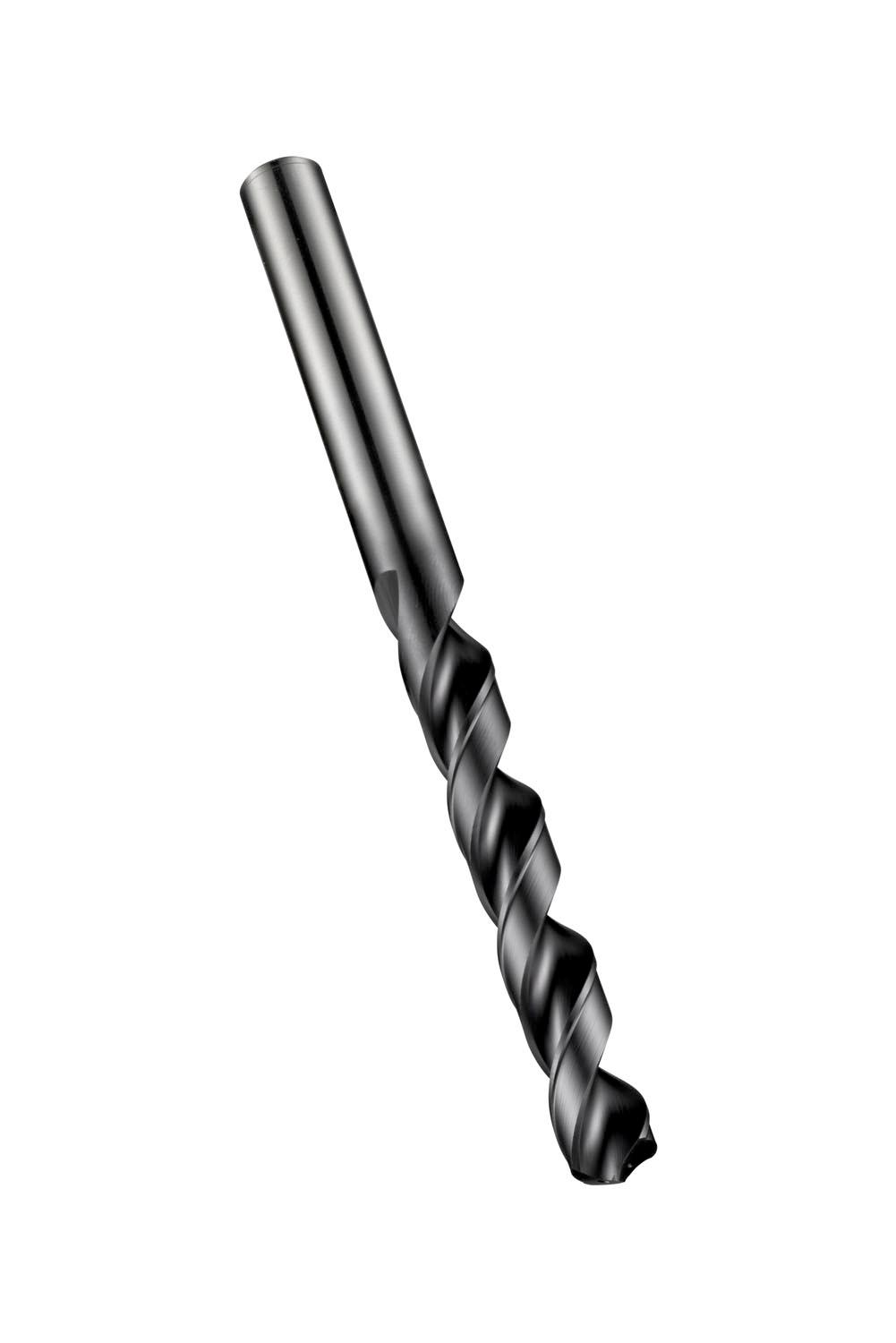

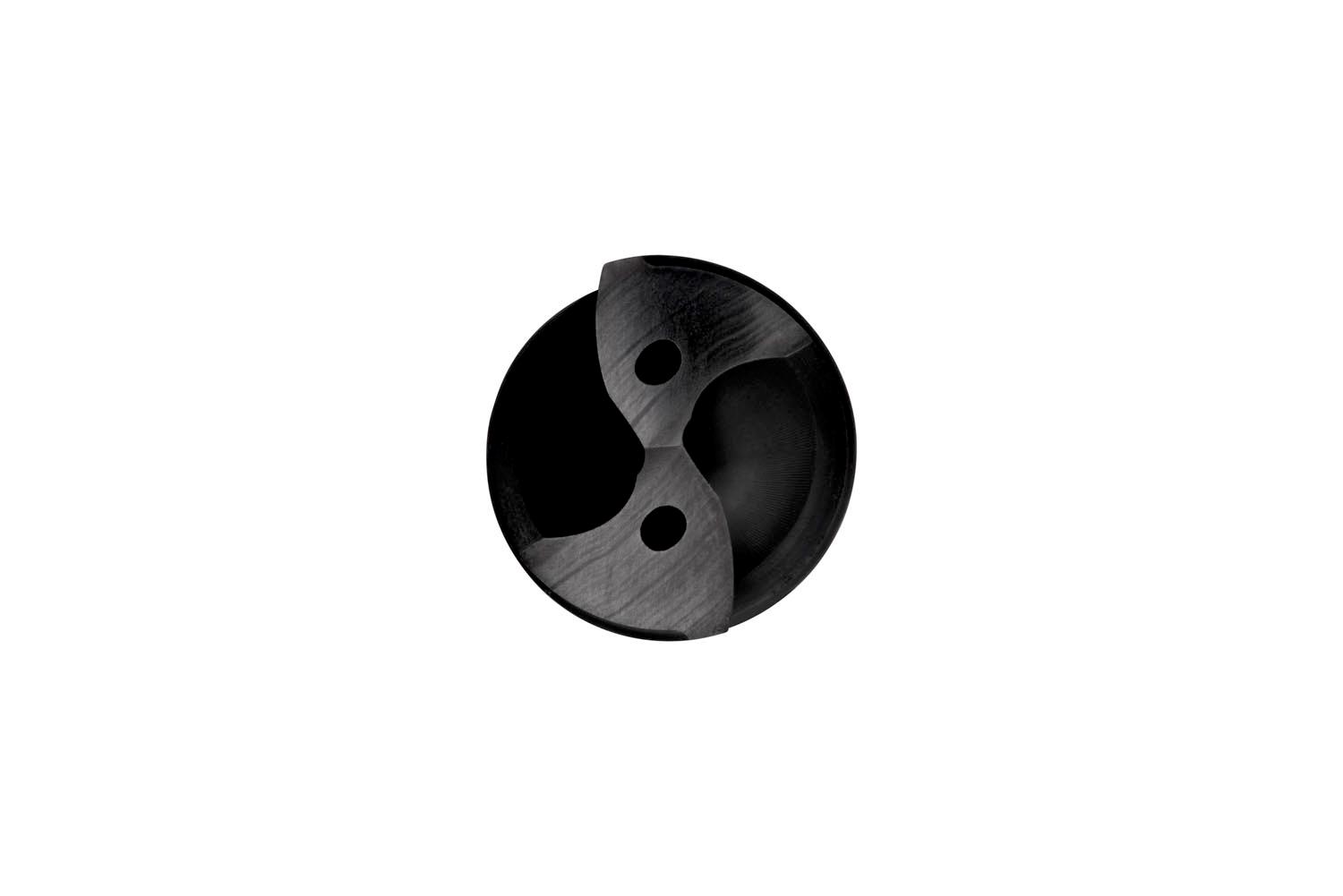

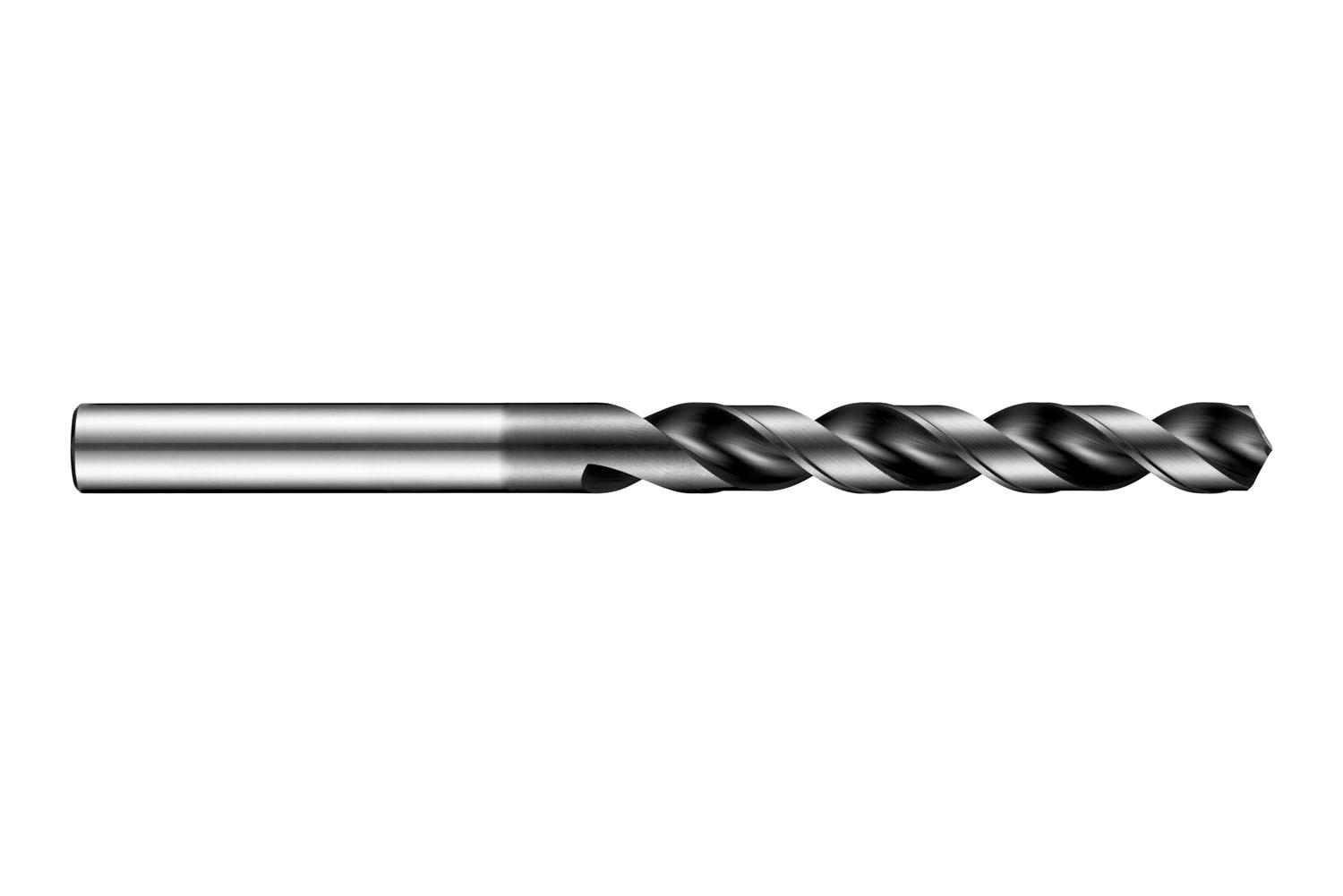

High-performance drill with DIN 6535HA NC parallel shank, diameter 8.5mm with an overall length of 130mm and flute length of 75mm according to DORMER standard with 130° volute point, cobalt based HSS-E with TiAlN-top coating through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.4037 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760391419
Product number (SAP): 86010674
Ordering code ANSI: A5538.5
Product Line: ADX
Gross weight – grams: 51.5

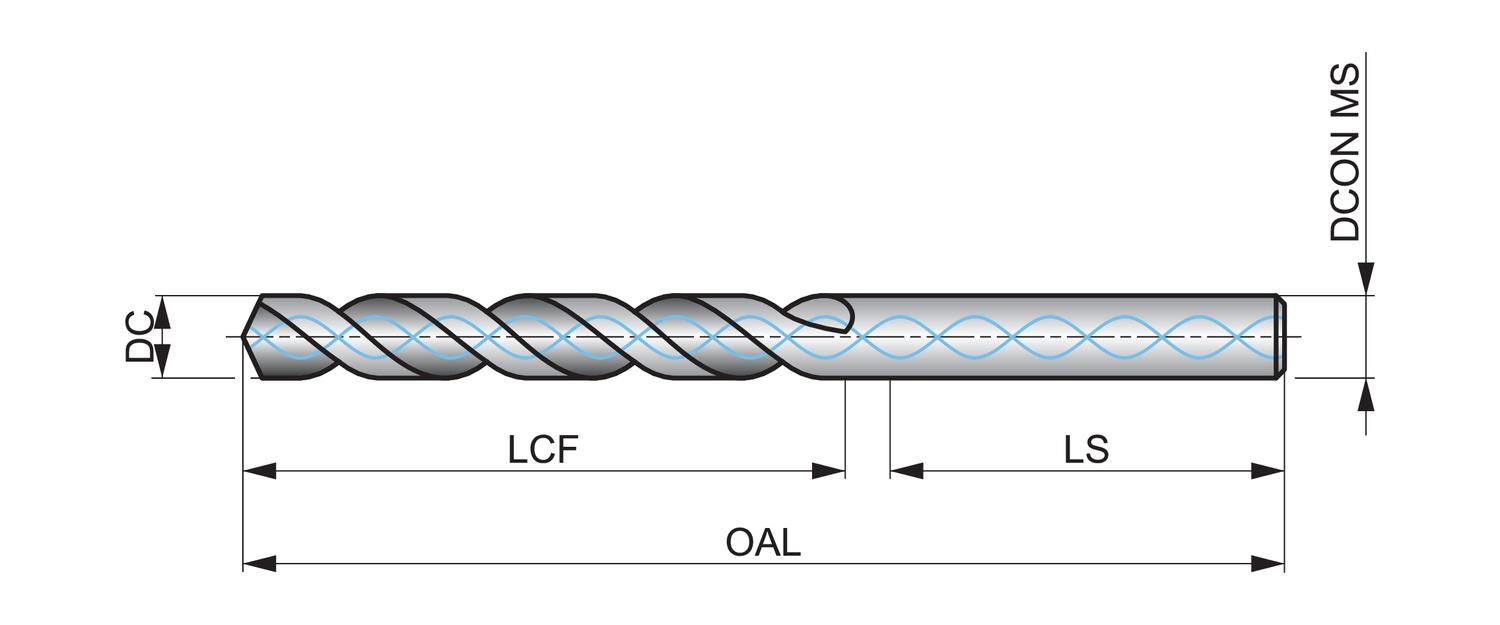

Cutting diameter – millimeter (DC): 8.5 mm
Cutting diameter – inch (DC): 0.3346 inch
Length chip flute – millimeter (LCF): 75 mm
Overall length – millimeter (OAL): 130 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 2.9528 inch
ISO: A5538.5

Brand

DORMER
