DORMER A7201.4 HSS/HSCo Drills

Product Code: A7201.4

$37.05$33.68 Ex. GST

Product Code: A7201.4 SKU A7201.4 Categories , ,
DORMER A7201.4 HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

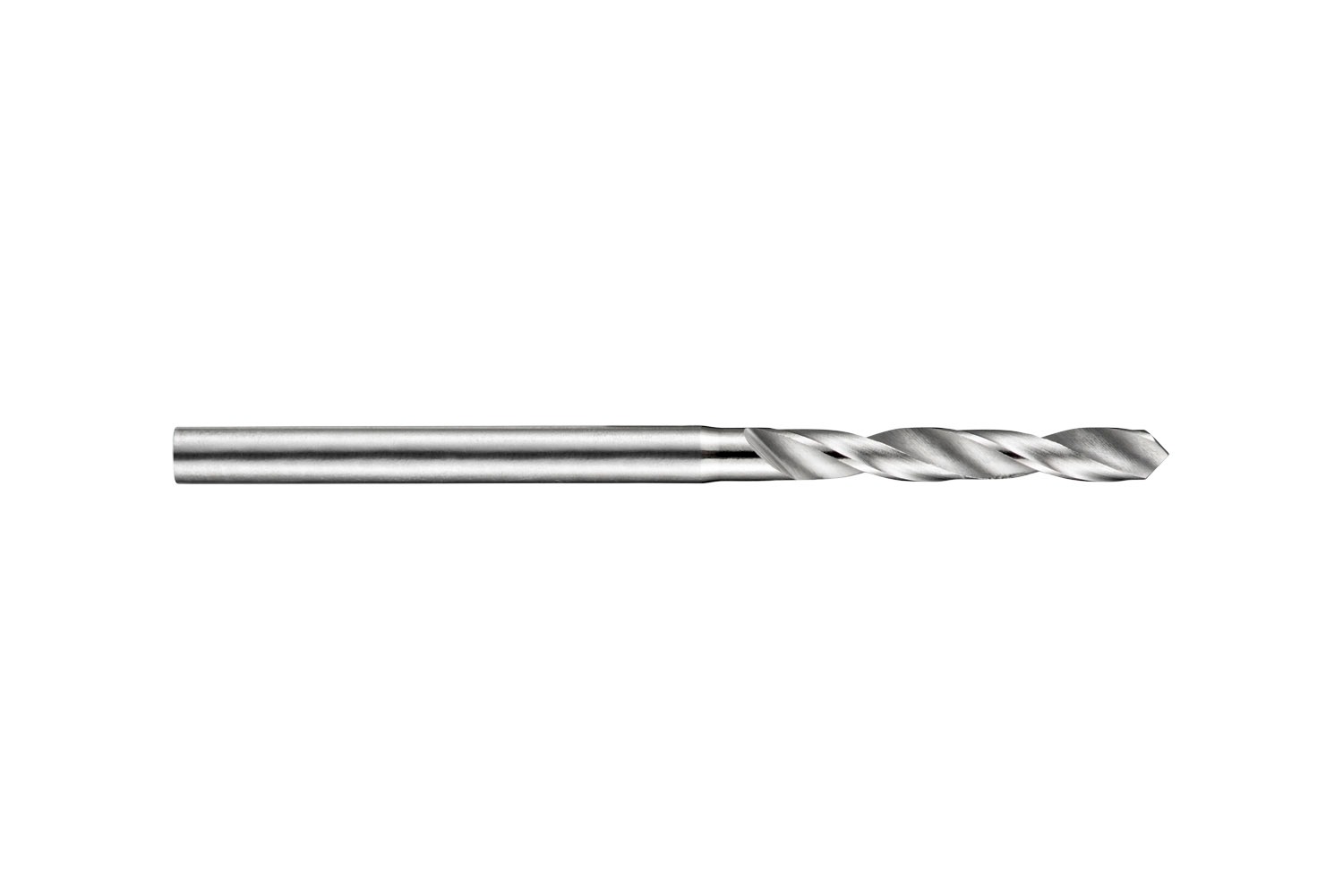

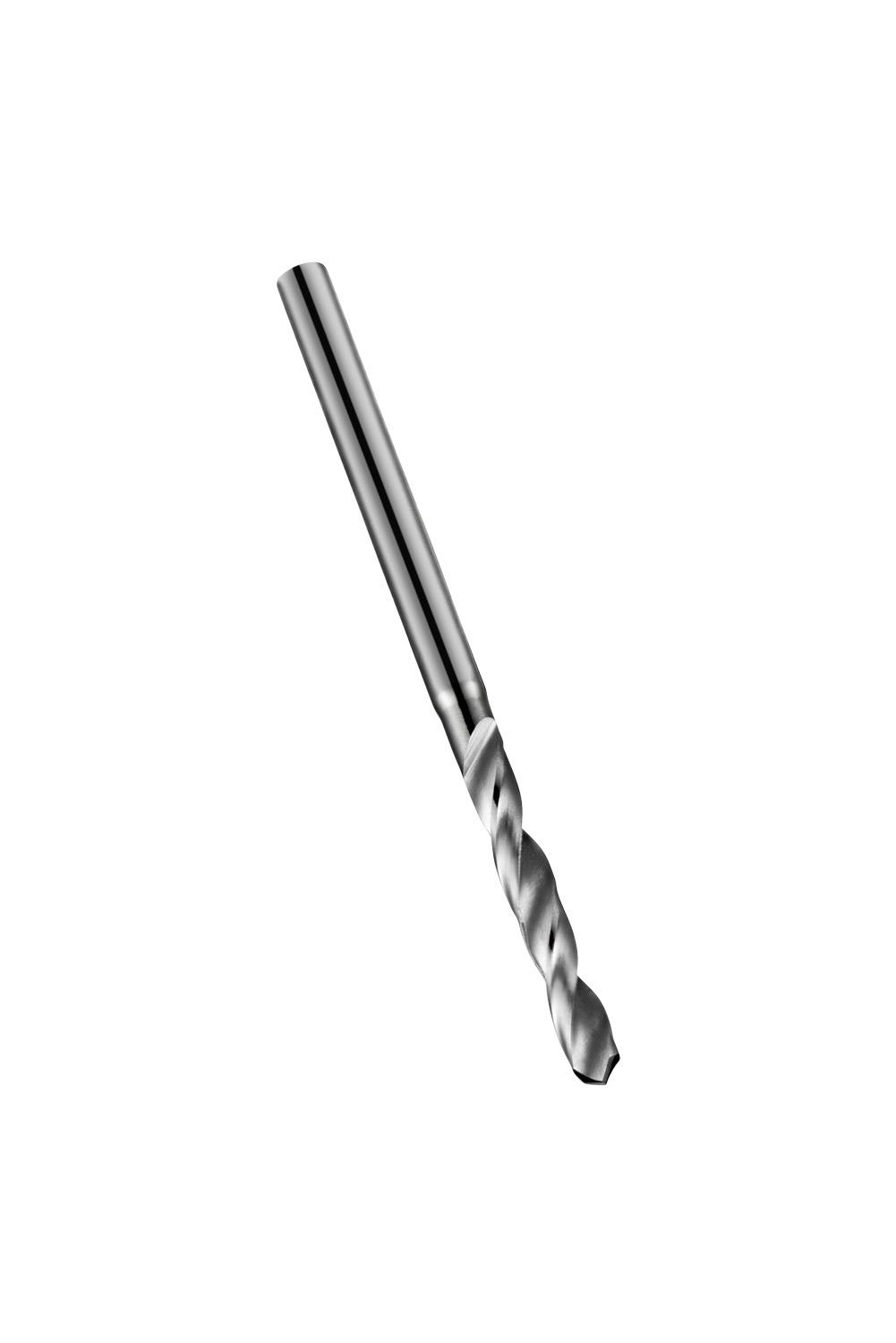

Micro drill with straight shank, diameter 1.4mm with an overall length of 25mm and flute length of 11.2mm according to DIN 1899 standard with 118° point angle, cobalt based HSS-E with bright finish for 2.5xD drilling without pecking in steel

Additional information

Weight 0.0360 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760615645
Product number (SAP): 86010814
Ordering code ANSI: A7201.4
Gross weight – grams: 1.26

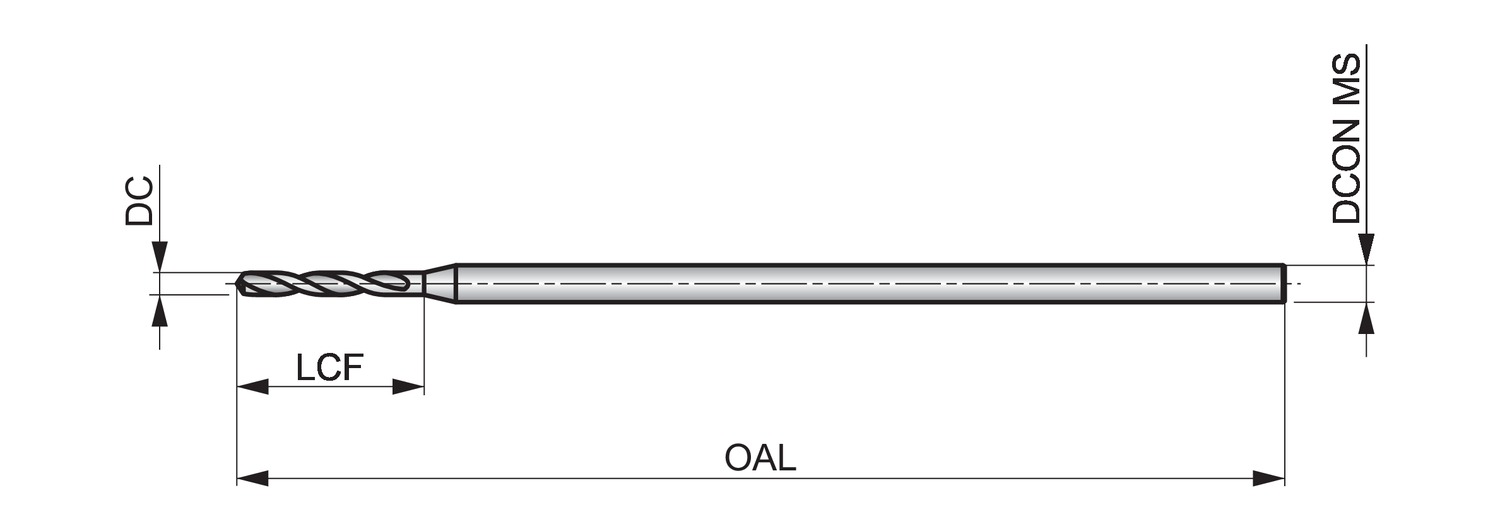

Cutting diameter – millimeter (DC): 1.4 mm
Cutting diameter – inch (DC): 0.0551 inch
Length chip flute – millimeter (LCF): 11.2 mm
Overall length – millimeter (OAL): 25 mm
Connection diameter – millimeter (DCON MS): 1.5 mm
Length chip flute – inch (LCF): 0.4409 inch
ISO: A7201.4

Brand

DORMER
