DORMER A9001/2 ADX / PFX Drills

Product Code: A9001/2

$167.68$152.44 Ex. GST

Product Code: A9001/2 SKU A9001/2 Categories , ,
DORMER A9001/2 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

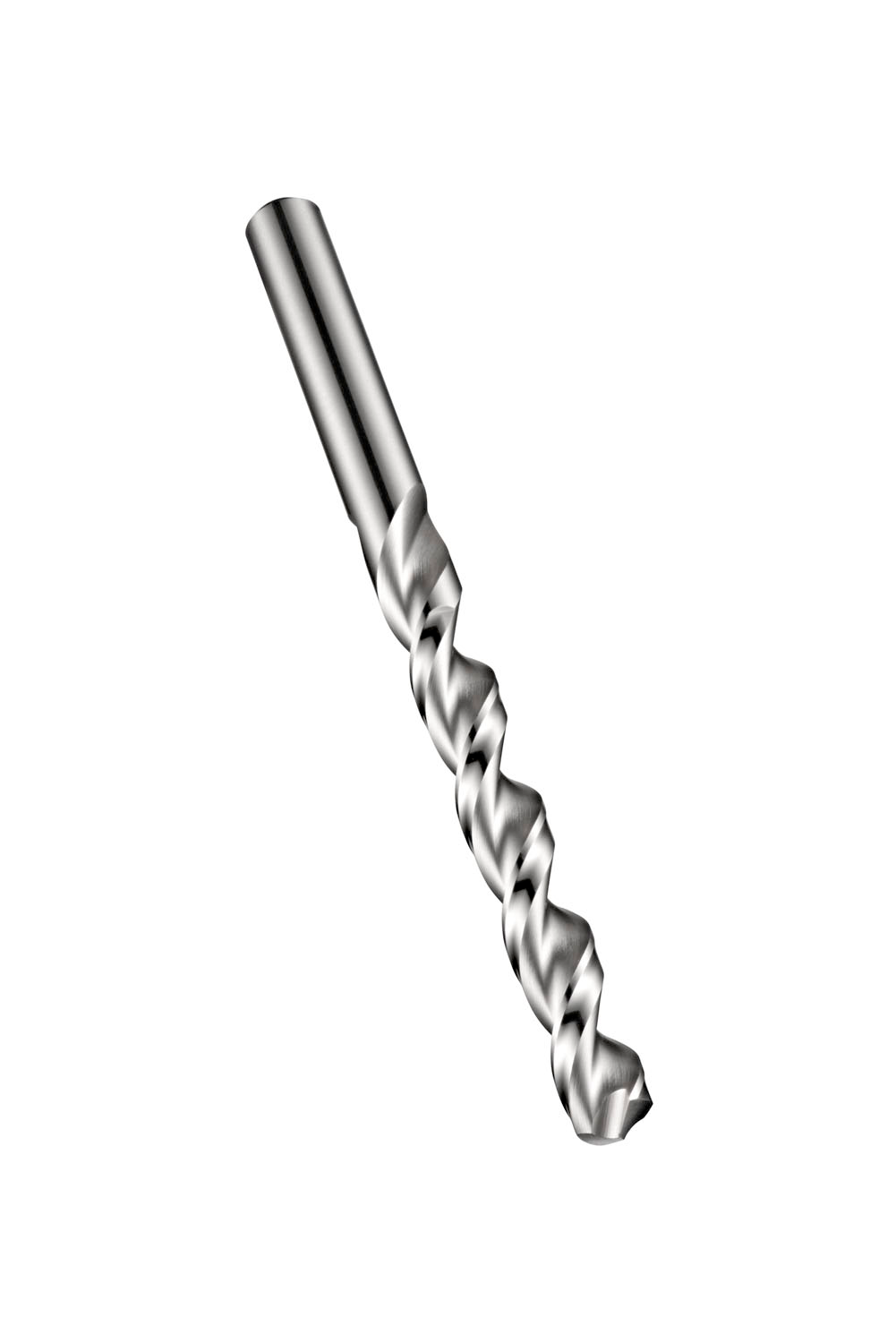

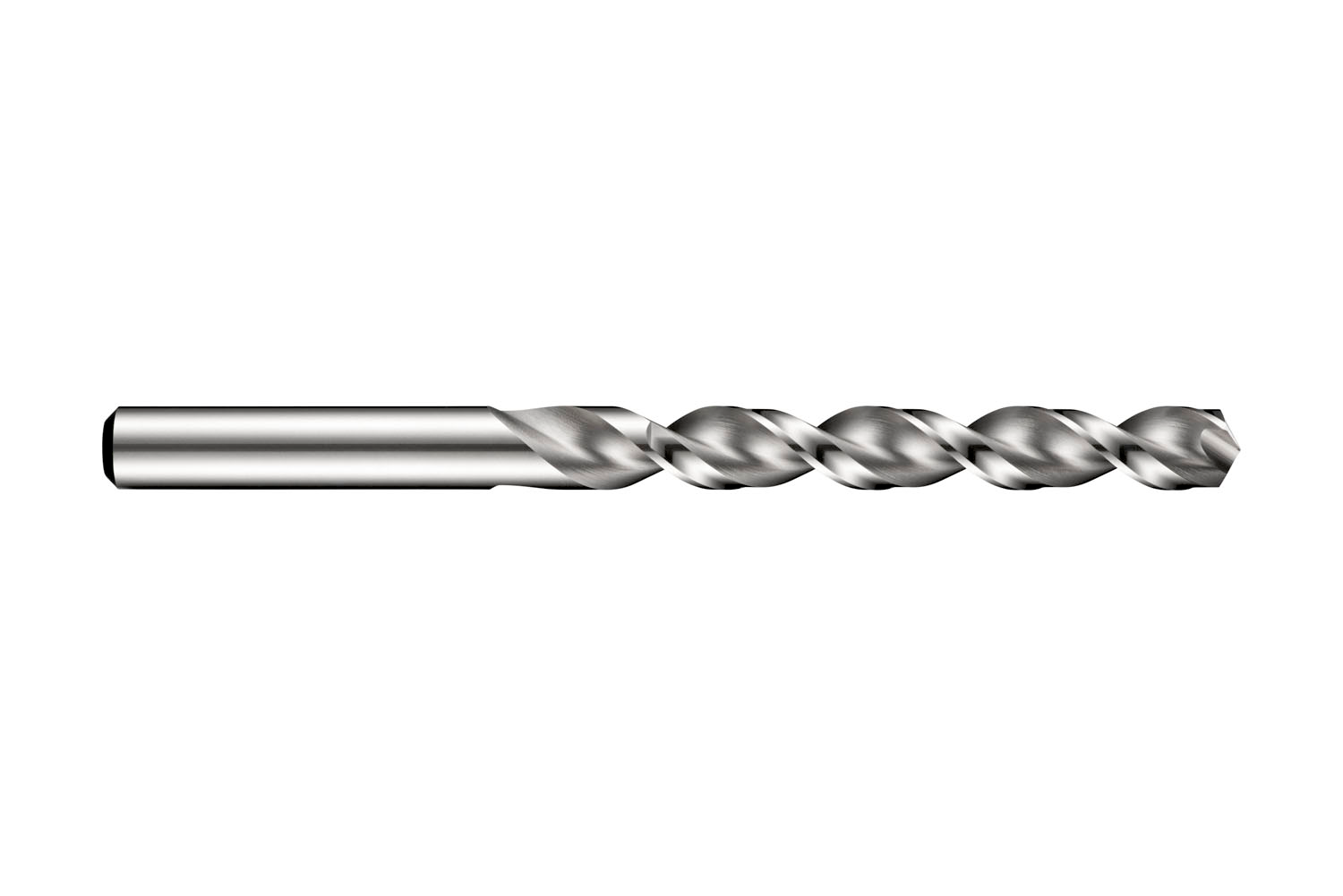

Jobber length PFX drill with straight shank, diameter 0.5000″ (1/2) with an overall length of 151mm and flute length of 101mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.1628 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760047644
Product number (SAP): 86011046
Ordering code ANSI: A9001/2
Product Line: PFX
Gross weight – grams: 101.6

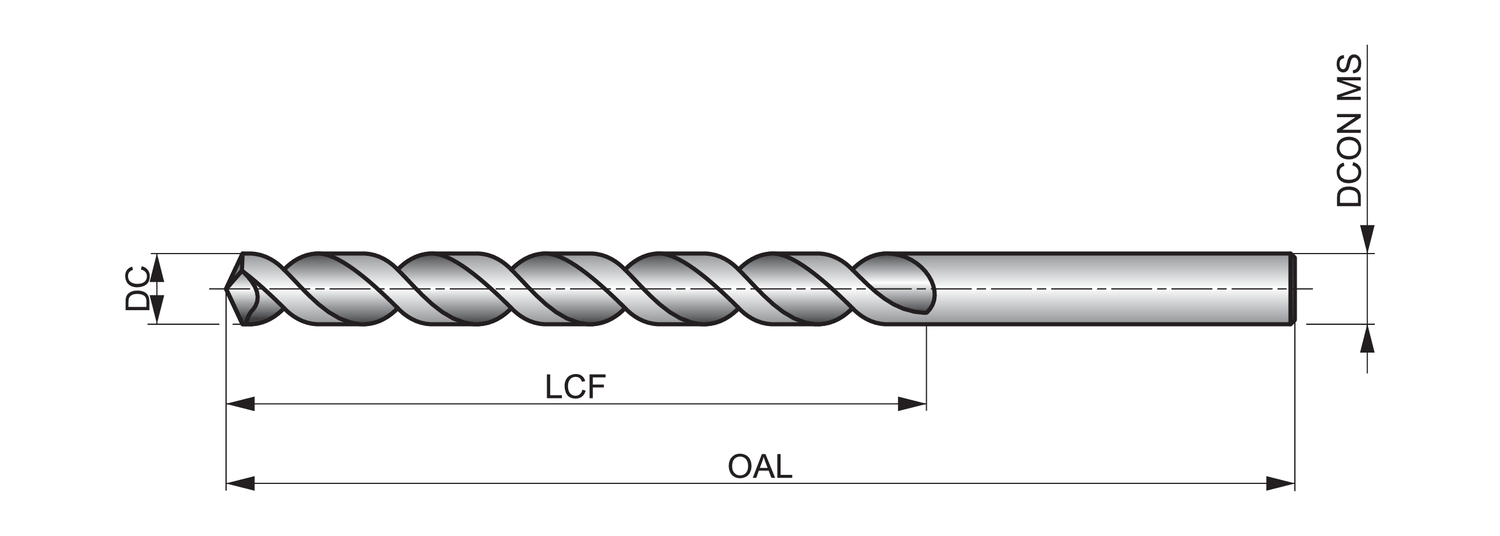

Cutting diameter – fractional inch (DC): 1/2
Cutting diameter – millimeter (DC): 12.7 mm
Cutting diameter – inch (DC): 0.5 inch
Length chip flute – millimeter (LCF): 101 mm
Overall length – millimeter (OAL): 151 mm
Connection diameter – millimeter (DCON MS): 12.7 mm
Length chip flute – inch (LCF): 3.9764 inch
ISO: A9001/2

Brand

DORMER
