DORMER A9001.8 ADX / PFX Drills

Product Code: A9001.8

$17.34$15.76 Ex. GST

Product Code: A9001.8 SKU A9001.8 Categories , ,
DORMER A9001.8 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

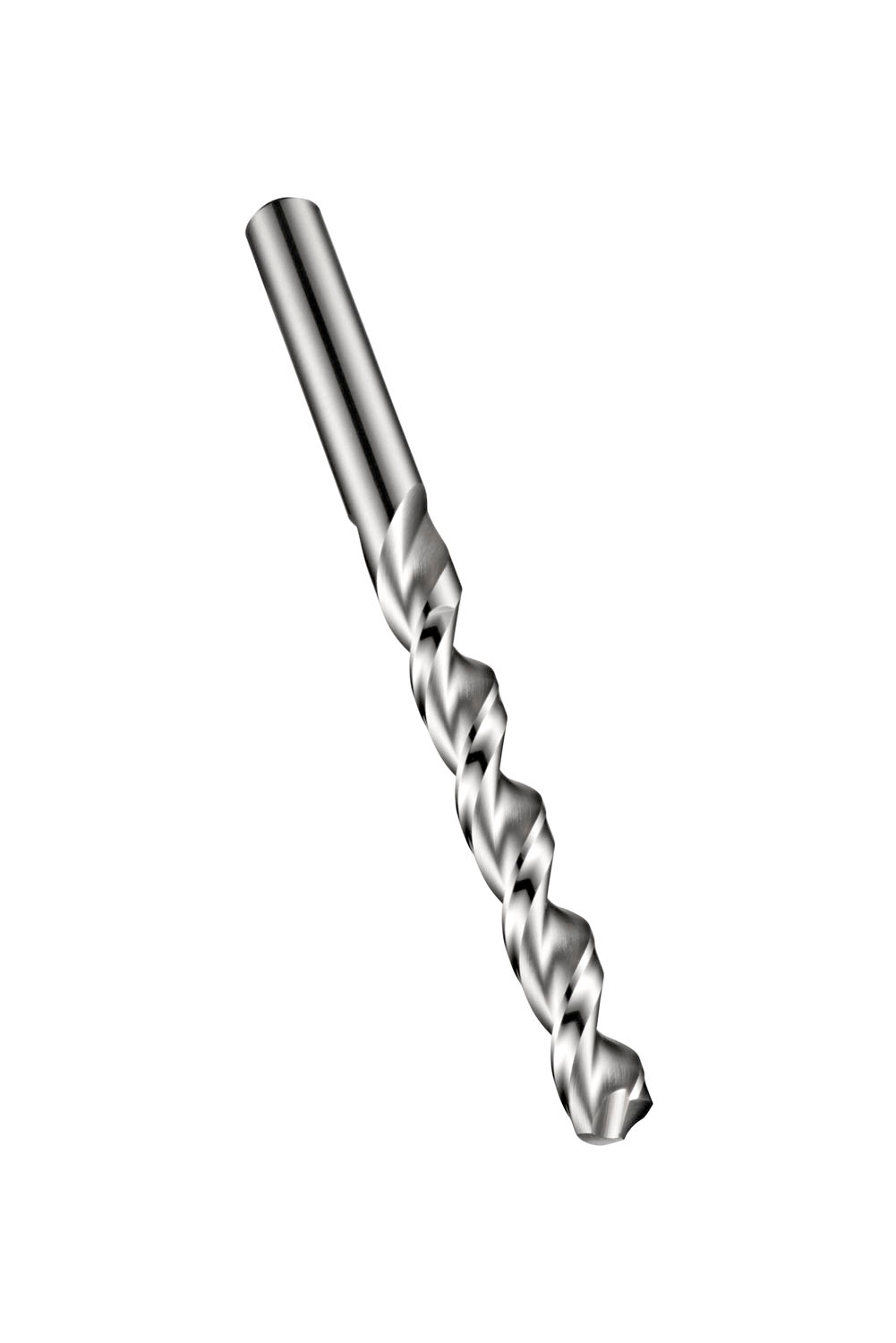

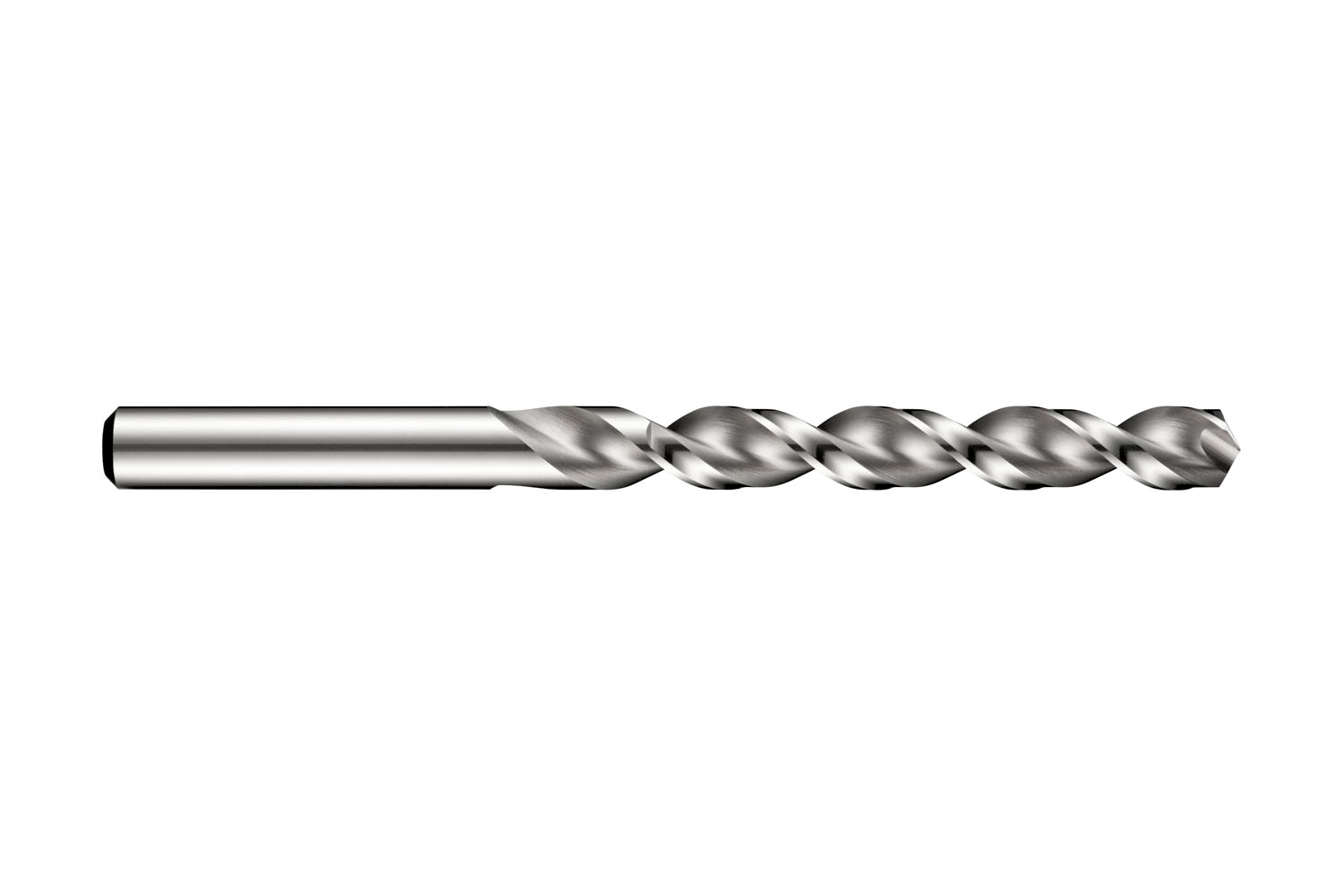

Jobber length PFX drill with straight shank, diameter 1.8mm with an overall length of 46mm and flute length of 22mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0168 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760046371
Product number (SAP): 86011043
Ordering code ANSI: A9001.8
Product Line: PFX
Gross weight – grams: 3.4

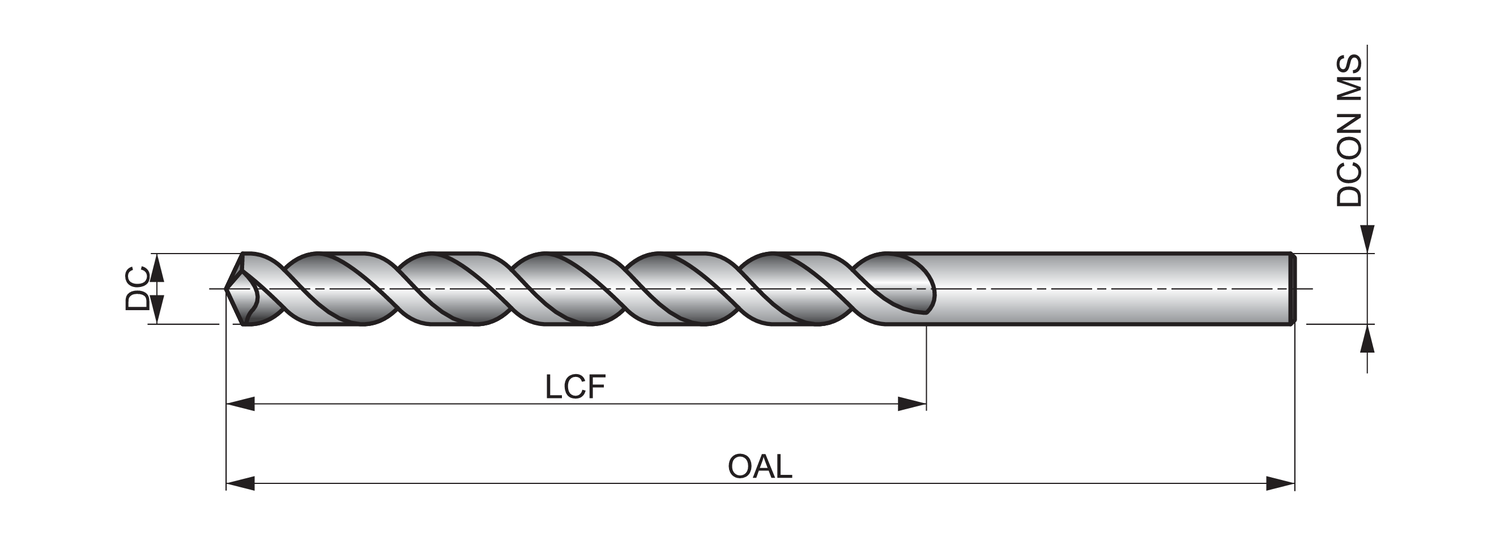

Cutting diameter – millimeter (DC): 1.8 mm
Cutting diameter – inch (DC): 0.0709 inch
Length chip flute – millimeter (LCF): 22 mm
Overall length – millimeter (OAL): 46 mm
Connection diameter – millimeter (DCON MS): 1.8 mm
Length chip flute – inch (LCF): 0.8661 inch
ISO: A9001.8

Brand

DORMER
