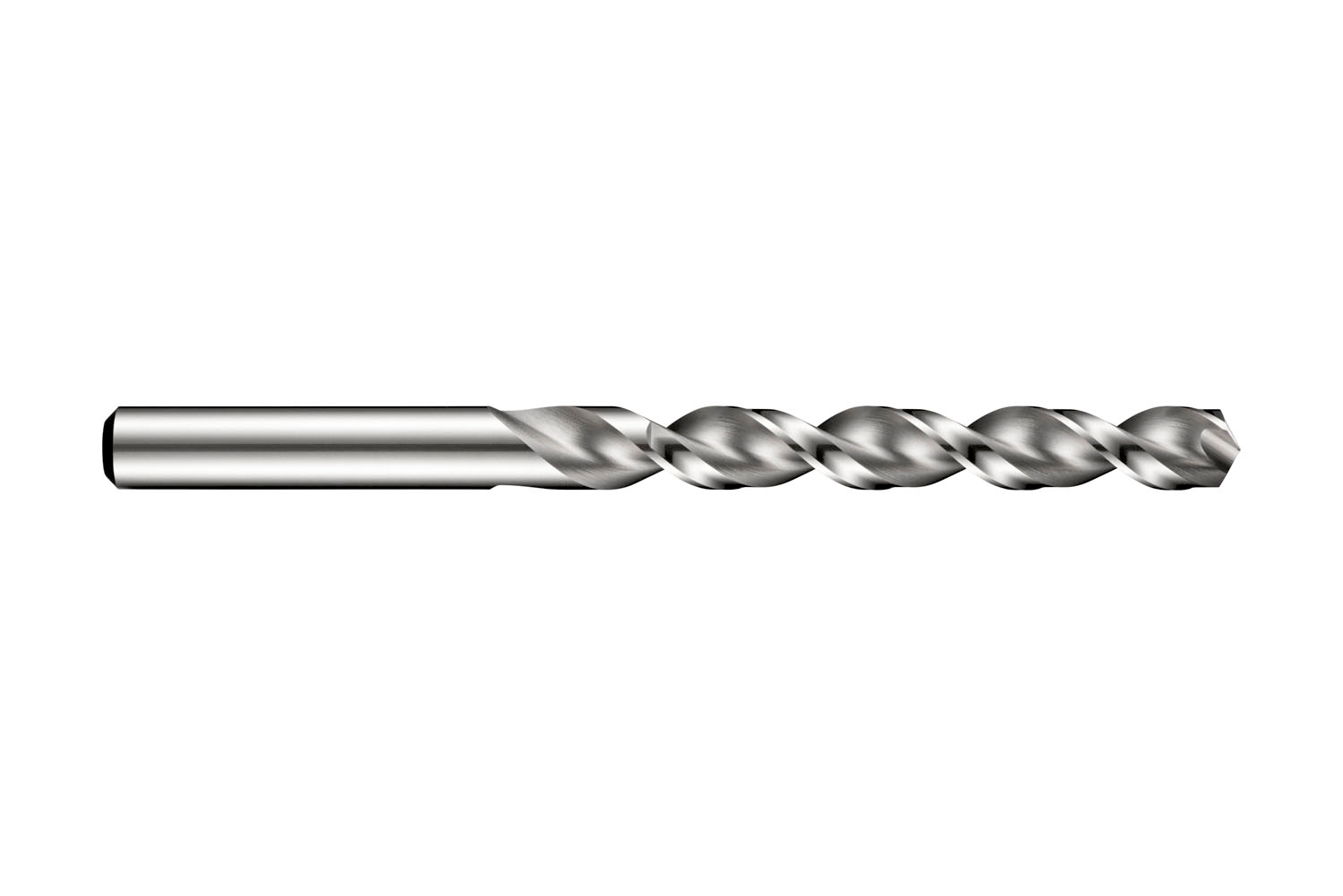

DORMER A90010.3 ADX / PFX Drills

Product Code: A90010.3

$114.43$104.03 Ex. GST

Product Code: A90010.3 SKU A90010.3 Categories , ,
DORMER A90010.3 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length PFX drill with straight shank, diameter 10.3mm with an overall length of 133mm and flute length of 87mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.1111 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760047477
Product number (SAP): 86011051
Ordering code ANSI: A90010.3
Product Line: PFX
Gross weight – grams: 65.4
Cutting diameter – millimeter (DC): 10.3 mm
Cutting diameter – inch (DC): 0.4055 inch
Length chip flute – millimeter (LCF): 87 mm
Overall length – millimeter (OAL): 133 mm
Connection diameter – millimeter (DCON MS): 10.3 mm
Length chip flute – inch (LCF): 3.4252 inch
ISO: A90010.3

Brand

DORMER
