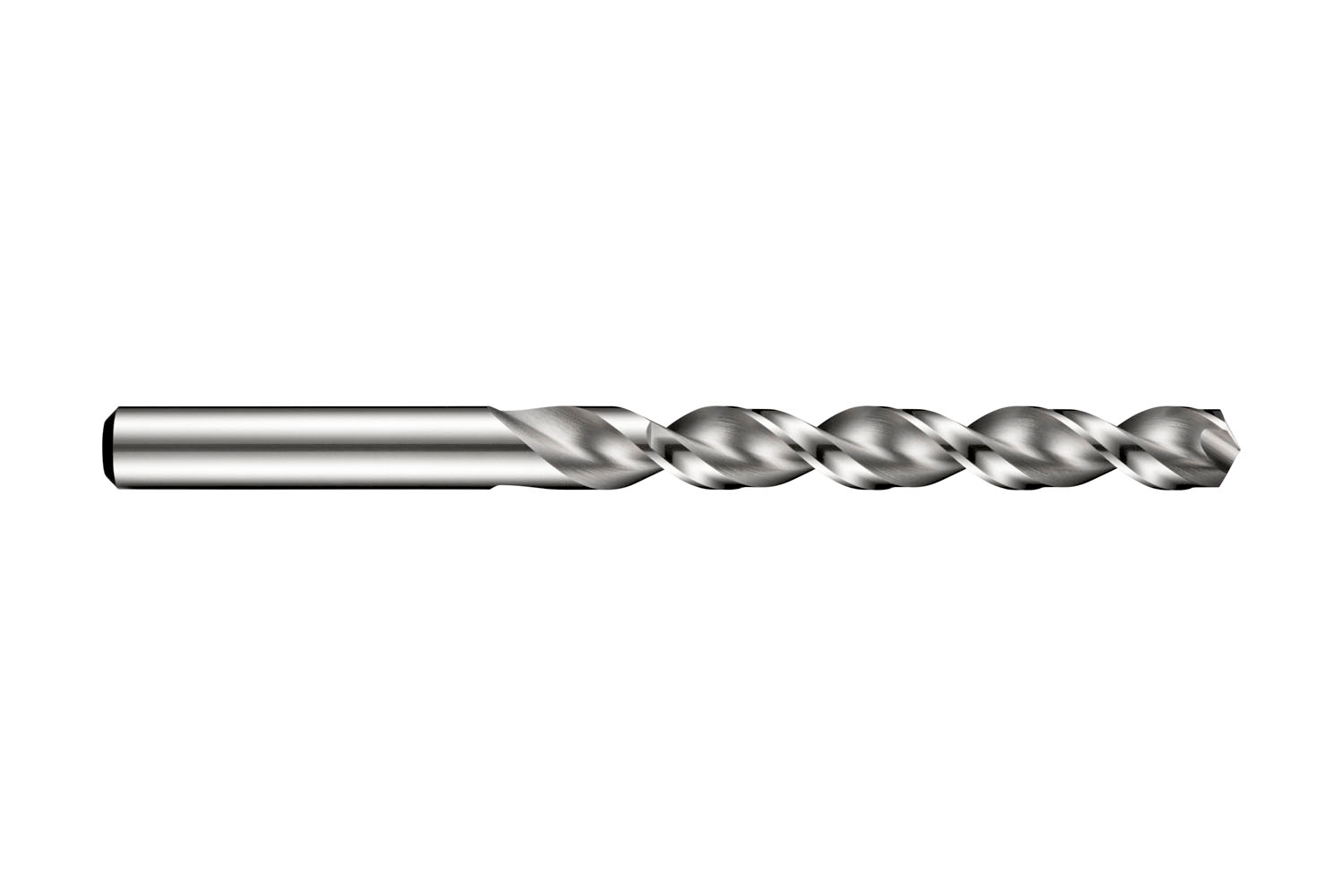

DORMER A90011/16 ADX / PFX Drills

Product Code: A90011/16

$419.21$381.10 Ex. GST

Product Code: A90011/16 SKU A90011/16 Categories , ,
DORMER A90011/16 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length PFX drill with straight shank, diameter 0.6875″ (11/16) with an overall length of 194mm and flute length of 143mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.4070 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760634448
Product number (SAP): 86011061
Ordering code ANSI: A90011/16
Product Line: PFX
Gross weight – grams: 241
Cutting diameter – fractional inch (DC): 11/16
Cutting diameter – millimeter (DC): 17.46 mm
Cutting diameter – inch (DC): 0.6875 inch
Length chip flute – millimeter (LCF): 143 mm
Overall length – millimeter (OAL): 194 mm
Connection diameter – millimeter (DCON MS): 17.46 mm
Length chip flute – inch (LCF): 5.6299 inch
ISO: A90011/16

Brand

DORMER
