DORMER A90011.8 ADX / PFX Drills

Product Code: A90011.8

$172.22$156.56 Ex. GST

Product Code: A90011.8 SKU A90011.8 Categories , ,
DORMER A90011.8 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

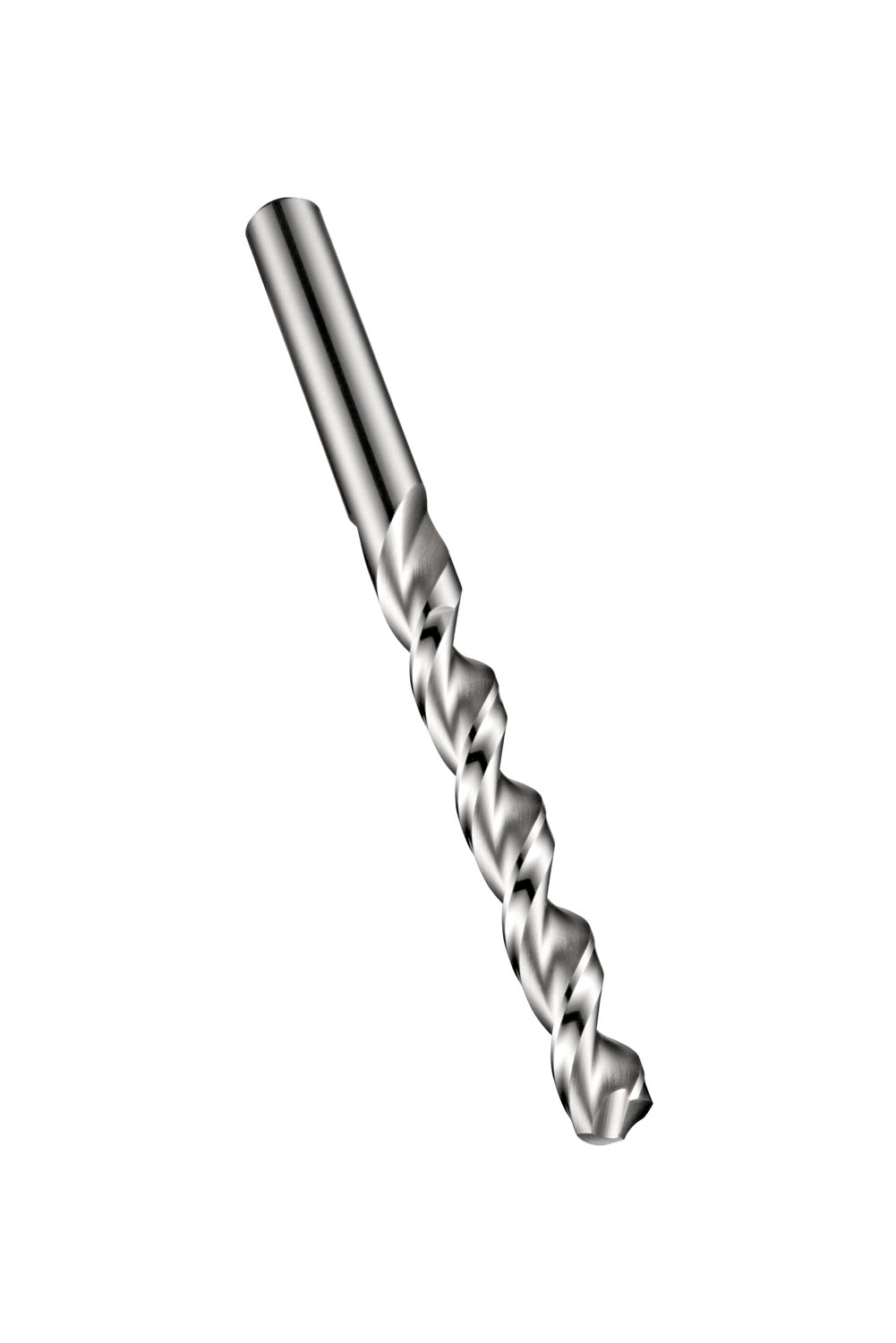

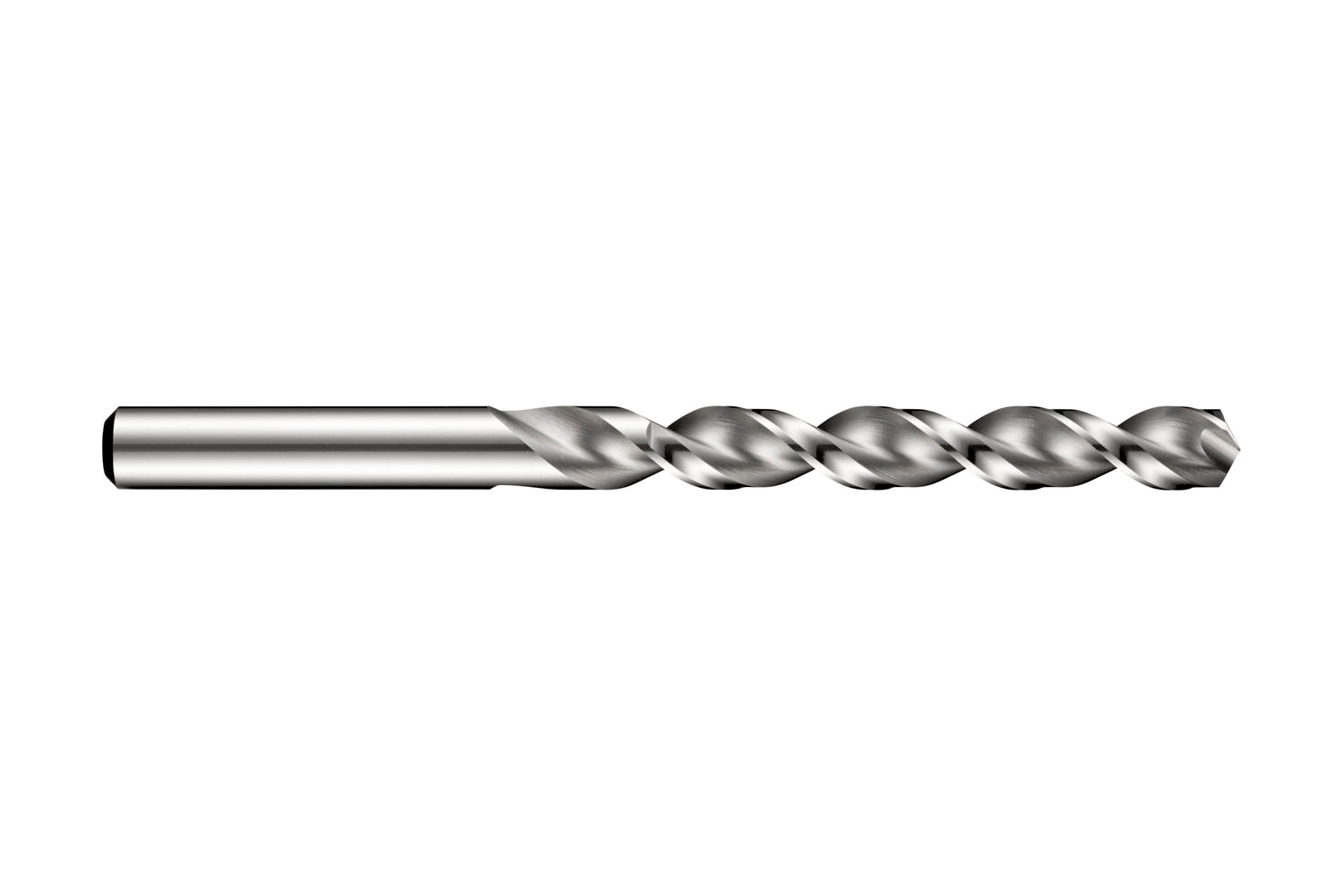

Jobber length PFX drill with straight shank, diameter 11.8mm with an overall length of 142mm and flute length of 94mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.1672 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760047583
Product number (SAP): 86011060
Ordering code ANSI: A90011.8
Product Line: PFX
Gross weight – grams: 89

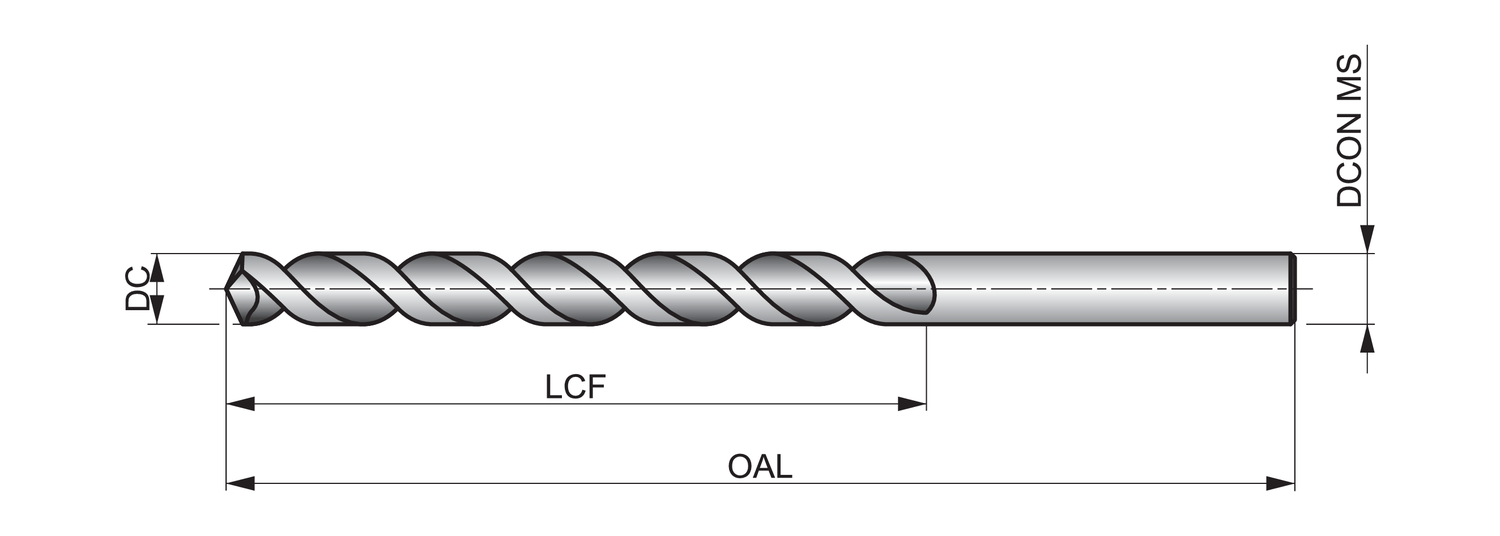

Cutting diameter – millimeter (DC): 11.8 mm
Cutting diameter – inch (DC): 0.4646 inch
Length chip flute – millimeter (LCF): 94 mm
Overall length – millimeter (OAL): 142 mm
Connection diameter – millimeter (DCON MS): 11.8 mm
Length chip flute – inch (LCF): 3.7008 inch
ISO: A90011.8

Brand

DORMER
