DORMER A90013.5 ADX / PFX Drills

Product Code: A90013.5

$245.86$223.51 Ex. GST

Product Code: A90013.5 SKU A90013.5 Categories , ,
DORMER A90013.5 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

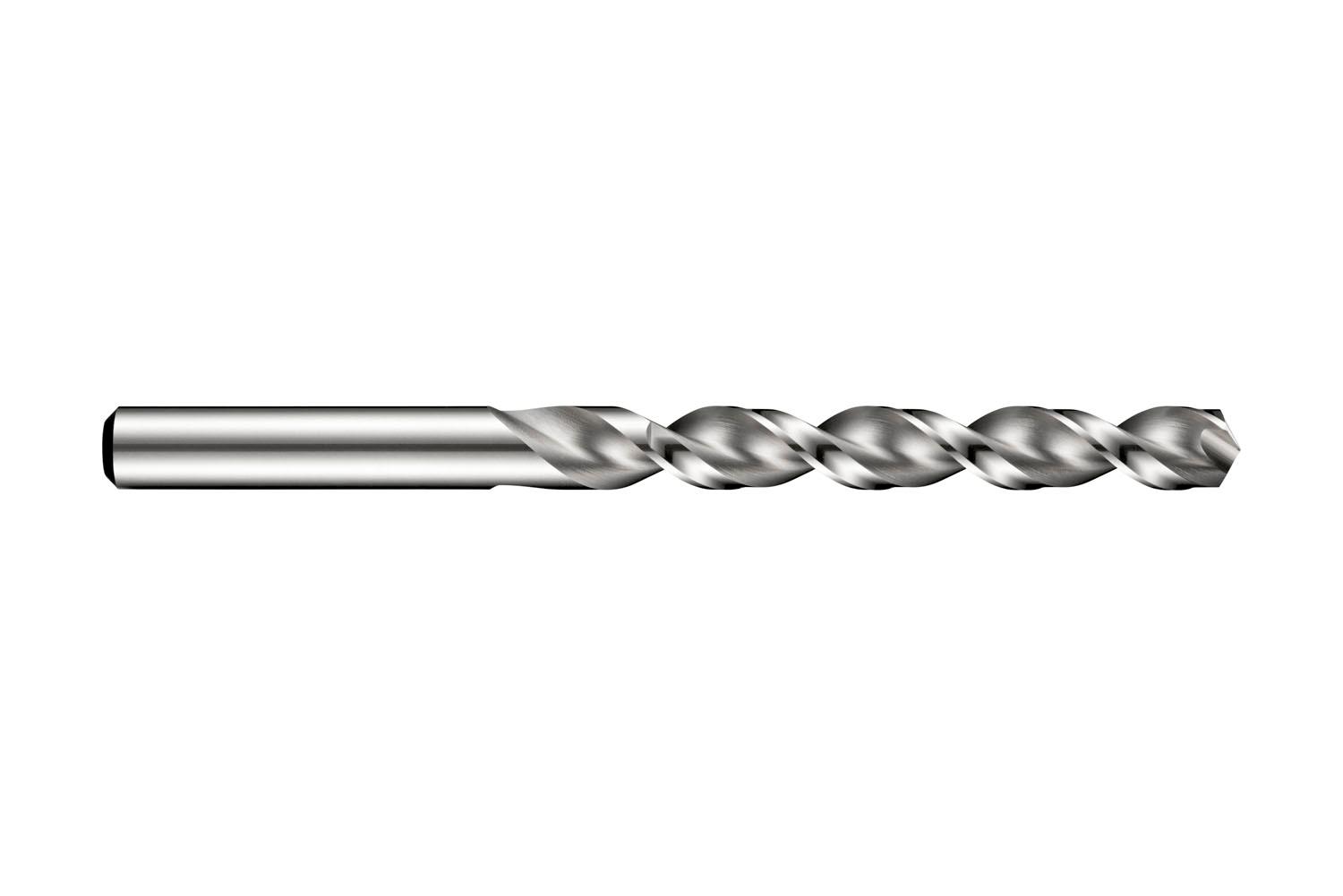

Jobber length PFX drill with straight shank, diameter 13.5mm with an overall length of 160mm and flute length of 108mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.2387 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760047675
Product number (SAP): 86011071
Ordering code ANSI: A90013.5
Product Line: PFX
Gross weight – grams: 121.5
Cutting diameter – millimeter (DC): 13.5 mm
Cutting diameter – inch (DC): 0.5315 inch
Length chip flute – millimeter (LCF): 108 mm
Overall length – millimeter (OAL): 160 mm
Connection diameter – millimeter (DCON MS): 13.5 mm
Length chip flute – inch (LCF): 4.252 inch
ISO: A90013.5

Brand

DORMER
