DORMER A90017.0 ADX / PFX Drills

Product Code: A90017.0

$402.22$365.65 Ex. GST

Product Code: A90017.0 SKU A90017.0 Categories , ,
DORMER A90017.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

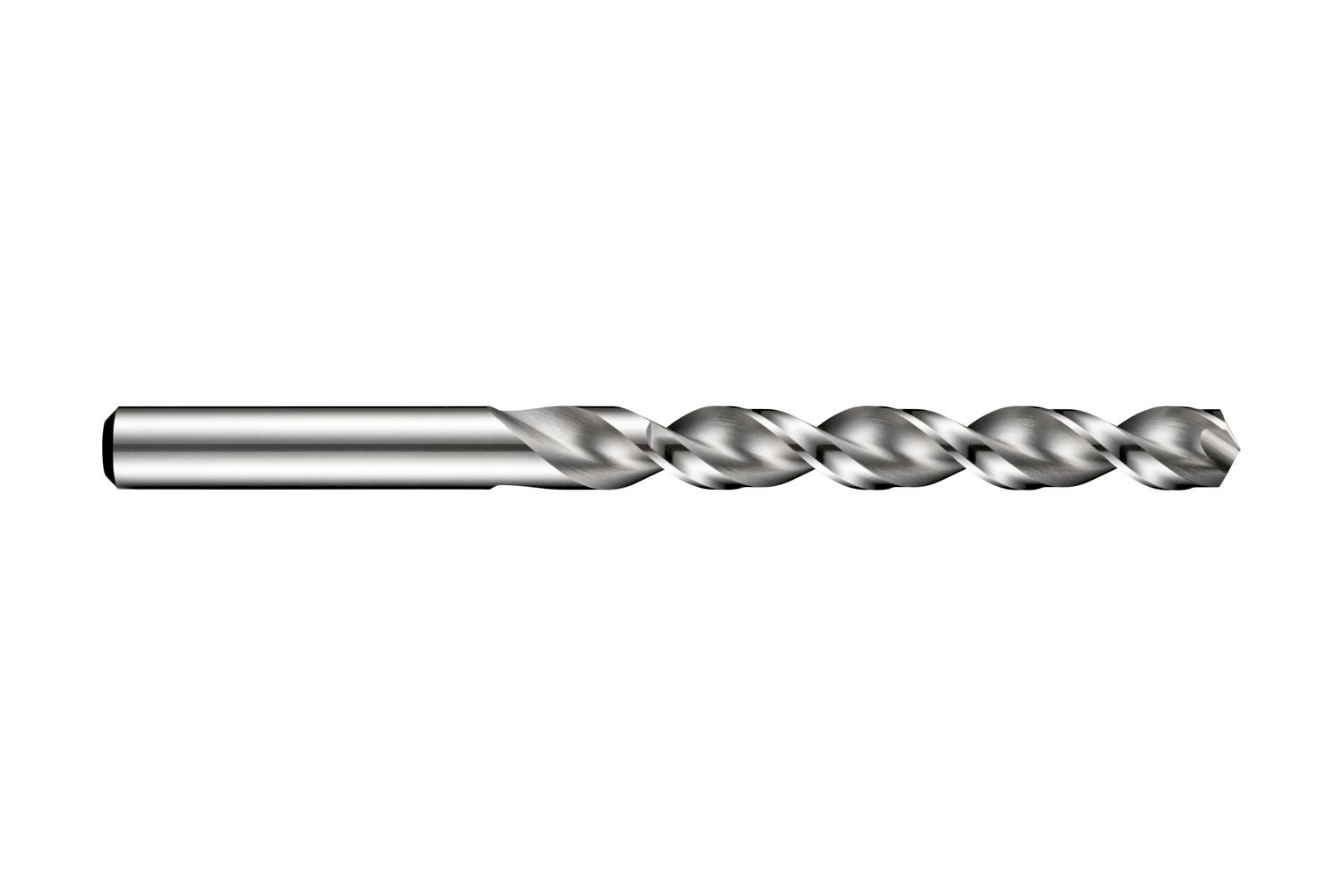

Jobber length PFX drill with straight shank, diameter 17mm with an overall length of 184mm and flute length of 125mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.3905 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760047736
Product number (SAP): 86011084
Ordering code ANSI: A90017.0
Product Line: PFX
Gross weight – grams: 224
Cutting diameter – millimeter (DC): 17 mm
Cutting diameter – inch (DC): 0.6693 inch
Length chip flute – millimeter (LCF): 125 mm
Overall length – millimeter (OAL): 184 mm
Connection diameter – millimeter (DCON MS): 17 mm
Length chip flute – inch (LCF): 4.9213 inch
ISO: A90017.0

Brand

DORMER
