DORMER A90023/32 ADX / PFX Drills

Product Code: A90023/32

$566.50$515.00 Ex. GST

Product Code: A90023/32 SKU A90023/32 Categories , ,
DORMER A90023/32 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

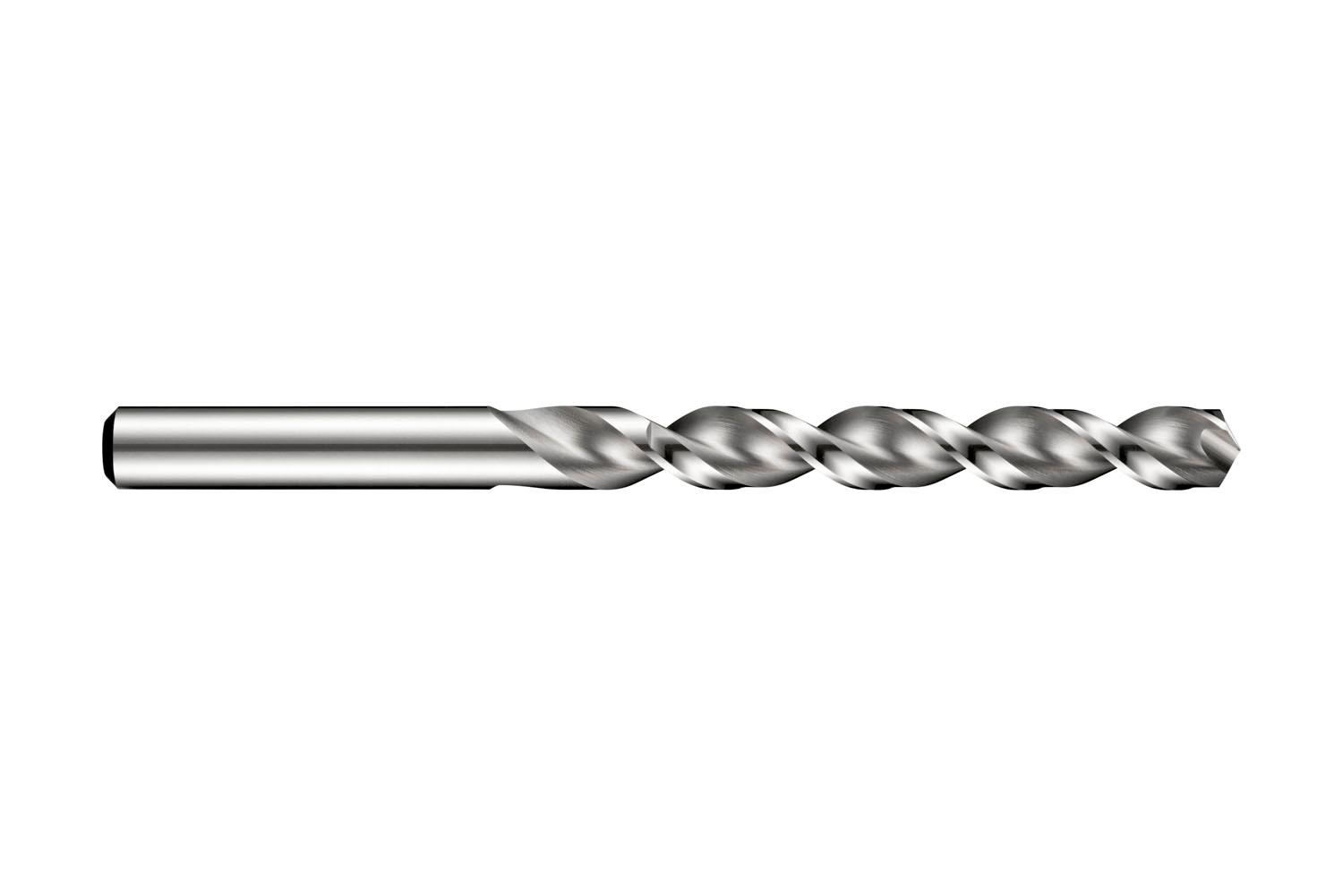

Jobber length PFX drill with straight shank, diameter 0.7188″ (23/32) with an overall length of 191mm and flute length of 130mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.5500 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760634462
Product number (SAP): 86011108
Ordering code ANSI: A90023/32
Product Line: PFX
Gross weight – grams: 277
Cutting diameter – fractional inch (DC): 23/32
Cutting diameter – millimeter (DC): 18.26 mm
Cutting diameter – inch (DC): 0.7188 inch
Length chip flute – millimeter (LCF): 130 mm
Overall length – millimeter (OAL): 191 mm
Connection diameter – millimeter (DCON MS): 18.26 mm
Length chip flute – inch (LCF): 5.1181 inch
ISO: A90023/32

Brand

DORMER
