DORMER A9003.0 ADX / PFX Drills

Product Code: A9003.0

$15.63$14.21 Ex. GST

Product Code: A9003.0 SKU A9003.0 Categories , ,
DORMER A9003.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

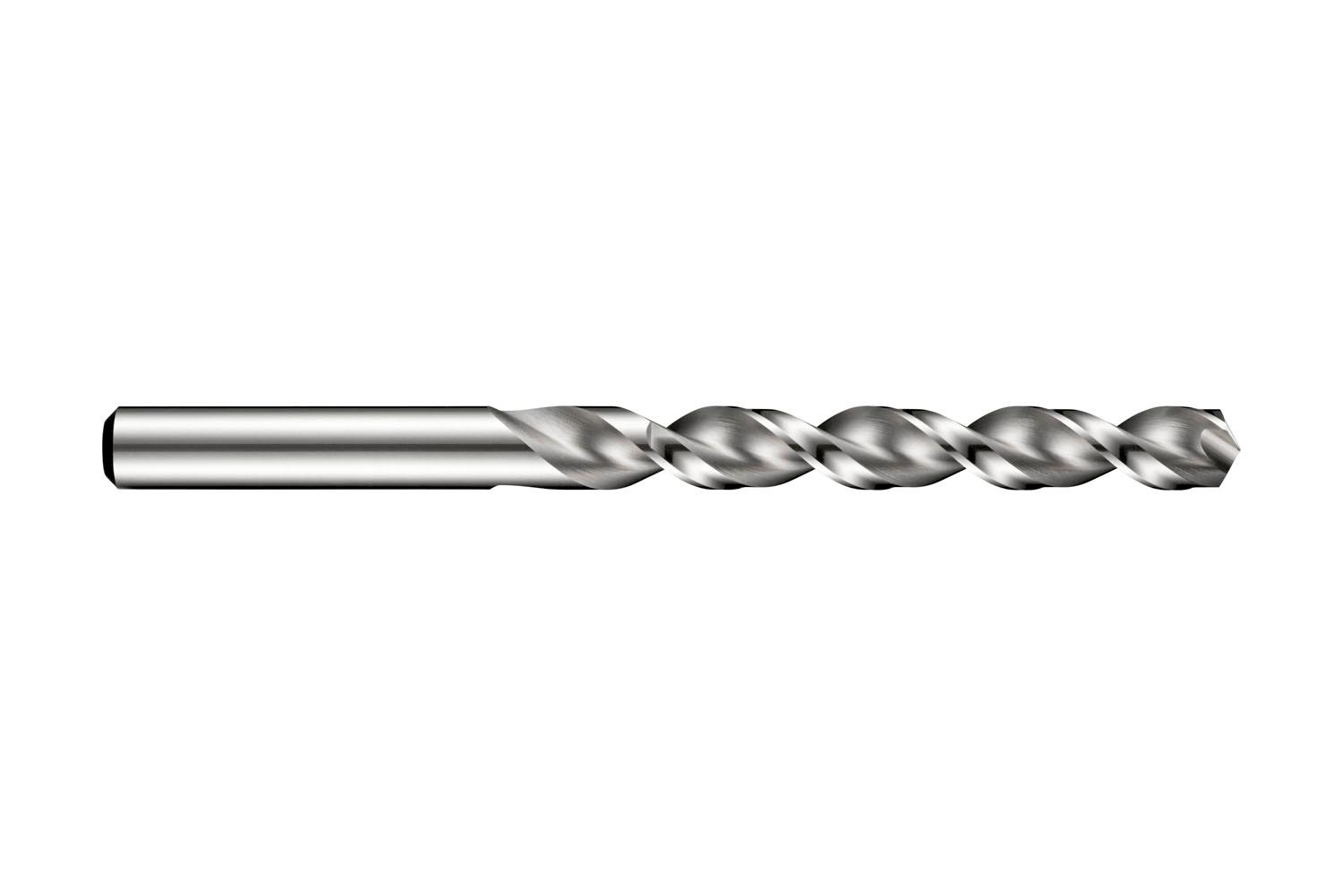

Jobber length PFX drill with straight shank, diameter 3mm with an overall length of 61mm and flute length of 33mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0152 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760046524
Product number (SAP): 86011114
Ordering code ANSI: A9003.0
Product Line: PFX
Gross weight – grams: 5.2
Cutting diameter – millimeter (DC): 3 mm
Cutting diameter – inch (DC): 0.1181 inch
Length chip flute – millimeter (LCF): 33 mm
Overall length – millimeter (OAL): 61 mm
Connection diameter – millimeter (DCON MS): 3 mm
Length chip flute – inch (LCF): 1.2992 inch
ISO: A9003.0

Brand

DORMER
