DORMER A9003.1 ADX / PFX Drills

Product Code: A9003.1

$18.36$16.69 Ex. GST

Product Code: A9003.1 SKU A9003.1 Categories , ,
DORMER A9003.1 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

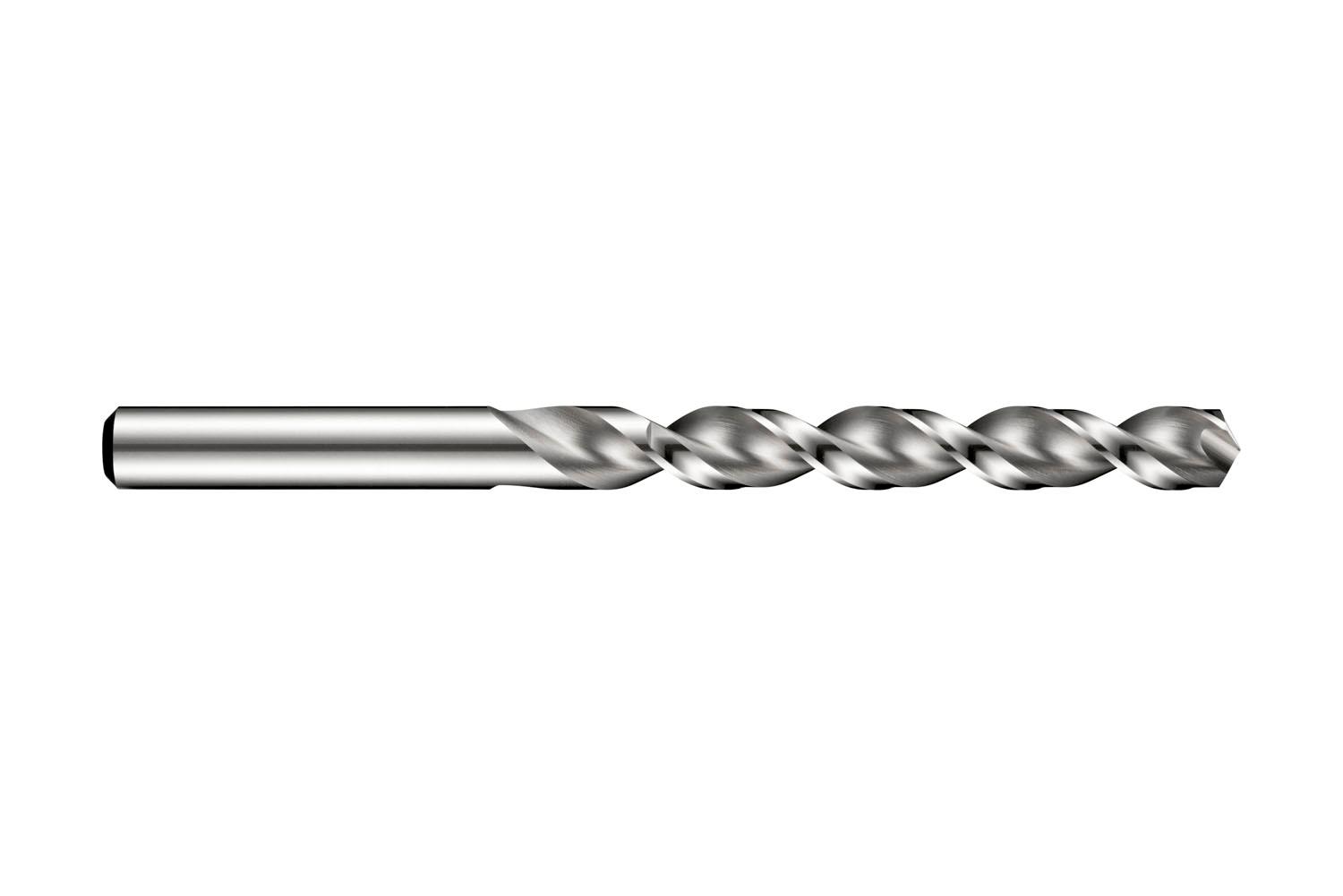

Jobber length PFX drill with straight shank, diameter 3.1mm with an overall length of 65mm and flute length of 36mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0178 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760046531
Product number (SAP): 86011115
Ordering code ANSI: A9003.1
Product Line: PFX
Gross weight – grams: 5.3
Cutting diameter – millimeter (DC): 3.1 mm
Cutting diameter – inch (DC): 0.122 inch
Length chip flute – millimeter (LCF): 36 mm
Overall length – millimeter (OAL): 65 mm
Connection diameter – millimeter (DCON MS): 3.1 mm
Length chip flute – inch (LCF): 1.4173 inch
ISO: A9003.1

Brand

DORMER
