DORMER A9003/16 ADX / PFX Drills

Product Code: A9003/16

$22.43$20.39 Ex. GST

Product Code: A9003/16 SKU A9003/16 Categories , ,

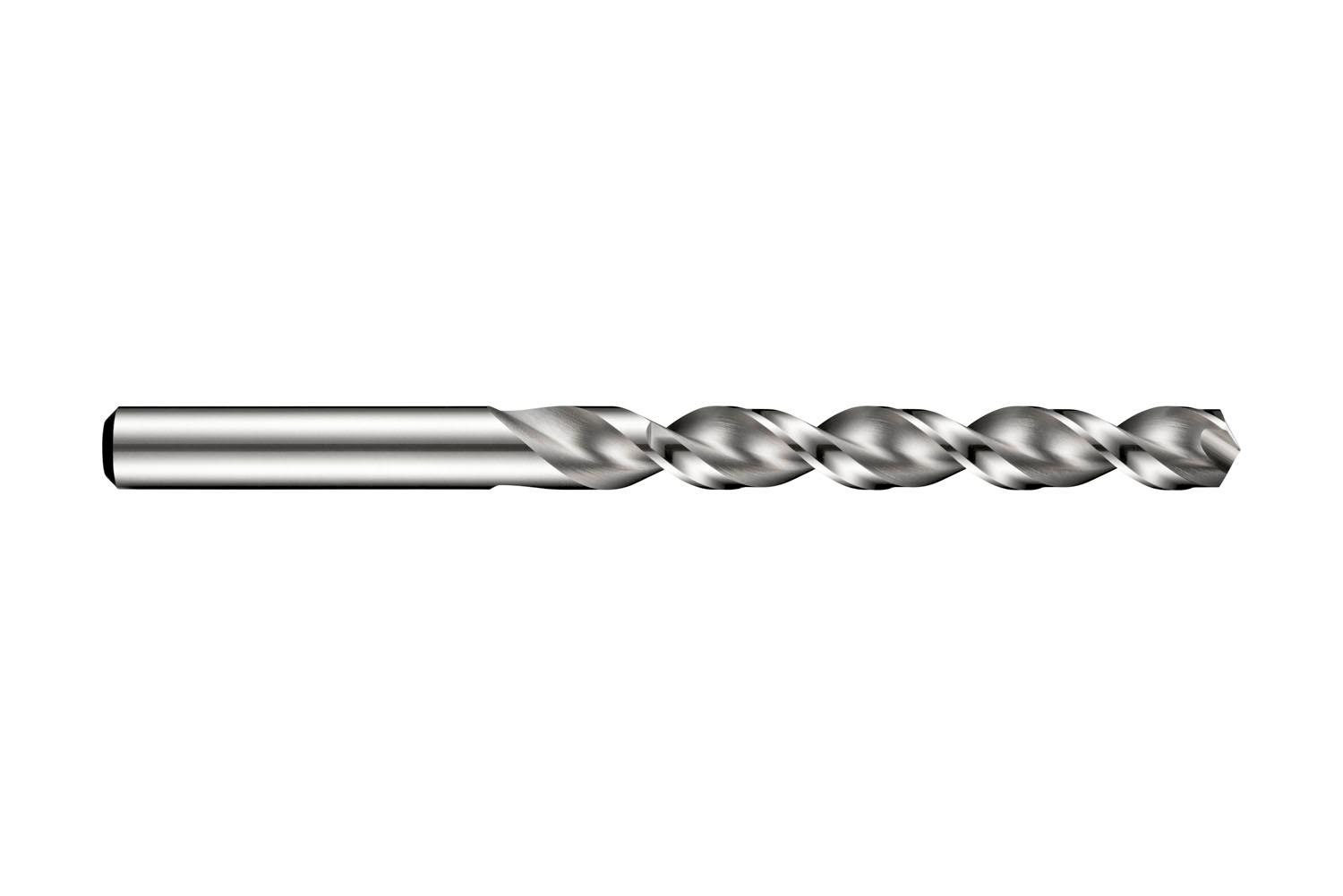

DORMER A9003/16 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length PFX drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 89mm and flute length of 59mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0218 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760046746
Product number (SAP): 86011124
Ordering code ANSI: A9003/16
Product Line: PFX
Gross weight – grams: 14.53
Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Cutting diameter – inch (DC): 0.1875 inch
Length chip flute – millimeter (LCF): 59 mm
Overall length – millimeter (OAL): 89 mm
Connection diameter – millimeter (DCON MS): 4.76 mm
Length chip flute – inch (LCF): 2.3228 inch
ISO: A9003/16

Brand

DORMER
