DORMER A9003.3 ADX / PFX Drills

Product Code: A9003.3

$16.31$14.83 Ex. GST

Product Code: A9003.3 SKU A9003.3 Categories , ,
DORMER A9003.3 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

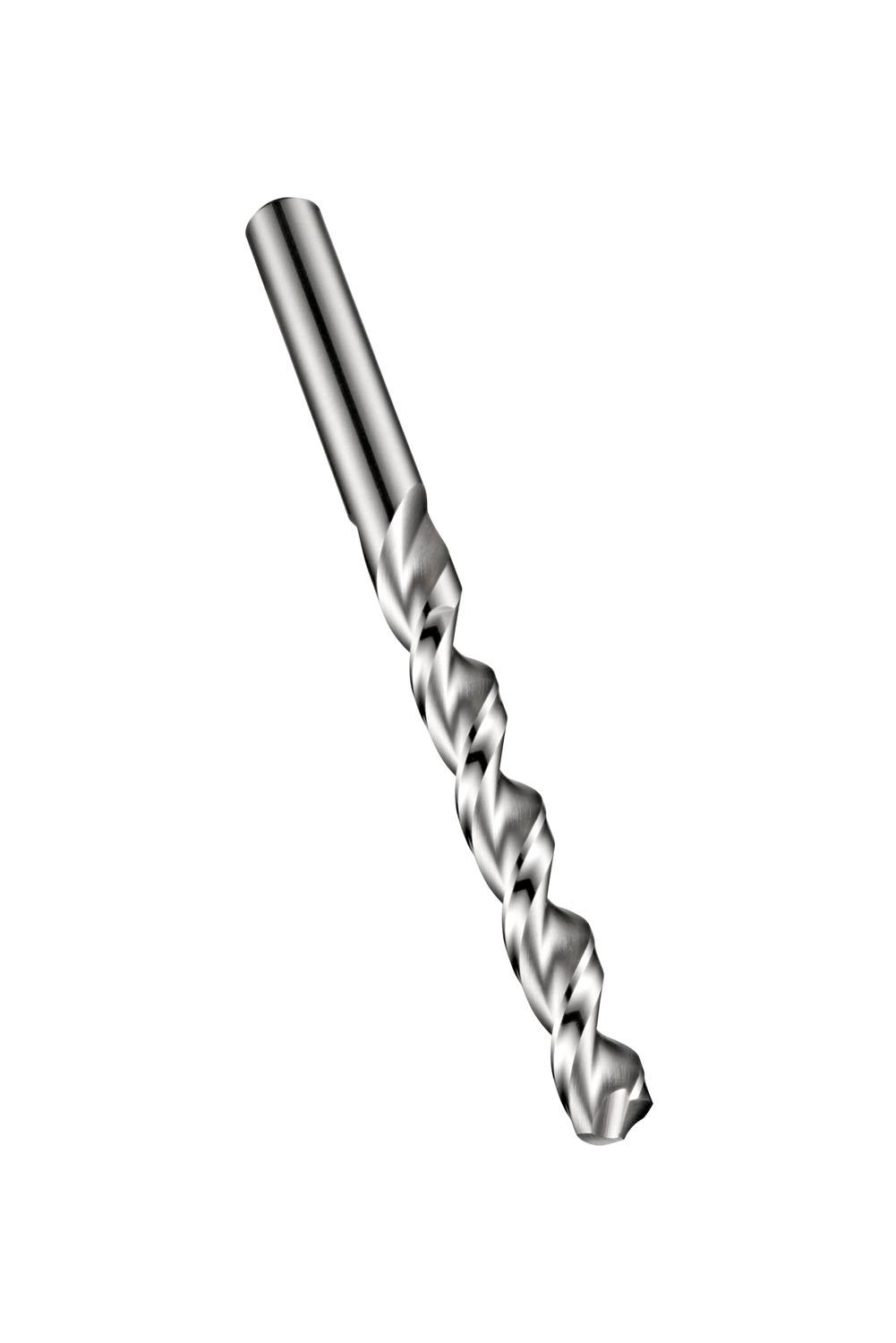

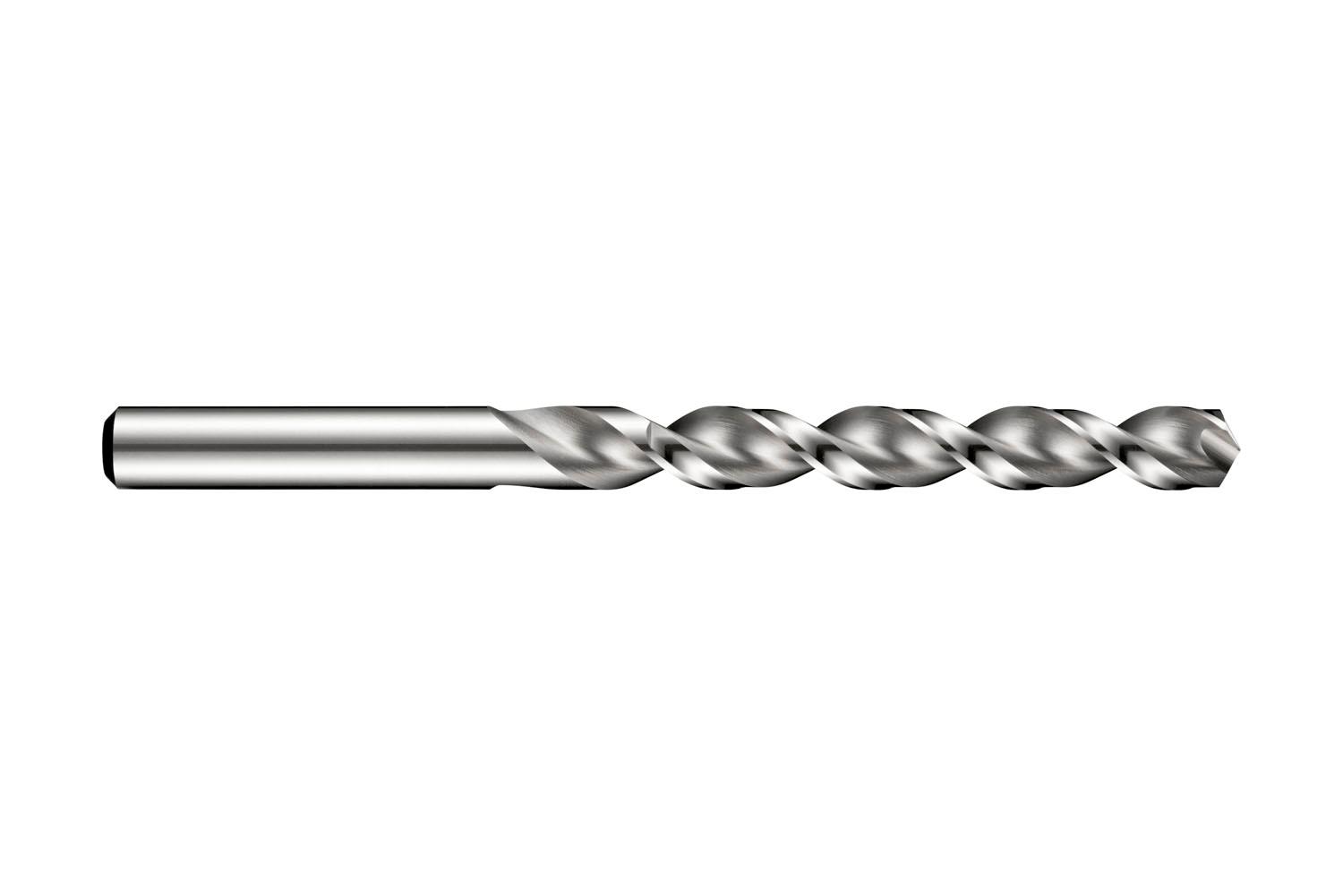

Jobber length PFX drill with straight shank, diameter 3.3mm with an overall length of 65mm and flute length of 36mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0158 kg
Dimensions
barcode
Additional Information

Description: Value

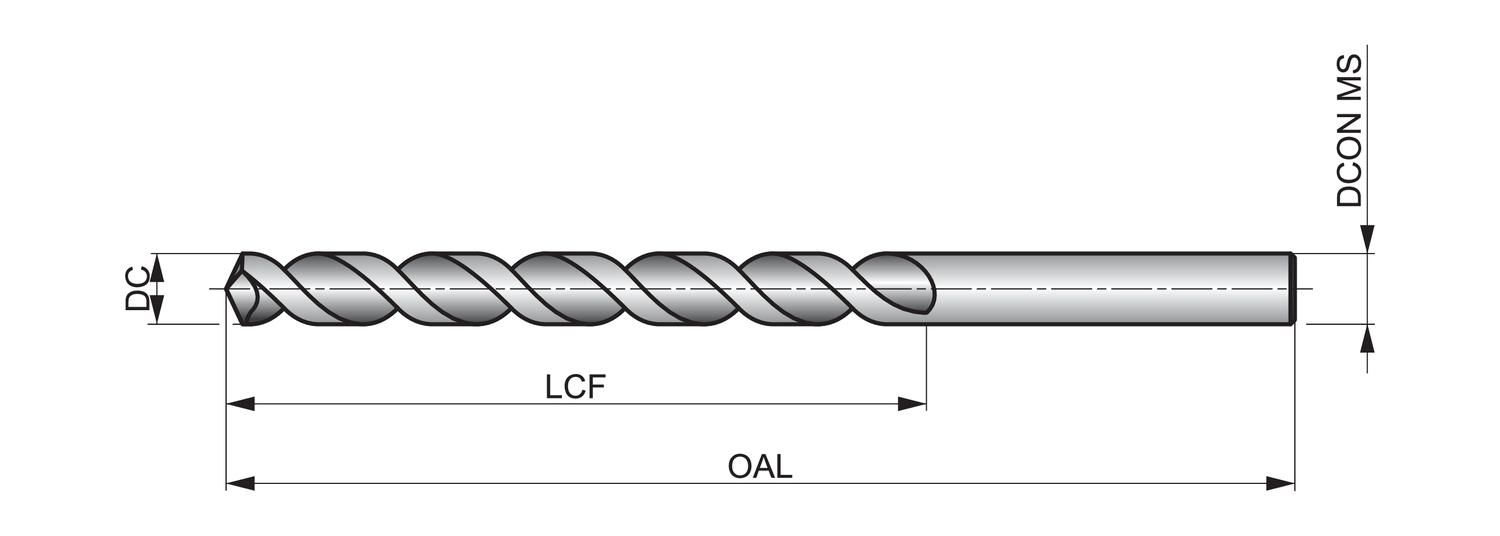

EAN number: 7320760046562 Product number (SAP): 86011117 Ordering code ANSI: A9003.3 Product Line: PFX Gross weight – grams: 6 Cutting diameter – millimeter (DC): 3.3 mm Cutting diameter – inch (DC): 0.1299 inch Length chip flute – millimeter (LCF): 36 mm Overall length – millimeter (OAL): 65 mm Connection diameter – millimeter (DCON MS): 3.3 mm Length chip flute – inch (LCF): 1.4173 inch ISO: A9003.3

Brand

DORMER
