DORMER A9003/4 ADX / PFX Drills

Product Code: A9003/4

$640.15$581.95 Ex. GST

Product Code: A9003/4 SKU A9003/4 Categories , ,

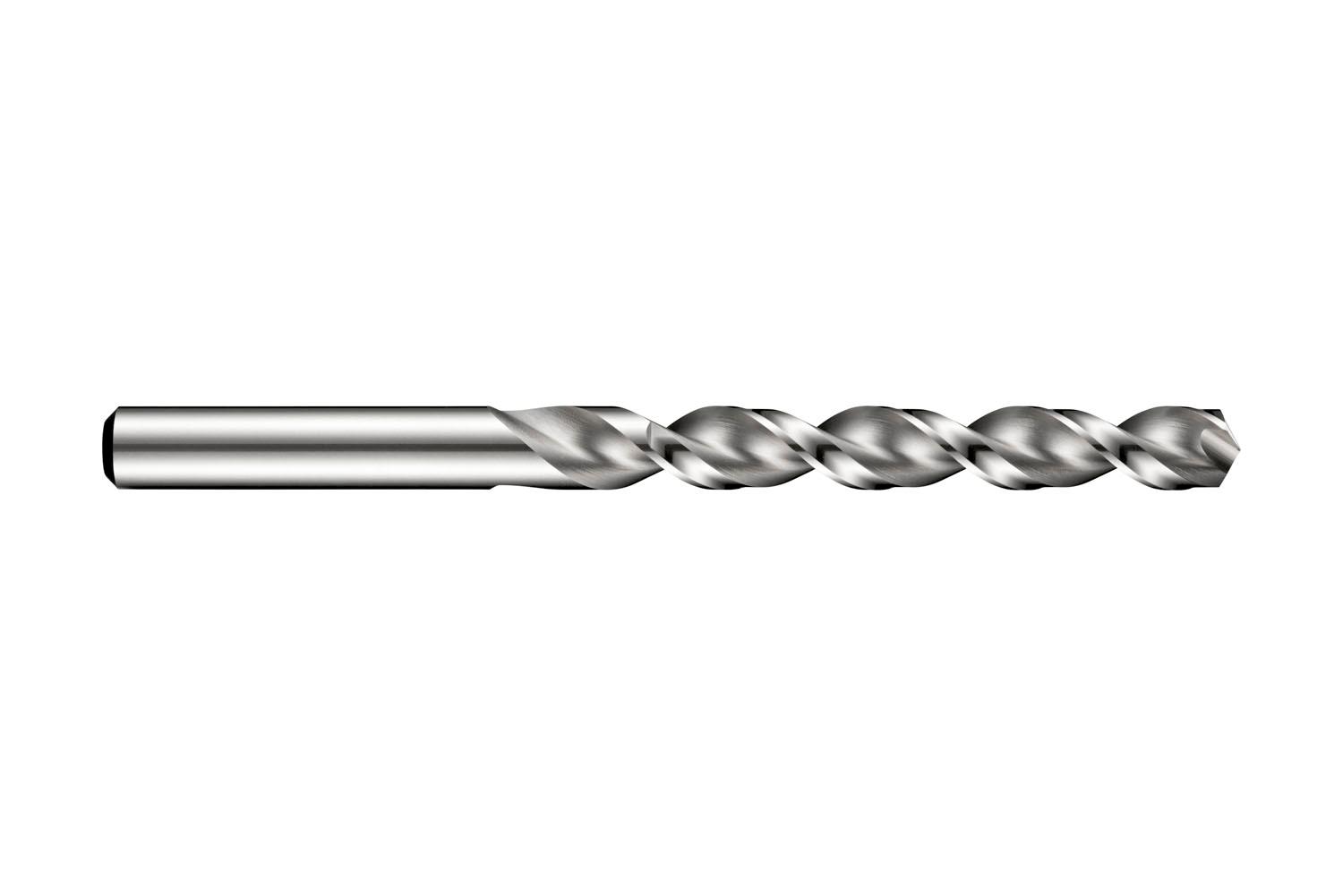

DORMER A9003/4 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length PFX drill with straight shank, diameter 0.7500″ (3/4) with an overall length of 198mm and flute length of 135mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.6215 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760634493
Product number (SAP): 86011126
Ordering code ANSI: A9003/4
Product Line: PFX
Gross weight – grams: 313
Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Cutting diameter – inch (DC): 0.75 inch
Length chip flute – millimeter (LCF): 135 mm
Overall length – millimeter (OAL): 198 mm
Connection diameter – millimeter (DCON MS): 19.05 mm
Length chip flute – inch (LCF): 5.315 inch
ISO: A9003/4

Brand

DORMER
