DORMER A9004.6 ADX / PFX Drills

Product Code: A9004.6

$25.27$22.97 Ex. GST

Product Code: A9004.6 SKU A9004.6 Categories , ,
DORMER A9004.6 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

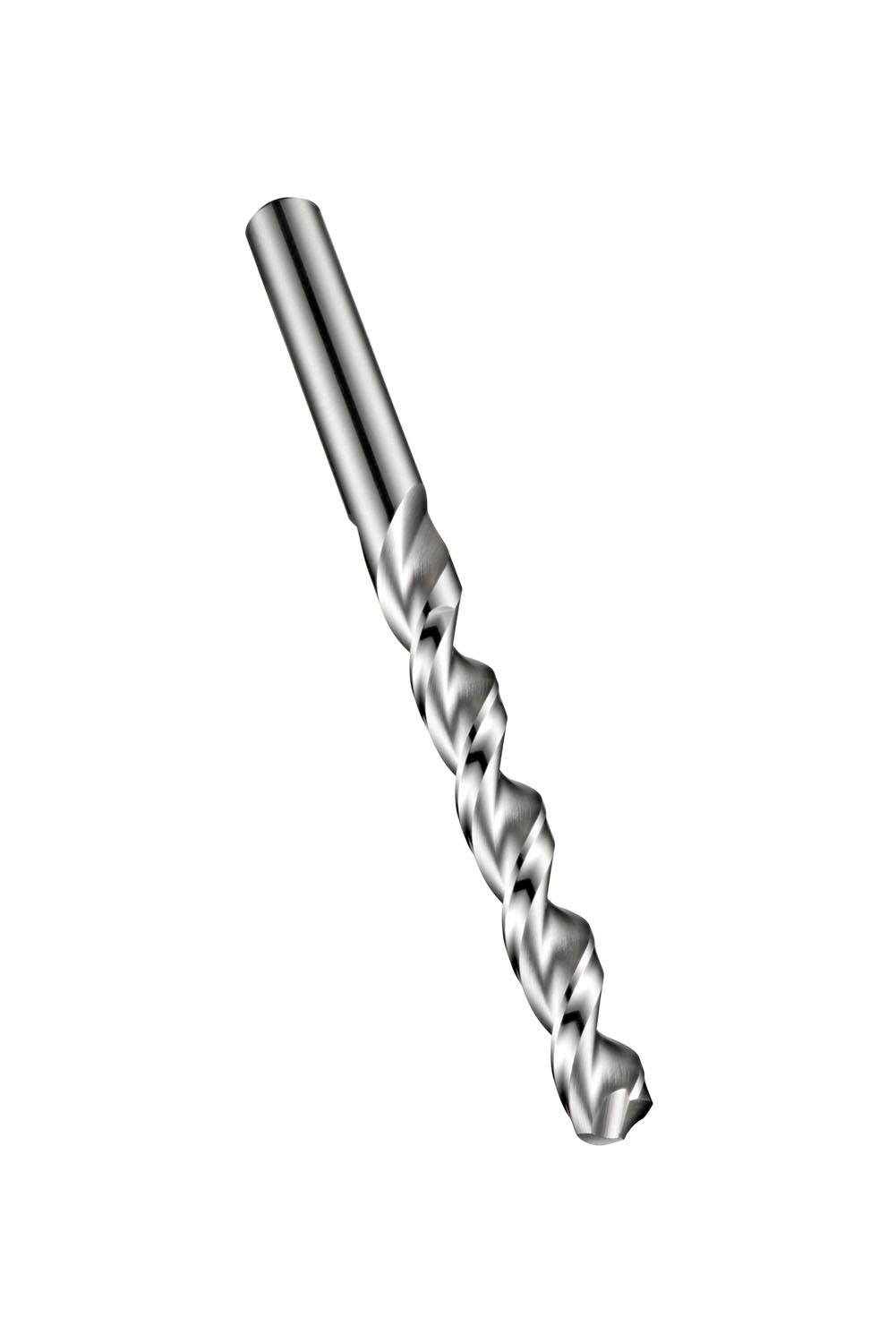

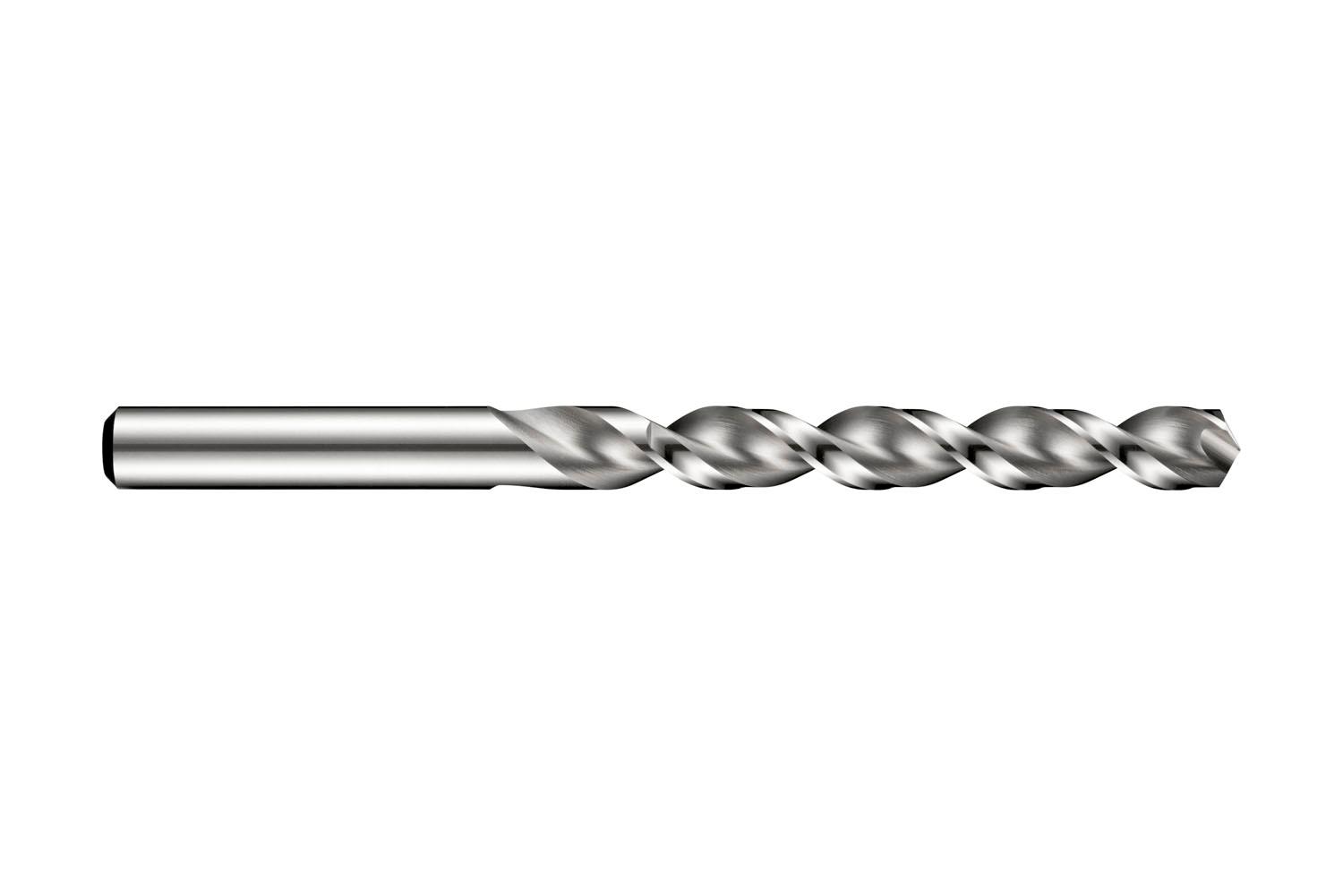

Jobber length PFX drill with straight shank, diameter 4.6mm with an overall length of 80mm and flute length of 47mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0245 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760046722
Product number (SAP): 86011140
Ordering code ANSI: A9004.6
Product Line: PFX
Gross weight – grams: 10

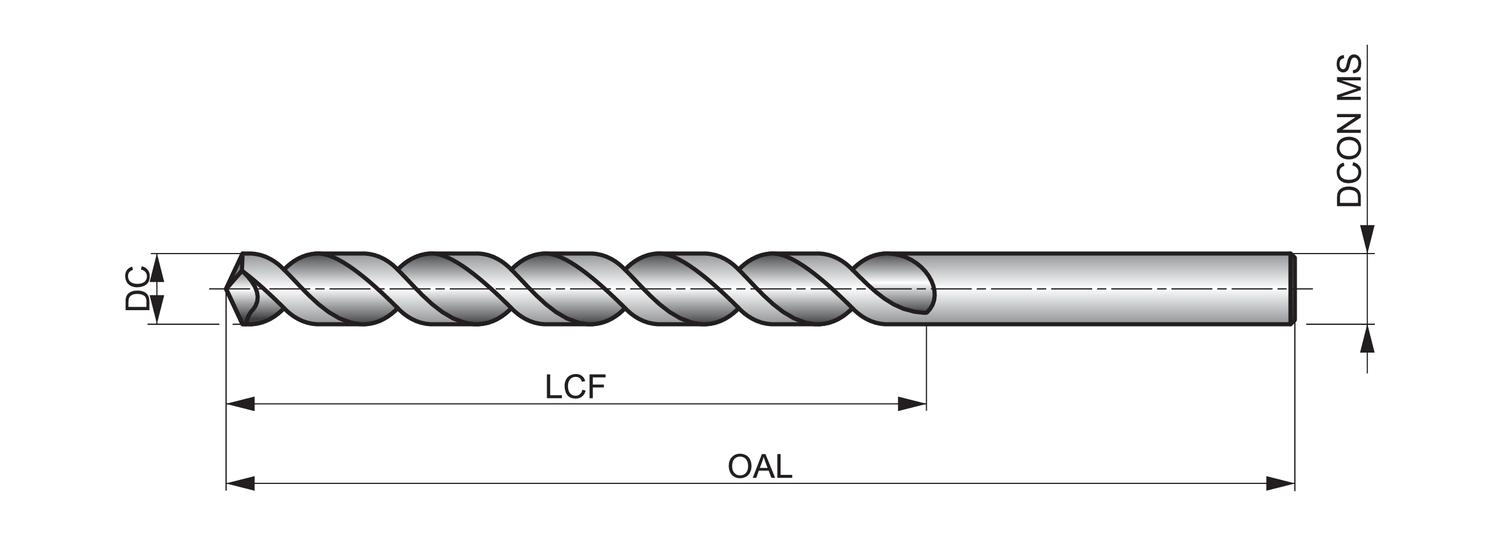

Cutting diameter – millimeter (DC): 4.6 mm
Cutting diameter – inch (DC): 0.1811 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 80 mm
Connection diameter – millimeter (DCON MS): 4.6 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: A9004.6

Brand

DORMER
