DORMER A90049/64 ADX / PFX Drills

Product Code: A90049/64

$640.15$581.95 Ex. GST

Product Code: A90049/64 SKU A90049/64 Categories , ,
DORMER A90049/64 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

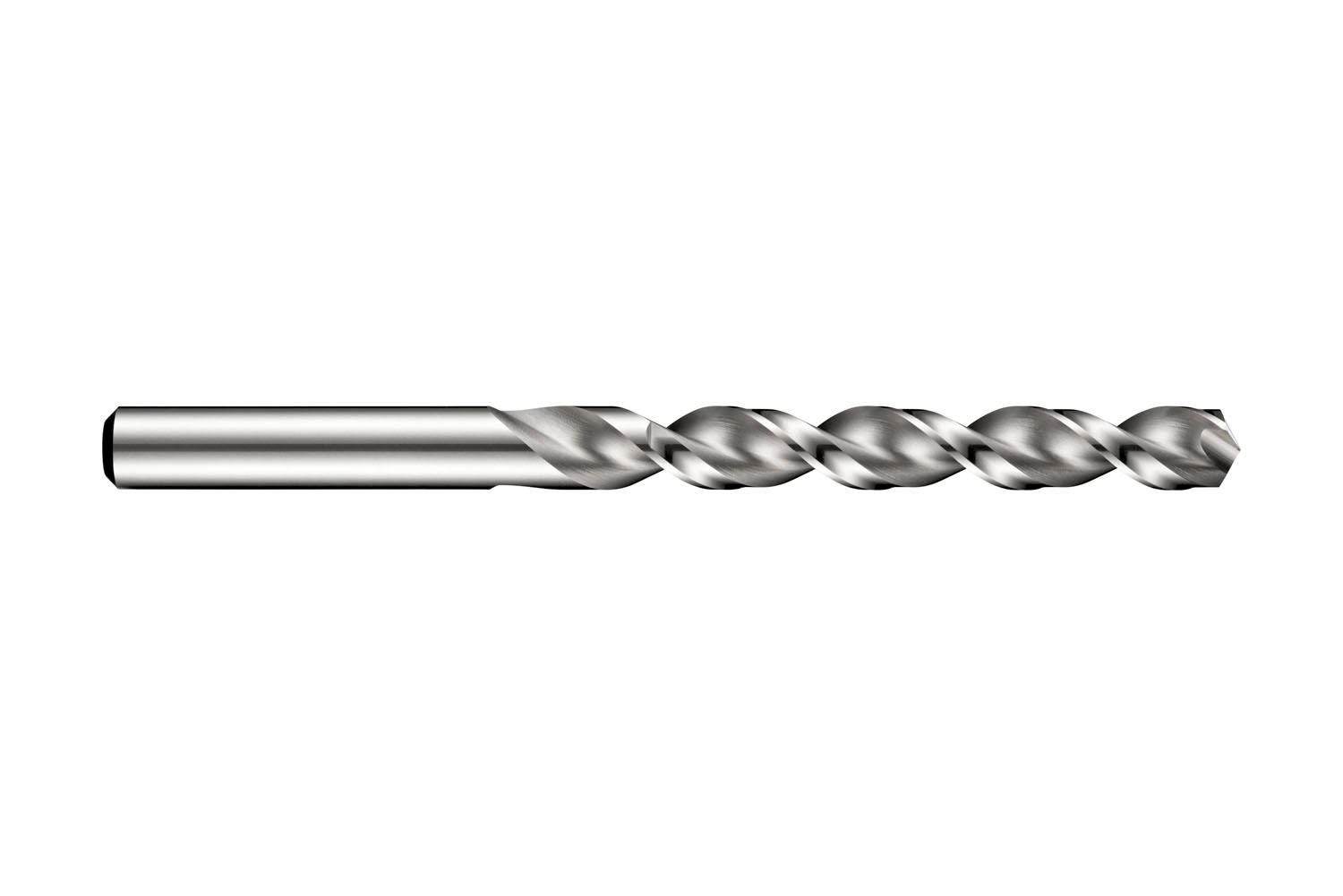

Jobber length PFX drill with straight shank, diameter 0.7656″ (49/64) with an overall length of 198mm and flute length of 135mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.6215 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760634509
Product number (SAP): 86011148
Ordering code ANSI: A90049/64
Product Line: PFX
Gross weight – grams: 324
Cutting diameter – fractional inch (DC): 49/64
Cutting diameter – millimeter (DC): 19.45 mm
Cutting diameter – inch (DC): 0.7656 inch
Length chip flute – millimeter (LCF): 135 mm
Overall length – millimeter (OAL): 198 mm
Connection diameter – millimeter (DCON MS): 19.45 mm
Length chip flute – inch (LCF): 5.315 inch
ISO: A90049/64

Brand

DORMER
