DORMER A9009/16 ADX / PFX Drills

Product Code: A9009/16

$256.06$232.78 Ex. GST

Product Code: A9009/16 SKU A9009/16 Categories , ,
DORMER A9009/16 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

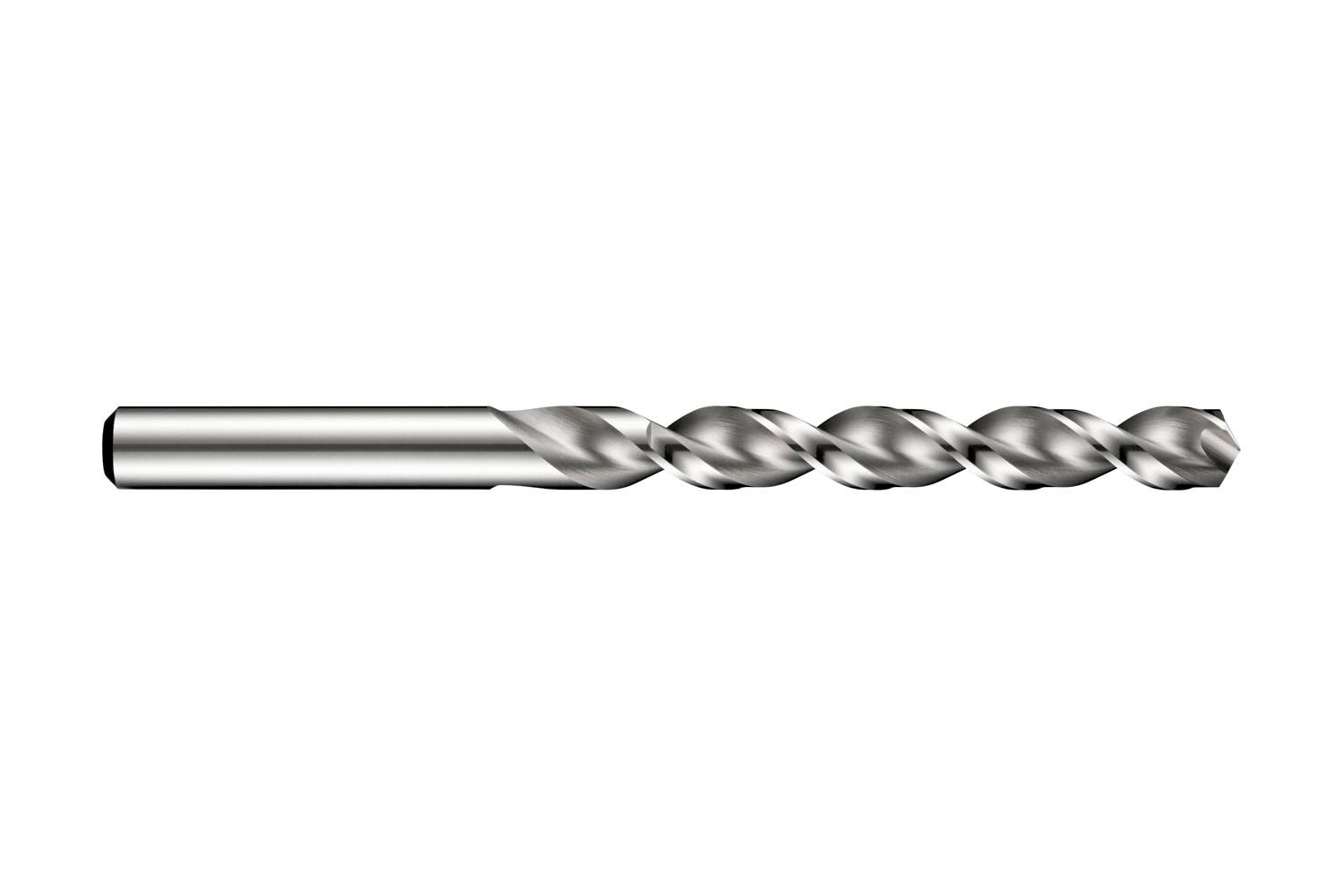

Jobber length PFX drill with straight shank, diameter 0.5625″ (9/16) with an overall length of 168mm and flute length of 122mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.2486 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760634332
Product number (SAP): 86011206
Ordering code ANSI: A9009/16
Product Line: PFX
Gross weight – grams: 148
Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – millimeter (DC): 14.29 mm
Cutting diameter – inch (DC): 0.5625 inch
Length chip flute – millimeter (LCF): 122 mm
Overall length – millimeter (OAL): 168 mm
Connection diameter – millimeter (DCON MS): 14.29 mm
Length chip flute – inch (LCF): 4.8031 inch
ISO: A9009/16

Brand

DORMER
