DORMER A9009/64 ADX / PFX Drills

Product Code: A9009/64

$19.94$18.13 Ex. GST

Product Code: A9009/64 SKU A9009/64 Categories , ,

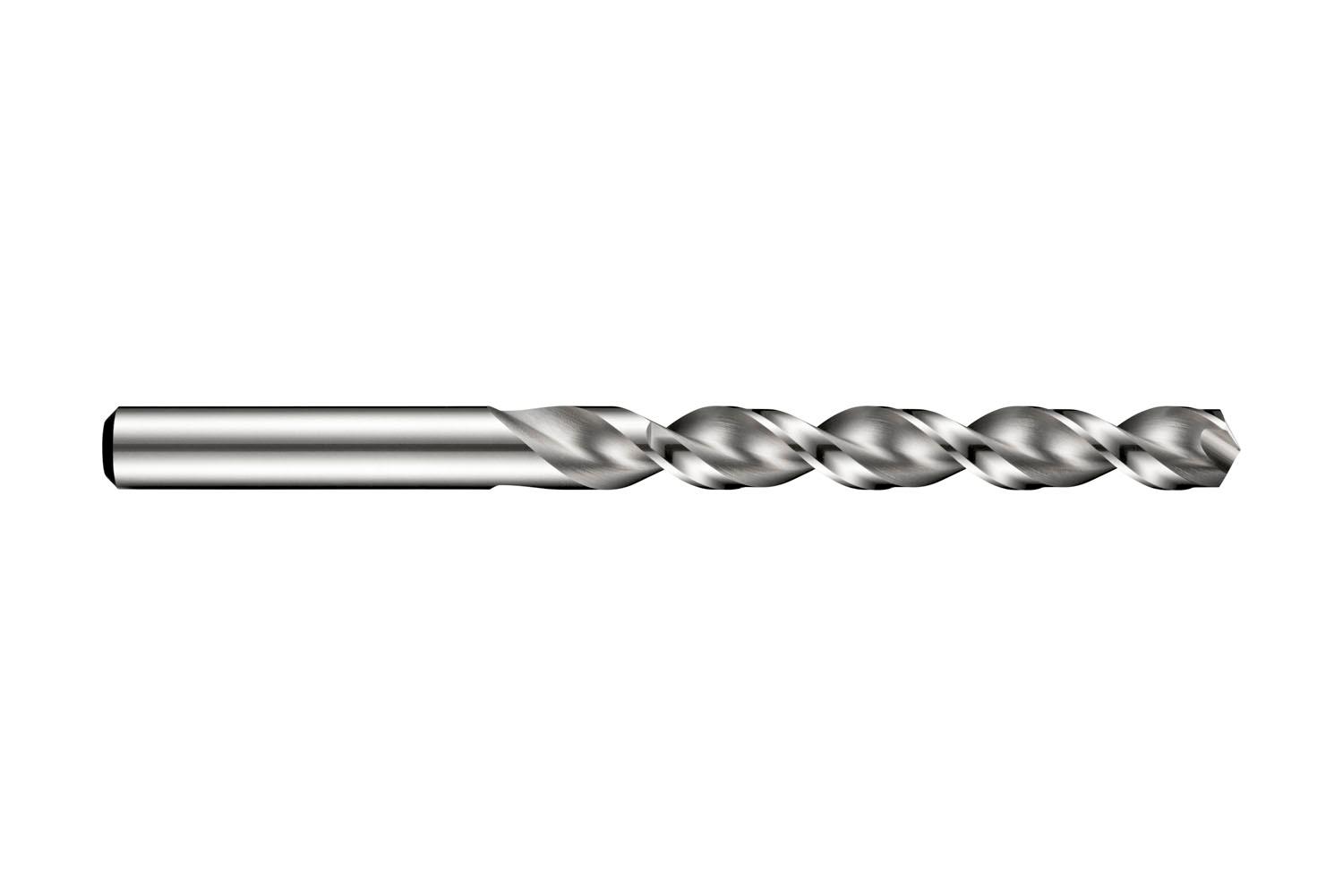

DORMER A9009/64 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length PFX drill with straight shank, diameter 0.1406″ (9/64) with an overall length of 73mm and flute length of 44mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 6xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0194 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760046593
Product number (SAP): 86011208
Ordering code ANSI: A9009/64
Product Line: PFX
Gross weight – grams: 6.9
Cutting diameter – fractional inch (DC): 9/64
Cutting diameter – millimeter (DC): 3.57 mm
Cutting diameter – inch (DC): 0.1406 inch
Length chip flute – millimeter (LCF): 44 mm
Overall length – millimeter (OAL): 73 mm
Connection diameter – millimeter (DCON MS): 3.57 mm
Length chip flute – inch (LCF): 1.7323 inch
ISO: A9009/64

Brand

DORMER
