DORMER A9201/16 ADX / PFX Drills

Product Code: A9201/16

$11.90$10.82 Ex. GST

Product Code: A9201/16 SKU A9201/16 Categories , ,
DORMER A9201/16 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

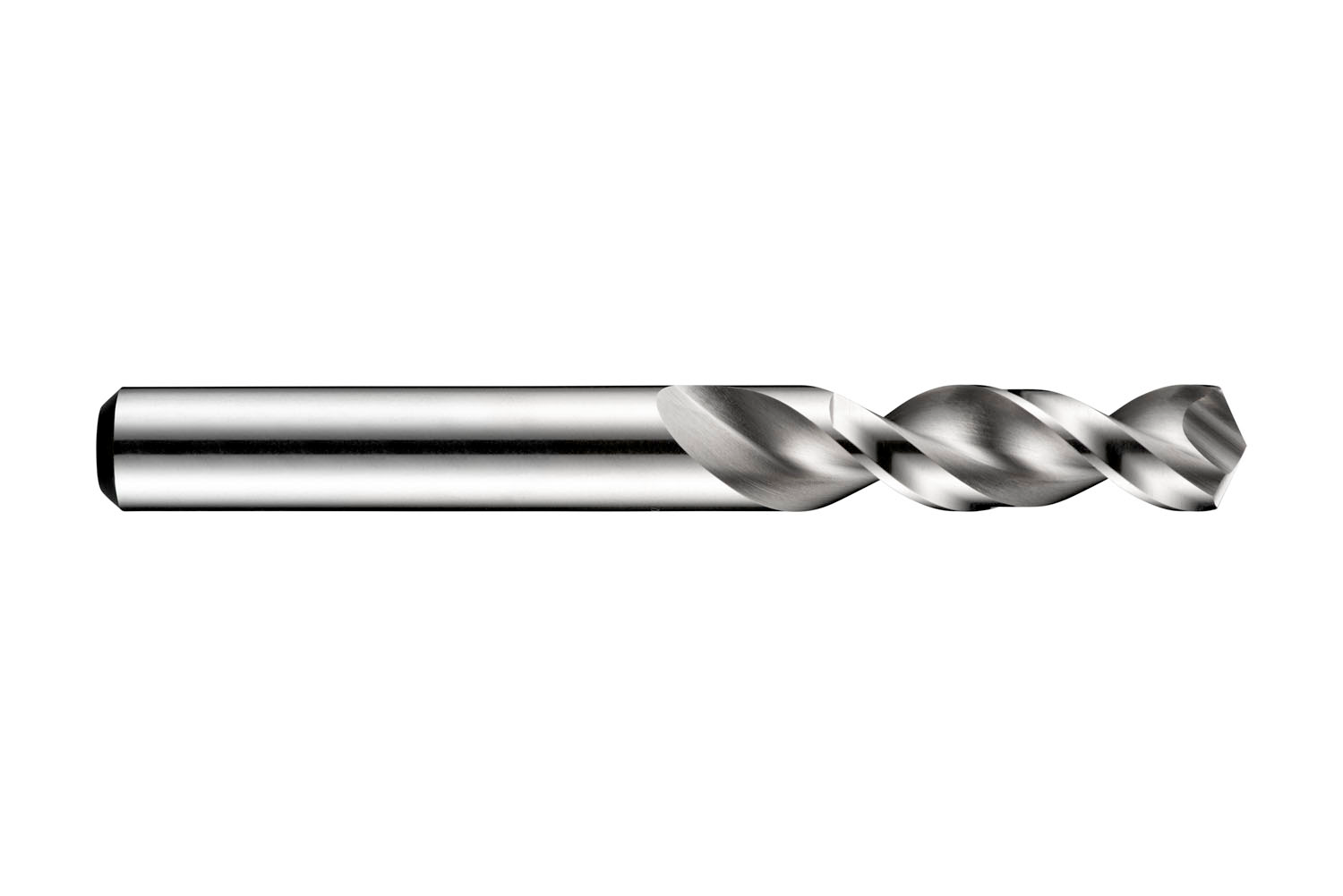

Stub length PFX drill with straight shank, diameter 0.0625″ (1/16) with an overall length of 41mm and flute length of 16mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0116 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050644
Product number (SAP): 86011516
Ordering code ANSI: A9201/16
Product Line: PFX
Gross weight – grams: 3.3
Cutting diameter – fractional inch (DC): 1/16
Cutting diameter – millimeter (DC): 1.59 mm
Cutting diameter – inch (DC): 0.0625 inch
Length chip flute – millimeter (LCF): 16 mm
Overall length – millimeter (OAL): 41 mm
Connection diameter – millimeter (DCON MS): 1.59 mm
Length chip flute – inch (LCF): 0.6299 inch
ISO: A9201/16

Brand

DORMER
