DORMER A9201.4 ADX / PFX Drills

Product Code: A9201.4

$18.24$16.58 Ex. GST

Product Code: A9201.4 SKU A9201.4 Categories , ,
DORMER A9201.4 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

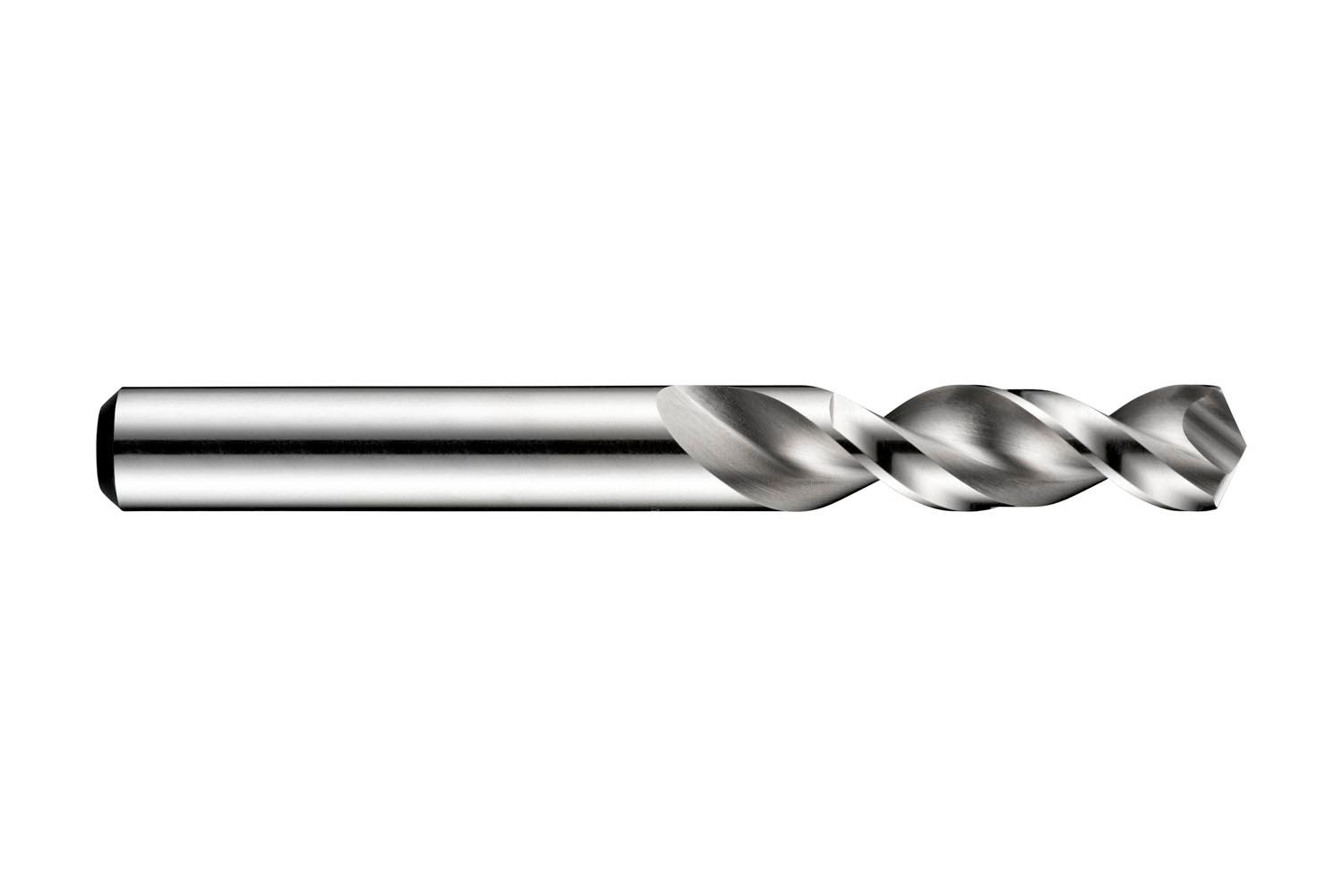

Stub length PFX drill with straight shank, diameter 1.4mm with an overall length of 32mm and flute length of 9mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0177 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050323
Product number (SAP): 86011507
Ordering code ANSI: A9201.4
Product Line: PFX
Gross weight – grams: 3.2
Cutting diameter – millimeter (DC): 1.4 mm
Cutting diameter – inch (DC): 0.0551 inch
Length chip flute – millimeter (LCF): 9 mm
Overall length – millimeter (OAL): 32 mm
Connection diameter – millimeter (DCON MS): 1.4 mm
Length chip flute – inch (LCF): 0.3543 inch
ISO: A9201.4

Brand

DORMER
