DORMER A9201/4 ADX / PFX Drills

Product Code: A9201/4

$28.56$25.96 Ex. GST

Product Code: A9201/4 SKU A9201/4 Categories , ,

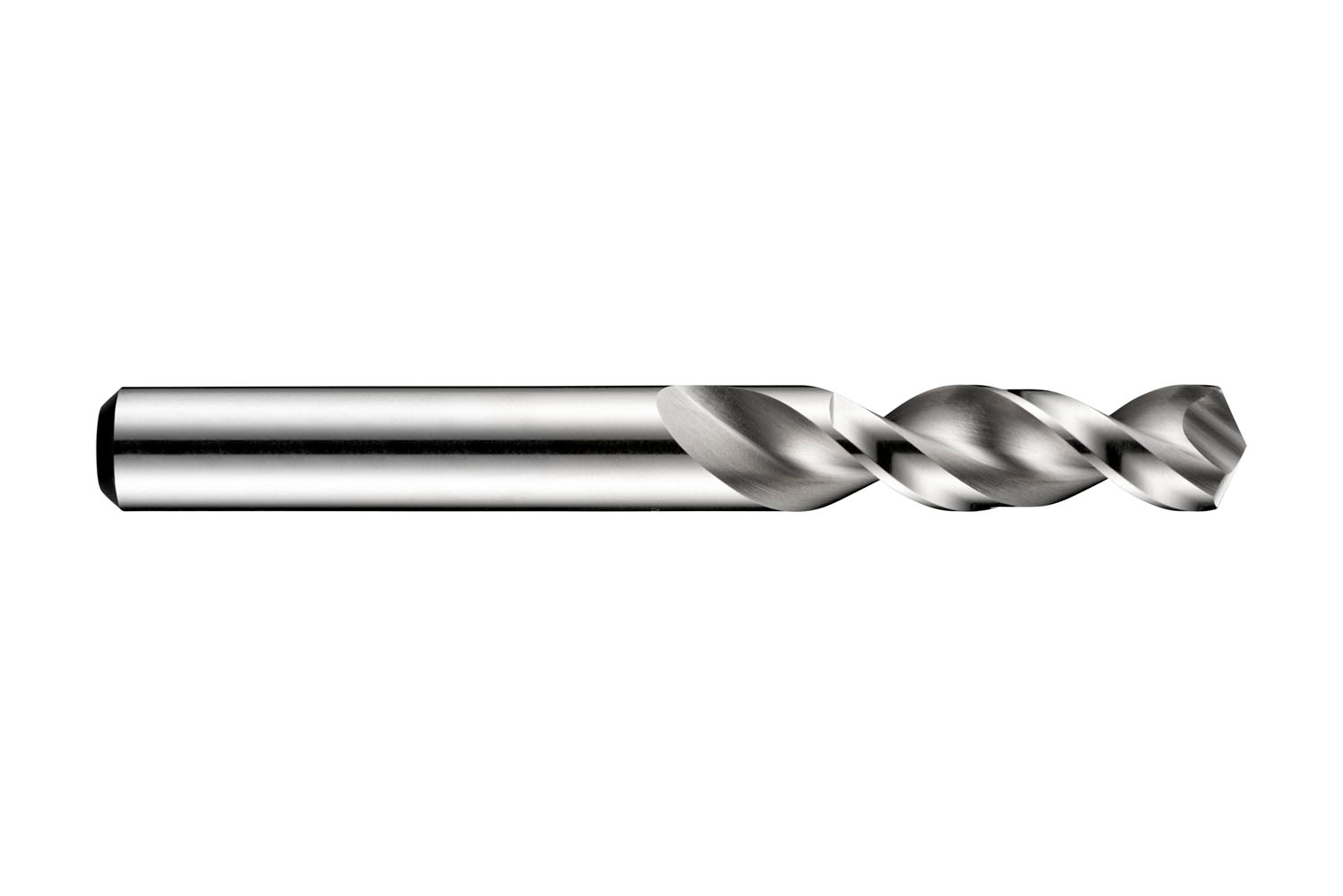

DORMER A9201/4 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length PFX drill with straight shank, diameter 0.2500″ (1/4) with an overall length of 64mm and flute length of 35mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0277 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760051313
Product number (SAP): 86011518
Ordering code ANSI: A9201/4
Product Line: PFX
Gross weight – grams: 16.3
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Cutting diameter – inch (DC): 0.25 inch
Length chip flute – millimeter (LCF): 35 mm
Overall length – millimeter (OAL): 64 mm
Connection diameter – millimeter (DCON MS): 6.35 mm
Length chip flute – inch (LCF): 1.378 inch
ISO: A9201/4

Brand

DORMER
