DORMER A92013.0 ADX / PFX Drills

Product Code: A92013.0

$121.23$110.21 Ex. GST

Product Code: A92013.0 SKU A92013.0 Categories , ,

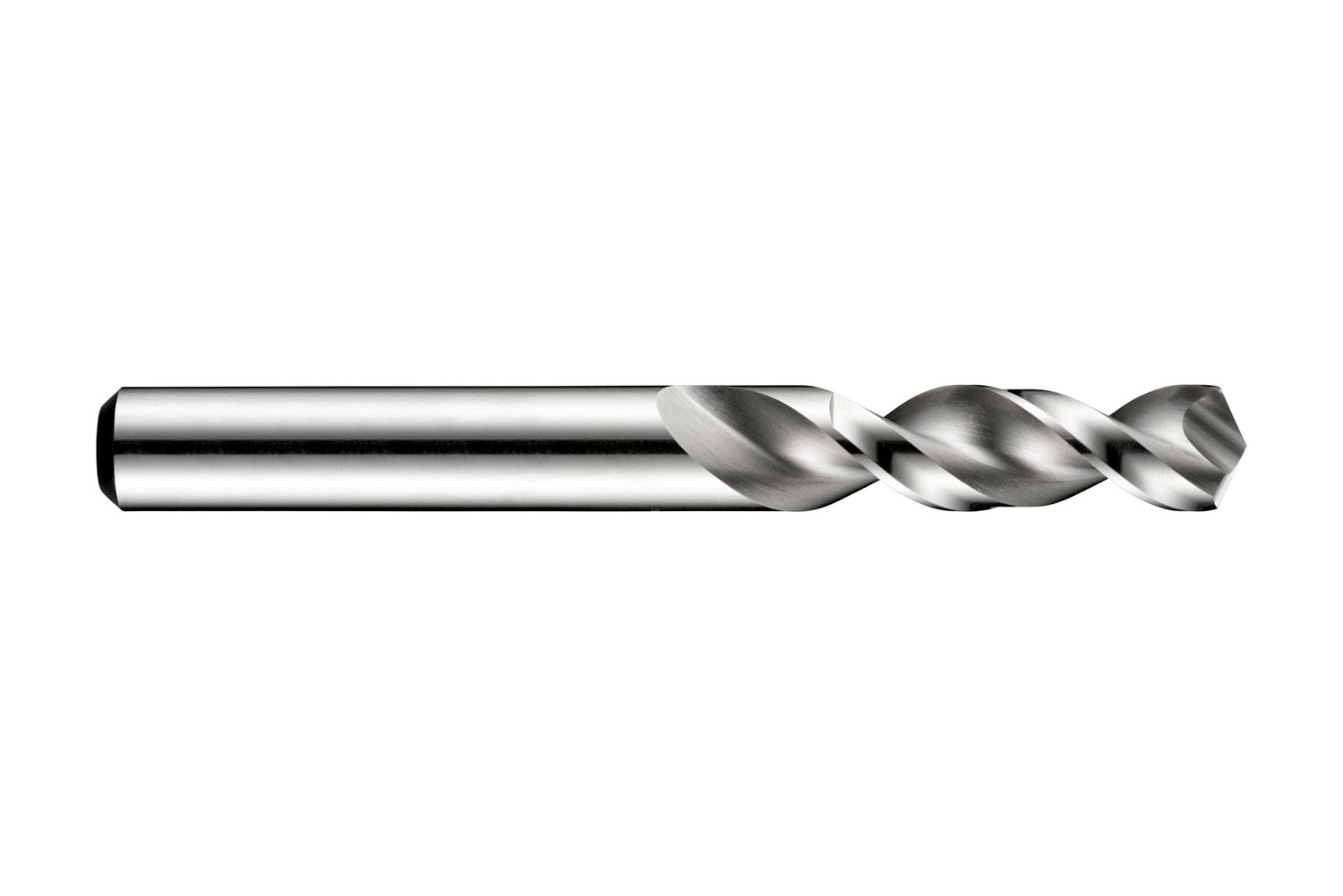

DORMER A92013.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length PFX drill with straight shank, diameter 13mm with an overall length of 102mm and flute length of 51mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.1177 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760052068
Product number (SAP): 86011541
Ordering code ANSI: A92013.0
Product Line: PFX
Gross weight – grams: 83.3
Cutting diameter – millimeter (DC): 13 mm
Cutting diameter – inch (DC): 0.5118 inch
Length chip flute – millimeter (LCF): 51 mm
Overall length – millimeter (OAL): 102 mm
Connection diameter – millimeter (DCON MS): 13 mm
Length chip flute – inch (LCF): 2.0079 inch
ISO: A92013.0

Brand

DORMER
