DORMER A92014.0 ADX / PFX Drills

Product Code: A92014.0

$168.82$153.47 Ex. GST

Product Code: A92014.0 SKU A92014.0 Categories , ,
DORMER A92014.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

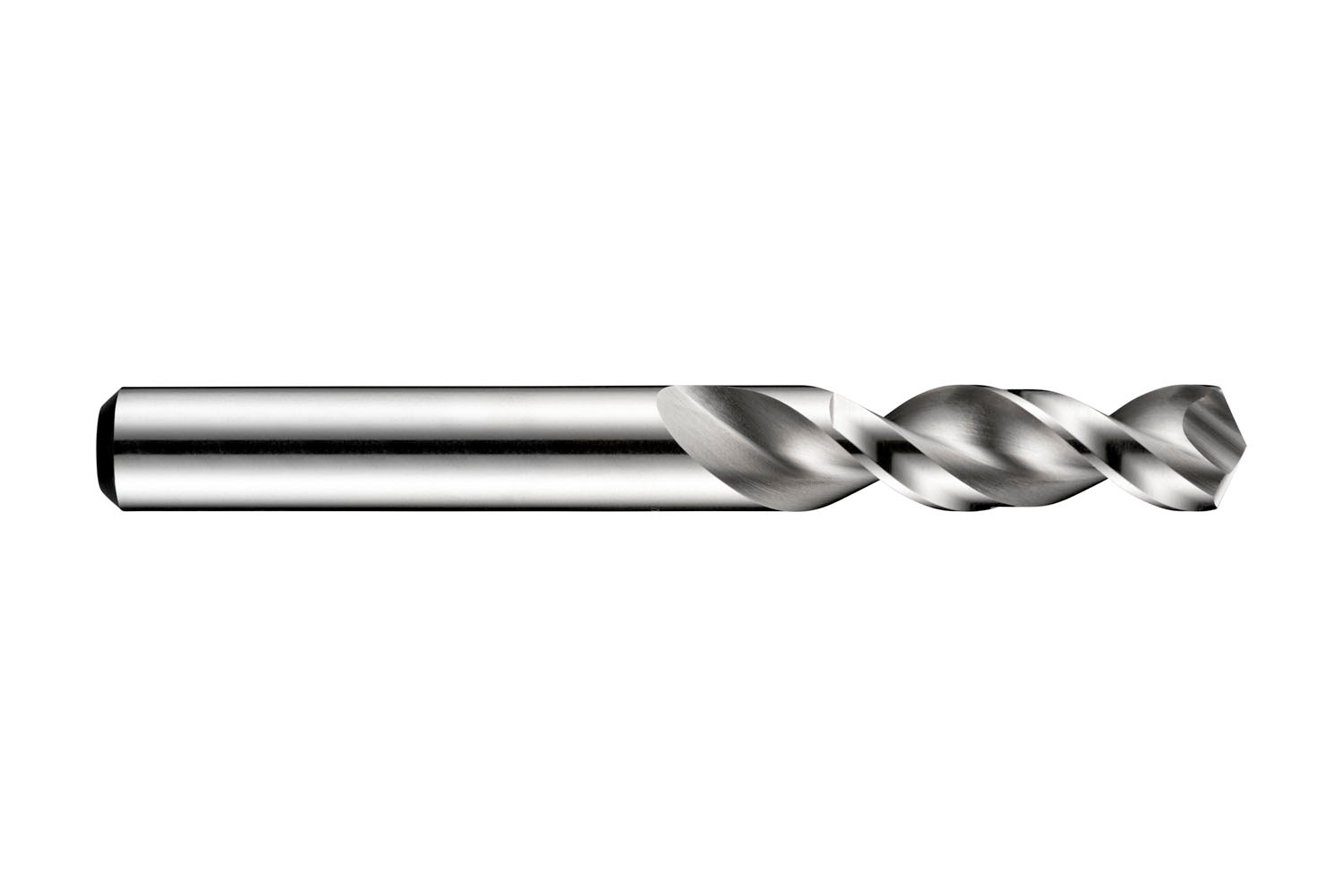

Stub length PFX drill with straight shank, diameter 14mm with an overall length of 107mm and flute length of 54mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.1639 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760052082
Product number (SAP): 86011545
Ordering code ANSI: A92014.0
Product Line: PFX
Gross weight – grams: 99
Cutting diameter – millimeter (DC): 14 mm
Cutting diameter – inch (DC): 0.5512 inch
Length chip flute – millimeter (LCF): 54 mm
Overall length – millimeter (OAL): 107 mm
Connection diameter – millimeter (DCON MS): 14 mm
Length chip flute – inch (LCF): 2.126 inch
ISO: A92014.0

Brand

DORMER
