DORMER A9202.2 ADX / PFX Drills

Product Code: A9202.2

$15.86$14.42 Ex. GST

Product Code: A9202.2 SKU A9202.2 Categories , ,
DORMER A9202.2 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

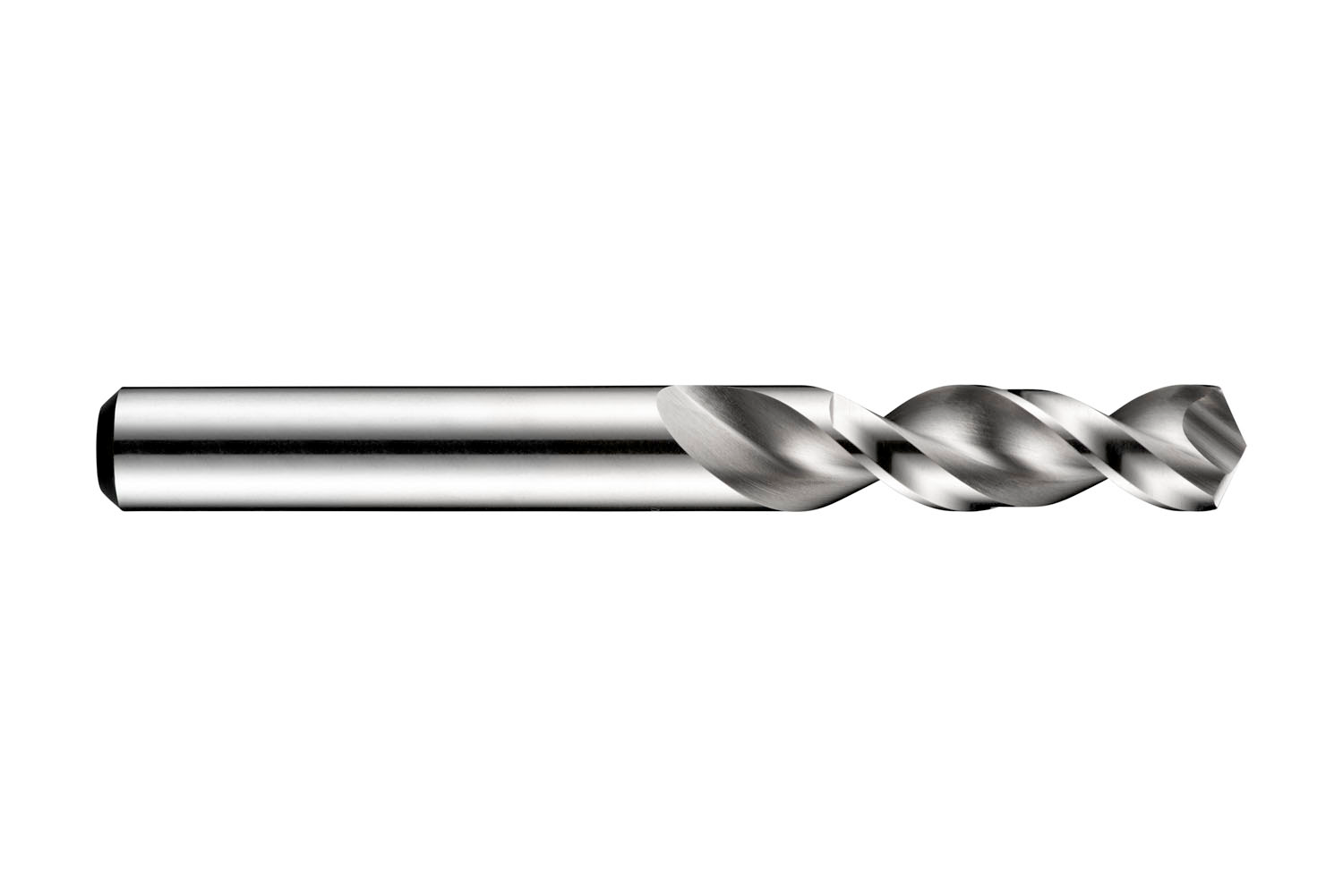

Stub length PFX drill with straight shank, diameter 2.2mm with an overall length of 40mm and flute length of 13mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0154 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050743
Product number (SAP): 86011567
Ordering code ANSI: A9202.2
Product Line: PFX
Gross weight – grams: 3.8
Cutting diameter – millimeter (DC): 2.2 mm
Cutting diameter – inch (DC): 0.0866 inch
Length chip flute – millimeter (LCF): 13 mm
Overall length – millimeter (OAL): 40 mm
Connection diameter – millimeter (DCON MS): 2.2 mm
Length chip flute – inch (LCF): 0.5118 inch
ISO: A9202.2

Brand

DORMER
