DORMER A9202.8 ADX / PFX Drills

Product Code: A9202.8

$16.76$15.24 Ex. GST

Product Code: A9202.8 SKU A9202.8 Categories , ,
DORMER A9202.8 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

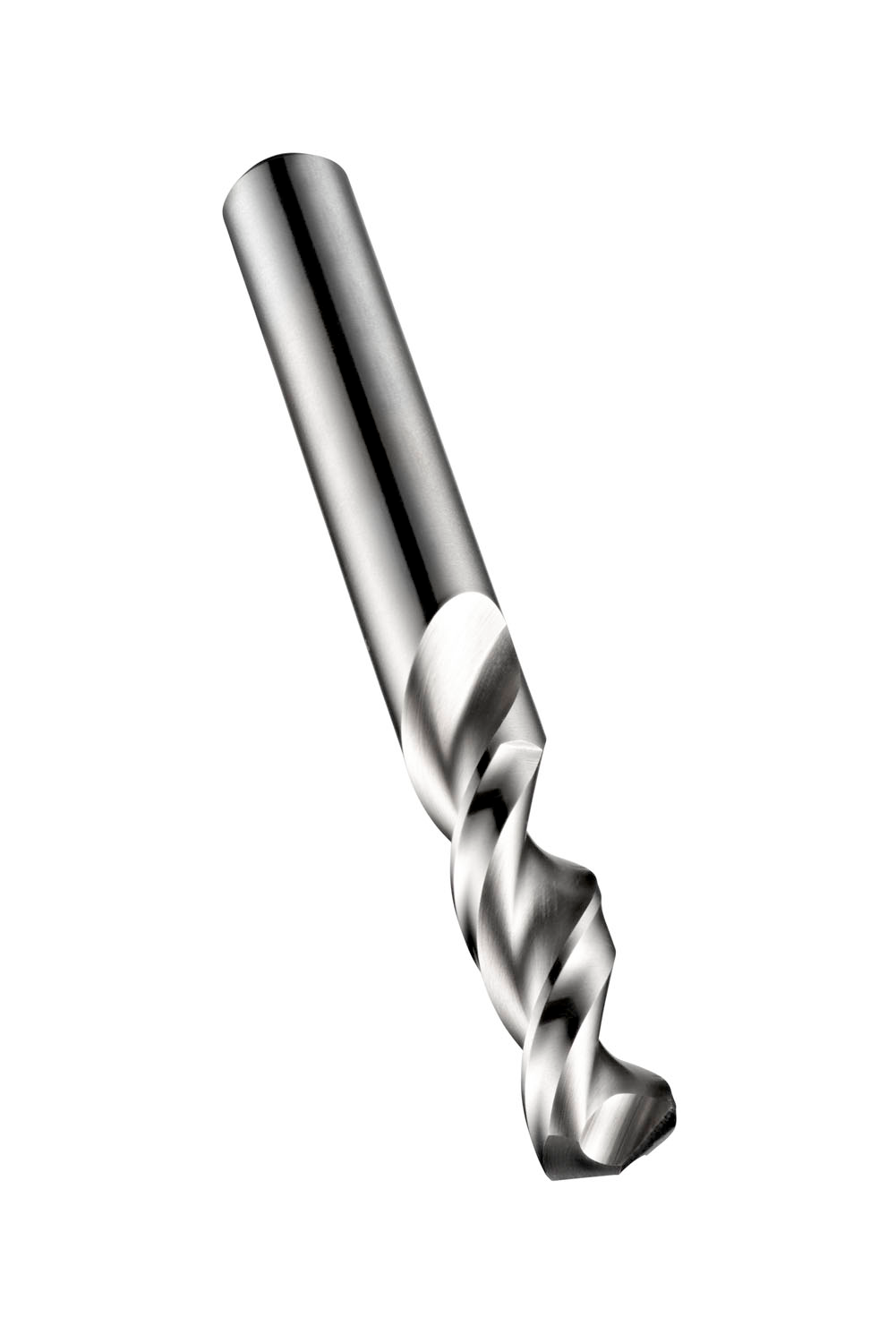

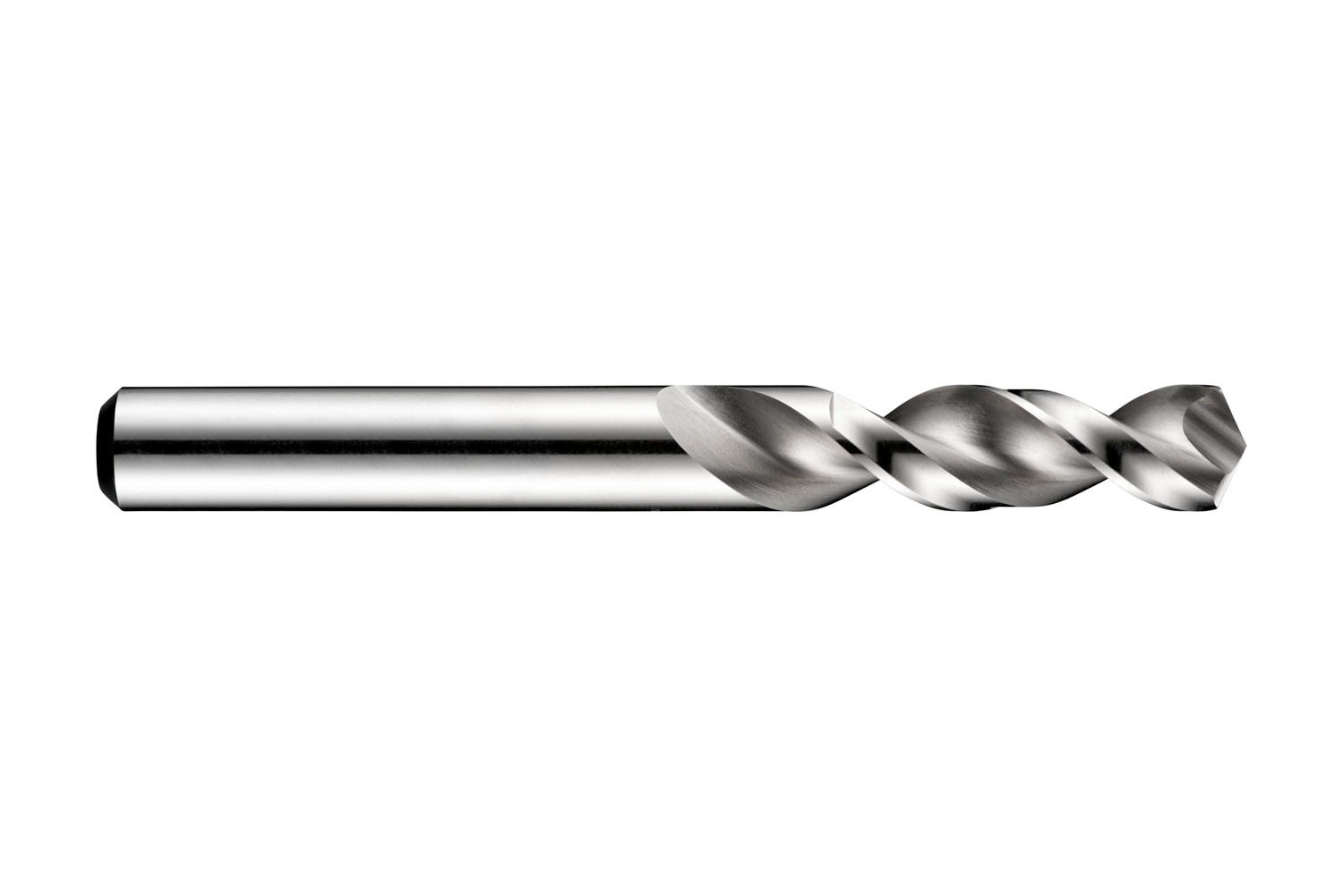

Stub length PFX drill with straight shank, diameter 2.8mm with an overall length of 46mm and flute length of 16mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0163 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050842
Product number (SAP): 86011575
Ordering code ANSI: A9202.8
Product Line: PFX
Gross weight – grams: 4.7

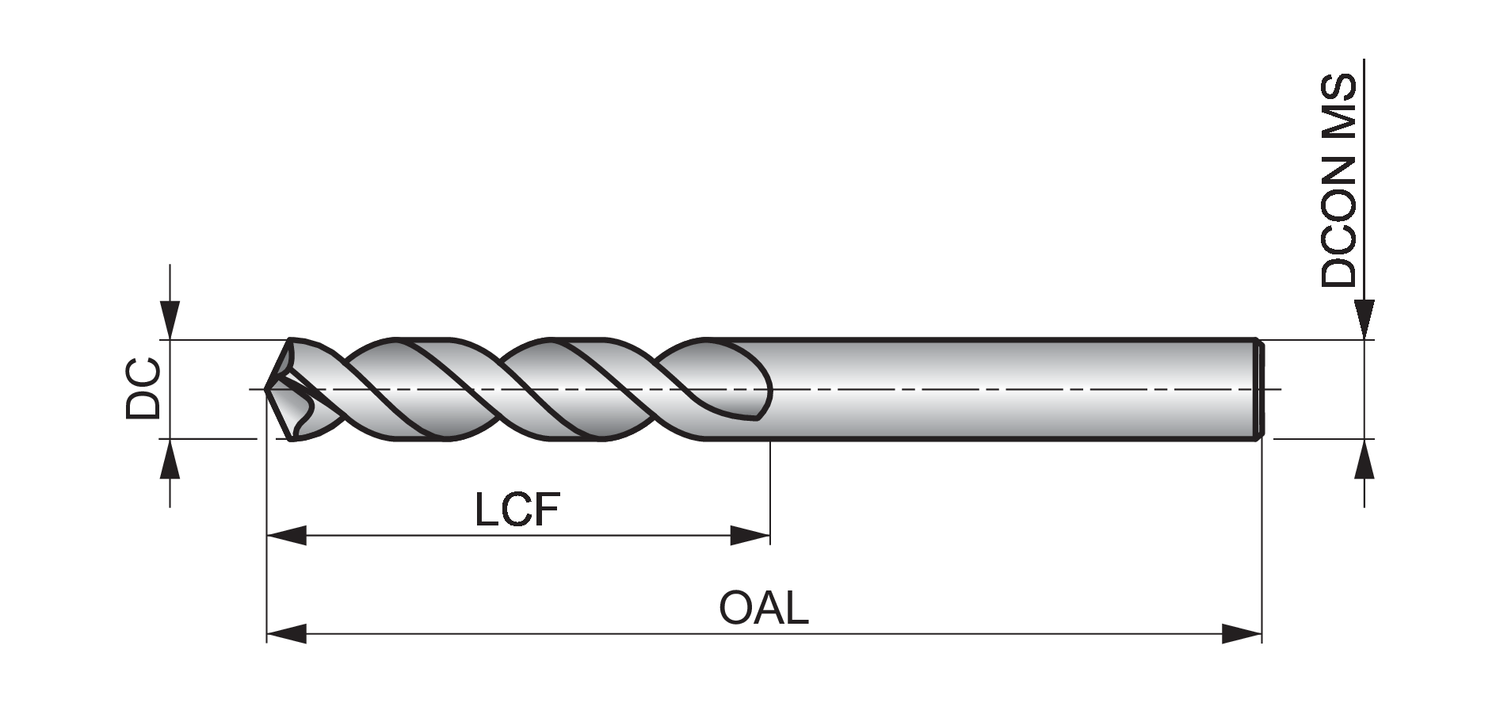

Cutting diameter – millimeter (DC): 2.8 mm
Cutting diameter – inch (DC): 0.1102 inch
Length chip flute – millimeter (LCF): 16 mm
Overall length – millimeter (OAL): 46 mm
Connection diameter – millimeter (DCON MS): 2.8 mm
Length chip flute – inch (LCF): 0.6299 inch
ISO: A9202.8

Brand

DORMER
