DORMER A92025/64 ADX / PFX Drills

Product Code: A92025/64

$98.57$89.61 Ex. GST

Product Code: A92025/64 SKU A92025/64 Categories , ,

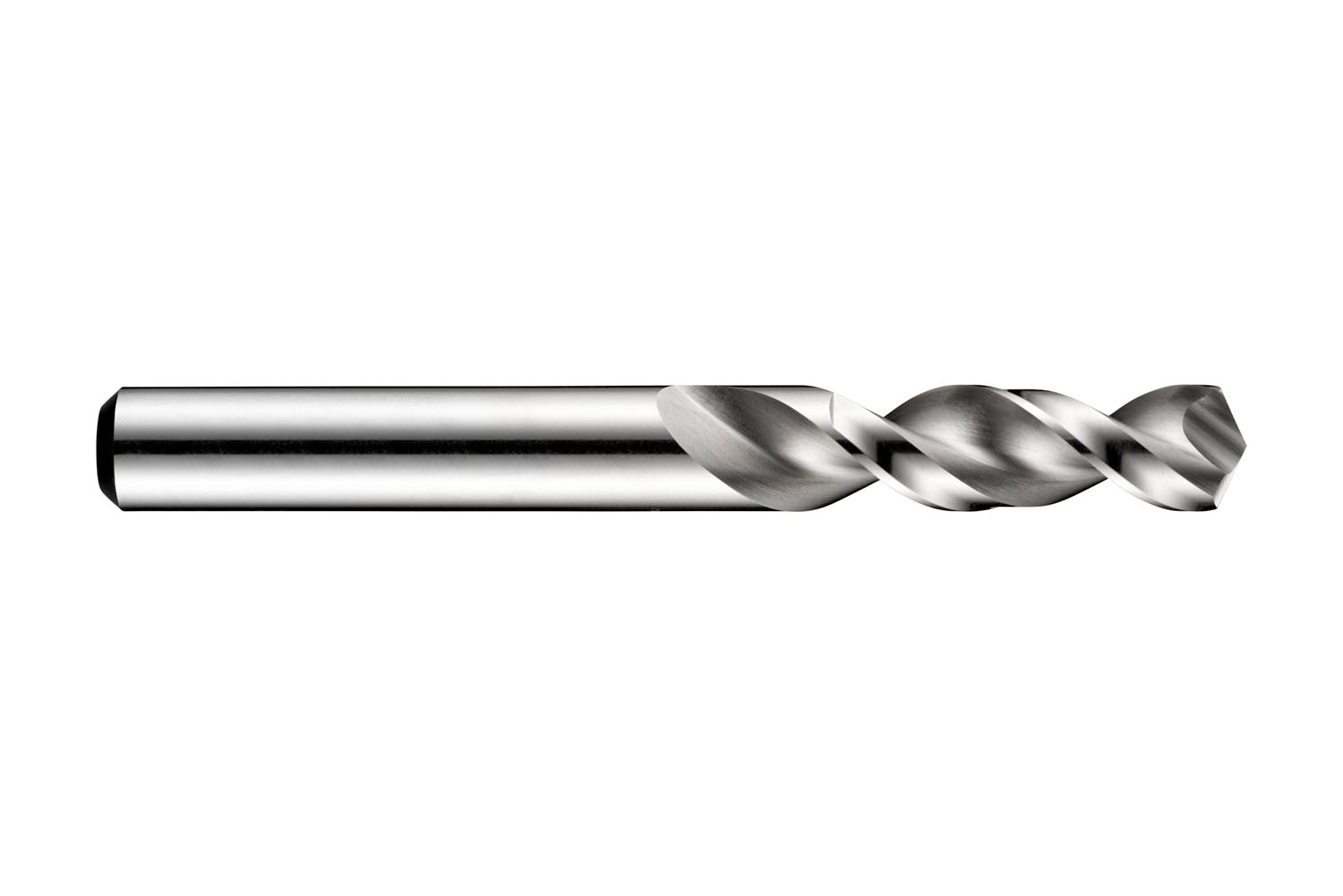

DORMER A92025/64 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length PFX drill with straight shank, diameter 0.3906″ (25/64) with an overall length of 83mm and flute length of 48mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0957 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760051849
Product number (SAP): 86011583
Ordering code ANSI: A92025/64
Product Line: PFX
Gross weight – grams: 44.5
Cutting diameter – fractional inch (DC): 25/64
Cutting diameter – millimeter (DC): 9.92 mm
Cutting diameter – inch (DC): 0.3906 inch
Length chip flute – millimeter (LCF): 48 mm
Overall length – millimeter (OAL): 83 mm
Connection diameter – millimeter (DCON MS): 9.92 mm
Length chip flute – inch (LCF): 1.8898 inch
ISO: A92025/64

Brand

DORMER
