DORMER A9203.3 ADX / PFX Drills

Product Code: A9203.3

$11.10$10.09 Ex. GST

Product Code: A9203.3 SKU A9203.3 Categories , ,
DORMER A9203.3 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

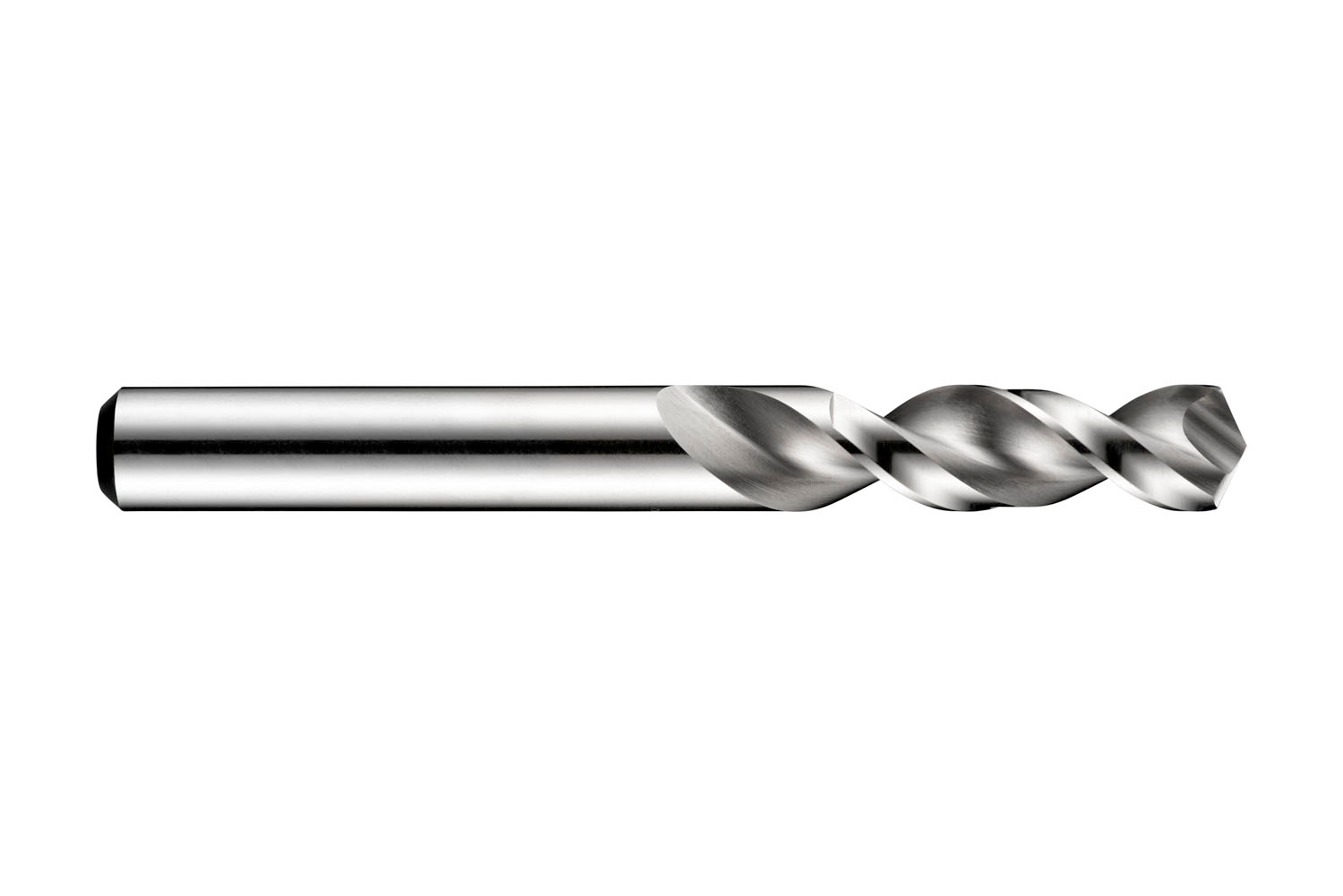

Stub length PFX drill with straight shank, diameter 3.3mm with an overall length of 49mm and flute length of 18mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0108 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050903
Product number (SAP): 86011589
Ordering code ANSI: A9203.3
Product Line: PFX
Gross weight – grams: 5.5
Cutting diameter – millimeter (DC): 3.3 mm
Cutting diameter – inch (DC): 0.1299 inch
Length chip flute – millimeter (LCF): 18 mm
Overall length – millimeter (OAL): 49 mm
Connection diameter – millimeter (DCON MS): 3.3 mm
Length chip flute – inch (LCF): 0.7087 inch
ISO: A9203.3

Brand

DORMER
