DORMER A9205/64 ADX / PFX Drills

Product Code: A9205/64

$12.46$11.33 Ex. GST

Product Code: A9205/64 SKU A9205/64 Categories , ,
DORMER A9205/64 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

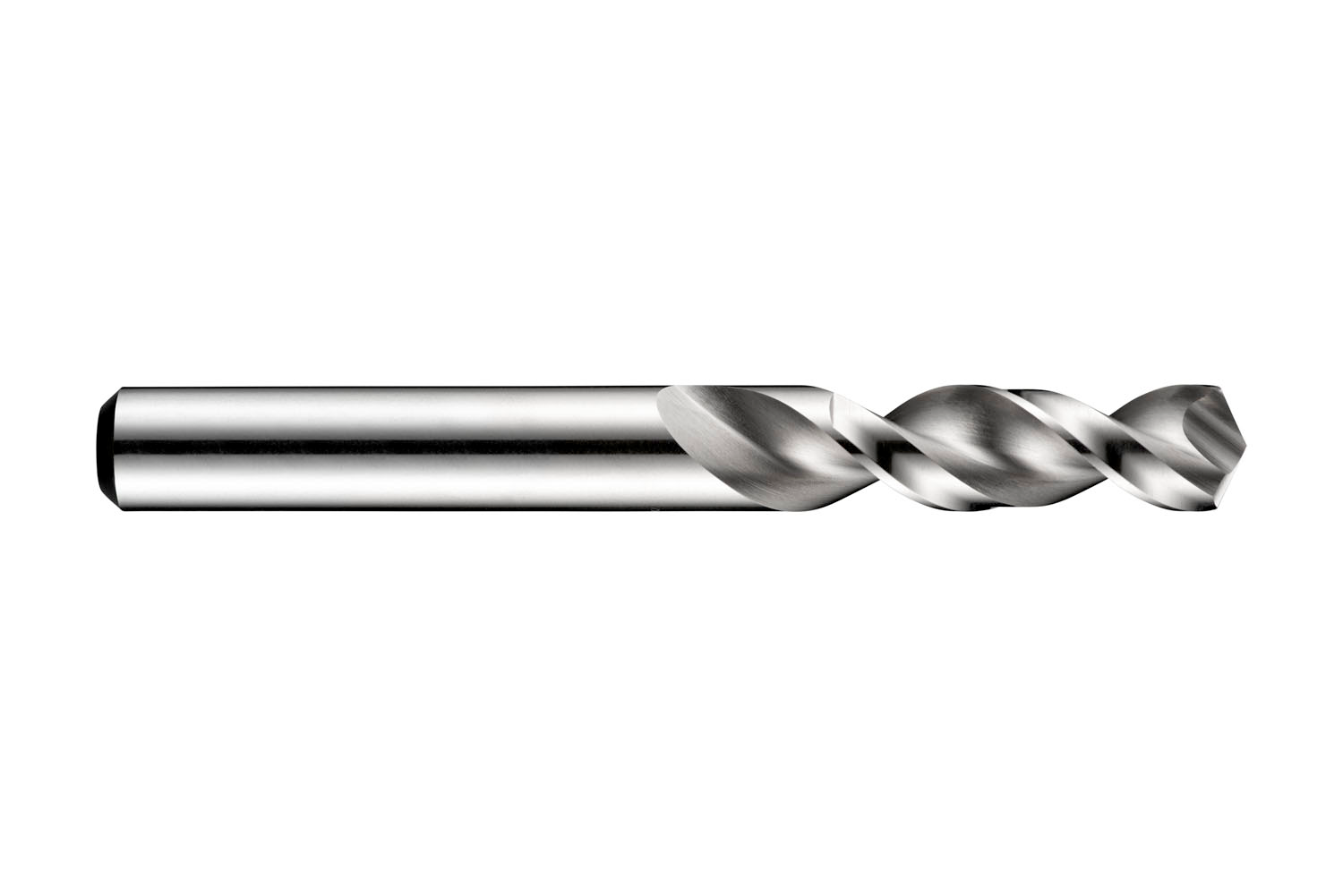

Stub length PFX drill with straight shank, diameter 0.0781″ (5/64) with an overall length of 43mm and flute length of 17mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0121 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050705
Product number (SAP): 86011633
Ordering code ANSI: A9205/64
Product Line: PFX
Gross weight – grams: 0.86
Cutting diameter – fractional inch (DC): 5/64
Cutting diameter – millimeter (DC): 1.98 mm
Cutting diameter – inch (DC): 0.0781 inch
Length chip flute – millimeter (LCF): 17 mm
Overall length – millimeter (OAL): 43 mm
Connection diameter – millimeter (DCON MS): 1.98 mm
Length chip flute – inch (LCF): 0.6693 inch
ISO: A9205/64

Brand

DORMER
