DORMER A9209.0 ADX / PFX Drills

Product Code: A9209.0

$49.29$44.81 Ex. GST

Product Code: A9209.0 SKU A9209.0 Categories , ,
DORMER A9209.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

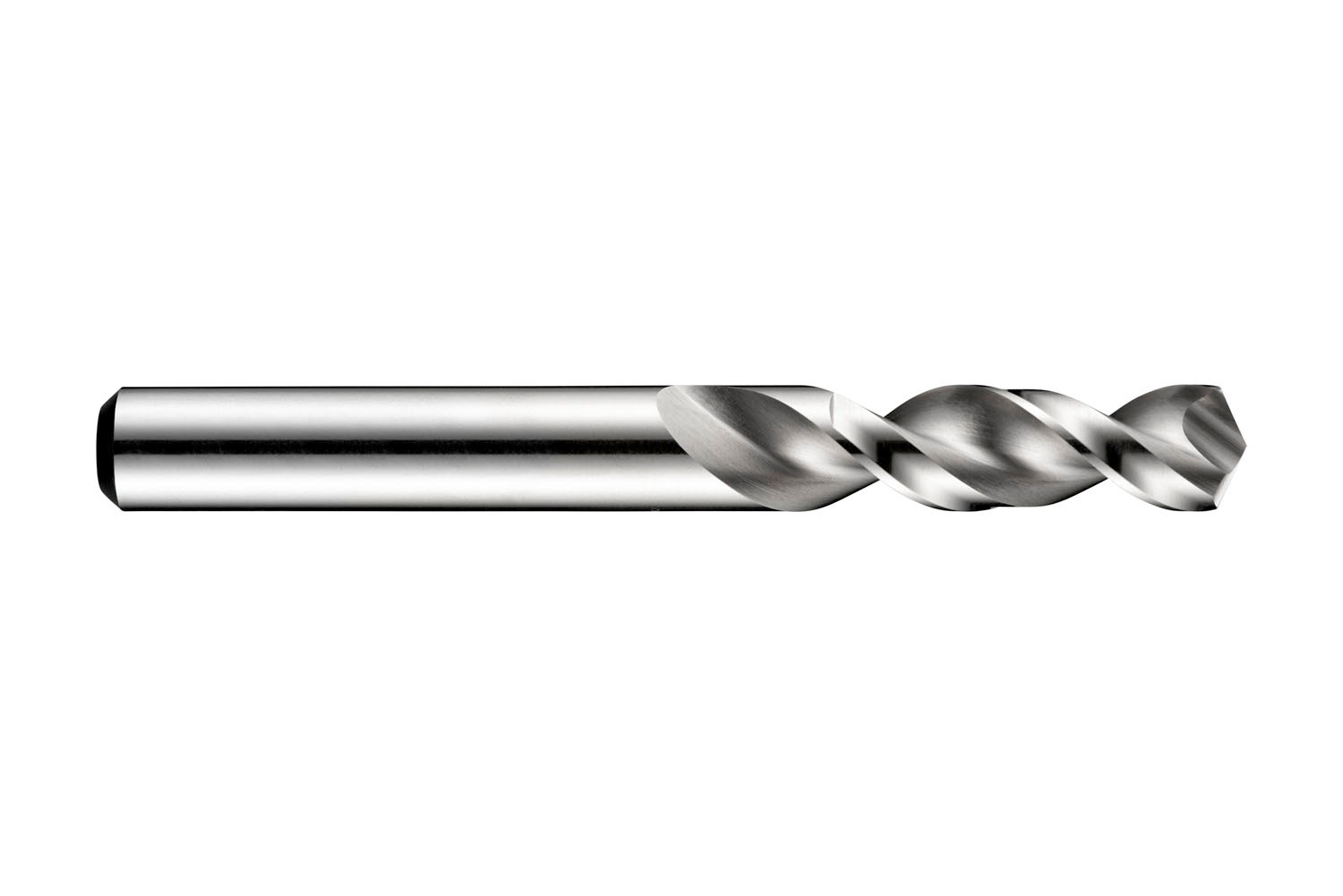

Stub length PFX drill with straight shank, diameter 9mm with an overall length of 84mm and flute length of 40mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0479 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760051726
Product number (SAP): 86011668
Ordering code ANSI: A9209.0
Product Line: PFX
Gross weight – grams: 38
Cutting diameter – millimeter (DC): 9 mm
Cutting diameter – inch (DC): 0.3543 inch
Length chip flute – millimeter (LCF): 40 mm
Overall length – millimeter (OAL): 84 mm
Connection diameter – millimeter (DCON MS): 9 mm
Length chip flute – inch (LCF): 1.5748 inch
ISO: A9209.0

Brand

DORMER
