DORMER A9209/32 ADX / PFX Drills

Product Code: A9209/32

$32.07$29.15 Ex. GST

Product Code: A9209/32 SKU A9209/32 Categories , ,
DORMER A9209/32 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

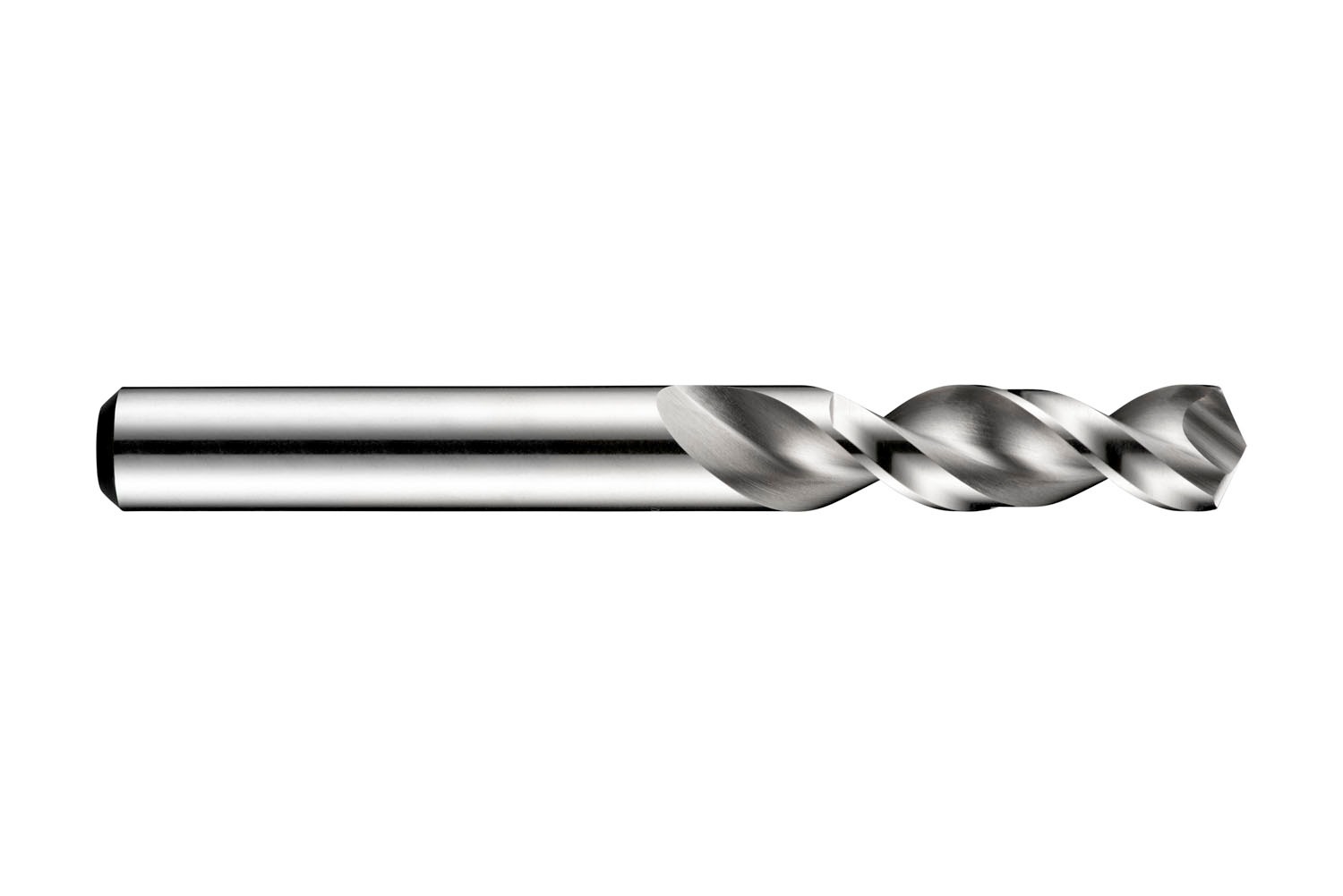

Stub length PFX drill with straight shank, diameter 0.2813″ (9/32) with an overall length of 68mm and flute length of 38mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 3xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0311 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760051443
Product number (SAP): 86011679
Ordering code ANSI: A9209/32
Product Line: PFX
Gross weight – grams: 15.84
Cutting diameter – fractional inch (DC): 9/32
Cutting diameter – millimeter (DC): 7.14 mm
Cutting diameter – inch (DC): 0.2813 inch
Length chip flute – millimeter (LCF): 38 mm
Overall length – millimeter (OAL): 68 mm
Connection diameter – millimeter (DCON MS): 7.14 mm
Length chip flute – inch (LCF): 1.4961 inch
ISO: A9209/32

Brand

DORMER
