DORMER A9403/16 ADX / PFX Drills

Product Code: A9403/16

$54.49$49.54 Ex. GST

Product Code: A9403/16 SKU A9403/16 Categories , ,
DORMER A9403/16 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

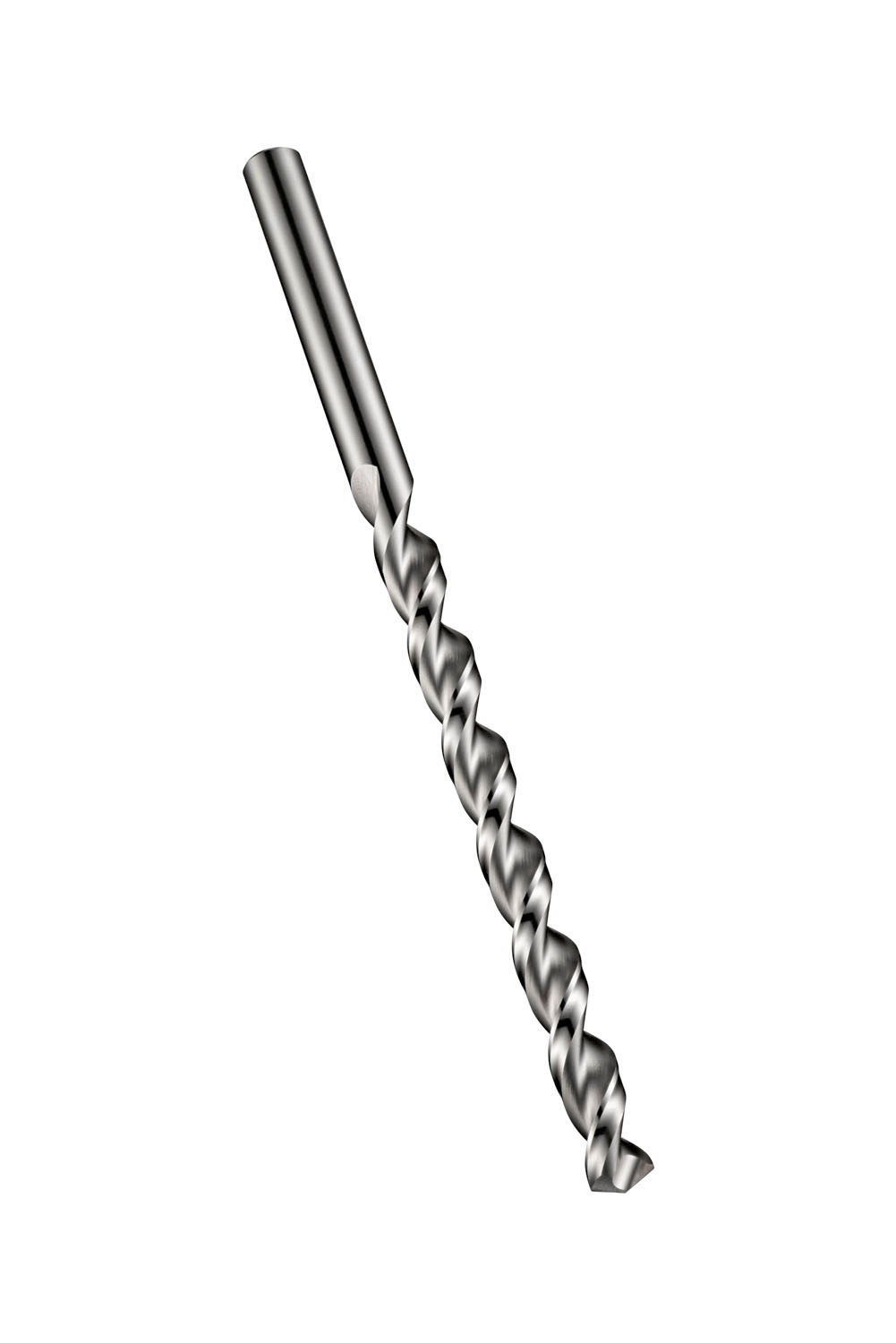

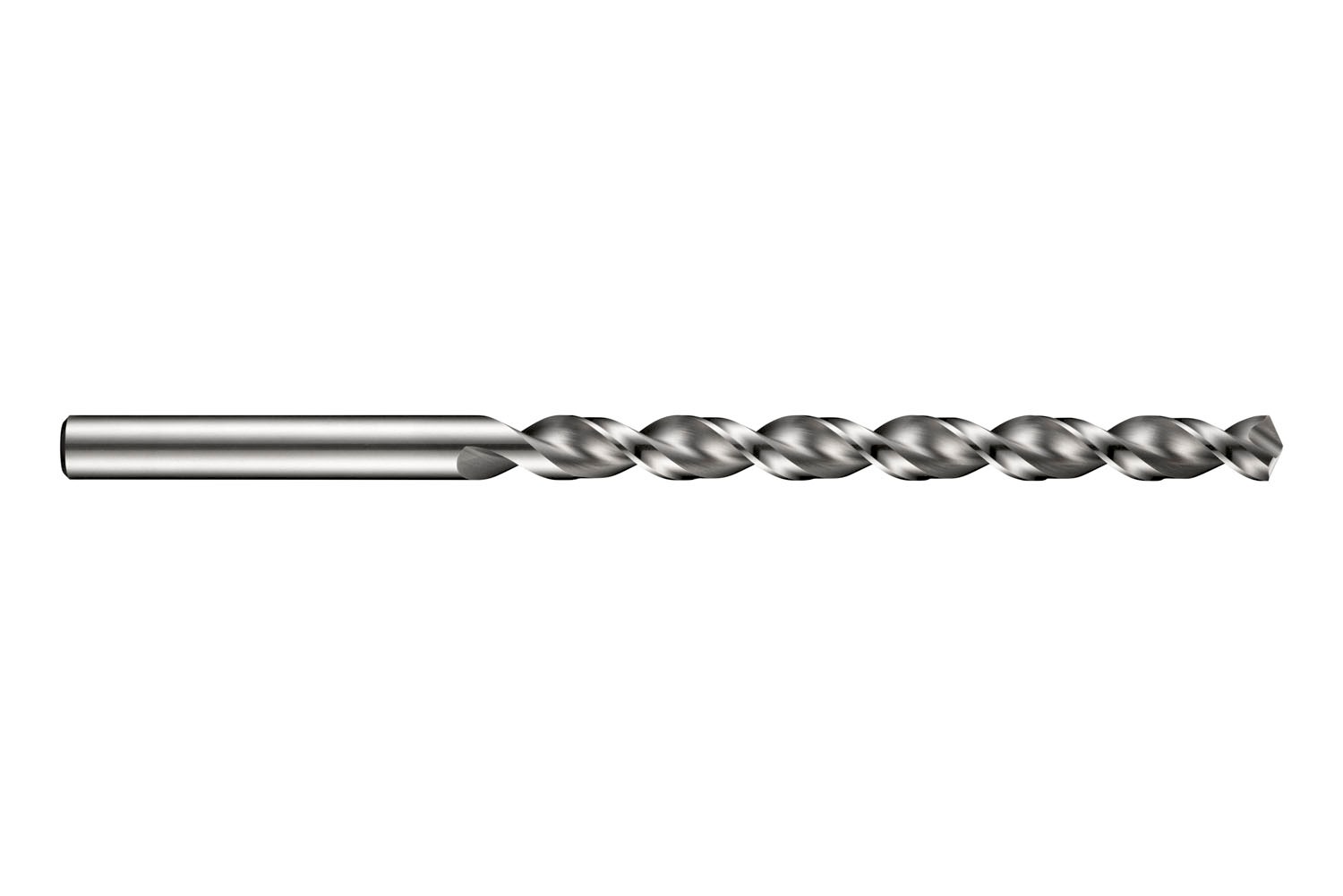

Long series PFX drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 146mm and flute length of 86mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0529 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760056318
Product number (SAP): 86012024
Ordering code ANSI: A9403/16
Product Line: PFX
Gross weight – grams: 19

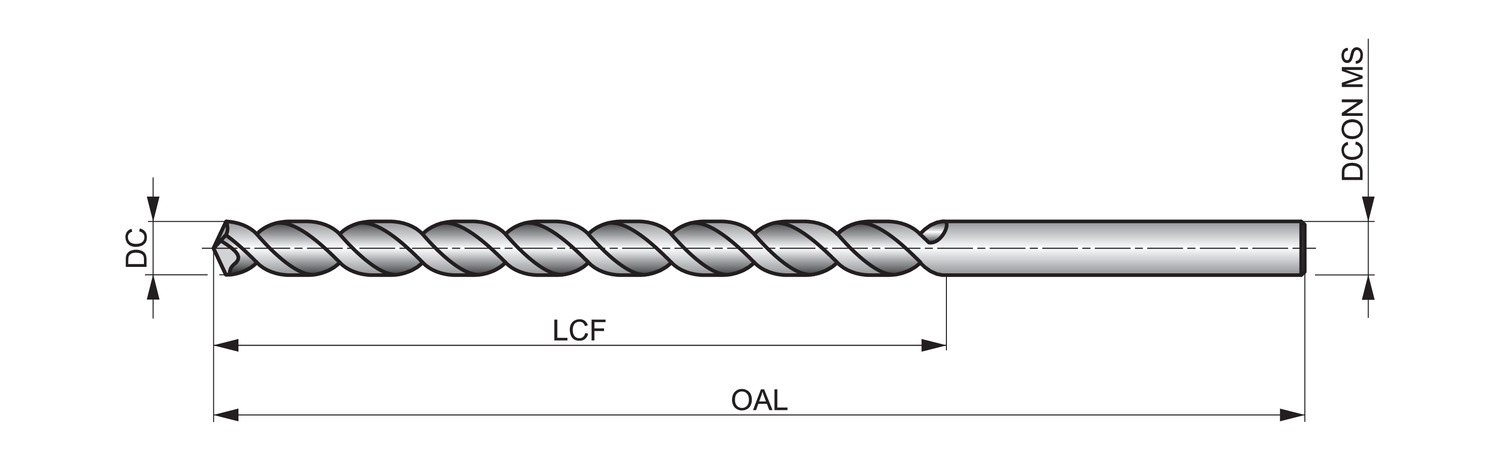

Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Cutting diameter – inch (DC): 0.1875 inch
Length chip flute – millimeter (LCF): 86 mm
Overall length – millimeter (OAL): 146 mm
Connection diameter – millimeter (DCON MS): 4.76 mm
Length chip flute – inch (LCF): 3.3858 inch
ISO: A9403/16

Brand

DORMER
