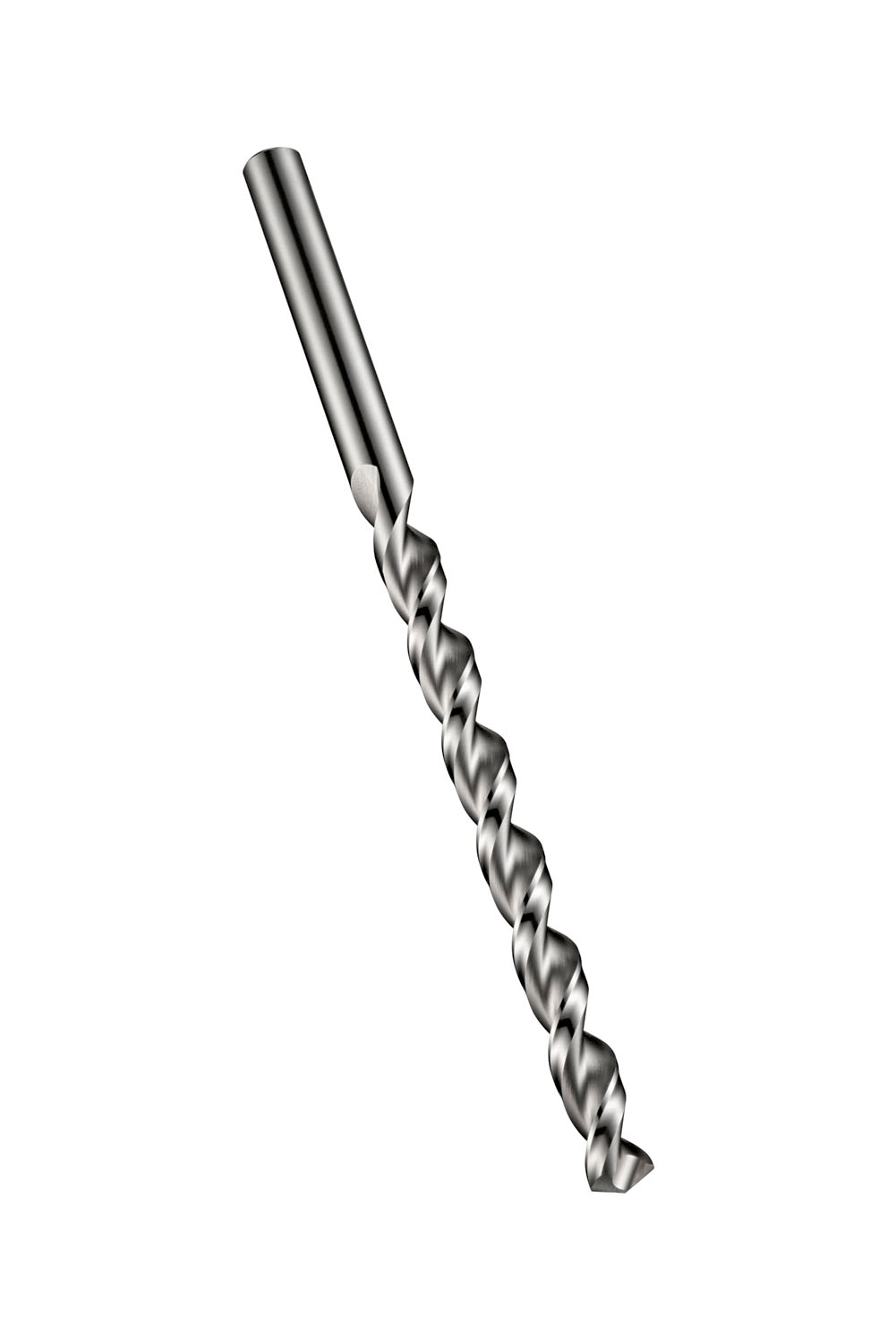

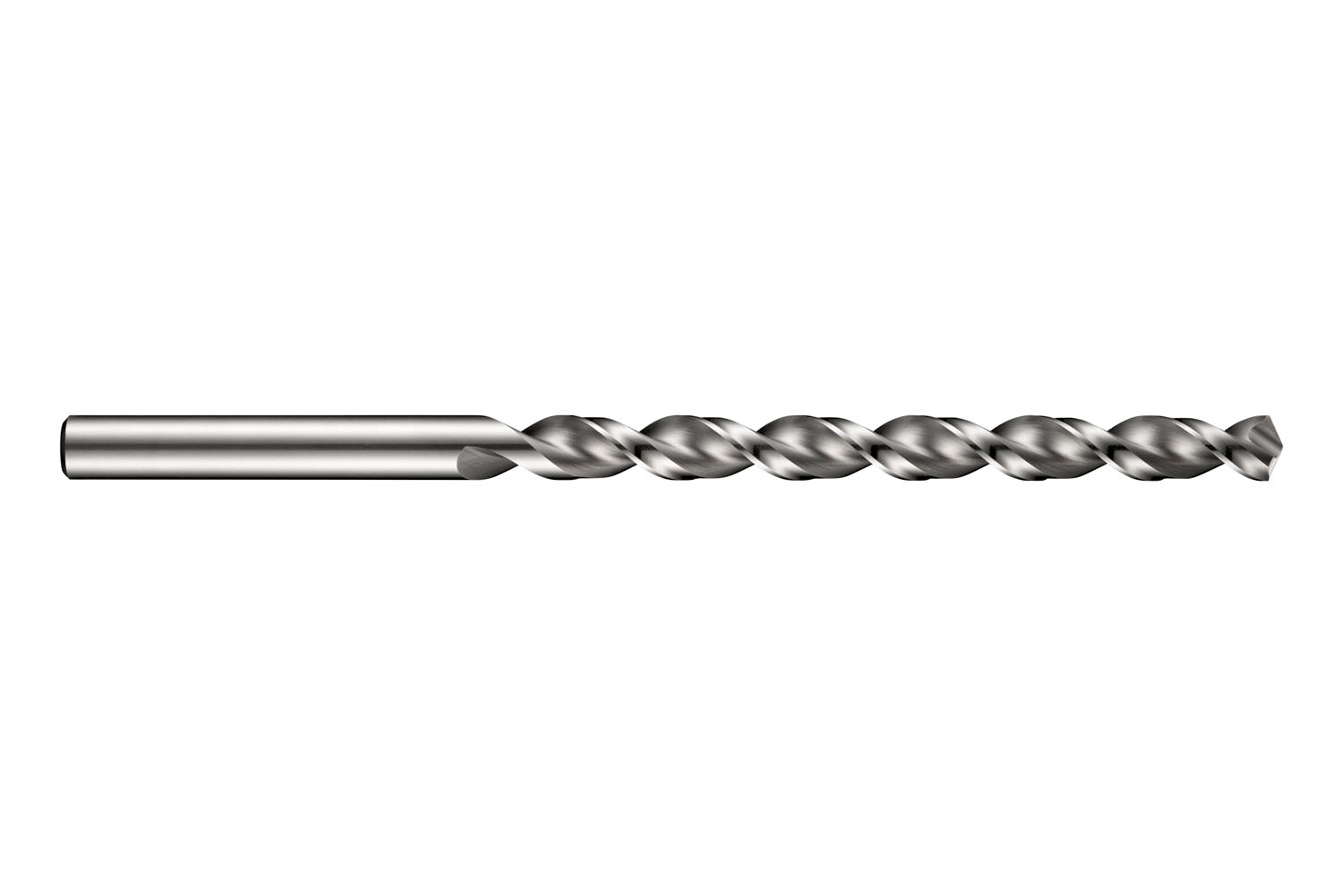

DORMER A9404.4 ADX / PFX Drills

Product Code: A9404.4

$49.06$44.60 Ex. GST

Product Code: A9404.4 SKU A9404.4 Categories , ,
DORMER A9404.4 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Long series PFX drill with straight shank, diameter 4.4mm with an overall length of 126mm and flute length of 82mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0476 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760056271
Product number (SAP): 86012038
Ordering code ANSI: A9404.4
Product Line: PFX
Gross weight – grams: 12.5

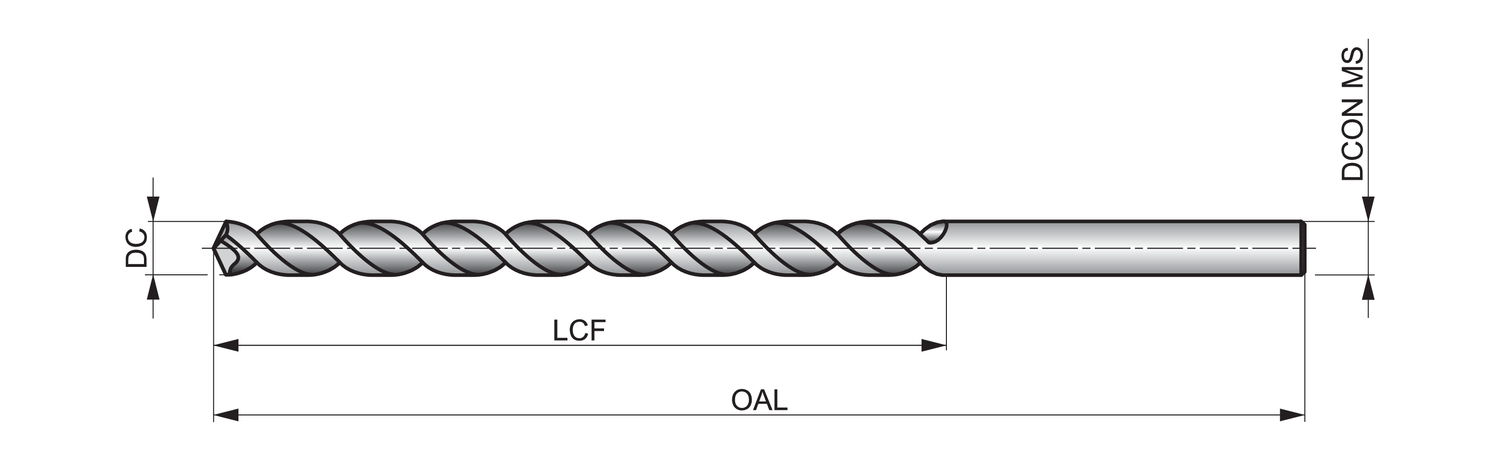

Cutting diameter – millimeter (DC): 4.4 mm
Cutting diameter – inch (DC): 0.1732 inch
Length chip flute – millimeter (LCF): 82 mm
Overall length – millimeter (OAL): 126 mm
Connection diameter – millimeter (DCON MS): 4.4 mm
Length chip flute – inch (LCF): 3.2283 inch
ISO: A9404.4

Brand

DORMER
