DORMER A9406.5 ADX / PFX Drills

Product Code: A9406.5

$78.75$71.59 Ex. GST

Product Code: A9406.5 SKU A9406.5 Categories , ,

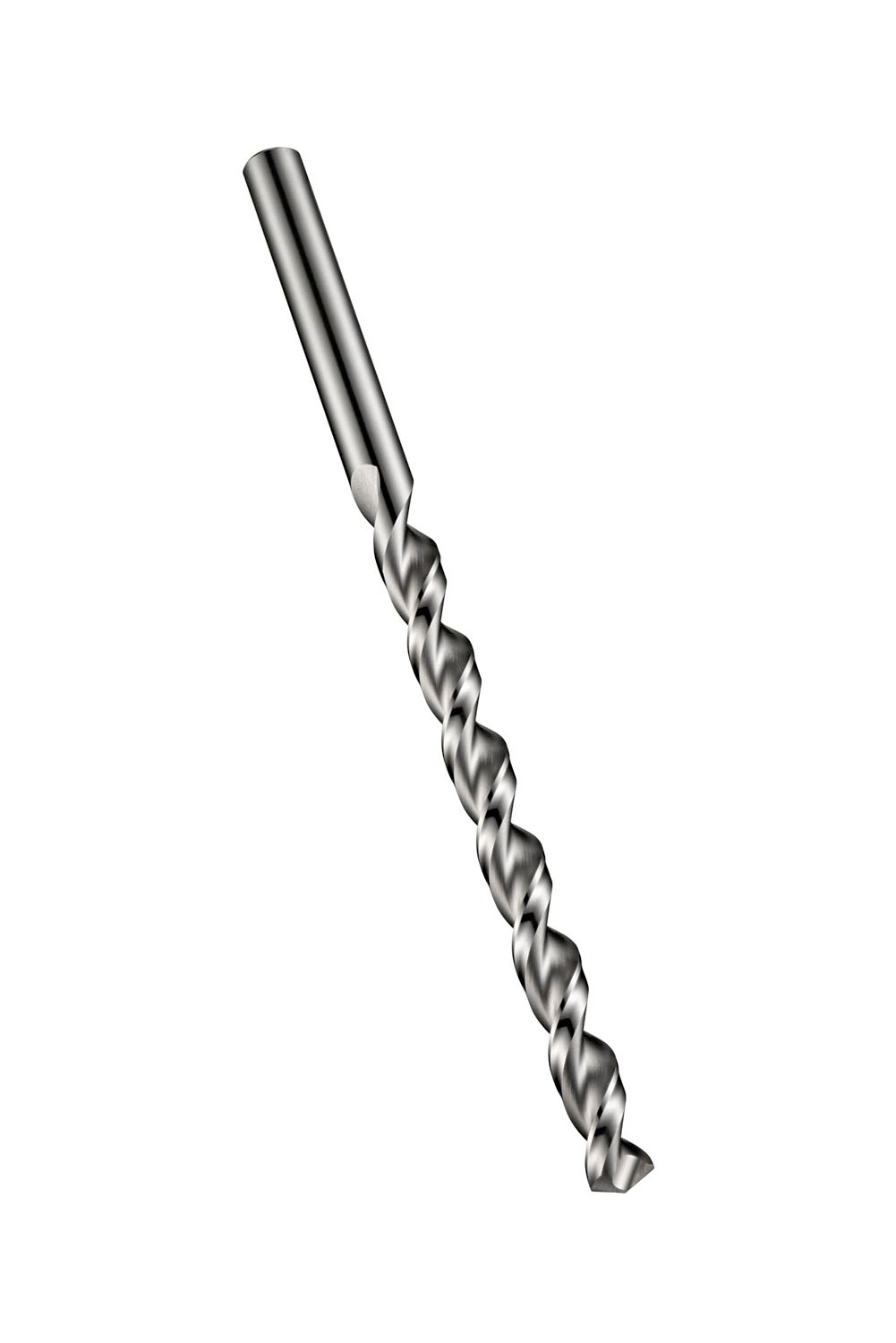

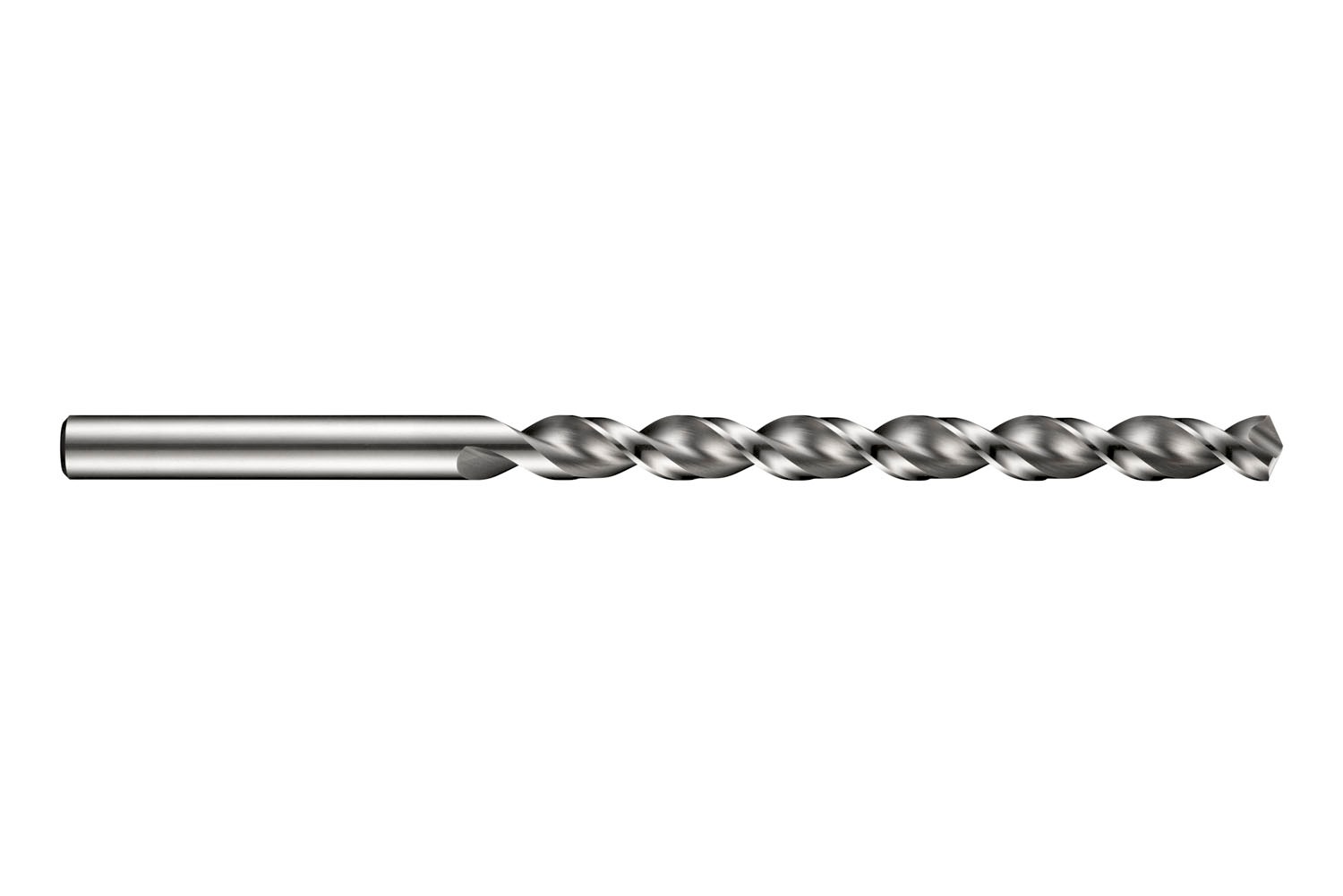

DORMER A9406.5 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Long series PFX drill with straight shank, diameter 6.5mm with an overall length of 148mm and flute length of 97mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

Additional information

Weight 0.0765 kg
Dimensions
barcode
Additional Information

Description: Value

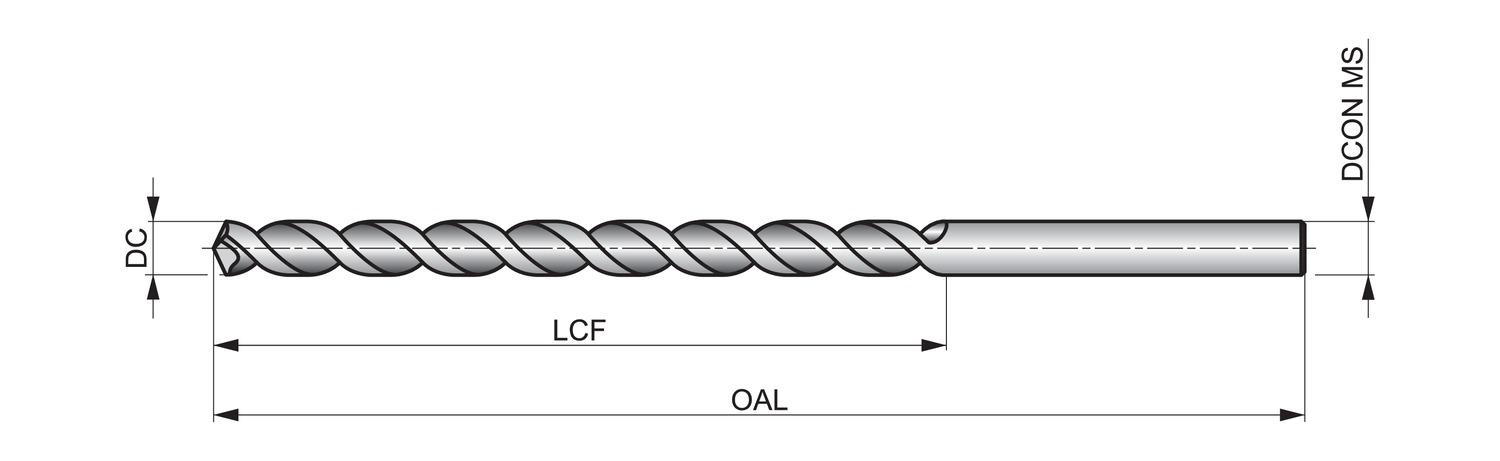

EAN number: 7320760058183 Product number (SAP): 86012068 Ordering code ANSI: A9406.5 Product Line: PFX Gross weight – grams: 30.5 Cutting diameter – millimeter (DC): 6.5 mm Cutting diameter – inch (DC): 0.2559 inch Length chip flute – millimeter (LCF): 97 mm Overall length – millimeter (OAL): 148 mm Connection diameter – millimeter (DCON MS): 6.5 mm Length chip flute – inch (LCF): 3.8189 inch ISO: A9406.5

Brand

DORMER
