DORMER A95214.0 HSS/HSCo Drills

Product Code: A95214.0

$412.41$374.92 Ex. GST

Product Code: A95214.0 SKU A95214.0 Categories , ,
DORMER A95214.0 HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

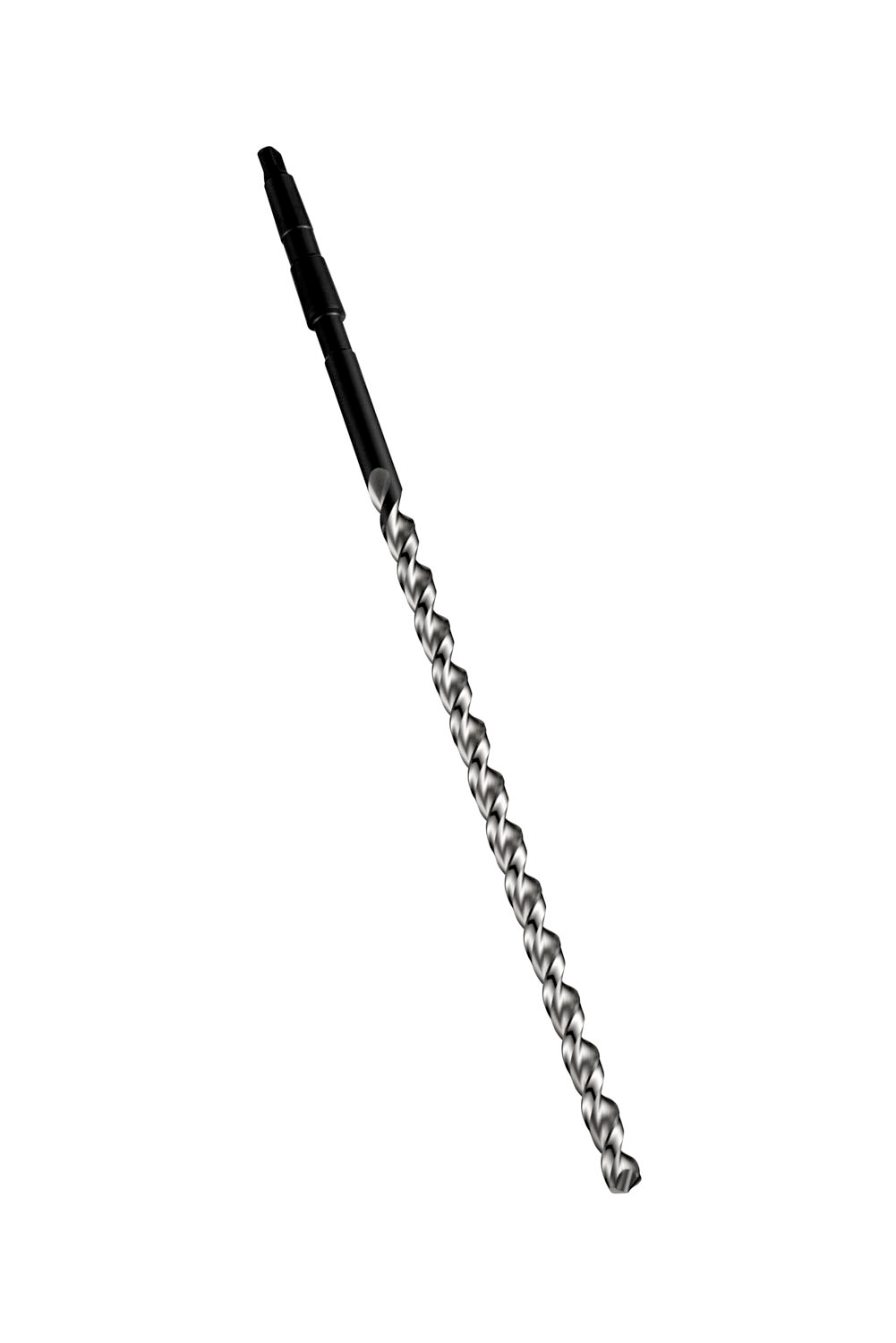

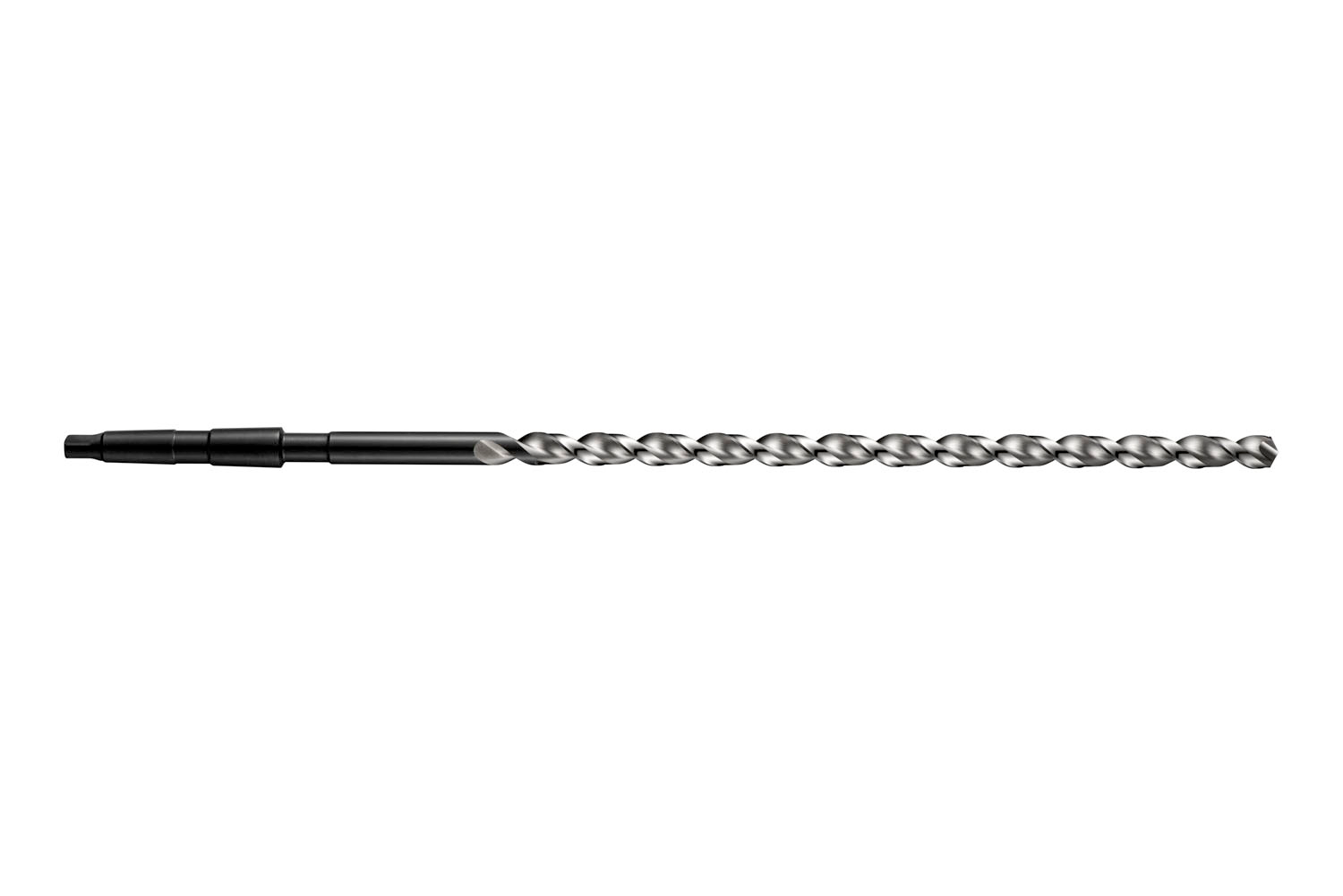

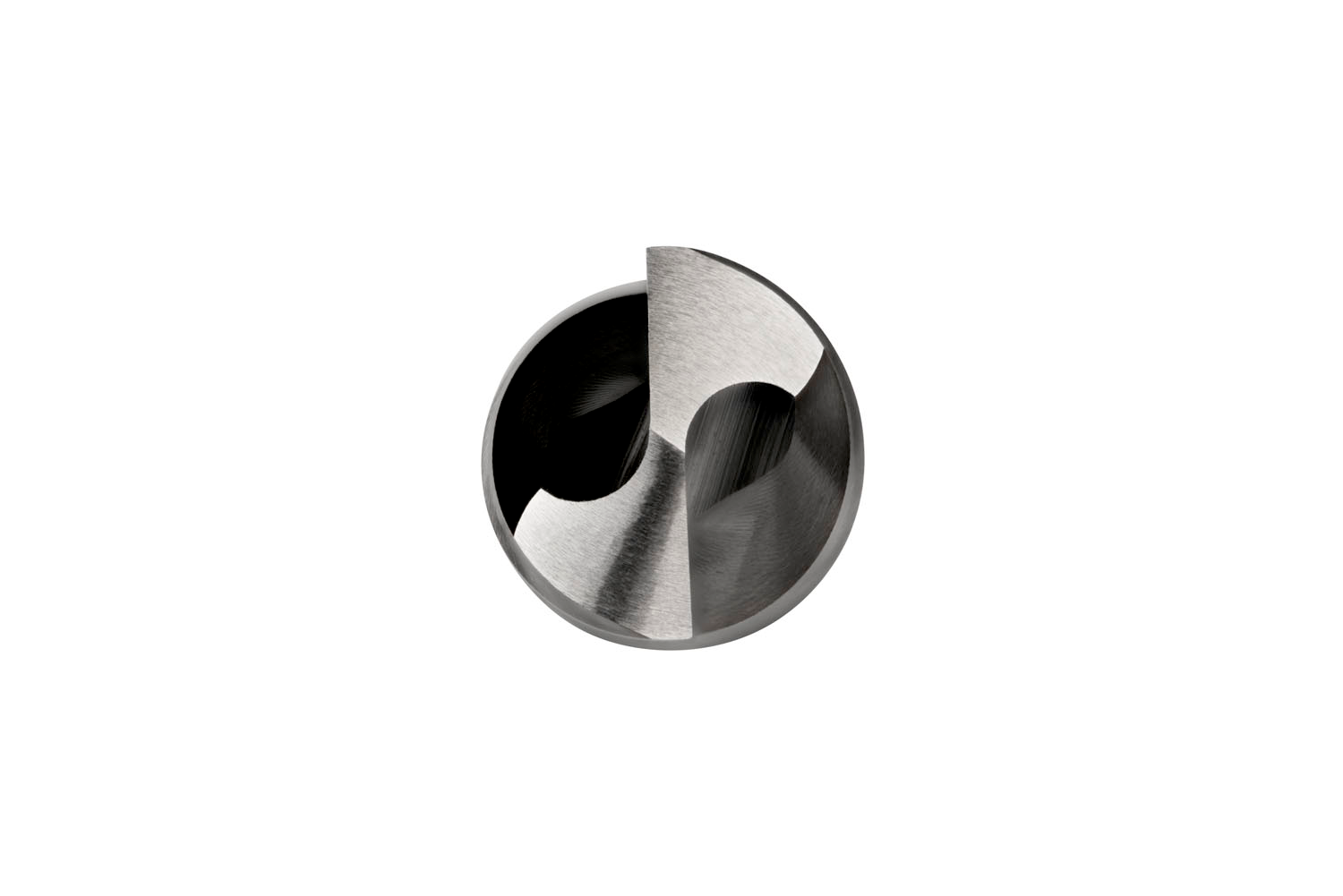

Extra long length drill with taper shank, diameter 14mm with an overall length of 410mm and flute length of 275mm according to DIN 1870 (2) standard with 130° point angle, HSS with bright + steam tempered finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.4004 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760419953
Product number (SAP): 86012278
Ordering code ANSI: A95214.0
Gross weight – grams: 313

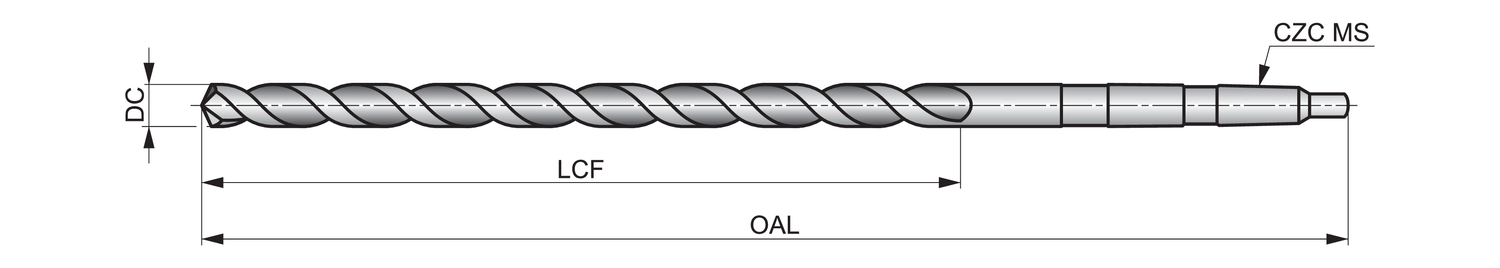

Cutting diameter – millimeter (DC): 14 mm
Cutting diameter – inch (DC): 0.5512 inch
Length chip flute – millimeter (LCF): 275 mm
Overall length – millimeter (OAL): 410 mm
Connection size code machine side (CZC MS): MK 1
Length chip flute – inch (LCF): 10.8268 inch
ISO: A95214.0

Brand

DORMER
