DORMER A9761/4 ADX / PFX Drills

Product Code: A9761/4

$108.21$98.37 Ex. GST

Product Code: A9761/4 SKU A9761/4 Categories , ,
DORMER A9761/4 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

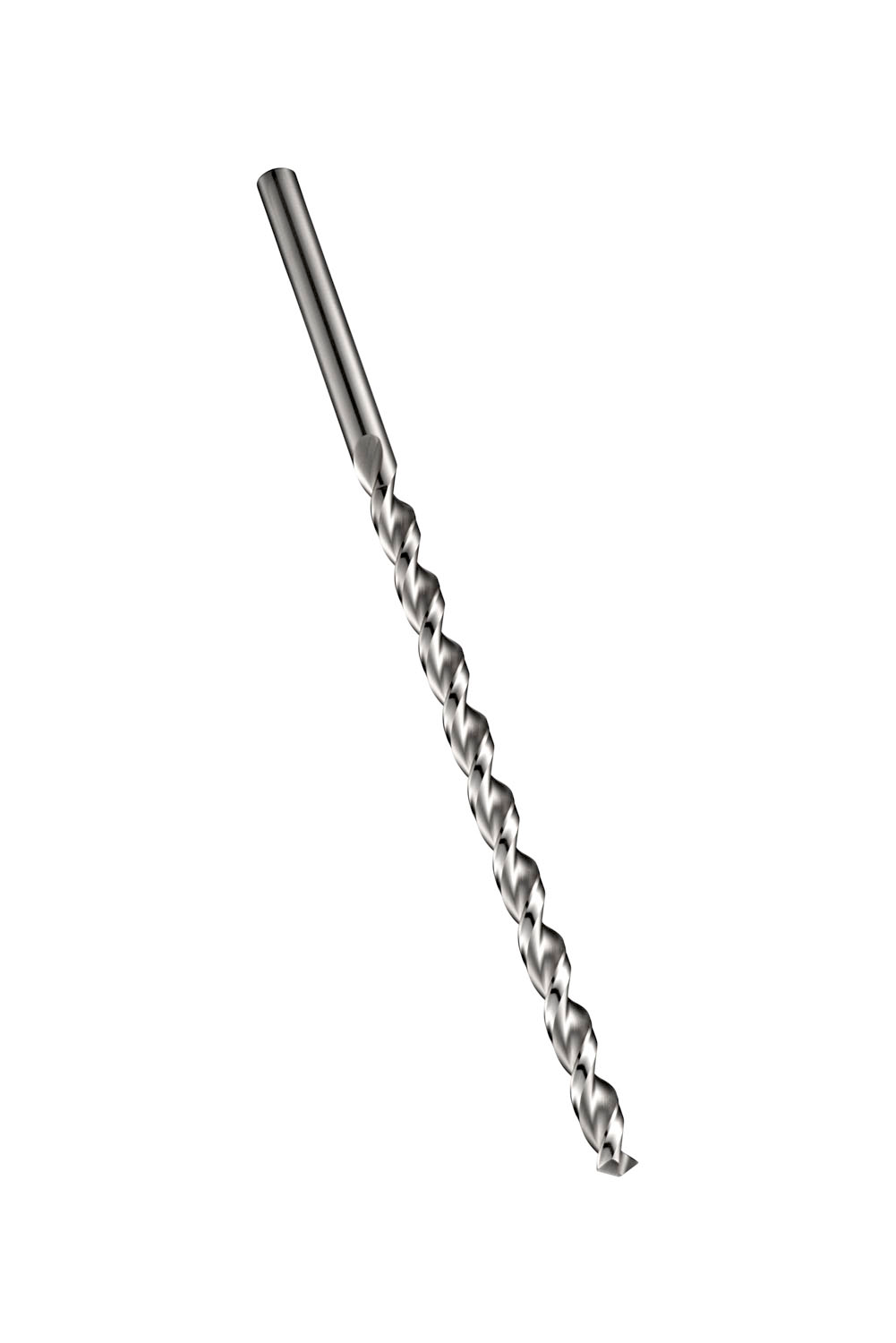

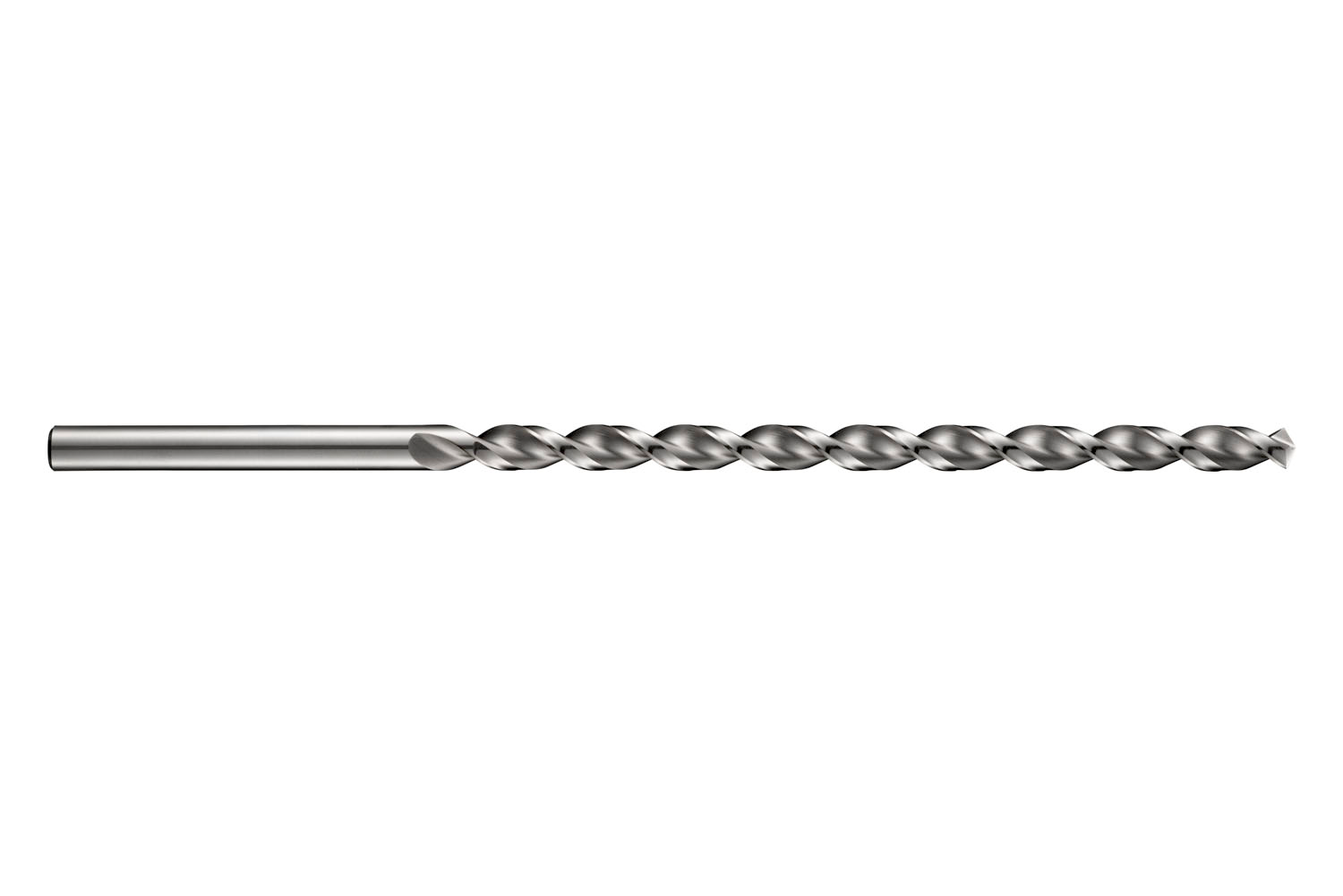

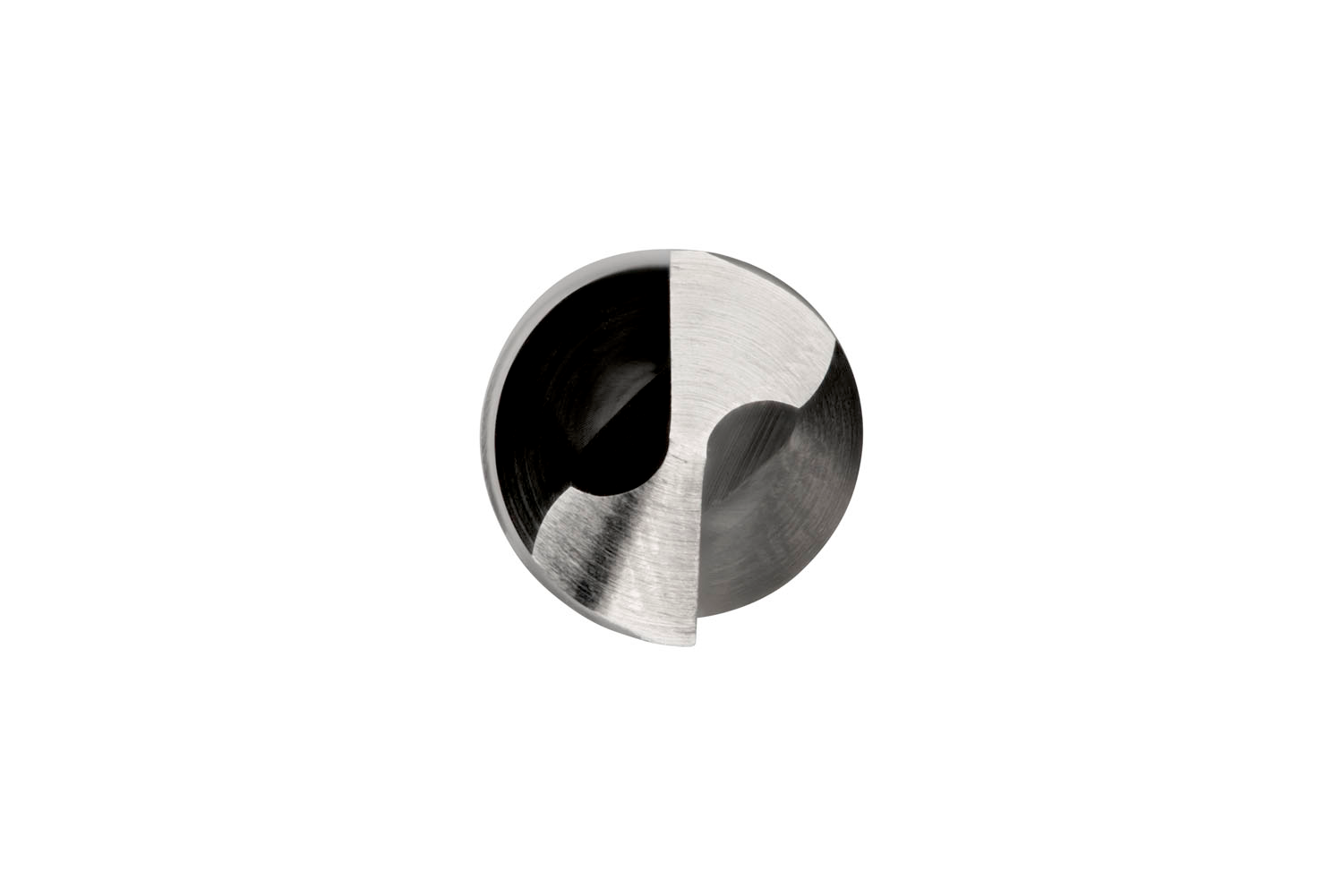

Extra long length PFX drill with straight shank, diameter 0.2500″ (1/4) with an overall length of 215mm and flute length of 150mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.1051 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347096
Product number (SAP): 86012313
Ordering code ANSI: A9761/4
Product Line: PFX
Gross weight – grams: 42.2
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Cutting diameter – inch (DC): 0.25 inch
Length chip flute – millimeter (LCF): 150 mm
Overall length – millimeter (OAL): 215 mm
Connection diameter – millimeter (DCON MS): 6.35 mm
Length chip flute – inch (LCF): 5.9055 inch
ISO: A9761/4

Brand

DORMER
