DORMER A9761/8 ADX / PFX Drills

Product Code: A9761/8

$55.29$50.26 Ex. GST

Product Code: A9761/8 SKU A9761/8 Categories , ,
DORMER A9761/8 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

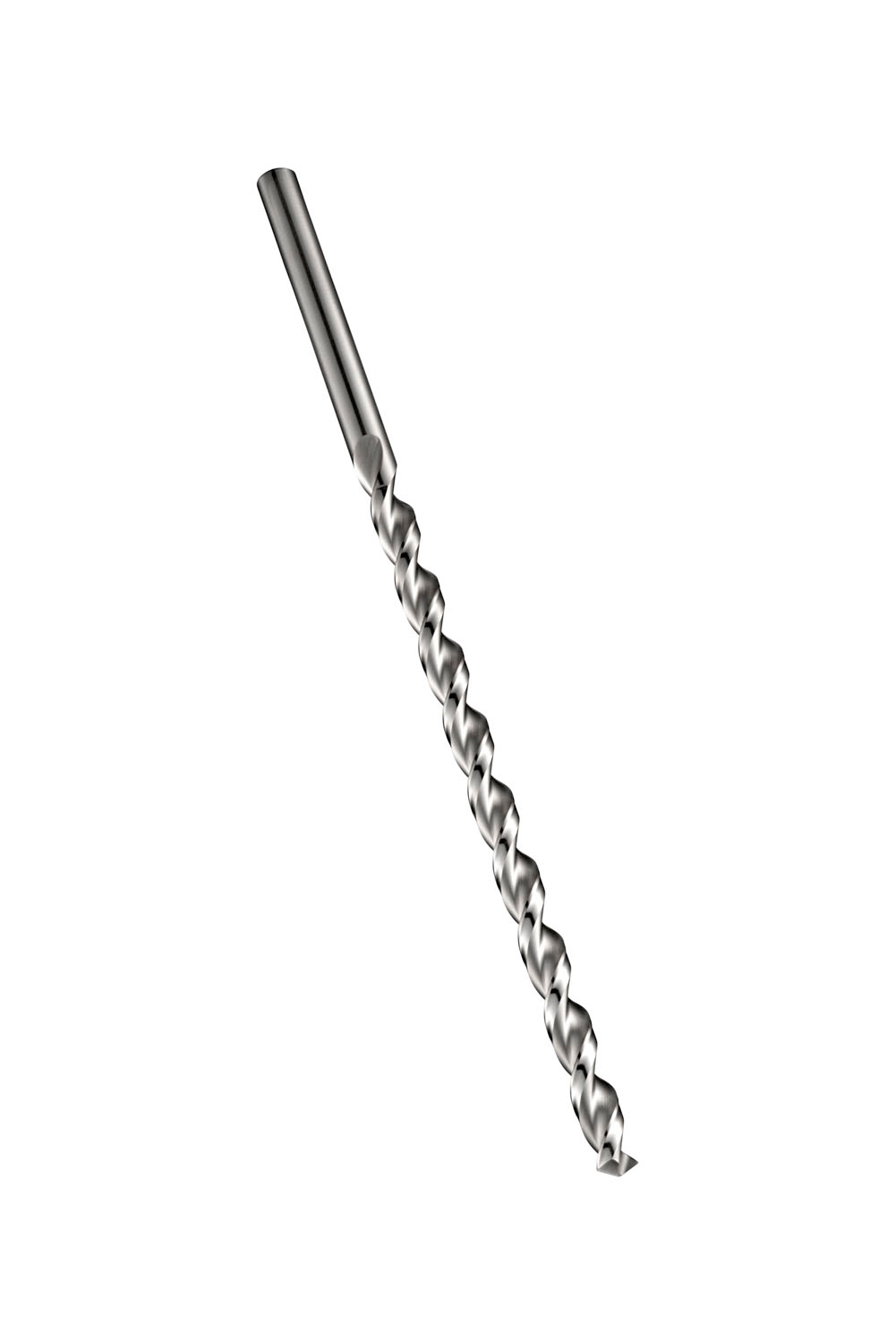

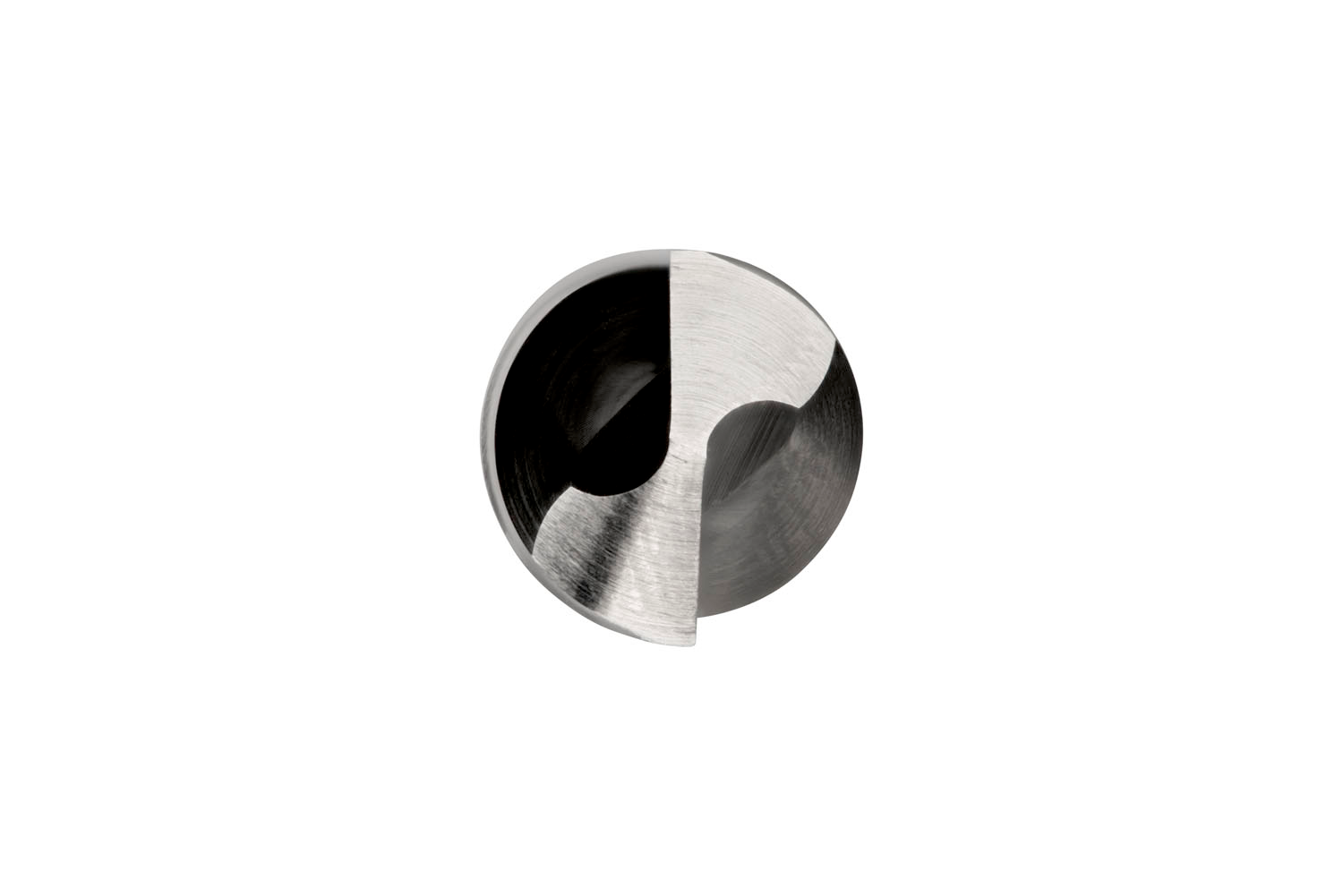

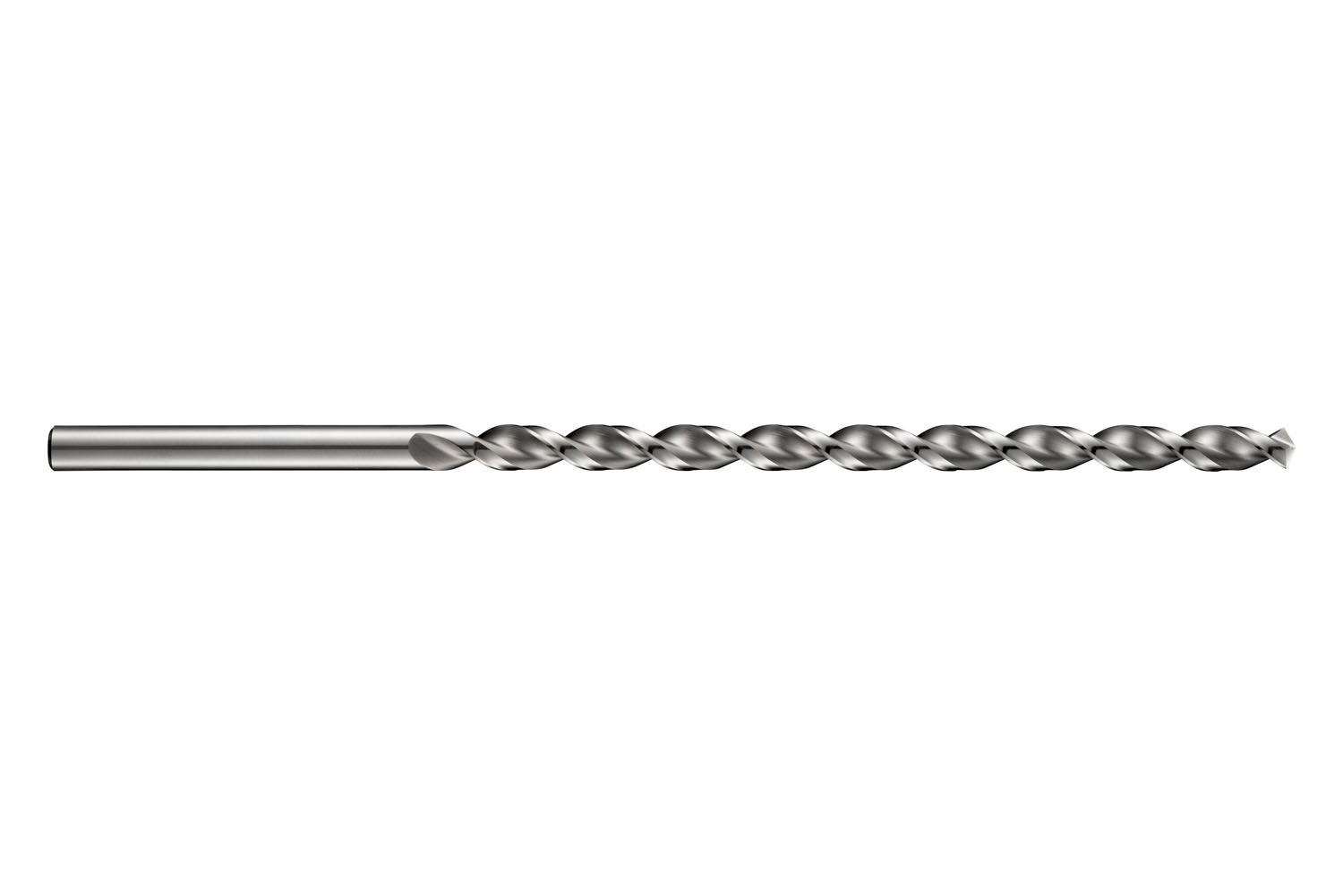

Extra long length PFX drill with straight shank, diameter 0.1252″ (1/8) with an overall length of 155mm and flute length of 105mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.0537 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347072
Product number (SAP): 86012314
Ordering code ANSI: A9761/8
Product Line: PFX
Gross weight – grams: 13.9
Cutting diameter – fractional inch (DC): 1/8
Cutting diameter – millimeter (DC): 3.18 mm
Cutting diameter – inch (DC): 0.125 inch
Length chip flute – millimeter (LCF): 105 mm
Overall length – millimeter (OAL): 155 mm
Connection diameter – millimeter (DCON MS): 3.18 mm
Length chip flute – inch (LCF): 4.1339 inch
ISO: A9761/8

Brand

DORMER
