DORMER A97611.0 ADX / PFX Drills

Product Code: A97611.0

$316.11$287.37 Ex. GST

Product Code: A97611.0 SKU A97611.0 Categories , ,

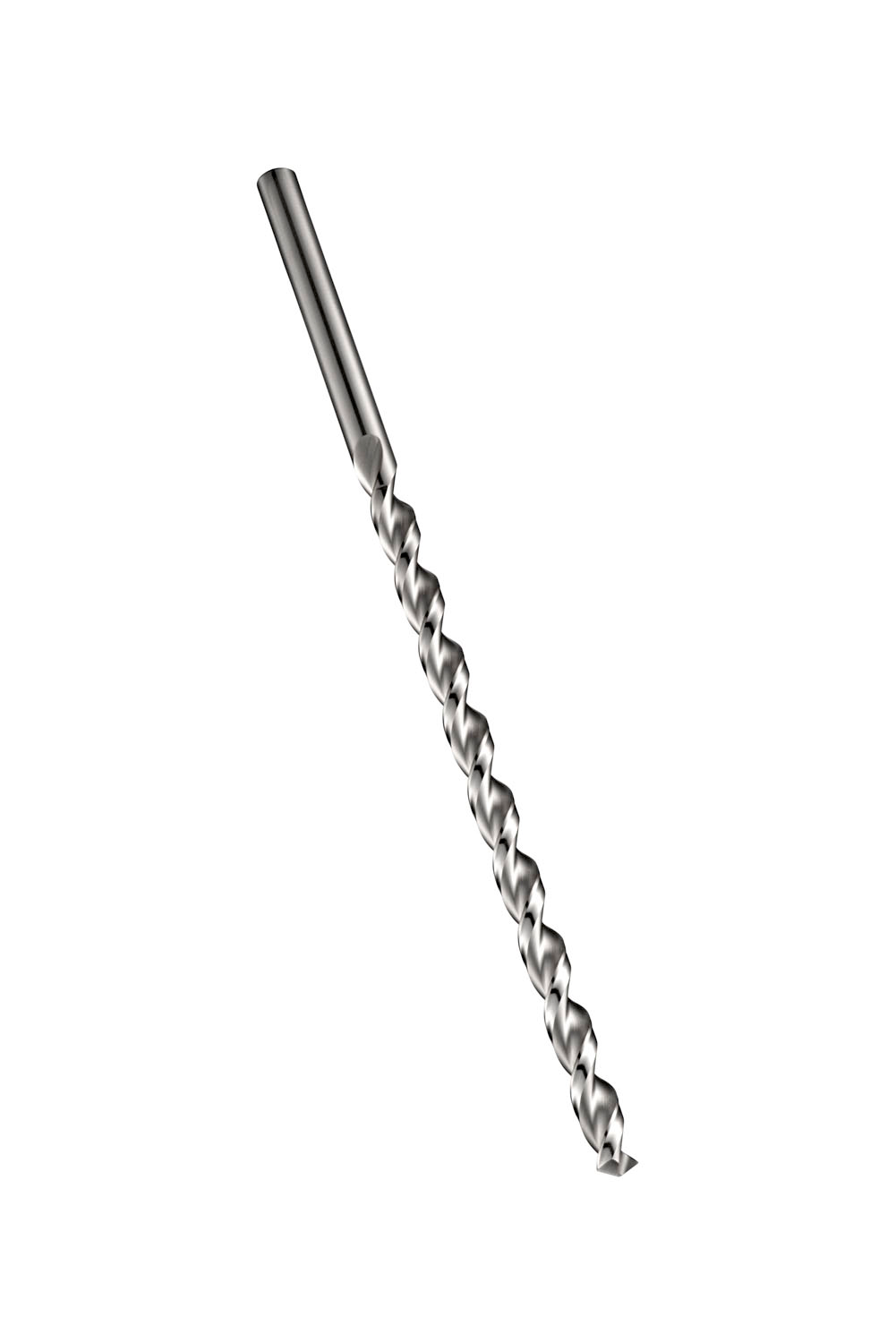

DORMER A97611.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

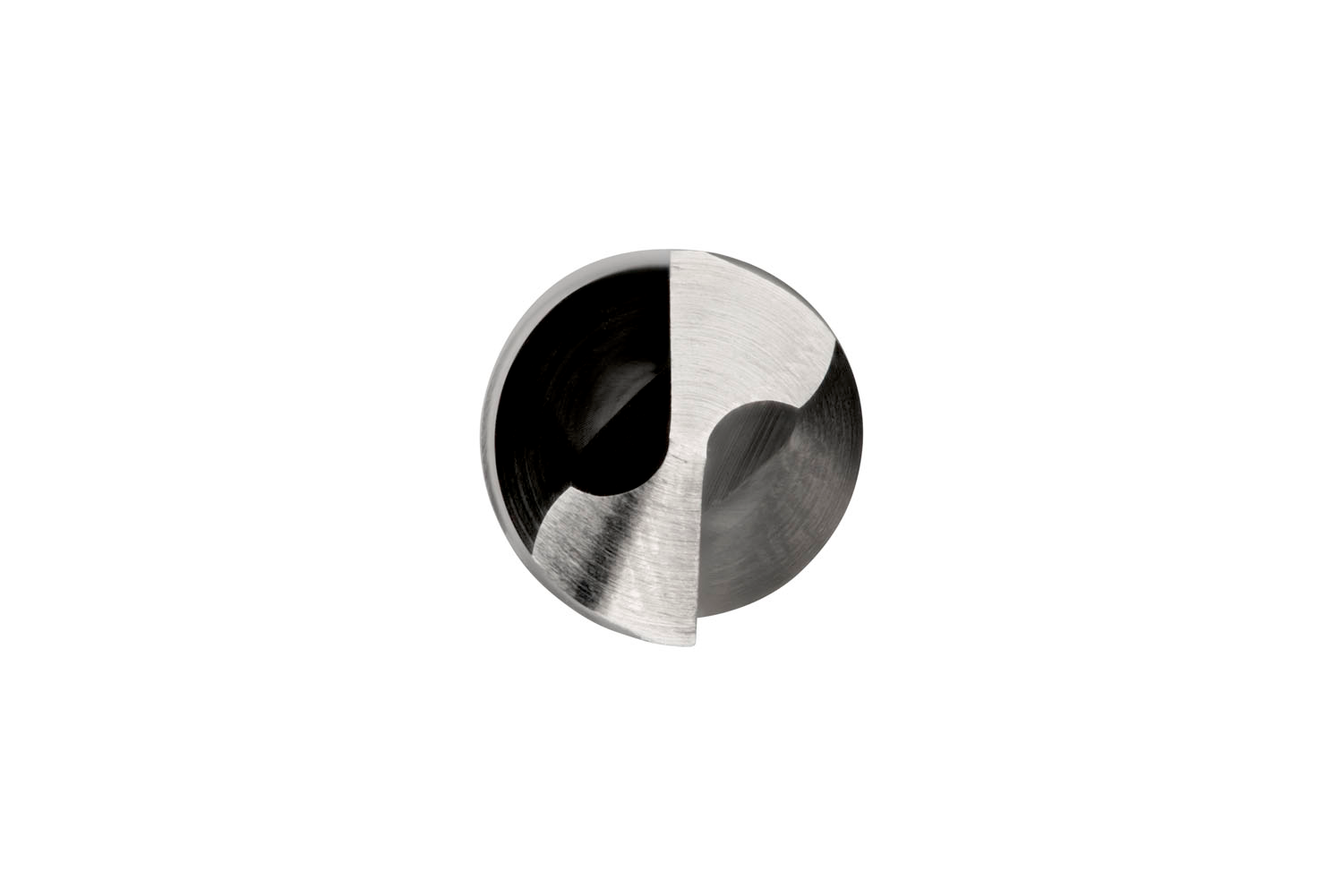

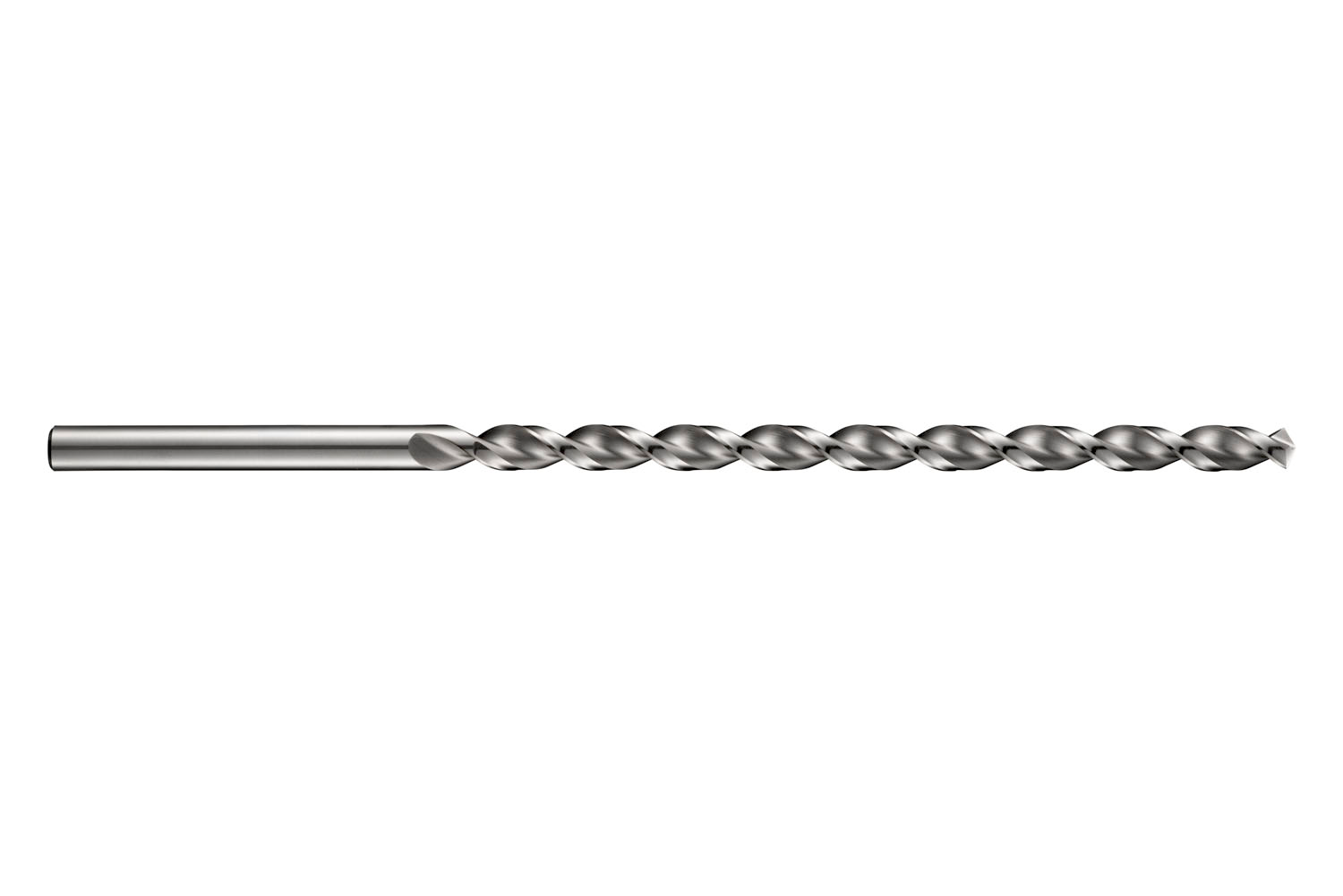

Extra long length PFX drill with straight shank, diameter 11mm with an overall length of 280mm and flute length of 195mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.3069 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347140
Product number (SAP): 86012317
Ordering code ANSI: A97611.0
Product Line: PFX
Gross weight – grams: 168
Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 195 mm
Overall length – millimeter (OAL): 280 mm
Connection diameter – millimeter (DCON MS): 11 mm
Length chip flute – inch (LCF): 7.6772 inch
ISO: A97611.0

Brand

DORMER
