DORMER A97613.0 ADX / PFX Drills

Product Code: A97613.0

$423.74$385.22 Ex. GST

Product Code: A97613.0 SKU A97613.0 Categories , ,
DORMER A97613.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

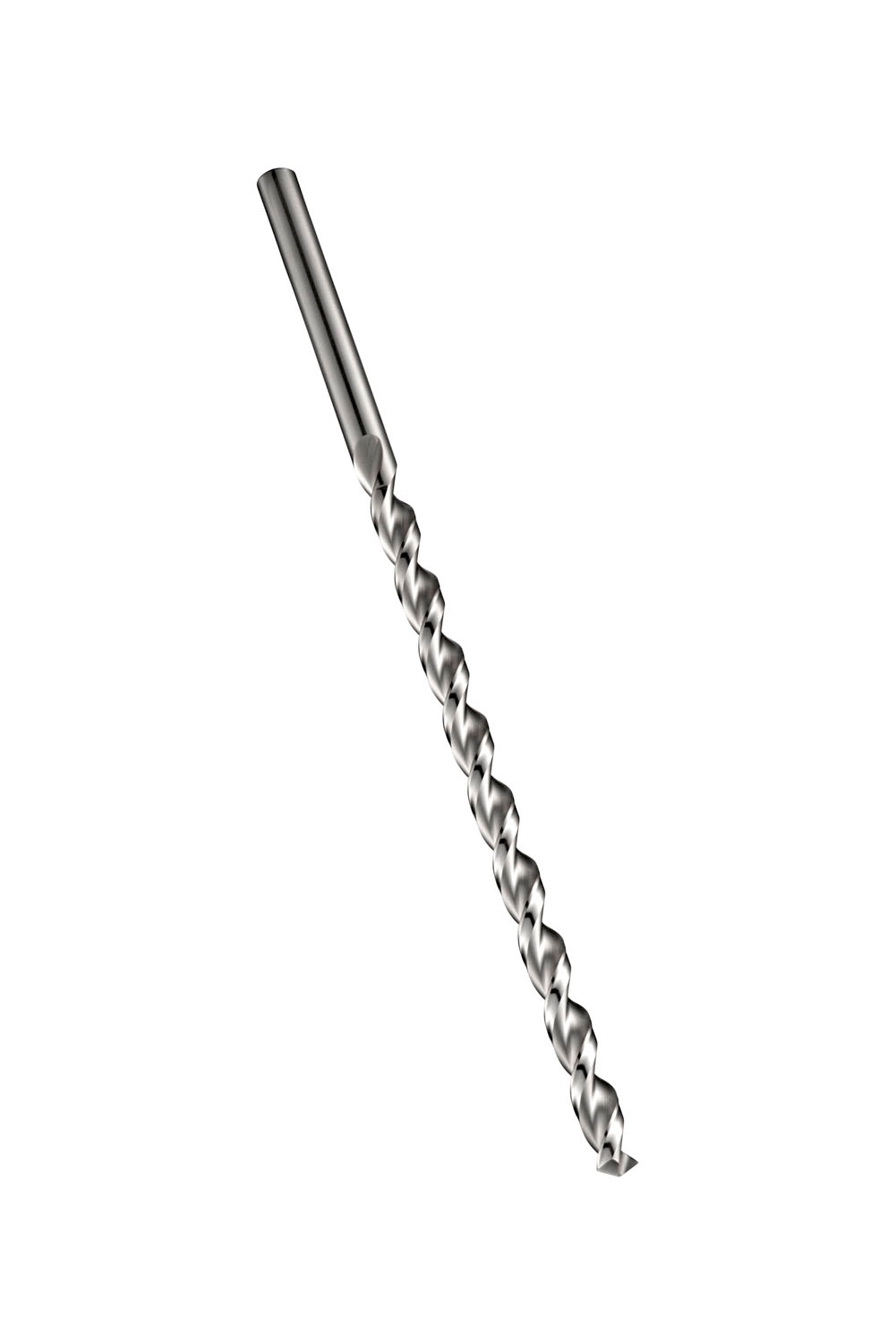

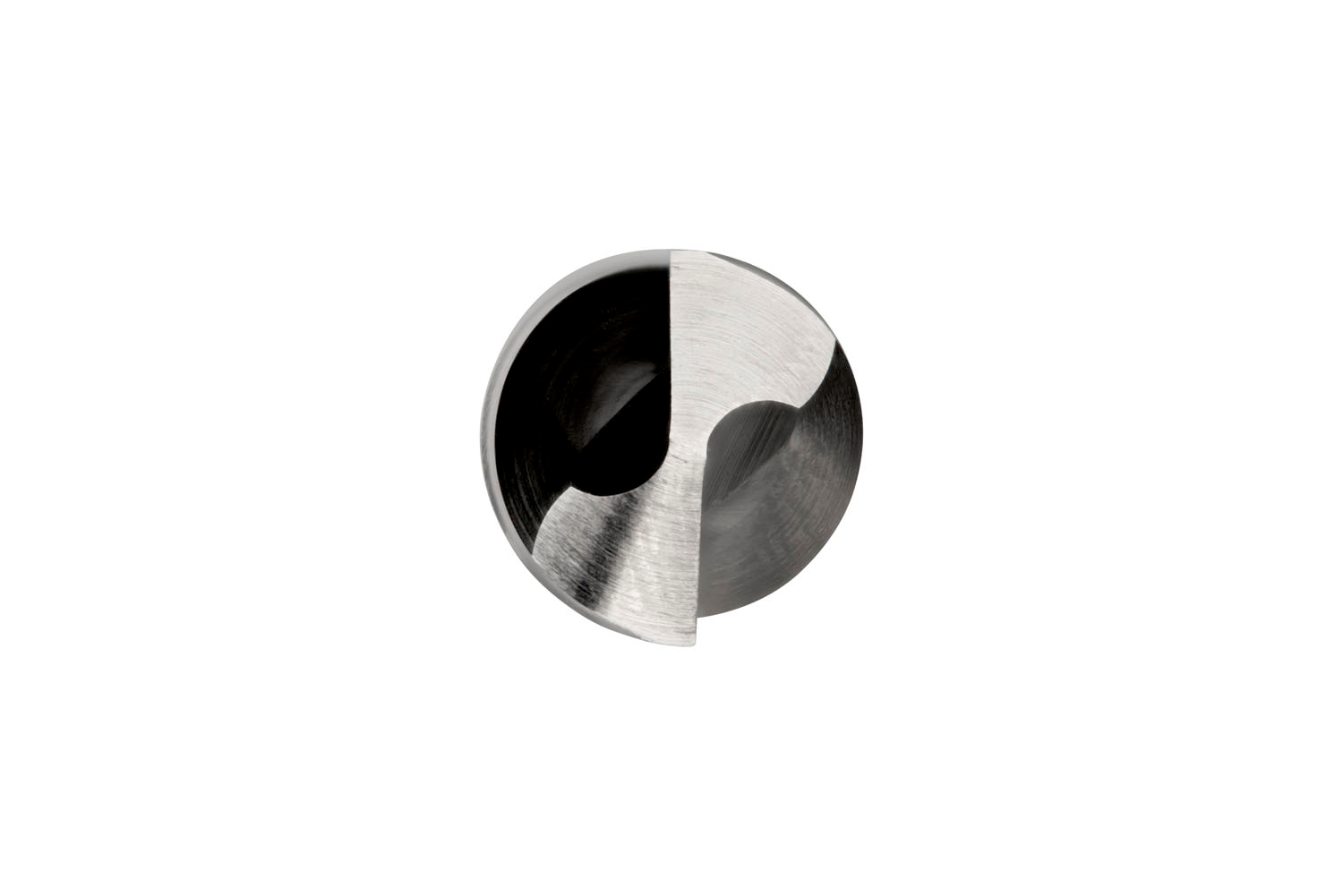

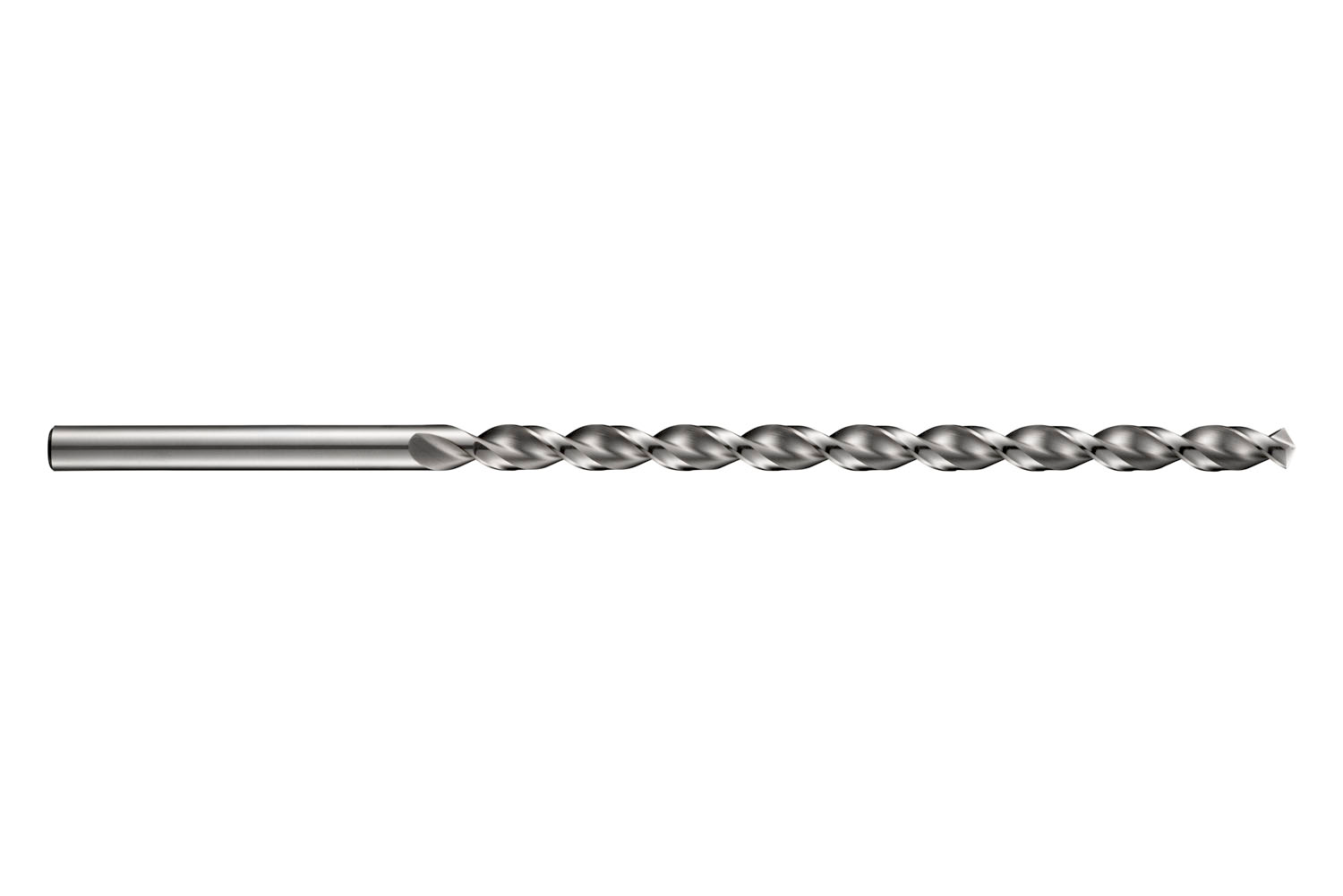

Extra long length PFX drill with straight shank, diameter 13mm with an overall length of 295mm and flute length of 205mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.4114 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347195
Product number (SAP): 86012322
Ordering code ANSI: A97613.0
Product Line: PFX
Gross weight – grams: 225.8
Cutting diameter – millimeter (DC): 13 mm
Cutting diameter – inch (DC): 0.5118 inch
Length chip flute – millimeter (LCF): 205 mm
Overall length – millimeter (OAL): 295 mm
Connection diameter – millimeter (DCON MS): 13 mm
Length chip flute – inch (LCF): 8.0709 inch
ISO: A97613.0

Brand

DORMER
