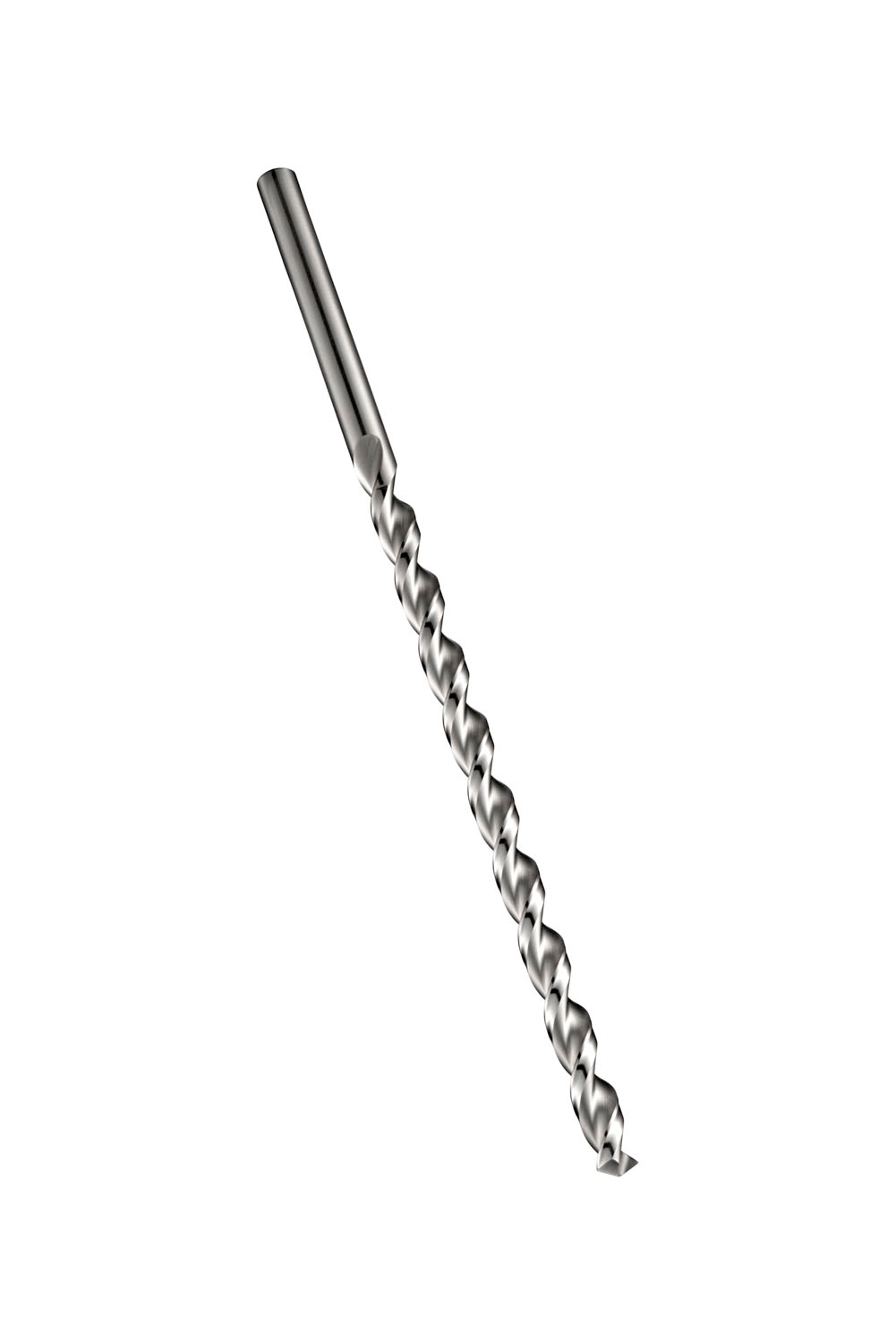

DORMER A97614.0 ADX / PFX Drills

Product Code: A97614.0

$493.99$449.08 Ex. GST

Product Code: A97614.0 SKU A97614.0 Categories , ,
DORMER A97614.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

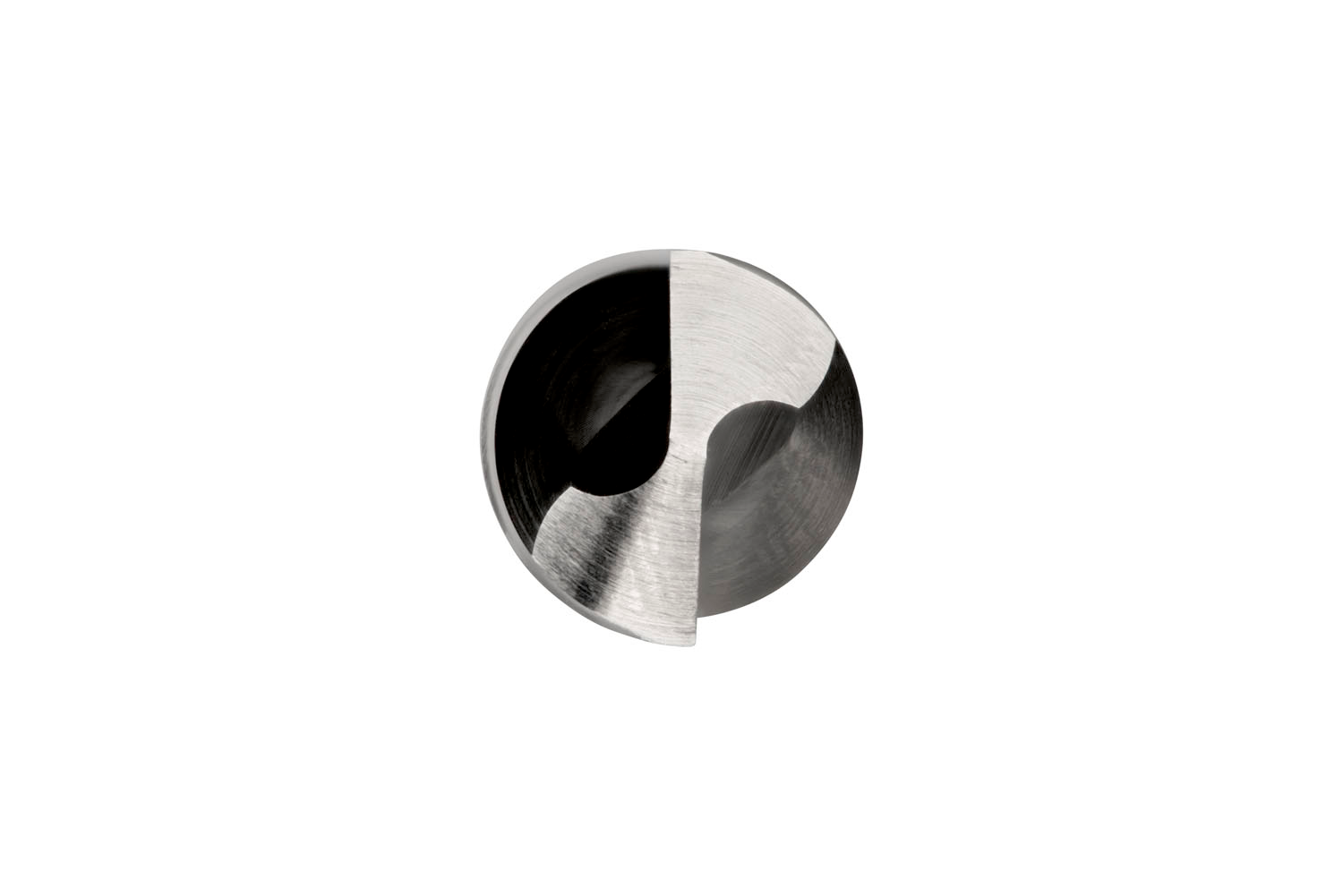

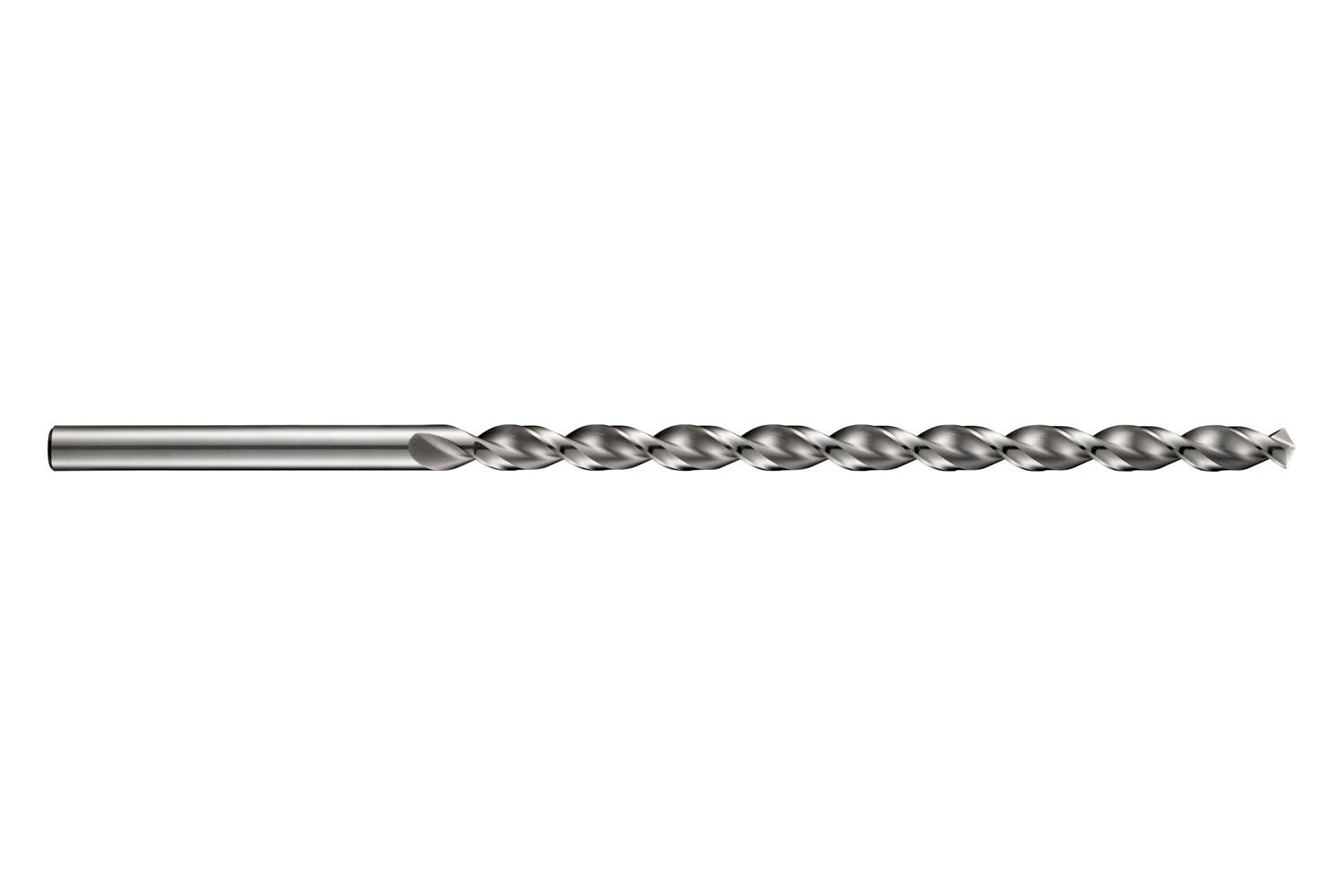

Extra long length PFX drill with straight shank, diameter 14mm with an overall length of 310mm and flute length of 215mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.4796 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347201
Product number (SAP): 86012323
Ordering code ANSI: A97614.0
Product Line: PFX
Gross weight – grams: 267.1
Cutting diameter – millimeter (DC): 14 mm
Cutting diameter – inch (DC): 0.5512 inch
Length chip flute – millimeter (LCF): 215 mm
Overall length – millimeter (OAL): 310 mm
Connection diameter – millimeter (DCON MS): 14 mm
Length chip flute – inch (LCF): 8.4646 inch
ISO: A97614.0

Brand

DORMER
